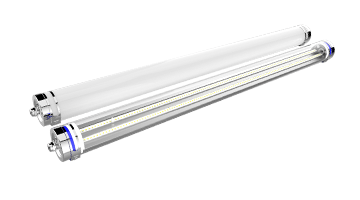

Tri-Proof Plus

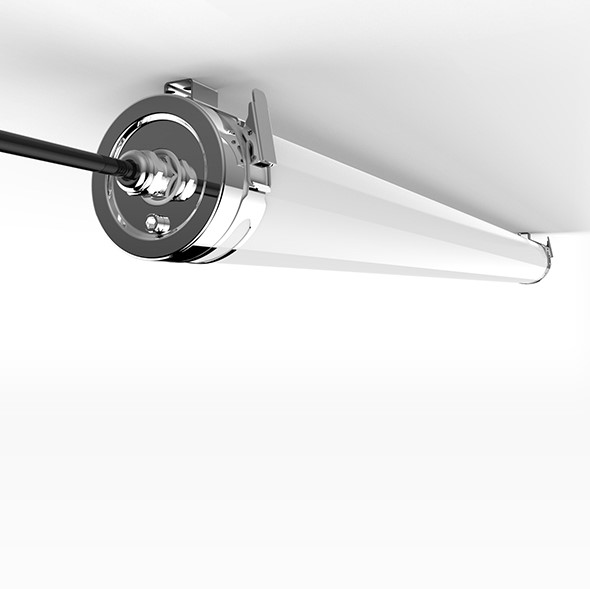

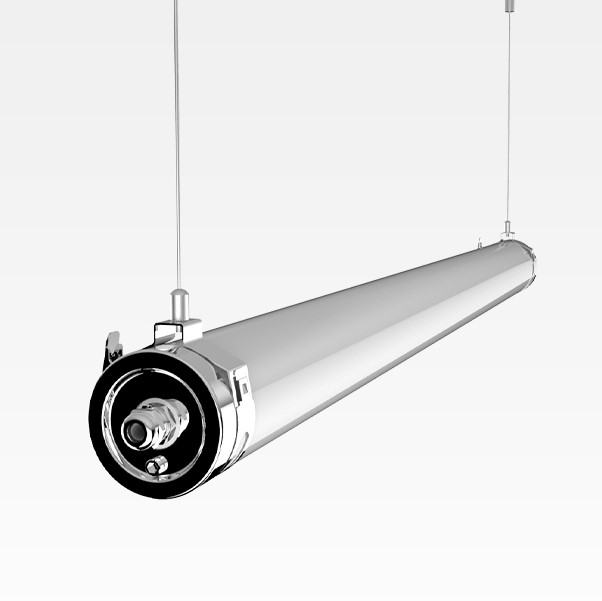

This special version of Ecopoint’s Tri-Proof is intended for use in environments where protection against a range of chemical agents or extra hygiene features are required. A construction of 316-grade stainless steel and PMMA provides resistance to many agents which polycarbonate is susceptible to, such as diesel, petrol, and a range of acids. A polycarbonate option is also available if impact resistance is more important than chemical resistance. It has an easy-clean round profile, the ability to surface-mount or suspend, and the flexibility to ‘aim’ the luminaire by rotation within the brackets.
APPLICATIONS
Exterior
Industrial
Commercial
Warehousing
SPECIFICATIONS
Power Factor:
>0.93
Electrical Input:
220-240V AC / 50-60 Hz
FEATURES
Warranty:
5 years
Construction:
Arcylic (PMMA), Polycarbonate (PC), Stainless Steel (316 SS)
Standard Mounting:
Surface-mounted
Standard Mounting:
Wall-mounted, Suspended
Life Prediction (hrs):
L70 > 76,000 hrs (B10)
Ingress Protection:
IP67, IK69K
Impact Protection:
IK06, IK10
| PRODUCT CODE | DIMENSION (mm) | POWER | Luminous Flux | Optic/Beam | Colour Temperature | Colour Rending Index |
|---|---|---|---|---|---|---|
| ETP600S20W840-PC | 600mm | 20 W | 2,240 lm | 120 deg | 3000K,4000K,6000K | >80 |
| ETP1200S36W840-PC | 1200mm | 36 W | 4,300 lm | 120 deg | 3000K,4000K,6000K | >80 |
| ETP1500S48W840-PC | 1500mm | 48 W | 5,810 lm | 120 deg | 3000K,4000K,6000K | >80 |
| ETP600S20W840-PM | 600mm | 20 W | 2,240 lm | 120 deg | 3000K,4000K,6000K | >80 |
| ETP1200S36W840-PM | 1200mm | 36 W | 4,300 lm | 120 deg | 3000K,4000K,6000K | >80 |
| ETP1500S48W840-PM | 1500mm | 48 W | 5,810 lm | 120 deg | 3000K,4000K,6000K | >80 |
| ETP900S30W840-PC | 900mm | 30 W | 3,340 lm | 120 deg | 3000K,4000K,6000K | >80 |
| ETP900S30W840-PM | 900mm | 30 W | 3,340 lm | 120 deg | 3000K,4000K,6000K | >80 |
