Skleros Tri-Proof G3

Ecopoint's weatherproof and exterior products are specifically designed for New Zealand's tough environment.
Skleros Tri-Proof G3

Skleros Tri-Proof G3

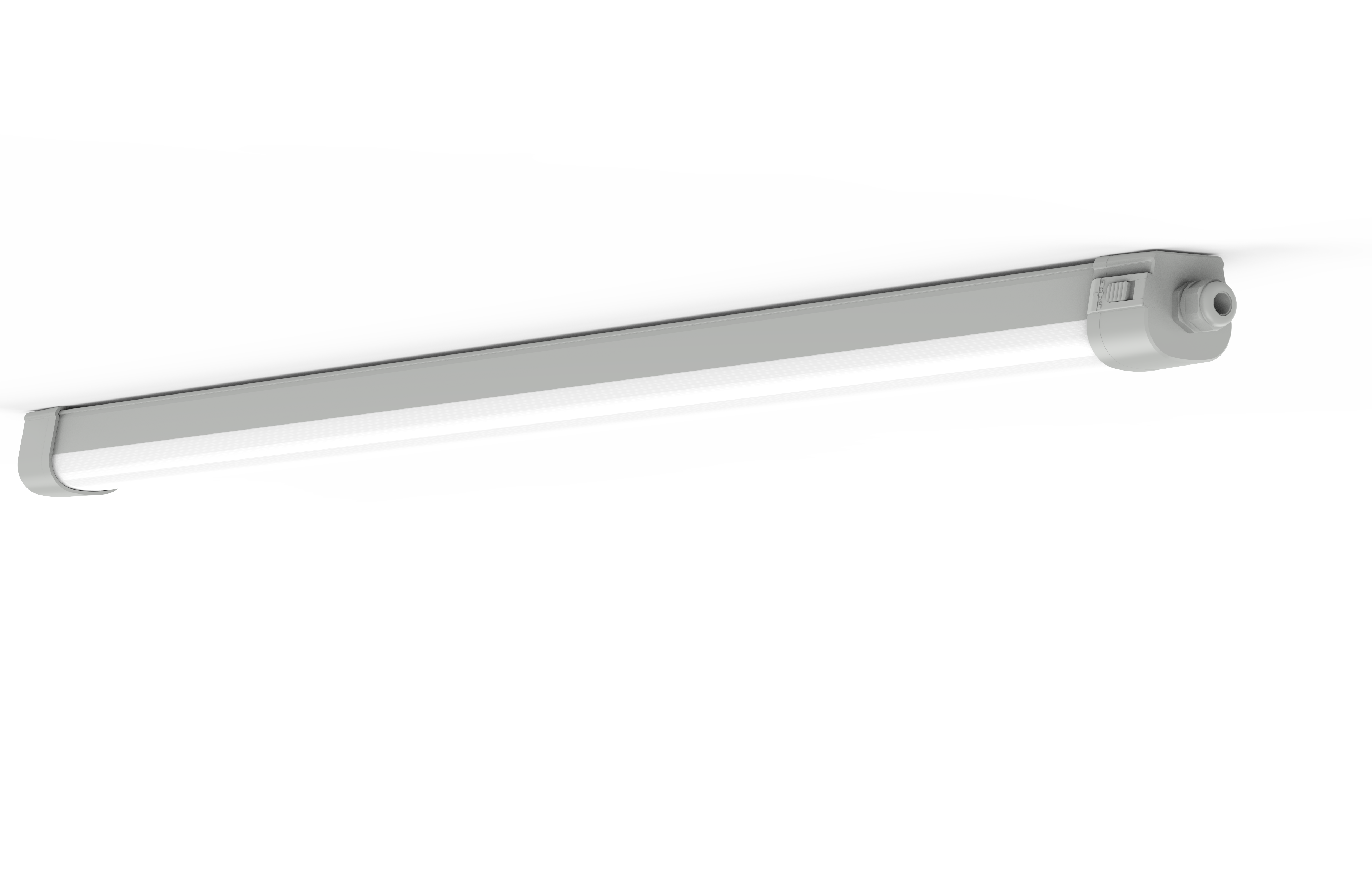

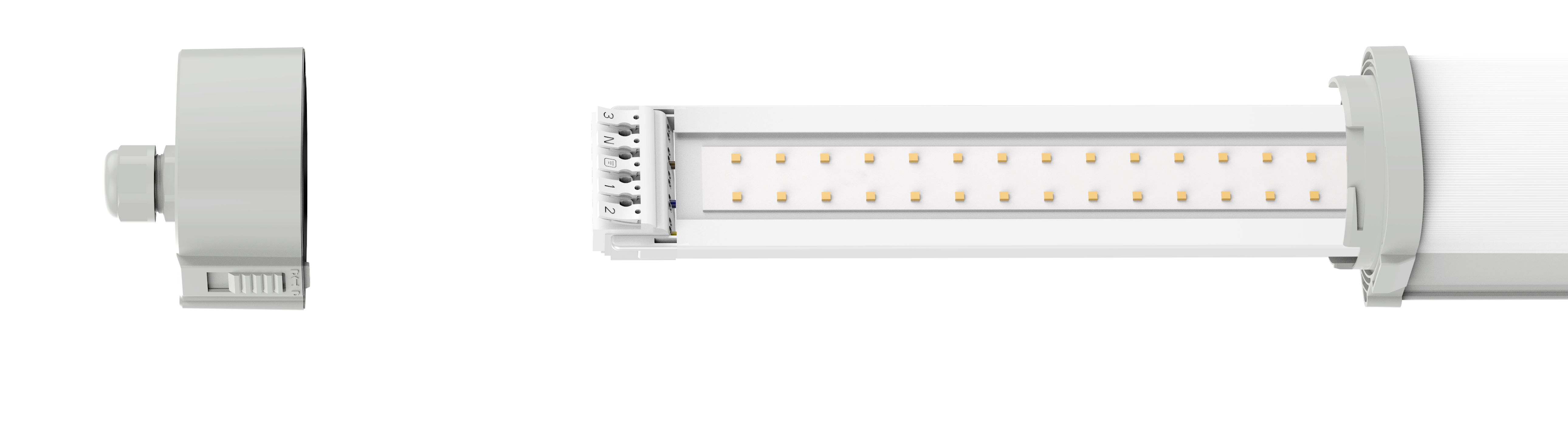

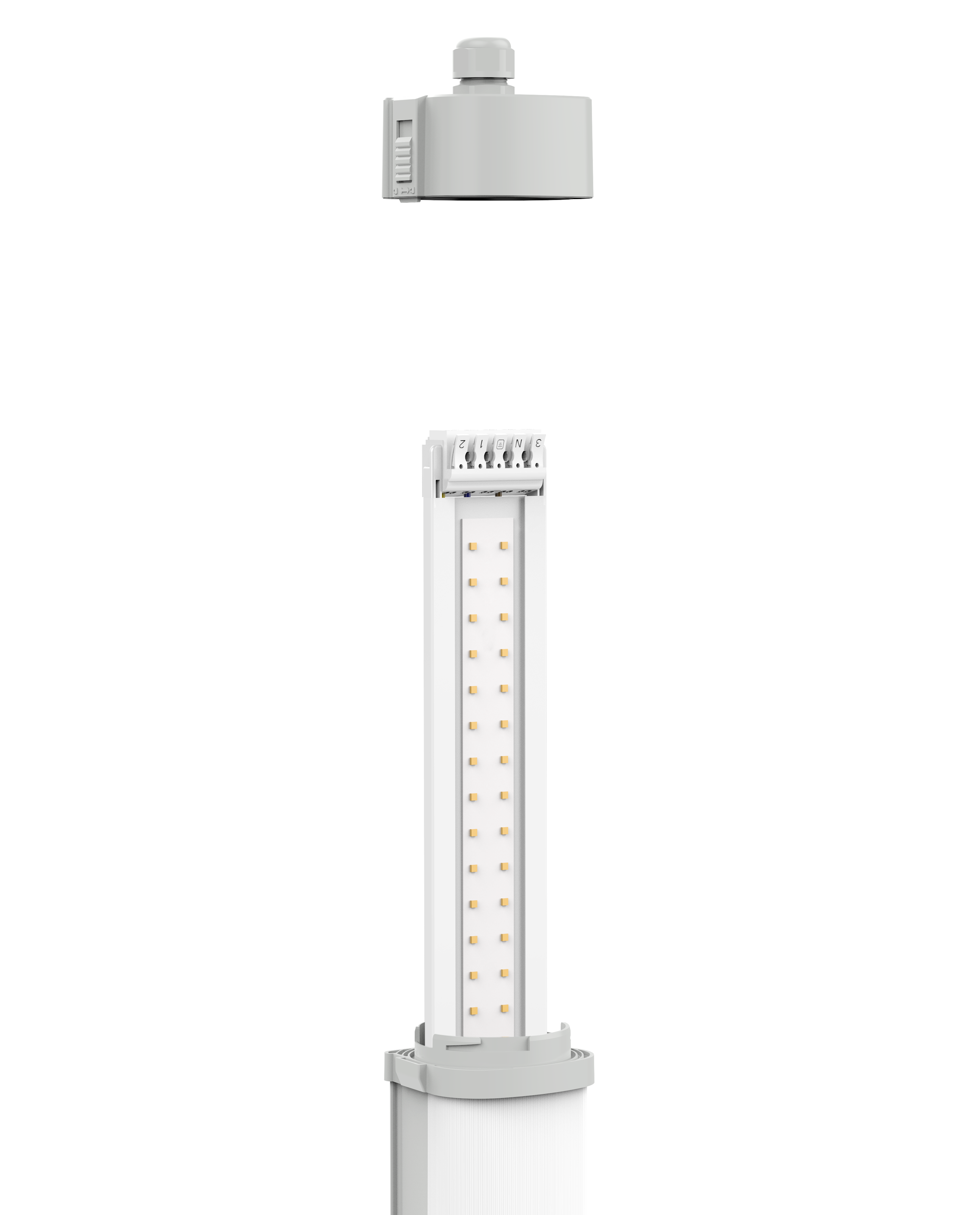

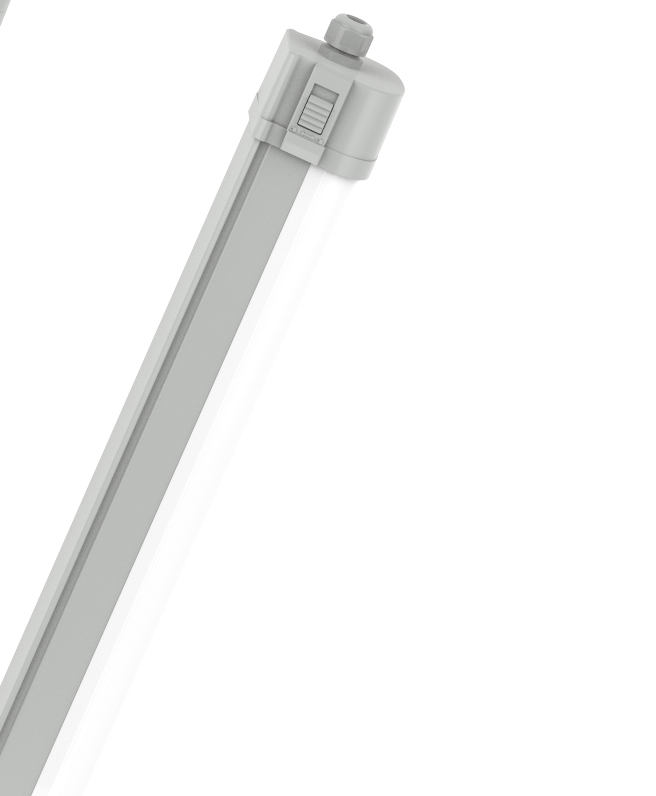

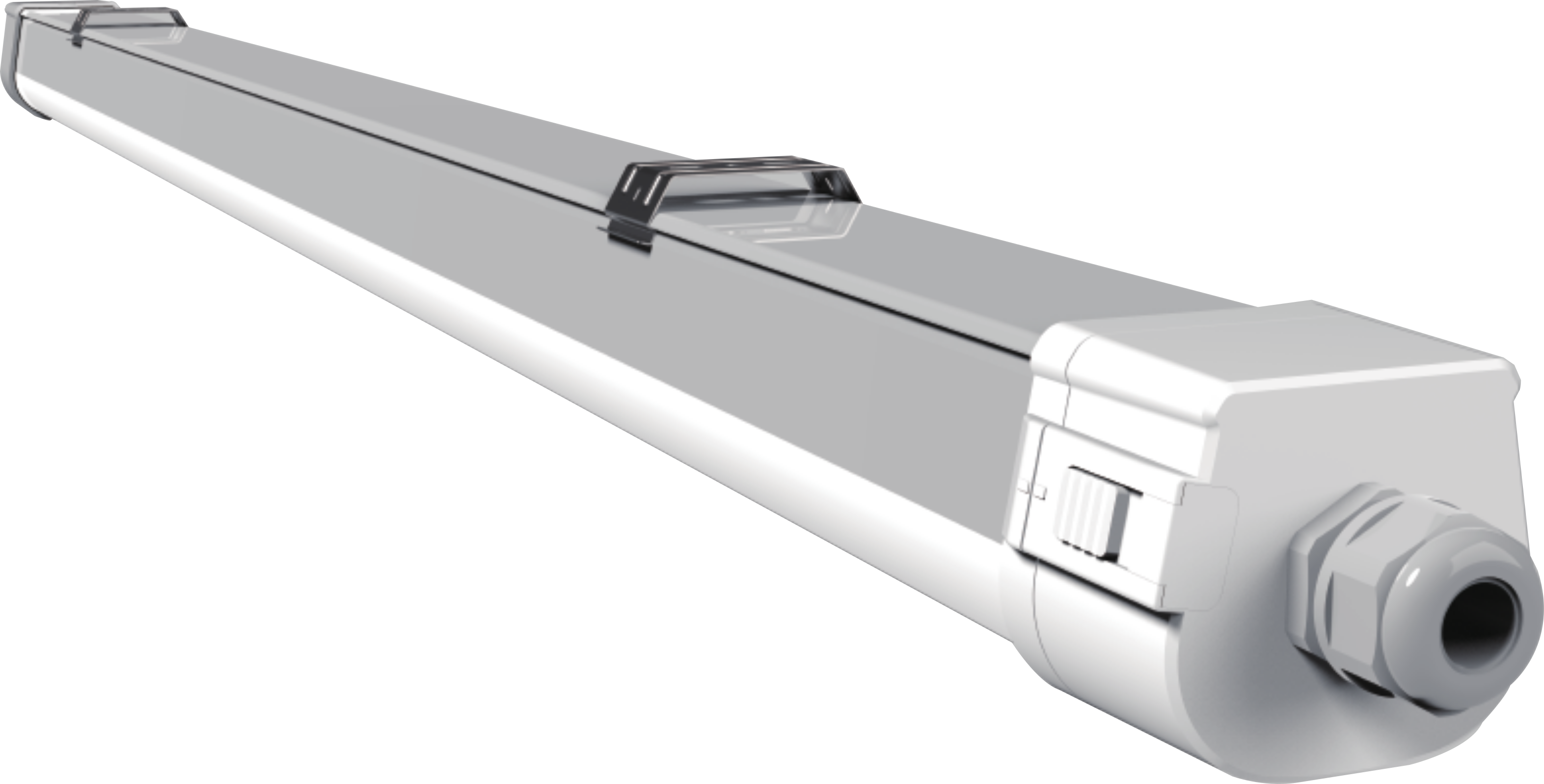

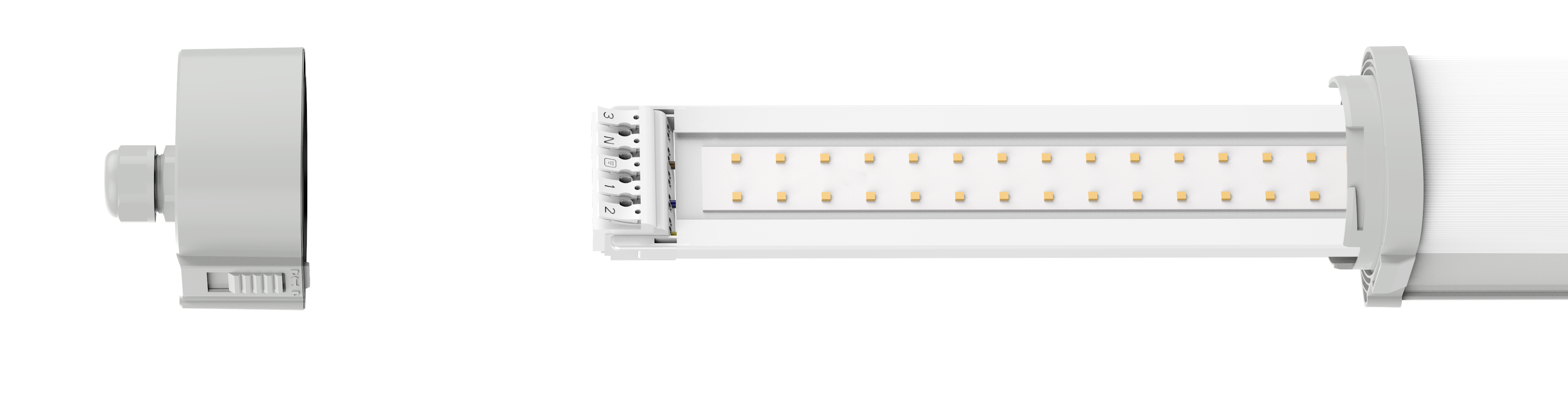

An evolution of Ecopoint’s multi-purpose weatherproof luminaire, the new Skleros Tri-proof G3 incorporates a range of new features while retaining the specifications which have made previous generations so popular. A rugged construction with high protection ratings has now been paired with a modular design, extra flexibility, and tool-free installation to further improve usability and reliability. Replaceable/upgradeable light engines and drivers simplify maintenance and extend product service-life.

APPLICATIONS

Exterior, Industrial, Warehousing, Commercial

SPECIFICATIONS

Power Factor:
>0.93
Electrical Input:
200-240V AC / 47-63 Hz

FEATURES

Warranty:
5 years
Construction:
Polycarbonate (PC)
Metal Finish:
Painted
Standard Mounting:
Surface-mounted
Standard Mounting:
Suspended
Life Prediction (hrs):
L80 > 100,000 hrs (B50)
Ingress Protection:
IP65
Impact Protection:
IK08
PRODUCT CODE DIMENSION (mm) POWER Luminous Flux Optic/Beam Colour Temperature Colour Rending Index
ETP1200W840 1225 x 80 x 74 mm Selectable 25/33/39/44W 4,360 - 7,210 lm 120 deg 4000K Ra ≥ 80, R9 ≥ 10
Rf ≥ 80, Rg ≥ 95
ETP1500W840 1525 x 80 x 74 mm Selectable 34/44/53/60W 6,070 - 10,010 lm 120 deg 4000K Ra ≥ 80, R9 ≥ 10
Rf ≥ 80, Rg ≥ 95
ETP1200W840-G3 1225 x 80 x 74 mm Selectable 25/33/39/44W 4,360 - 7,210 lm 120 deg 4000K Ra ≥ 80, R9 ≥ 10
Rf ≥ 80, Rg ≥ 95
ETP1500W840-G3 1525 x 80 x 74 mm Selectable 34/44/53/60W 6,070 - 10,010 lm 120 deg 4000K Ra ≥ 80, R9 ≥ 10
Rf ≥ 80, Rg ≥ 95
ETPS1200W840-G3 1225 x 62 x 57 mm Selectable 21/26/31/35W 3,540 - 5,720 lm 120 deg 4000K Ra ≥ 80, R9 ≥ 10
Rf ≥ 80, Rg ≥ 95
ETPS1500W840-G3 1525 x 62 x 57 mm Selectable 25/33/39/44W 3,540 - 5,720 lm 120 deg 4000K Ra ≥ 80, R9 ≥ 10
Rf ≥ 80, Rg ≥ 95
ETPL1200W840-G3 1225 x 80 x 74 mm Selectable 25/33/39/44W 4,360 - 7,210 lm 120 deg 4000K Ra ≥ 80, R9 ≥ 10
Rf ≥ 80, Rg ≥ 95
ETPL1500W840-G3 1525 x 80 x 74 mm Selectable 34/44/53/60W 6,070 - 10,010 lm 120 deg 4000K Ra ≥ 80, R9 ≥ 10
Rf ≥ 80, Rg ≥ 95
