Floodlight G3

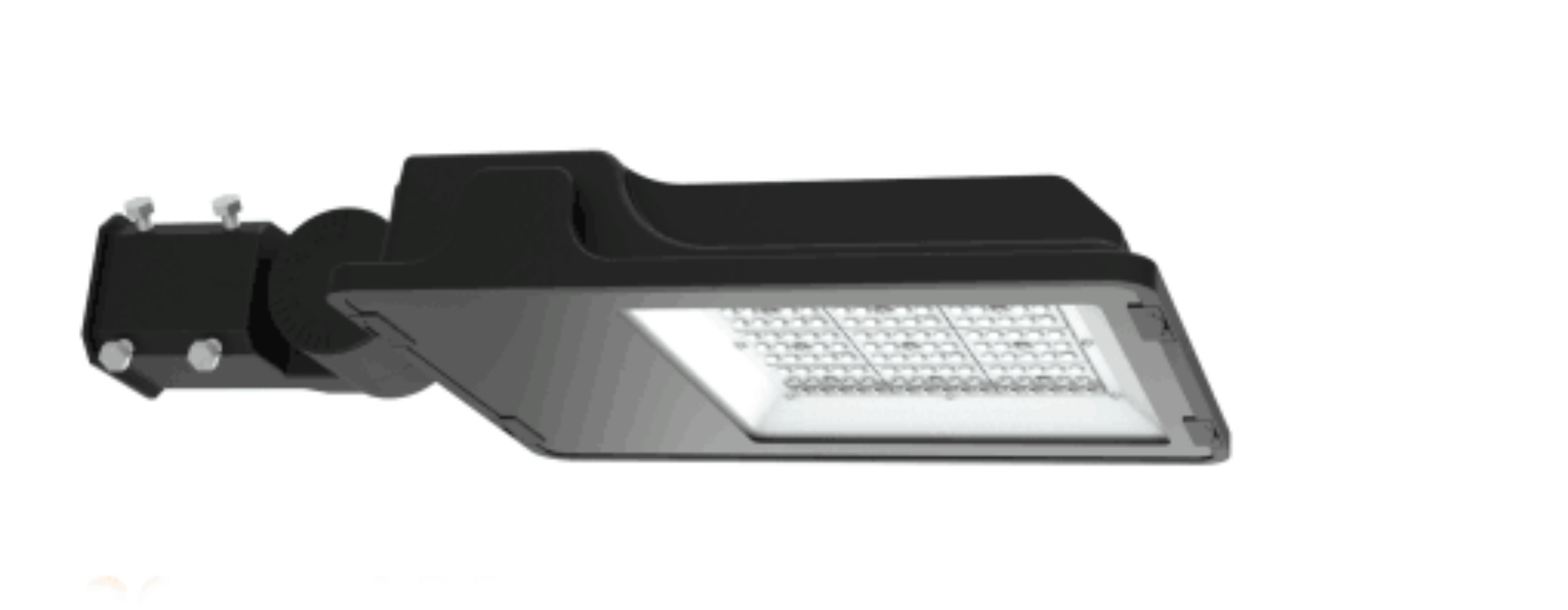

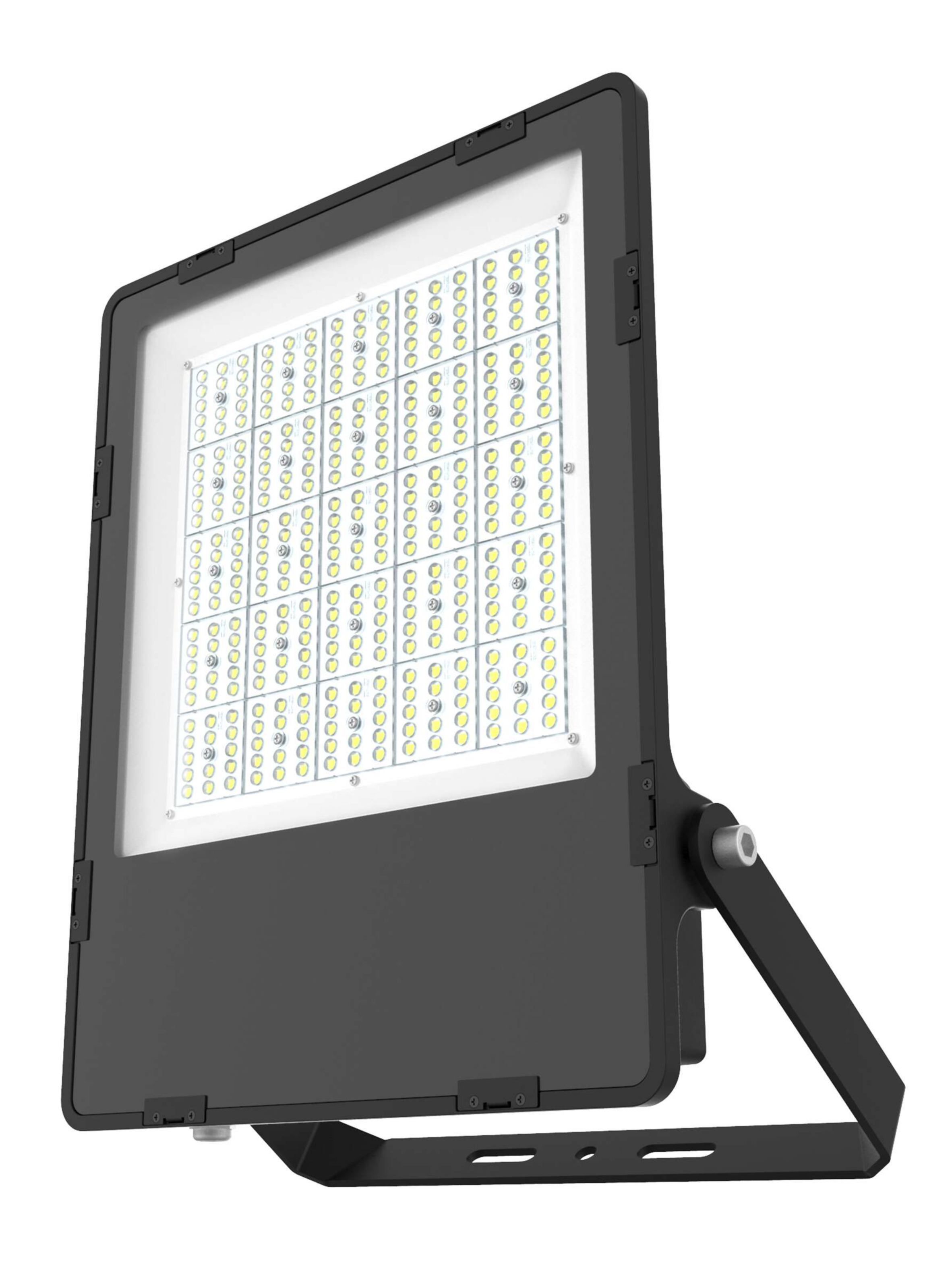

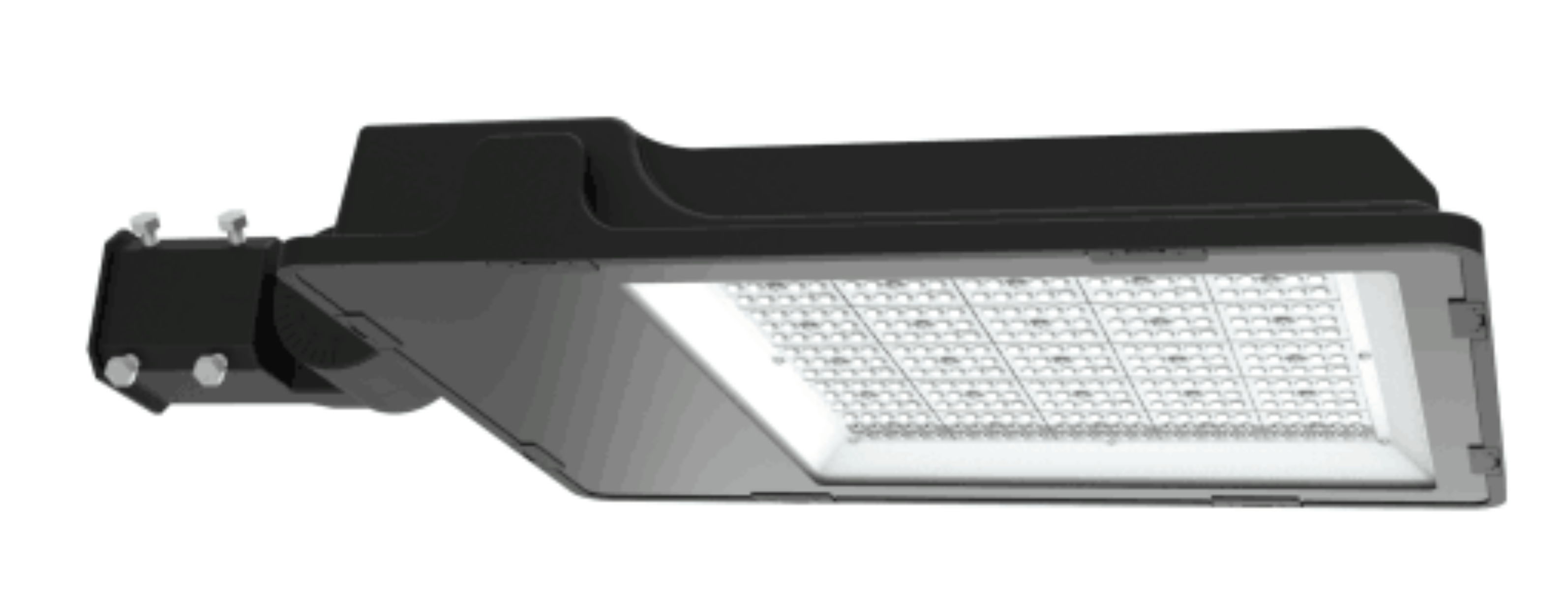

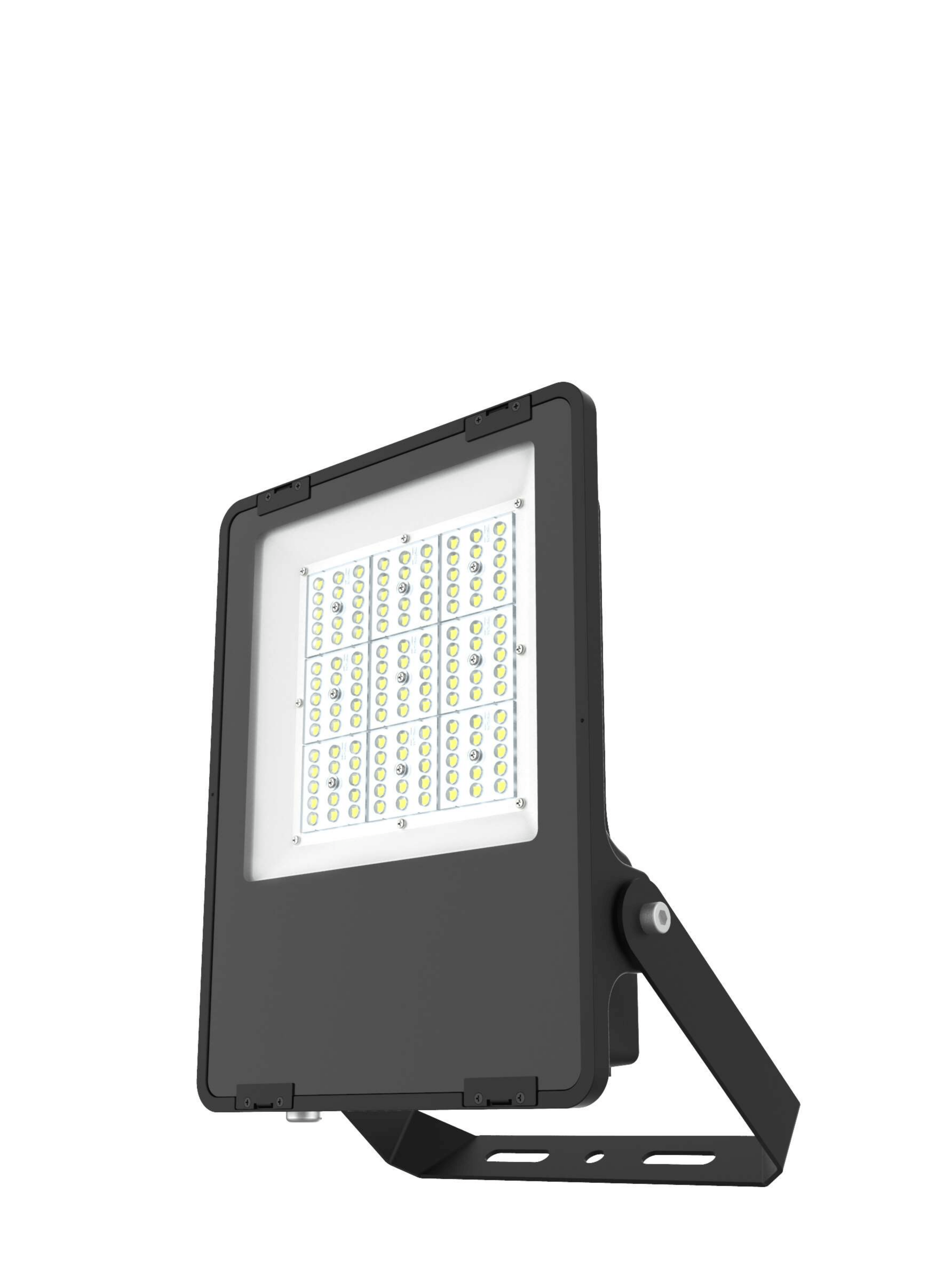

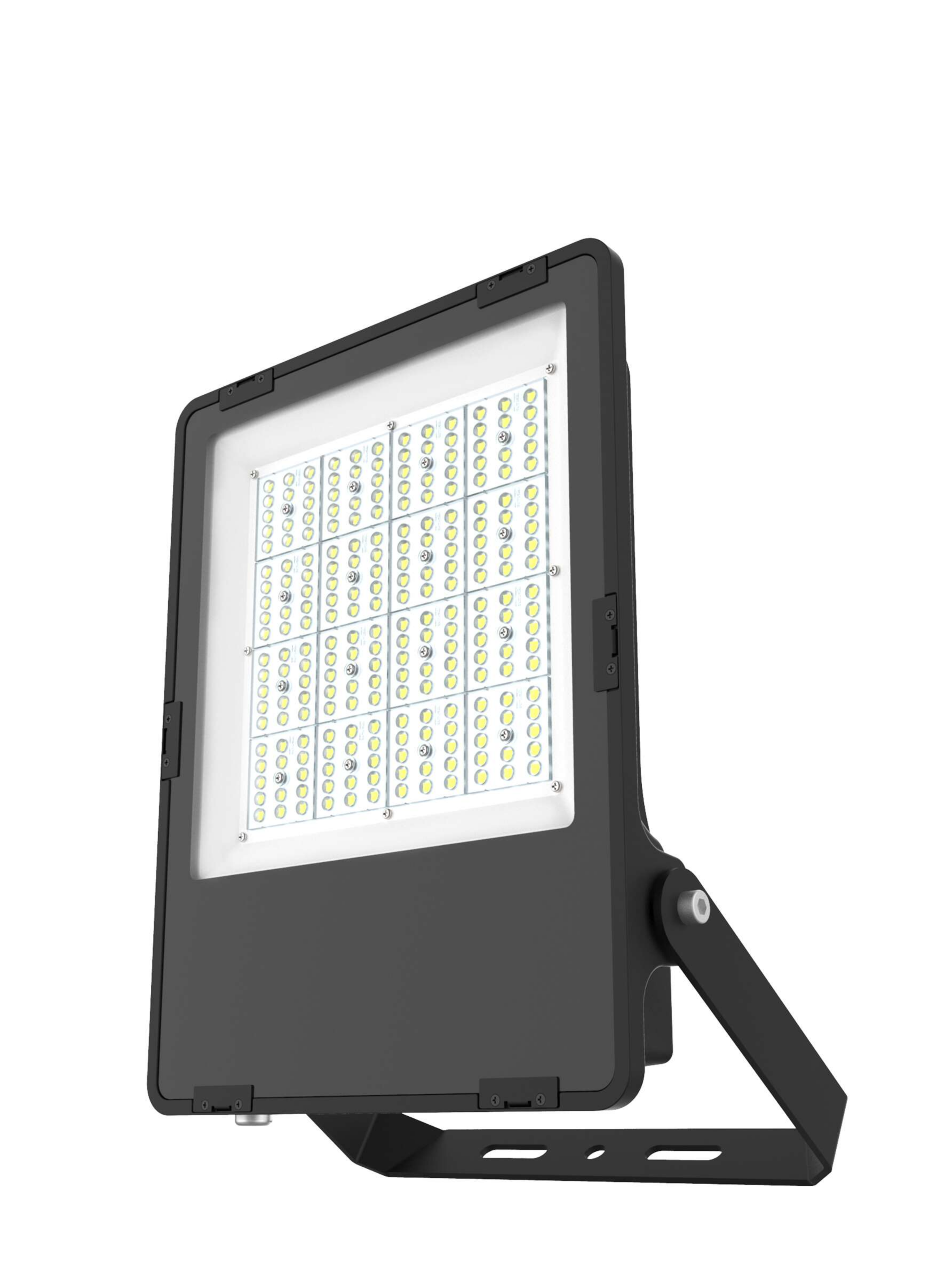

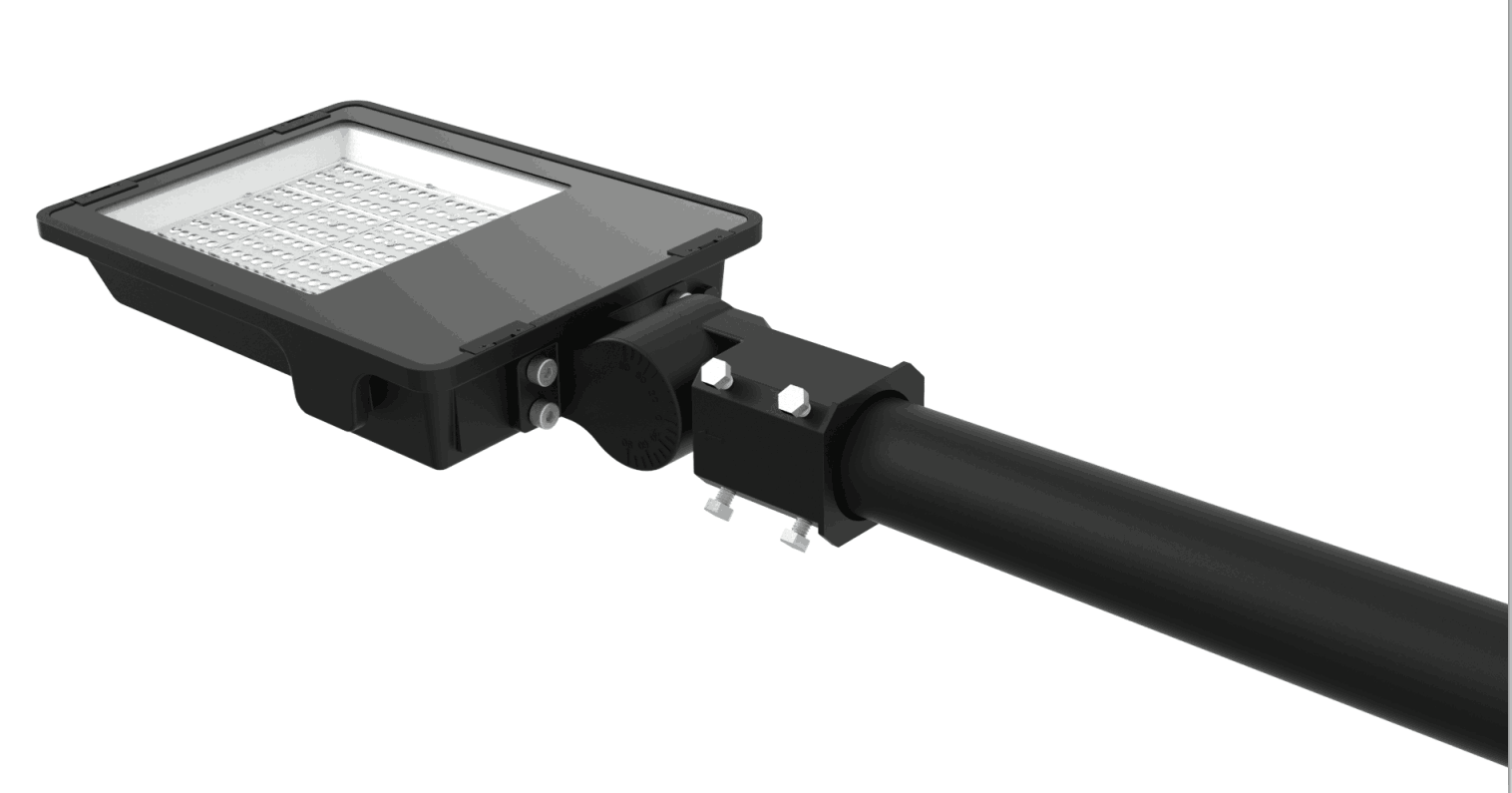

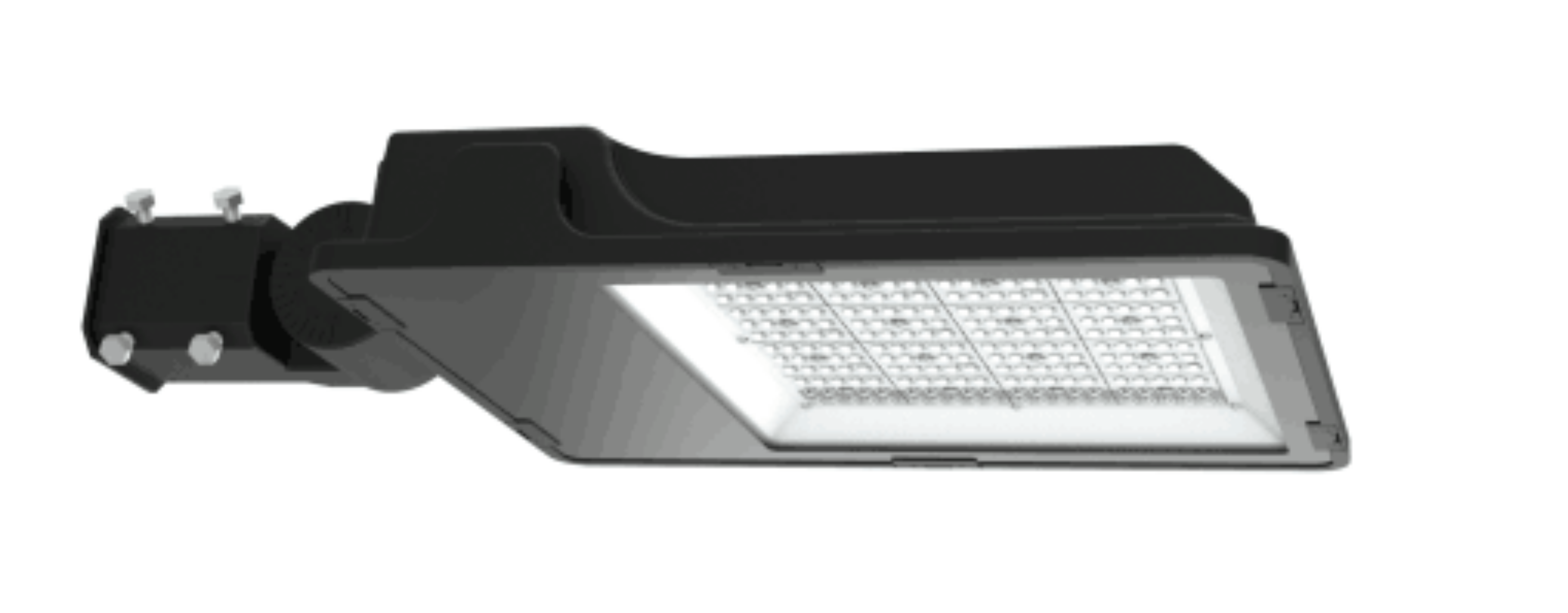

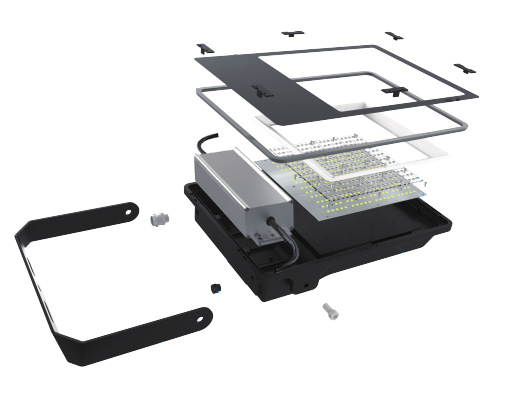

Cost-effective and capable, the latest generation Ecopoint Floodlight can be deployed in a wide range of environments and situations. A reduced profile and lower weight makes for easier installation and handling, while the addition of a slip-fitter option for pole/arm mounting broadens the applications. Models range from a compact 80W through to a powerful 300W. Individual-lens optics are enclosed behind a tempered glass cover, and the unit carries IP67 and IK08 protection ratings. Circular (30°, 60° and 90°), elongated (40°x130°, 90°x120°) and road-way (IESNA Type 2, 3 and 4) distributions are available.
APPLICATIONS
Exterior
Industrial
Commercial
Warehousing
Parking
SPECIFICATIONS
Power Factor:
>0.95
Electrical Input:
100-277V AC / 50-60 Hz
FEATURES
Warranty:
5 years
Construction:
Aluminium (cast), Aluminium (extruded)
Metal Finish:
Anodised, Powdercoated

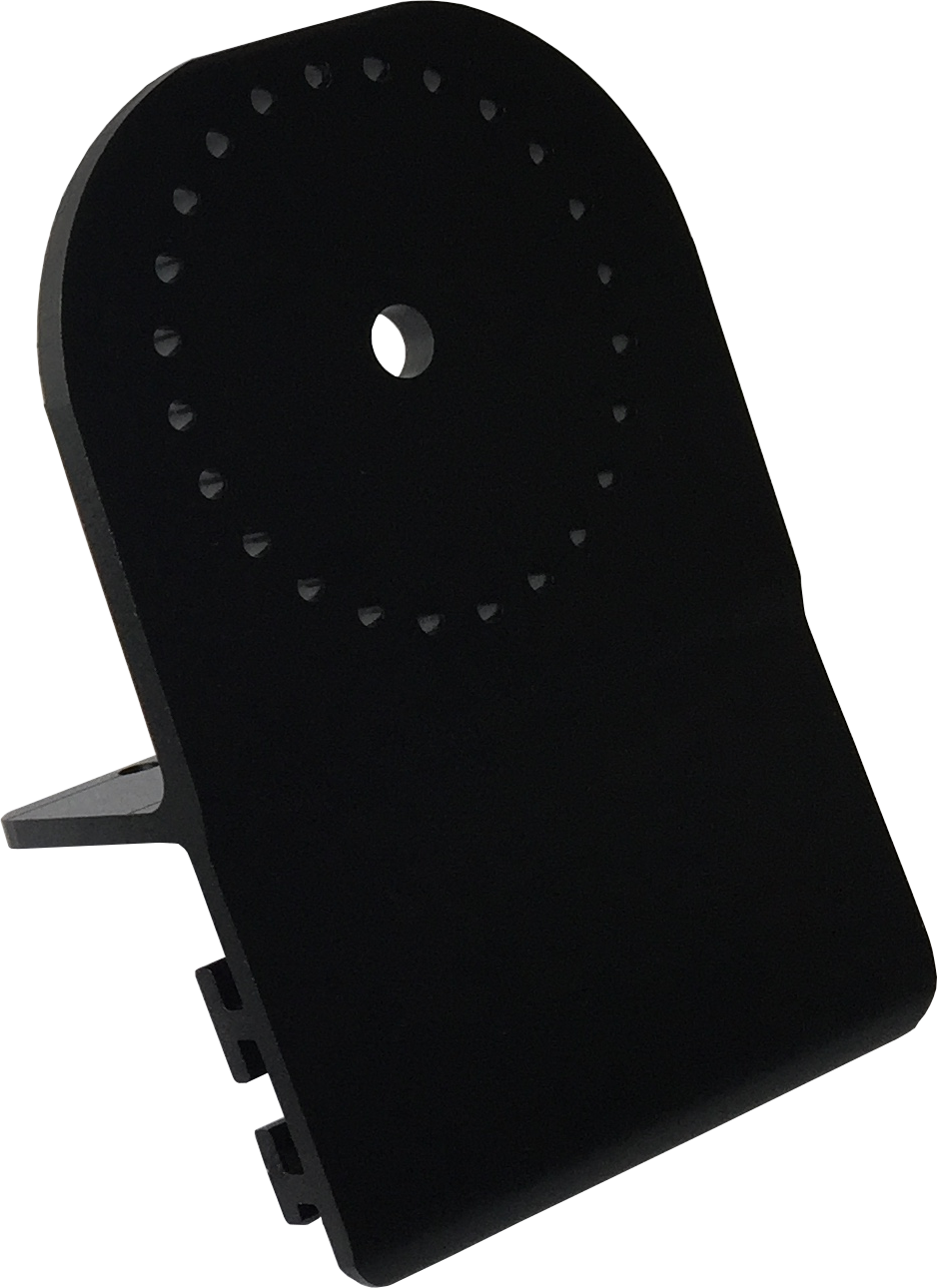

Standard Mounting:

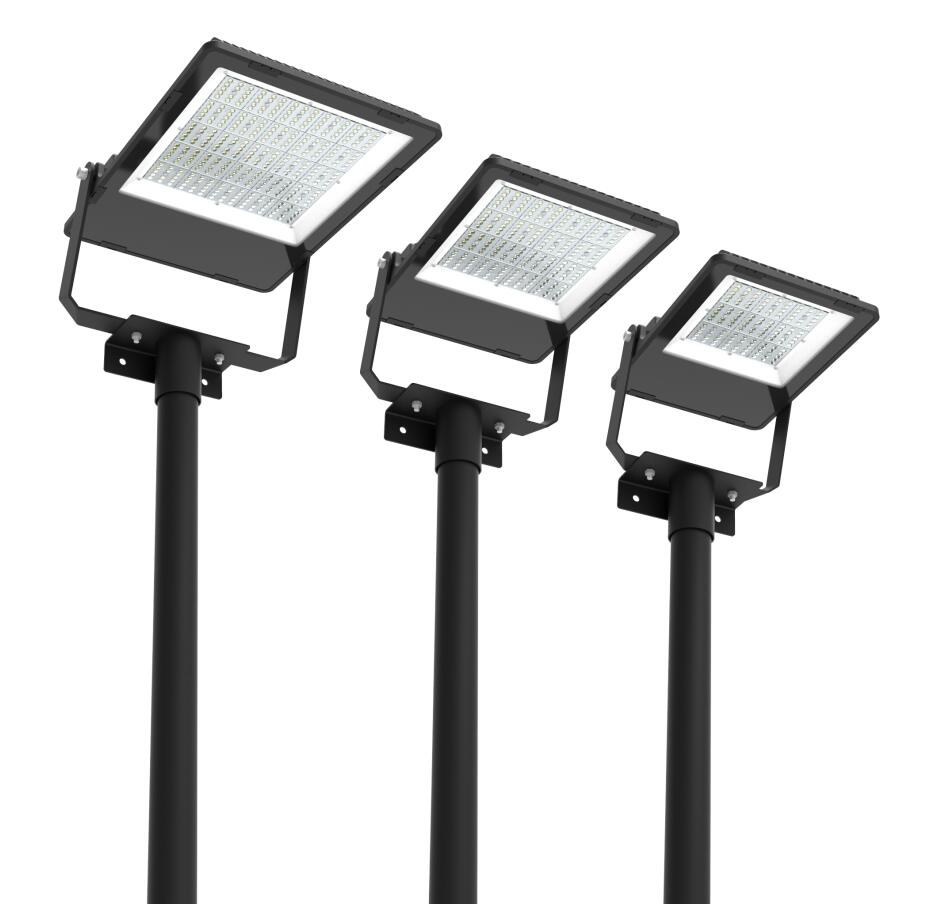

Surface-mounted, Pole mounted
Life Prediction (hrs):
L70 > 78,000 hrs (B50)
Ingress Protection:
IP65
Impact Protection:
IK10, Pending
| PRODUCT CODE | DIMENSION (mm) | POWER | Luminous Flux | Optic/Beam | Colour Temperature | Colour Rending Index |
|---|---|---|---|---|---|---|
| EFL1B80W840G3 | 360 x 270 x 71 mm | 80 W | 9,800 lm | Circular 30°/60°/90°, Elongated 40°x130°/ 90°x120° and Road-way IESNA Type 2, 3 and 4 optic. | 4000K | ≥80 |
| EFL1B100W840G3 | 360 x 270 x 71 mm | 100 W | 12,100 lm | Circular 30°/60°/90°, Elongated 40°x130°/ 90°x120° and Road-way IESNA Type 2, 3 and 4 optic. | 4000K | ≥80 |
| EFL1B120W840G3 | 360 x 270 x 71 mm | 120 W | 13,700 lm | Circular 30°/60°/90°, Elongated 40°x130°/ 90°x120° and Road-way IESNA Type 2, 3 and 4 optic. | 4000K | ≥80 |
| EFL2B150W840G3 | 410 x 310 x 71 mm | 150 W | 18,500 lm | Circular 30°/60°/90°, Elongated 40°x130°/ 90°x120° and Road-way IESNA Type 2, 3 and 4 optic. | 4000K | ≥80 |
| EFL2B200W840G3 | 410 x 310 x 71 mm | 200 W | 22,600 lm | Circular 30°/60°/90°, Elongated 40°x130°/ 90°x120° and Road-way IESNA Type 2, 3 and 4 optic. | 4000K | ≥80 |
| EFL2B240W840G3 | 480 x 370 x 71 mm | 240 W | 30,500 lm | Circular 30°/60°/90°, Elongated 40°x130°/ 90°x120° and Road-way IESNA Type 2, 3 and 4 optic. | 4000K | ≥80 |
| EFL3B300W840G3 | 480 x 370 x 71 mm | 300 W | 36,700 lm | Circular 30°/60°/90°, Elongated 40°x130°/ 90°x120° and Road-way IESNA Type 2, 3 and 4 optic. | 4000K | ≥80 |

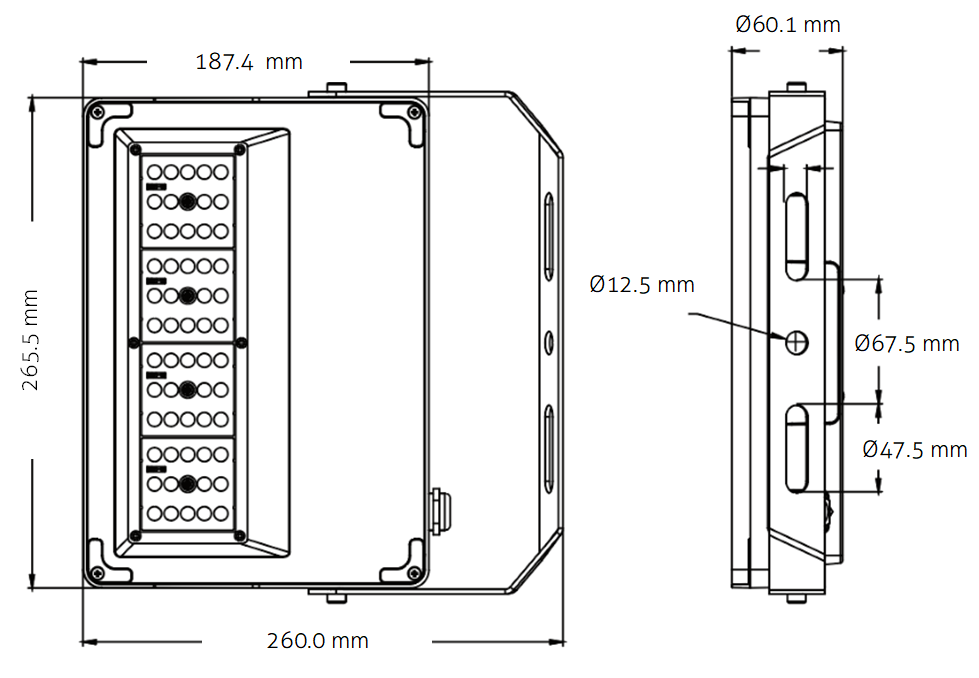

| EFL0B50W840G3 | 190 x 270 x 61 mm | 50 W | 5,200 lm | Circular 30°/60°/90°, Elongated 40°x130°/ 90°x120° and Road-way IESNA Type 2, 3 and 4 optic. | 4000K | ≥80 |
