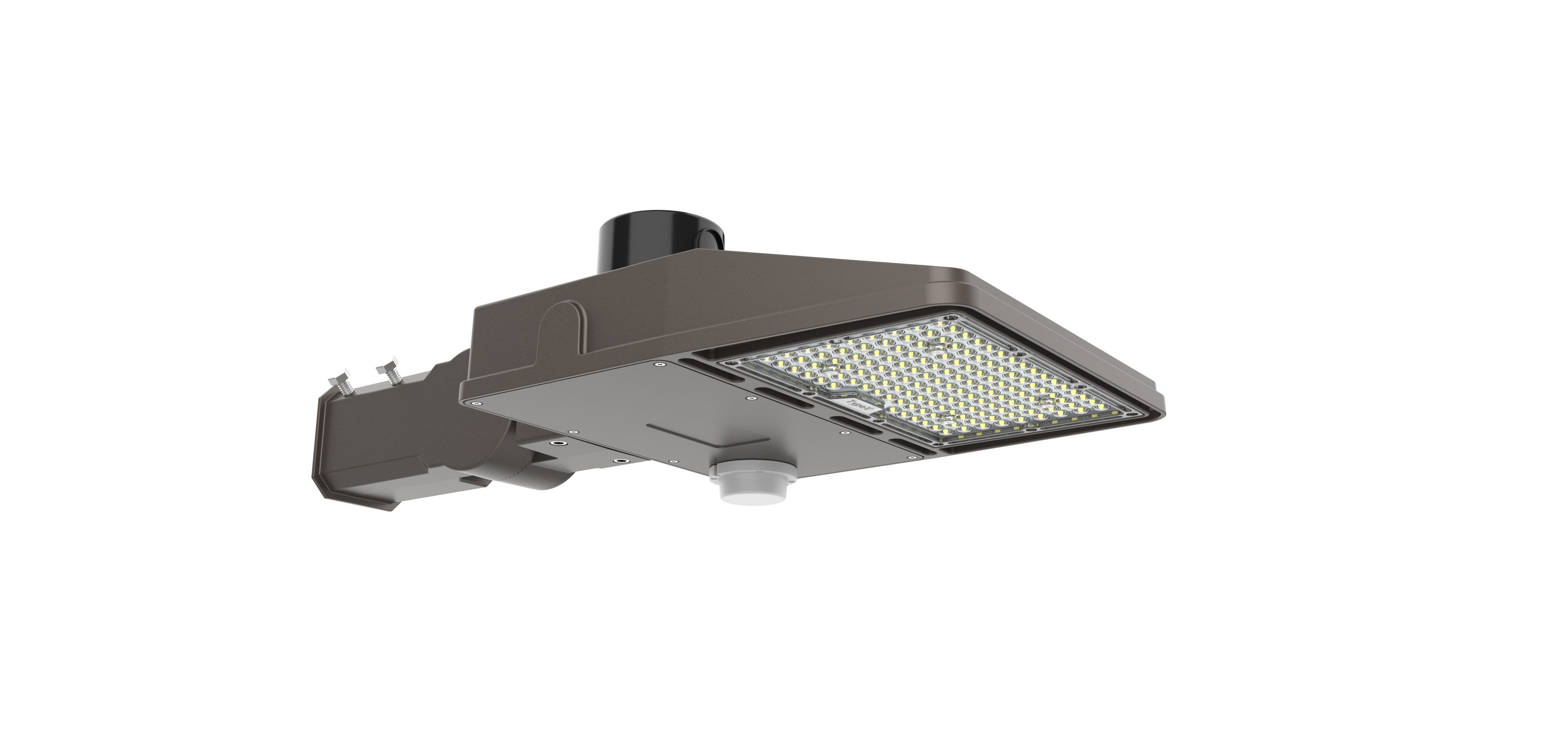

Area Light G2

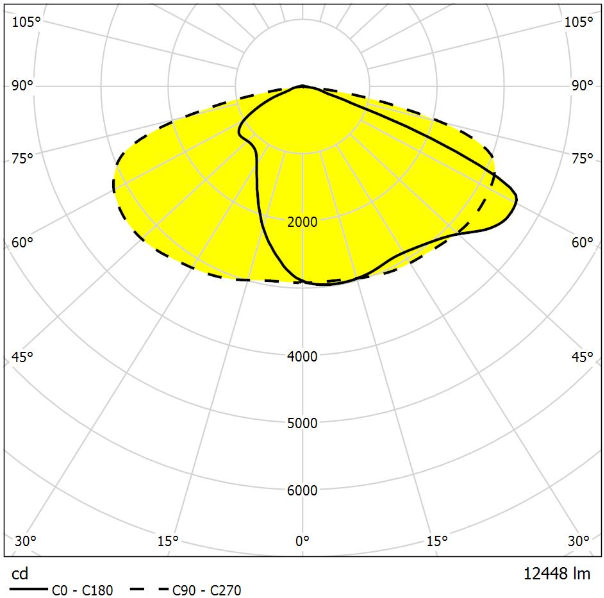

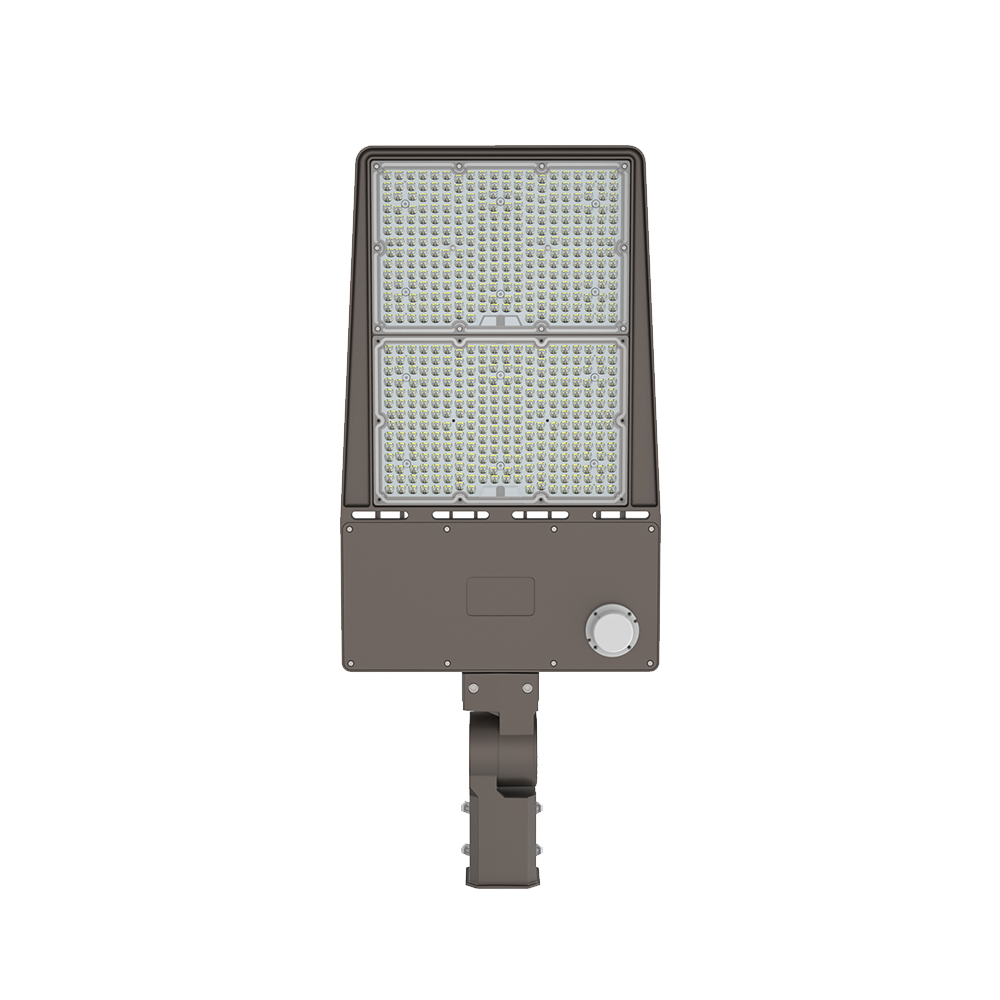

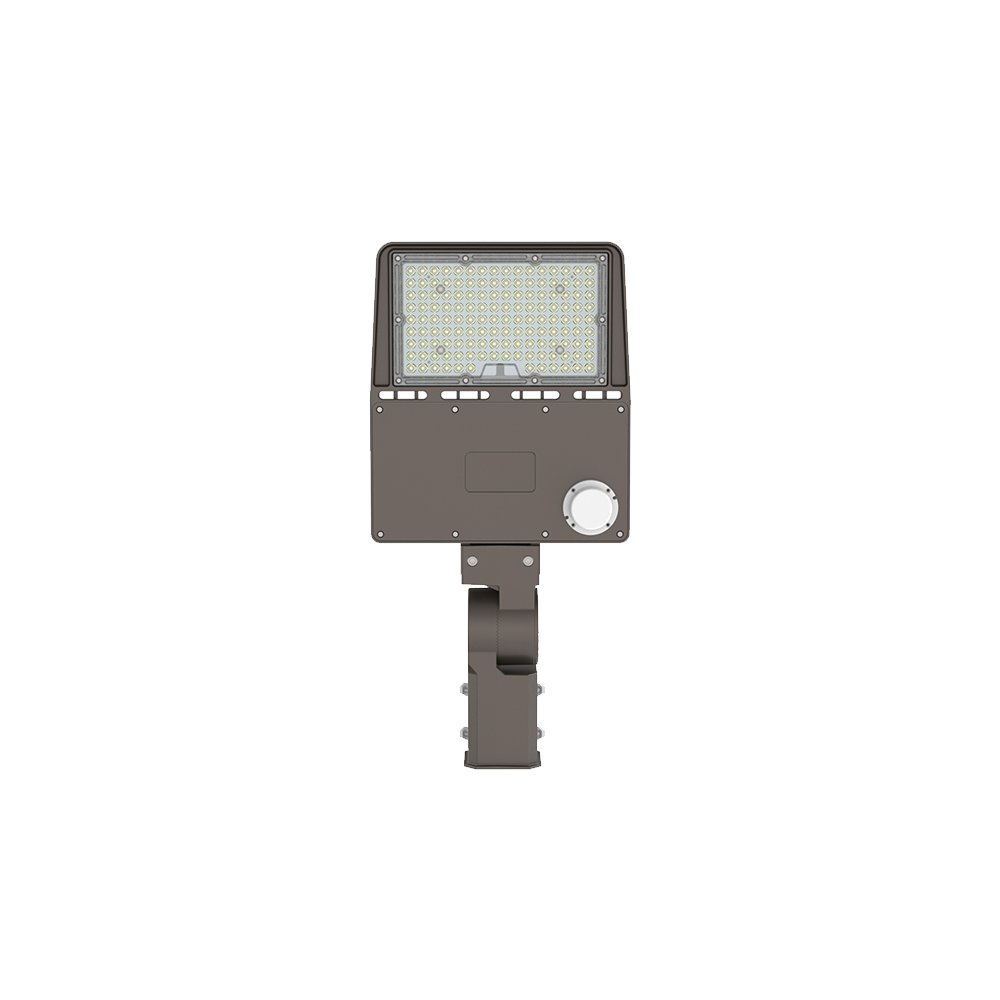

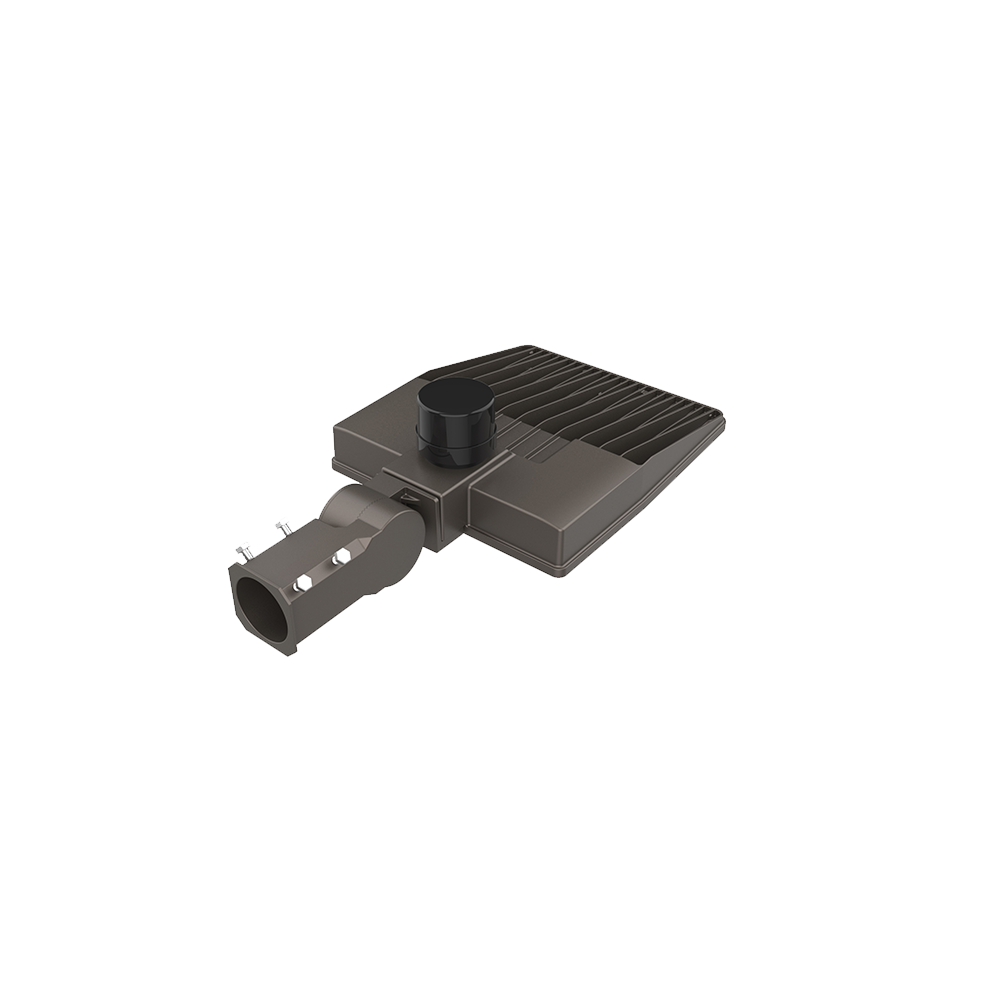

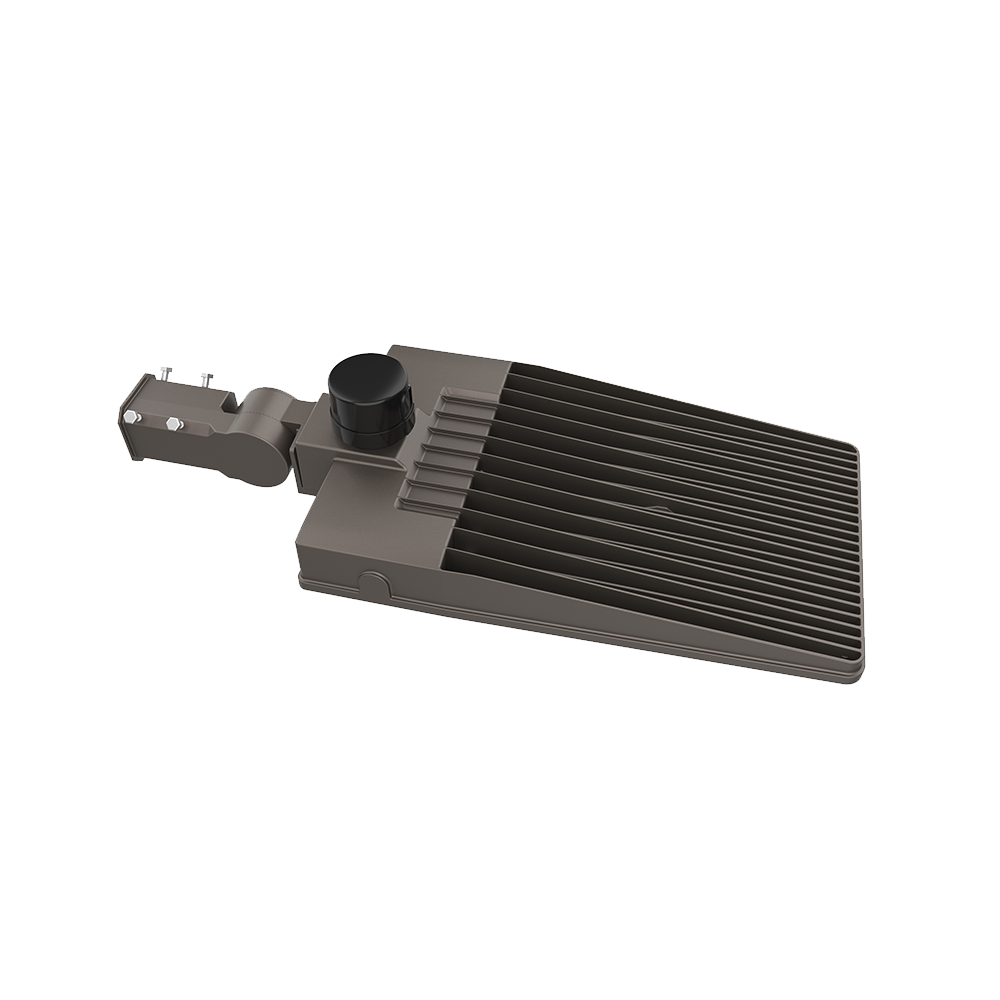

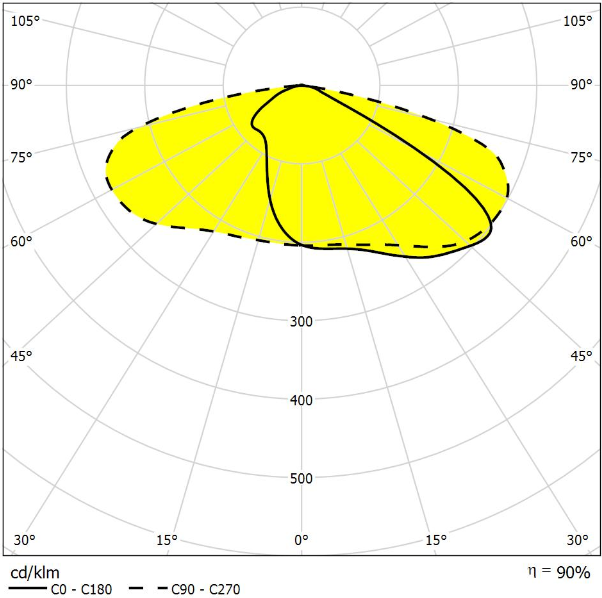

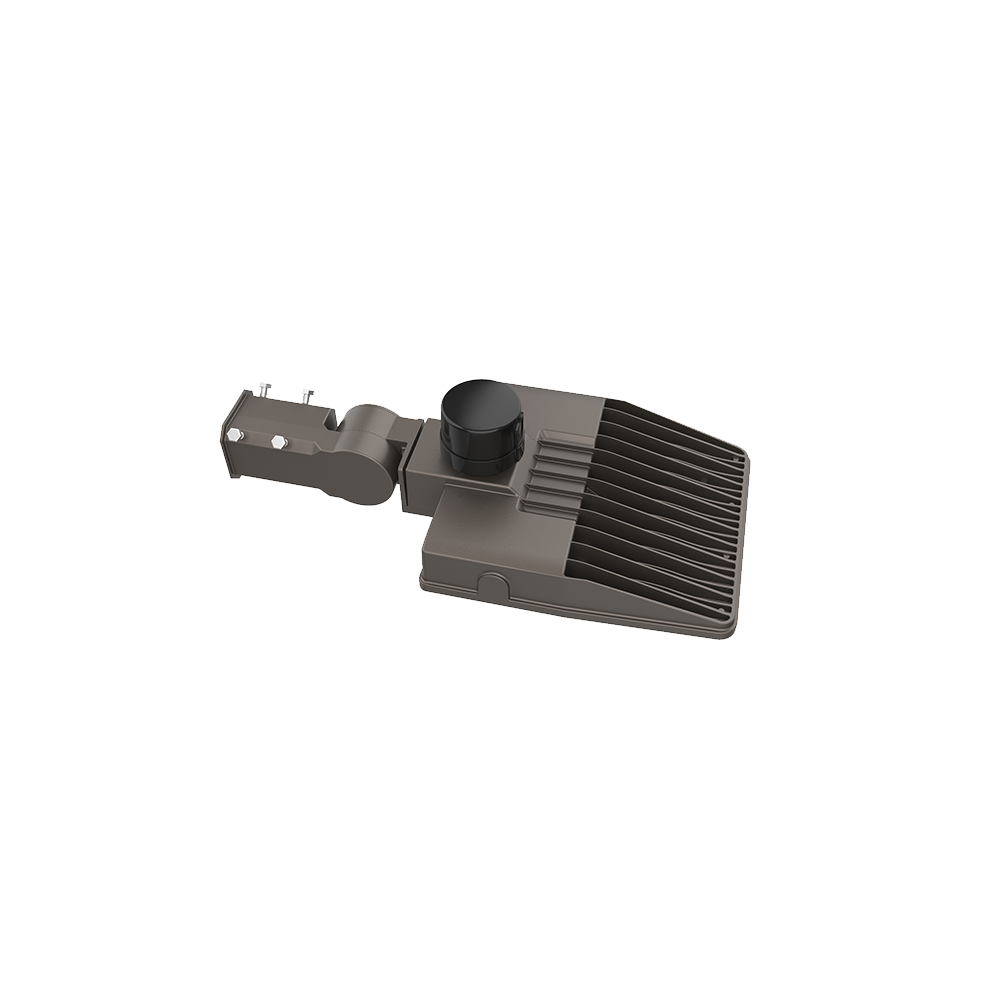

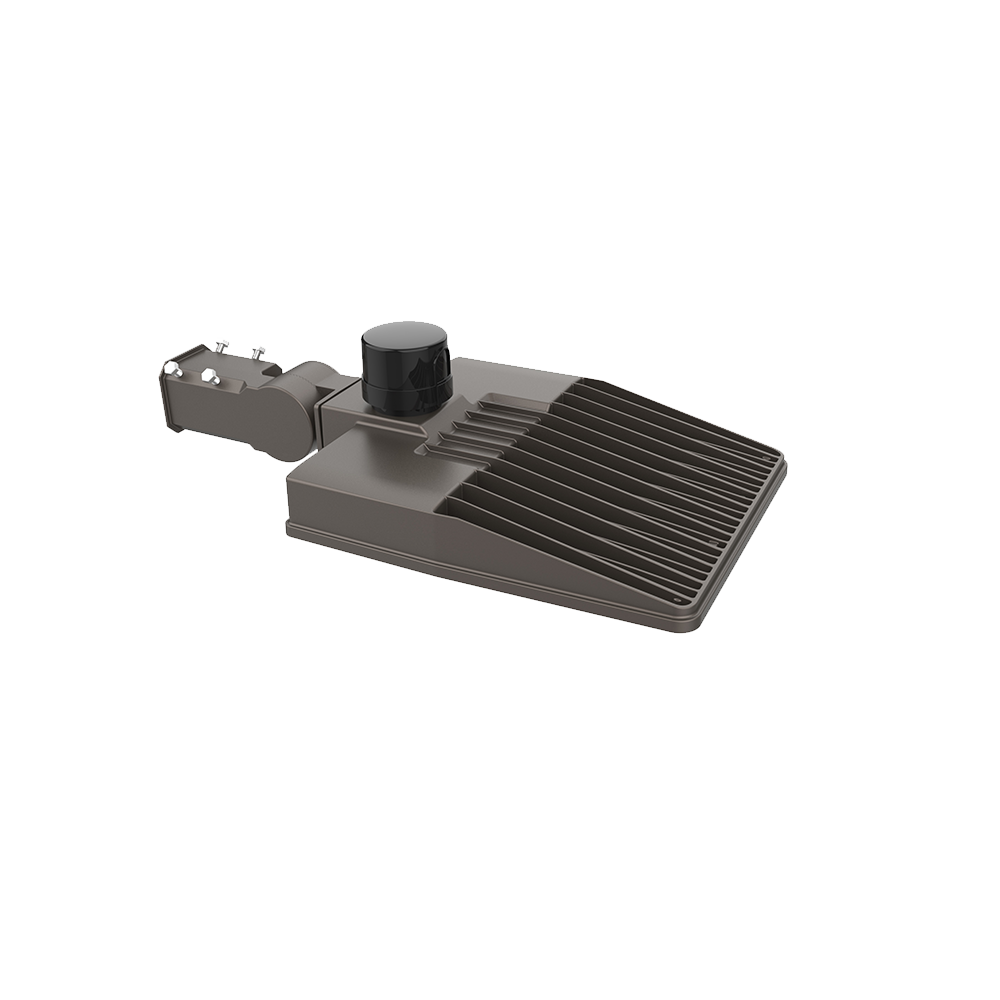

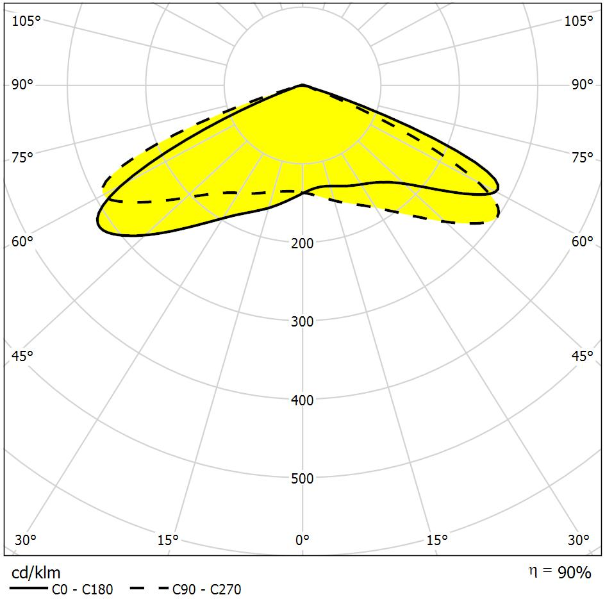

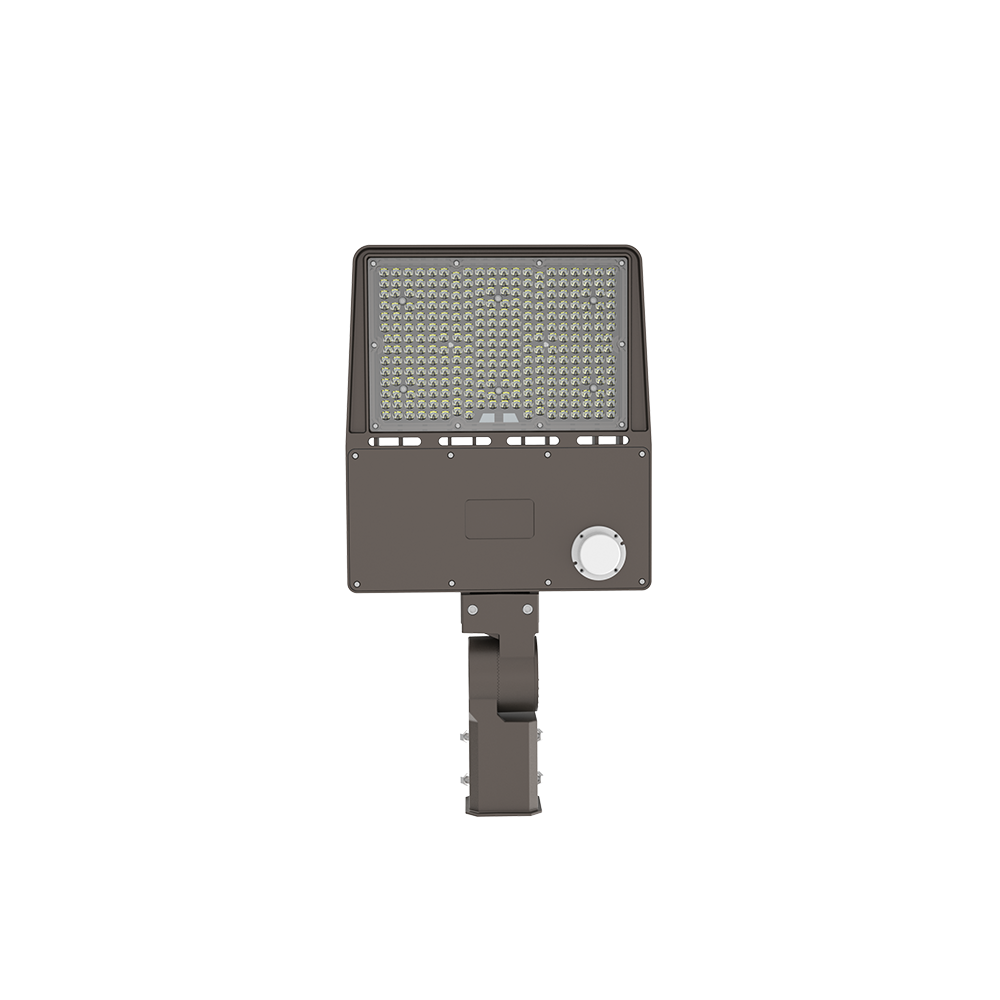

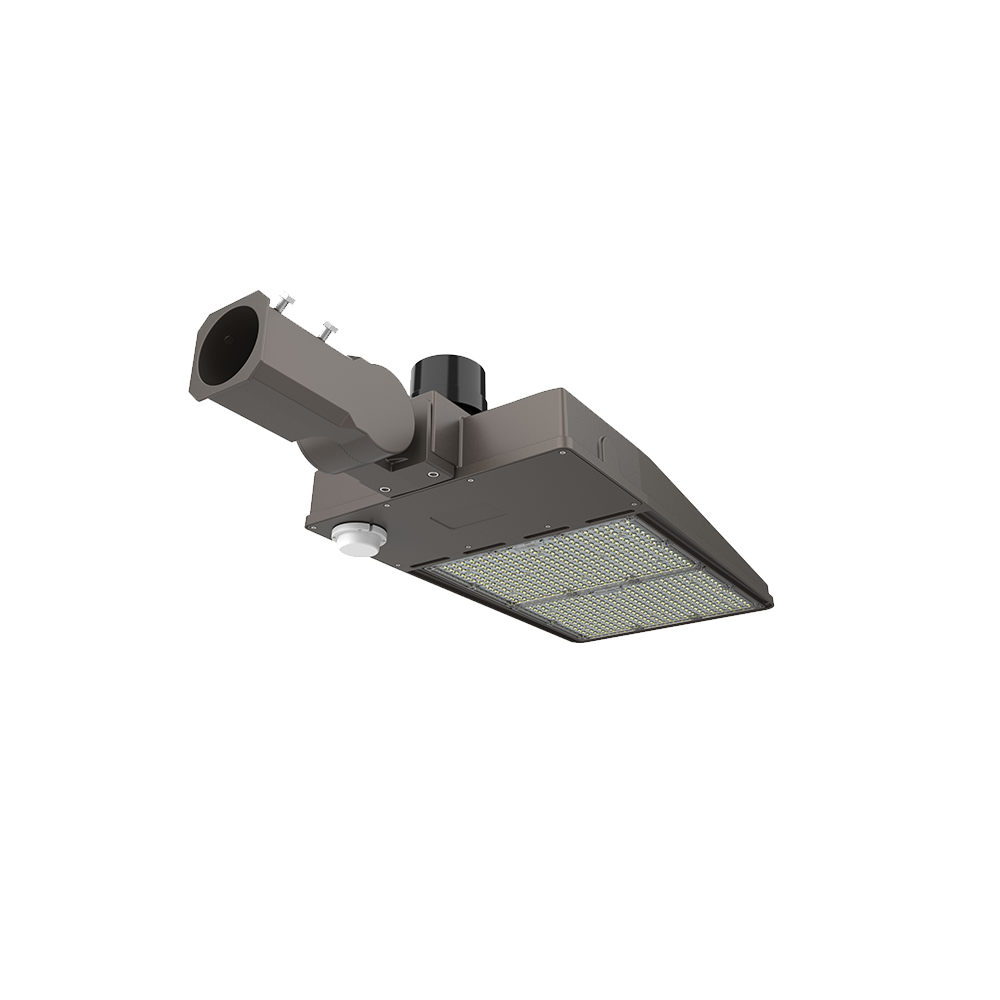

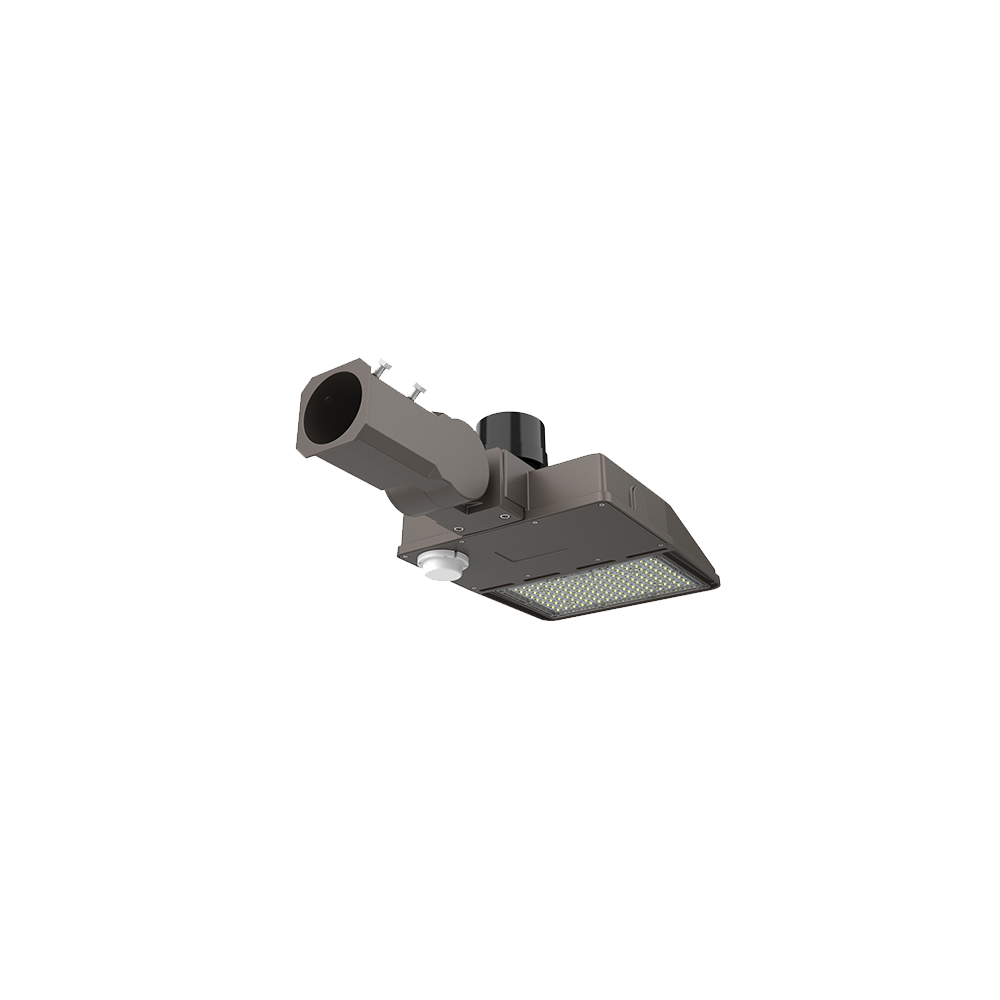

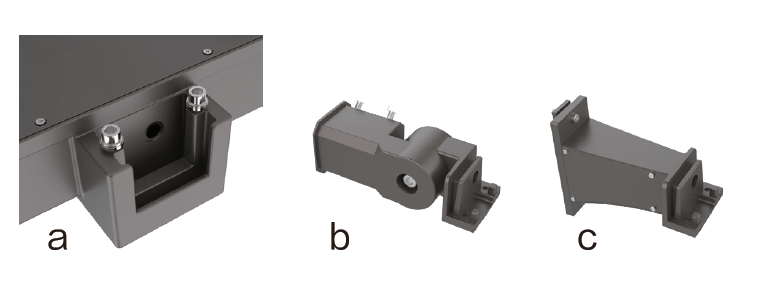

Lighting large areas economically is comfortably within reach using Ecopoint's Area Light G2. Micro-lens optics provide four different distributions (IESNA Types 3, 4 & 5), giving flexibility to uniformly illuminate any area. Pairing long-life LED packages with advanced proprietary drivers, efficiency and reliability are optimised across the range. The low-profile cast-aluminium housing is compact to minimise windage and inter-changeable mounts mean the luminaires can be mounted to round or square poles, vertical or horizontal spigots, or stirrup-mounted to fixed surfaces.
APPLICATIONS
Exterior
Industrial
Commercial
Warehousing
Retail
SPECIFICATIONS
Power Factor:
>0.9
Electrical Input:
100-277V AC / 47-63 Hz
FEATURES
Warranty:
5 years
Construction:
Aluminium (cast)
Metal Finish:
Powdercoated
Standard Mounting:
Pole mounted, Wall-mounted
Life Prediction (hrs):
L70 > 150,000 hrs (B50)
Ingress Protection:
IP66
Impact Protection:
IK08, Pending

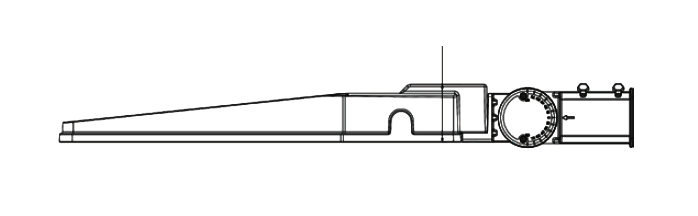

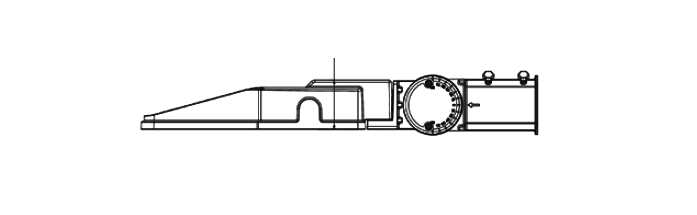

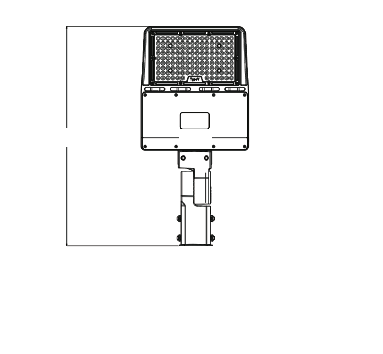

| PRODUCT CODE | DIMENSION (mm) | POWER | Luminous Flux | Optic/Beam | Colour Temperature | Colour Rending Index |
|---|---|---|---|---|---|---|
| EAL530B60W840G2 | 530.5 x 260 x 66 mm | 60 W | 7,300 lm | Type 3/4/5 optic | 3000K, 4000K, 5000K, 6000K | ≥ 80 |
| EAL530B100W840G2 | 530.5 x 260 x 66 mm | 100 W | 12,150 lm | Type 3/4/5 optic | 3000K, 4000K, 5000K, 6000K | ≥ 80 |
| EAL580B120W840G2 | 580.5 x 310 x 66 mm | 120 W | 16,700 lm | Type 3/4/5 optic | 3000K, 4000K, 5000K, 6000K | ≥ 80 |
| EAL580B150W840G2 | 580.5 x 310 x 66 mm | 150 W | 20,900 lm | Type 3/4/5 optic | 3000K, 4000K, 5000K, 6000K | ≥ 80 |
| EAL580B200W840G2 | 580.5 x 310 x 66 mm | 200 W | 24,300 lm | Type 3/4/5 optic | 3000K, 4000K, 5000K, 6000K | ≥ 80 |
| EAL580B240W840G2 | 766.5 x 330 x 76 mm | 240 W | 33,500 lm | Type 3/4/5 optic | 3000K, 4000K, 5000K, 6000K | ≥ 80 |
| EAL580B300W840G2 | 766.5 x 330 x 76 mm | 300 W | 41,900 lm | Type 3/4/5 optic | 3000K, 4000K, 5000K, 6000K | ≥ 80 |
