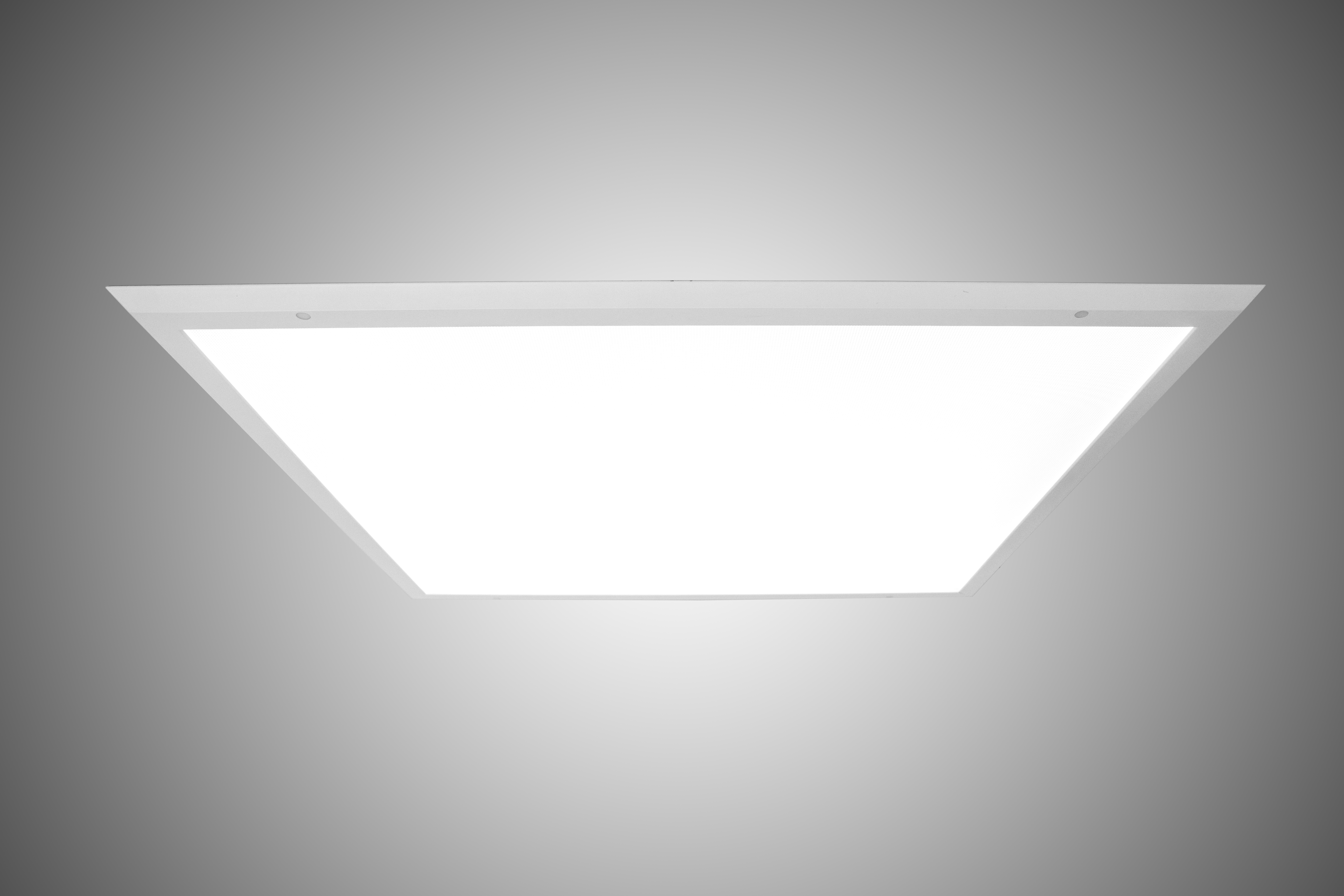

Evos - Edge-Lit Surface Mount Panel G5
Ecopoint’s Surface Mount Panel is an addition to the popular Edge-lit Panel family which avoids the need for additional accessories for mounting on plaster and other non-concrete surfaces (a cavity is required for the remote driver). Available in 600x600 and 1200x300 sizes with a range of light outputs and colour specifications, all of them with low-glare ratings (UGR). These panels offer the look, efficacy, lifespan and colour consistency of the new generation Edge-lit panel, with the versatility of a screw-affixed luminaire.
APPLICATIONS
Office
Commercial
Retail
Residential
SPECIFICATIONS
Power Factor:
>0.98
Electrical Input:
200-240V AC / 50 - 60 Hz
FEATURES
Warranty:
5 years
Construction:
Aluminium (extruded), Arcylic (PMMA)
Metal Finish:
Painted
Standard Mounting:
Surface-mounted
Life Prediction (hrs):
L80 > 100,000 hrs
Ingress Protection:
IP54
Impact Protection:
IK06
| PRODUCT CODE | DIMENSION (mm) | POWER | Luminous Flux | Optic/Beam | Colour Temperature | Colour Rending Index |
|---|---|---|---|---|---|---|
| ESP6x6W940G5 | 615 x 615 x 12 mm | 13 - 40 W | 1,550 - 4,780 lm | UGR<19 | 4000K | CRI 90 |
| ESP12x3W940G5 | 1215 x 315 x 12 mm | 13 - 40 W | 1,540 - 4,730 lm | UGR<19 | 4000K | CRI 90 |
