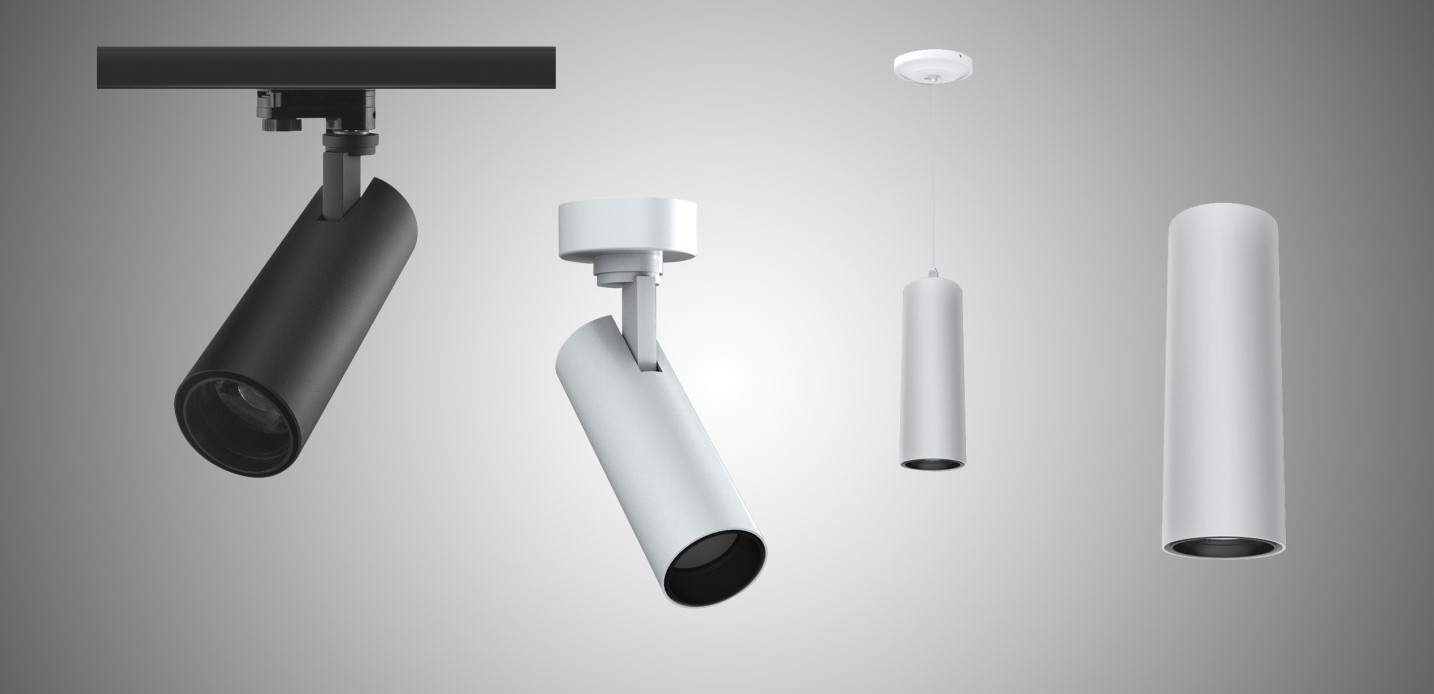

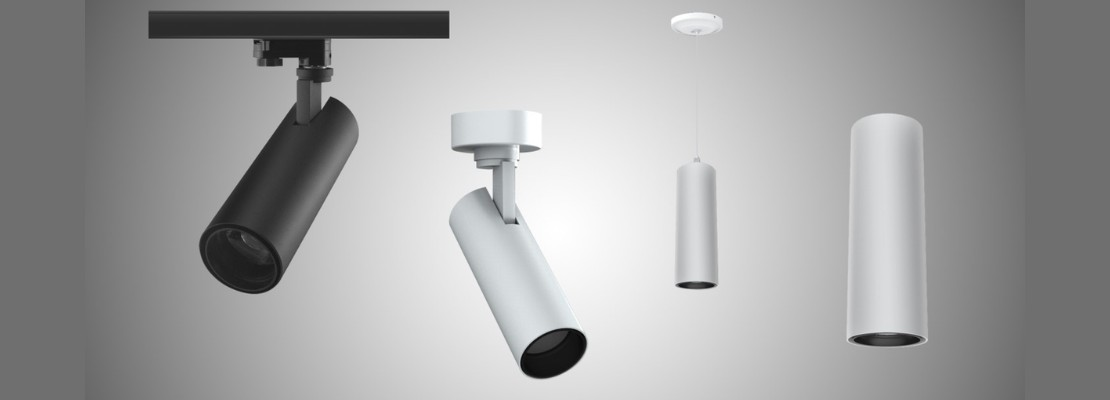

OptaTube 60

Ecopoint's surface-mount and suspended LED luminaires are ideal solutions in retail, supermarkets, offices and commercial buildings.
OptaTube 60

OptaTube 60

OptaTube 60 is simple and versatile, with performance to match its compact dimensions. A variety of mounting options means that you can deliver a range of lighting effects and implementations while maintaining a common aesthetic. High colour performance is standard,
with an option for even higher specifications for colour-critical applications. Choose either the black or white option to suit your interior colour scheme

APPLICATIONS

Office, Commercial, Hospitality, Retail

SPECIFICATIONS

Power Factor:
>0.90
Electrical Input:
200-240V / 50 - 60 Hz

FEATURES

Warranty:
5 years
Construction:
Aluminium (extruded), Polycarbonate (PC)
Metal Finish:
Powdercoated
Standard Mounting:
Suspended, Surface-mounted
Life Prediction (hrs):
L80 > 76,000 (B10)
Ingress Protection:
IP20
Impact Protection:
IK02
PRODUCT CODE DIMENSION (mm) POWER Luminous Flux Optic/Beam Colour Temperature Colour Rending Index

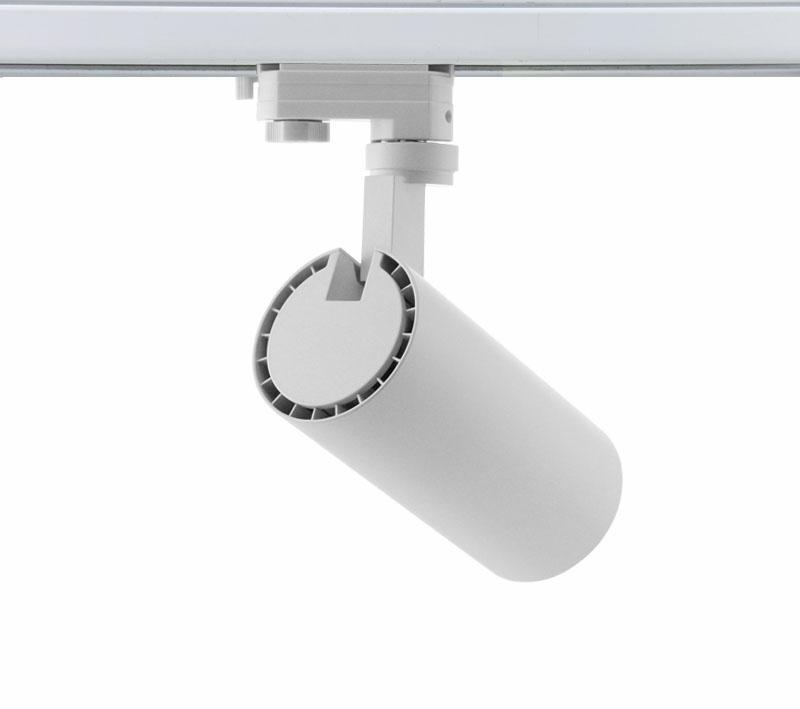

ETU60B15W940-36D-TR ø62 x 180 mm 15 W 1,530 lm 16° / 24° / 36° 4000K (3000K optional) ≥90

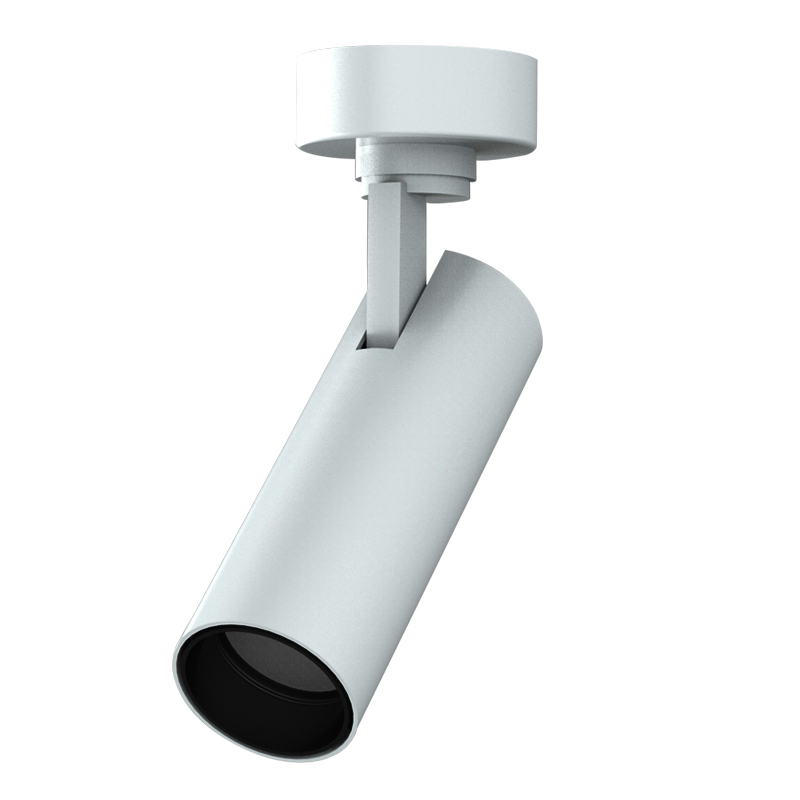

ETU60B15W940-36D-SS ø62 x 180 mm 15 W 1,530 lm 16° / 24° / 36° 4000K (3000K optional) ≥90

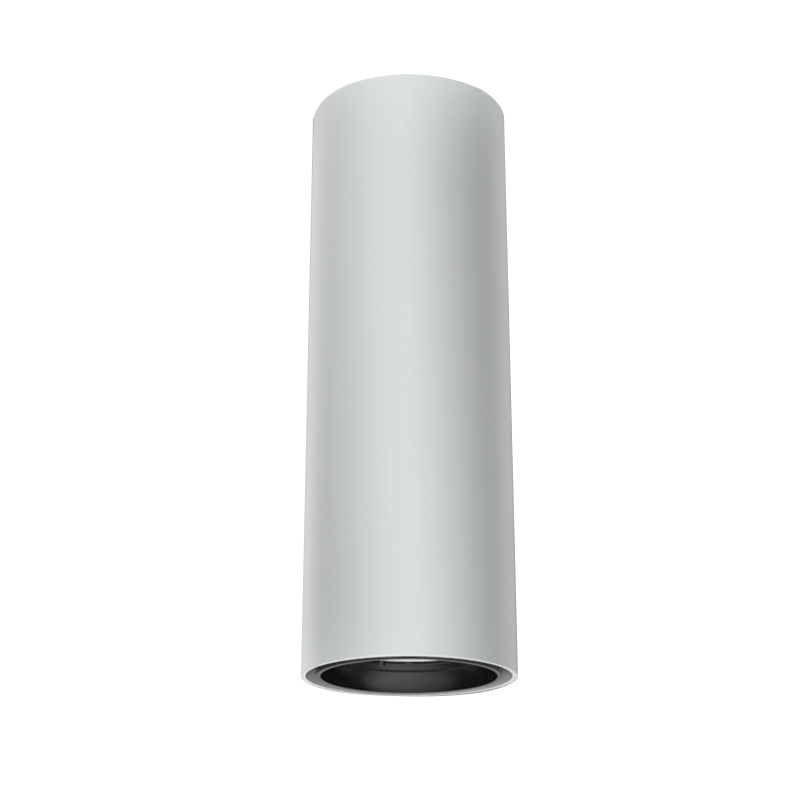

ETU60B15W940-36D-SD ø62 x 174 mm 15 W 1,530 lm 16° / 24° / 36° 4000K (3000K optional) ≥90

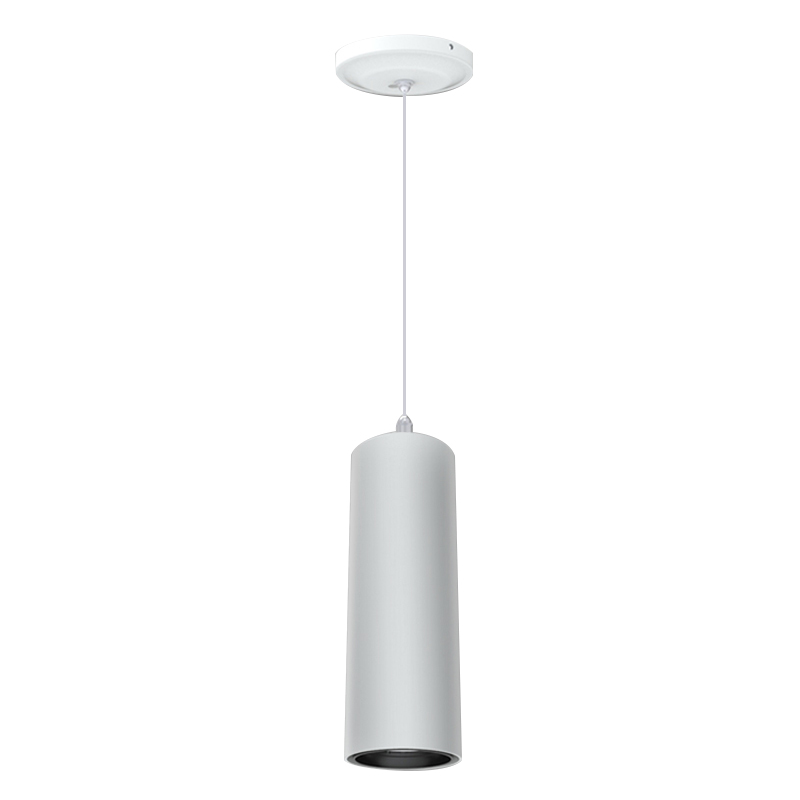

ETU60B15W940-36D-PD ø62 x 184 mm (1.0 m suspension) 15 W 1,530 lm 16° / 24° / 36° 4000K (3000K optional) ≥90
