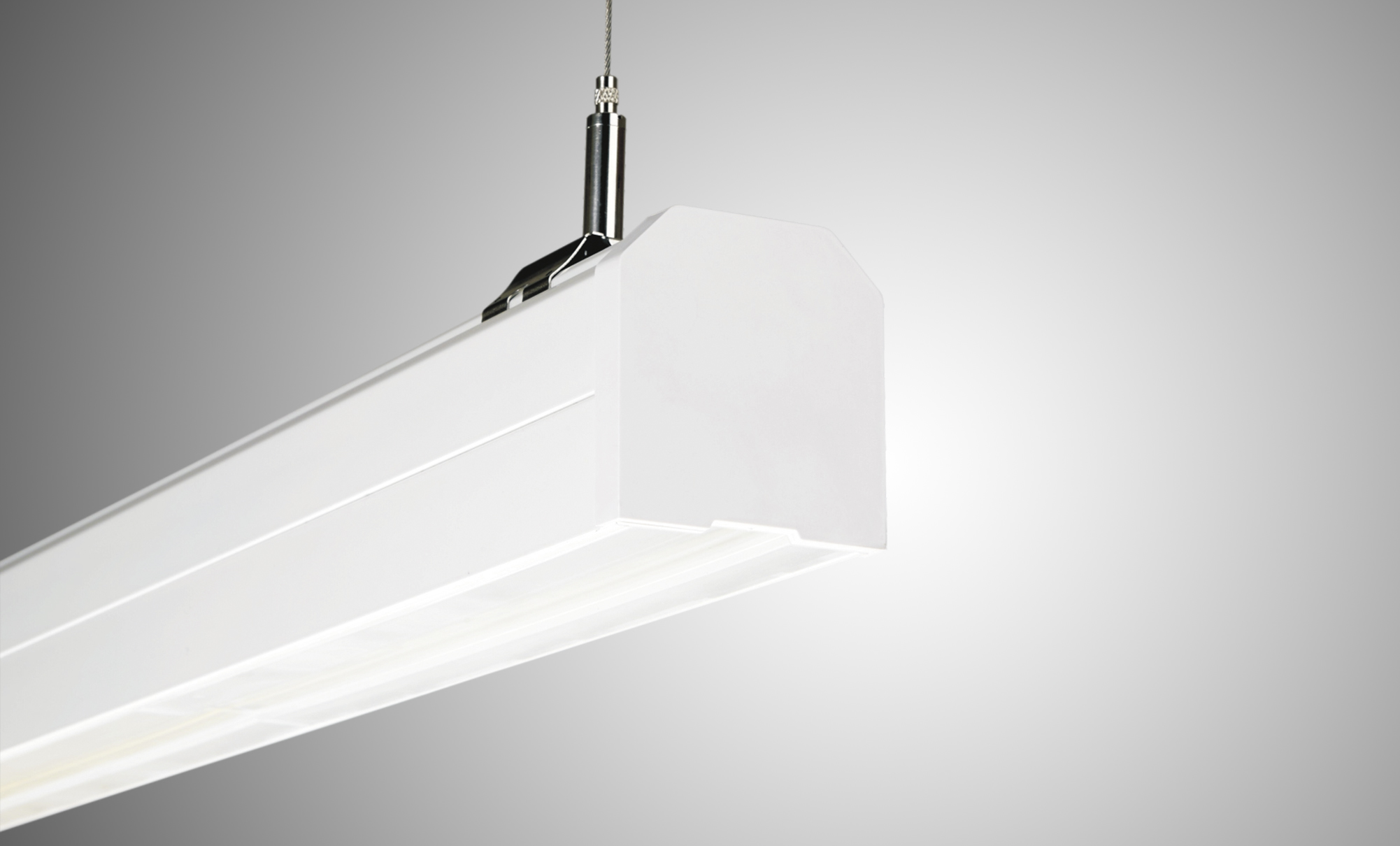

OptaTrunk

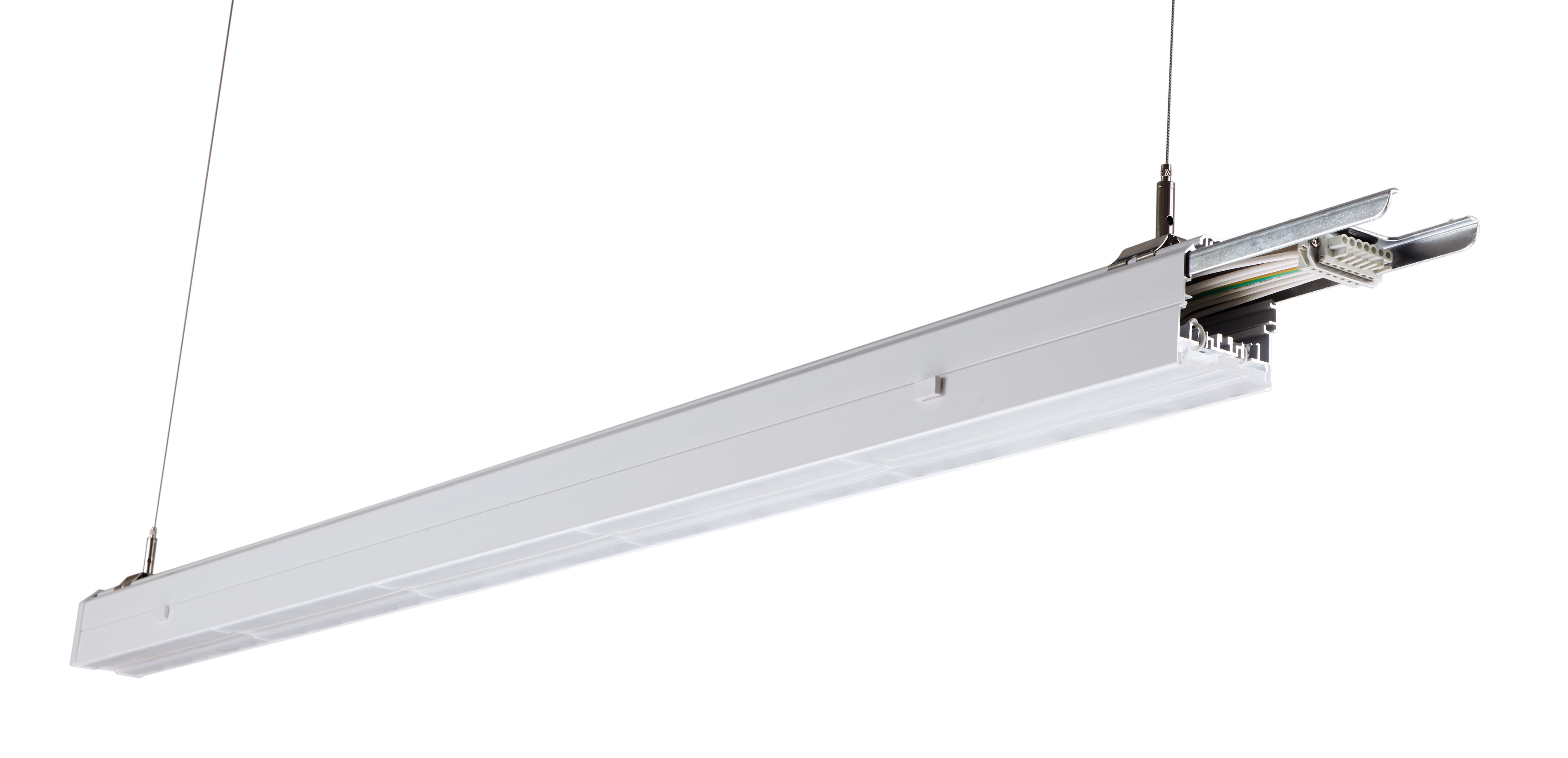

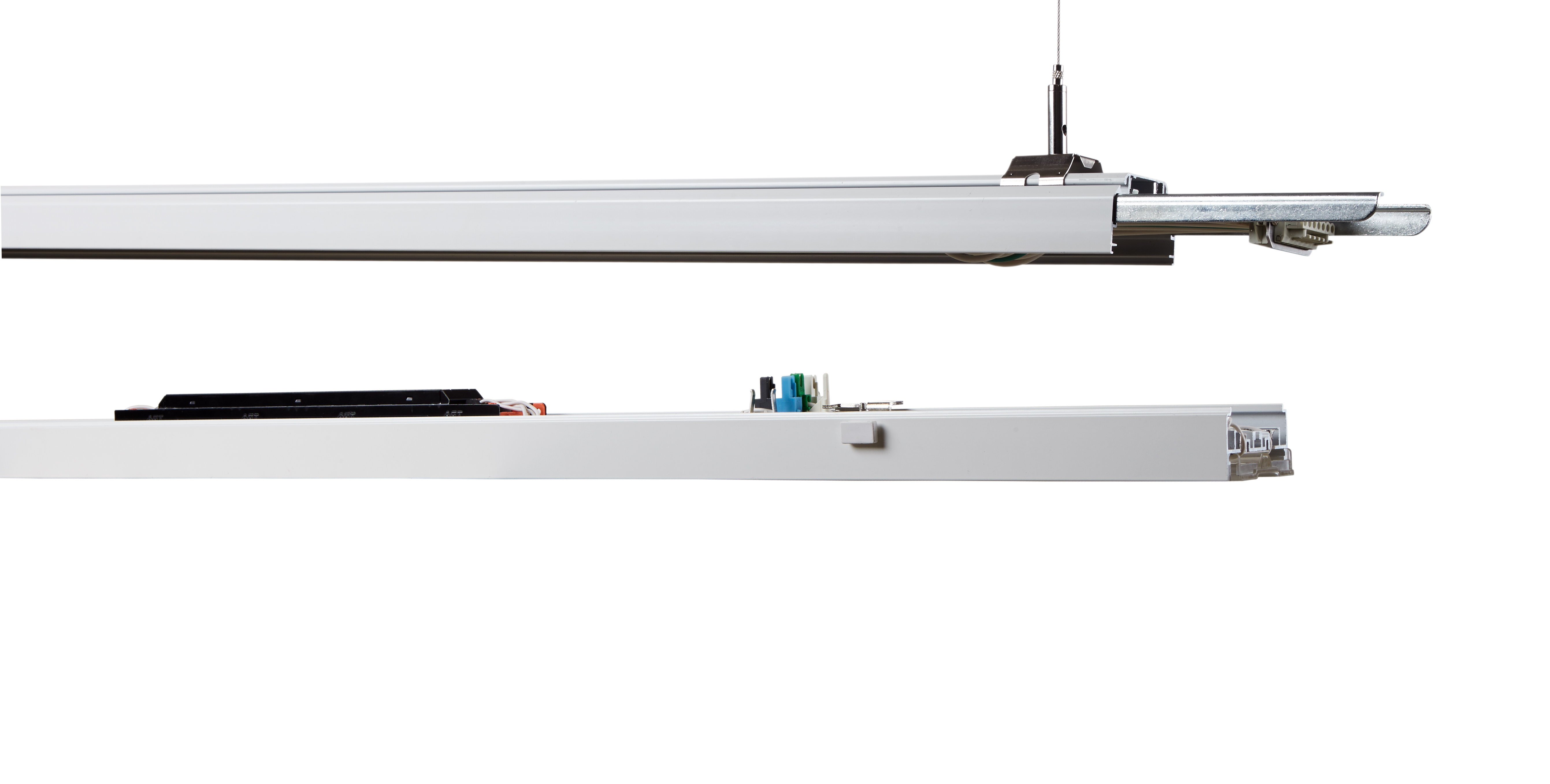

A trunk-lighting system can be the most versatile tool at a lighting designer’s disposal, with many possible configurations and options to suit a variety of applications. The simple two-piece plug-and play construction makes for rapid installation. Select from three different flux packages and five different optical distributions to place the right amount of light in exactly the place it is required. Expand possibilities with 3-circuit track modules, and join multiple runs together with L, T or X joiners for geometric arrangements. Choose either black or white options to suit your colour scheme.

APPLICATIONS

Office
Commercial
Warehousing
Retail

SPECIFICATIONS

Power Factor:

>0.85

Electrical Input:

200-240 V / 47-63 Hz

Technical Data Sheet

IES Files

FEATURES

Warranty:

5 years

Construction:

Aluminium (extruded), Arcylic (PMMA)

Metal Finish:

Powdercoated

Standard Mounting:

Suspended

Standard Mounting:

Surface-mounted

Life Prediction (hrs):

L90 @ 60,000 hrs (B50)

Ingress Protection:

IP20

PRODUCT CODE	DIMENSION (mm)	POWER	Luminous Flux	Optic/Beam	Colour Temperature	Colour Rending Index
ETR12W27W840	1200 x 65 x 72 mm	27 W	4,540 lm	Narrow (25°), Medium (60°), Wide (90°), Aisle, Asymmetric	4000K (3000K, 5000K opt.)	Ra > 80 (> 90 opt.)
ETR12W40W840	1200 x 65 x 72 mm	40 W	6,720 lm	Narrow (25°), Medium (60°), Wide (90°), Aisle, Asymmetric	4000K (3000K, 5000K opt.)	Ra > 80 (> 90 opt.)
ETR12W50W840	1200 x 65 x 72 mm	50 W	8,250 lm	Narrow (25°), Medium (60°), Wide (90°), Aisle, Asymmetric	4000K (3000K, 5000K opt.)	Ra > 80 (> 90 opt.)
ETR15W33W840	1500 x 65 x 72 mm	33 W	5,470 lm	Narrow (25°), Medium (60°), Wide (90°), Aisle, Asymmetric	4000K (3000K, 5000K opt.)	Ra > 80 (> 90 opt.)
ETR15W50W840	1500 x 65 x 72 mm	50 W	8,170 lm	Narrow (25°), Medium (60°), Wide (90°), Aisle, Asymmetric	4000K (3000K, 5000K opt.)	Ra > 80 (> 90 opt.)
ETR15W65W840	1500 x 65 x 72 mm	65 W	10,620 lm	Narrow (25°), Medium (60°), Wide (90°), Aisle, Asymmetric	4000K (3000K, 5000K opt.)	Ra > 80 (> 90 opt.)
