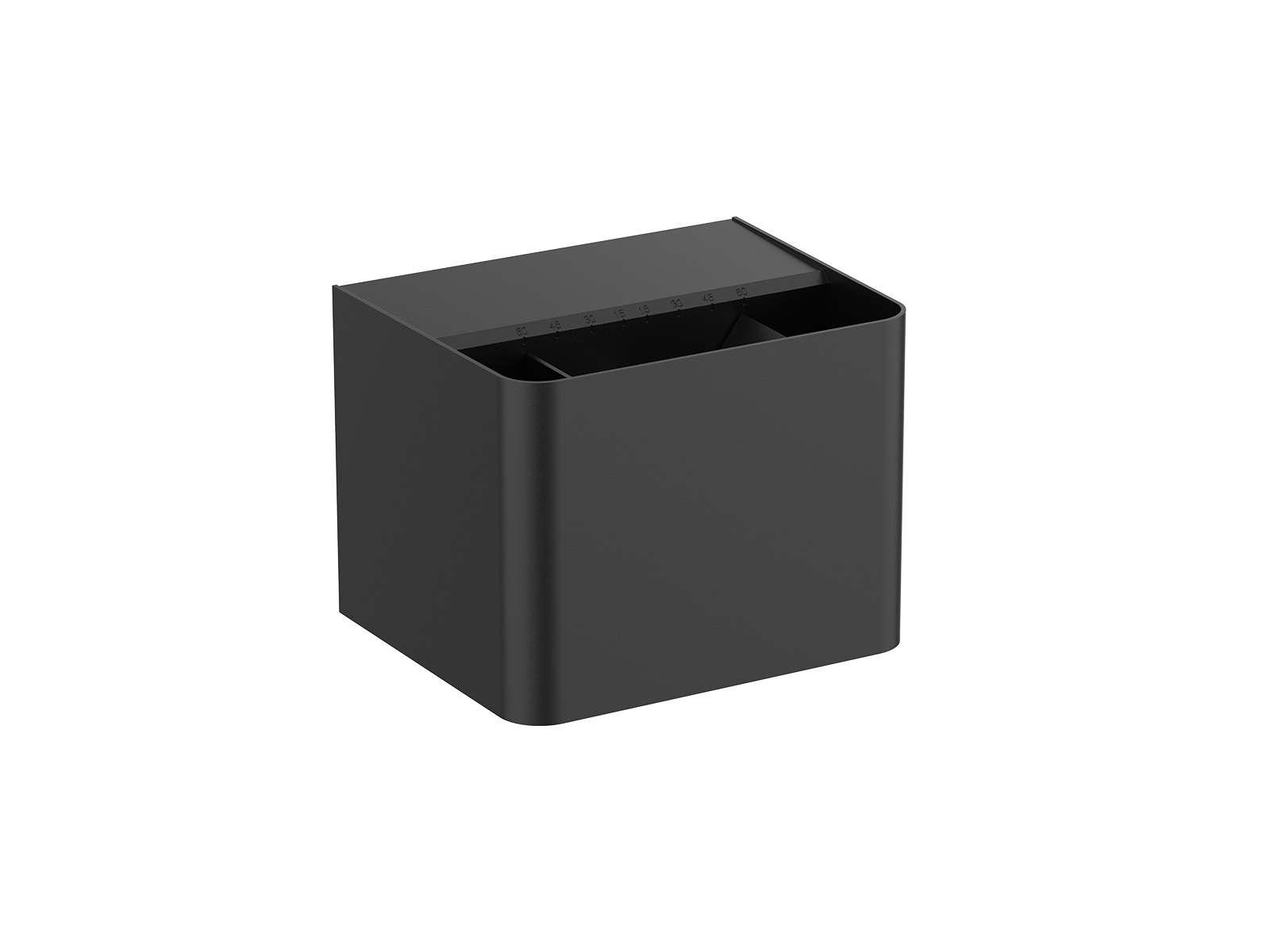

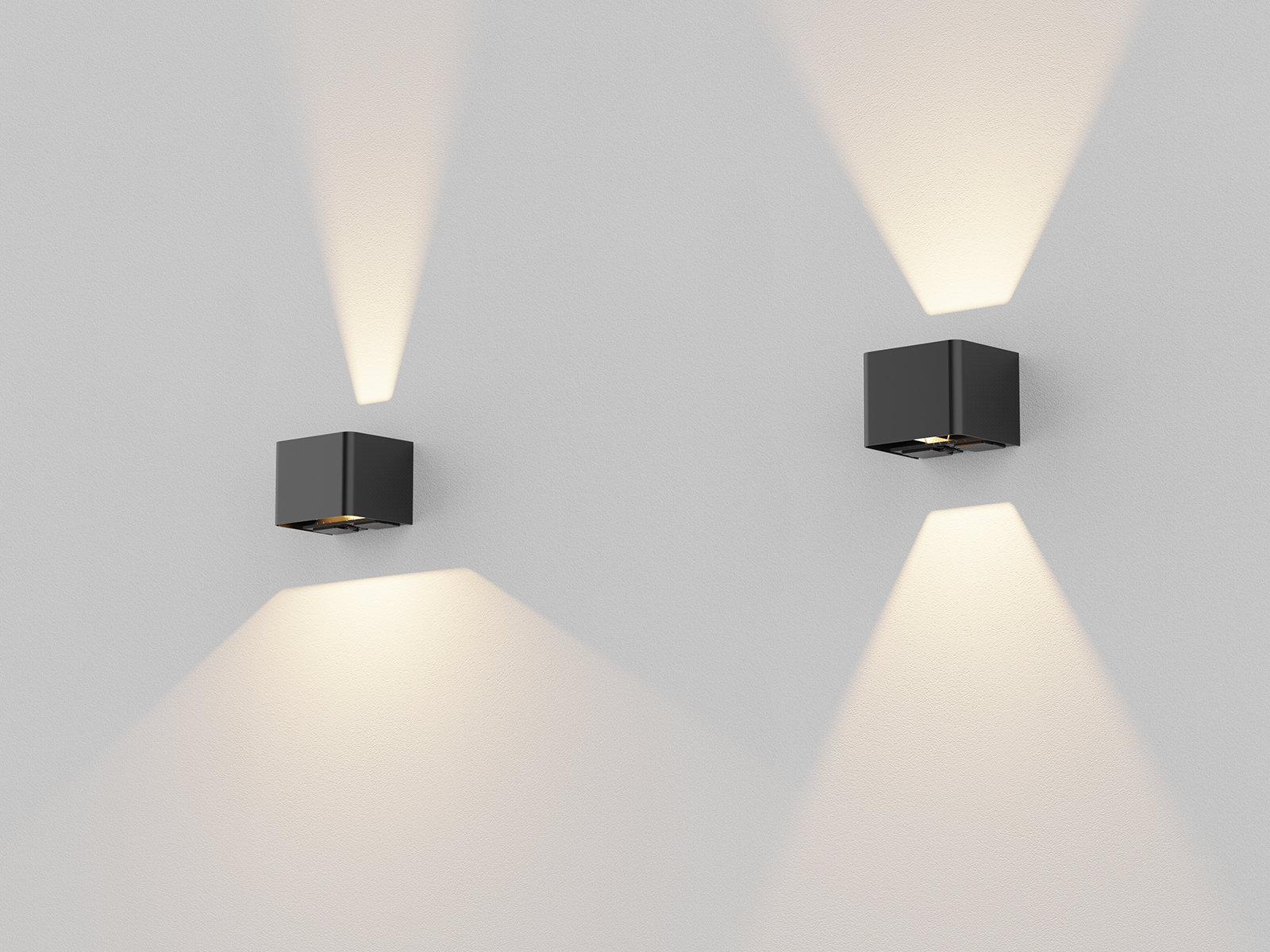

OptaCube G2

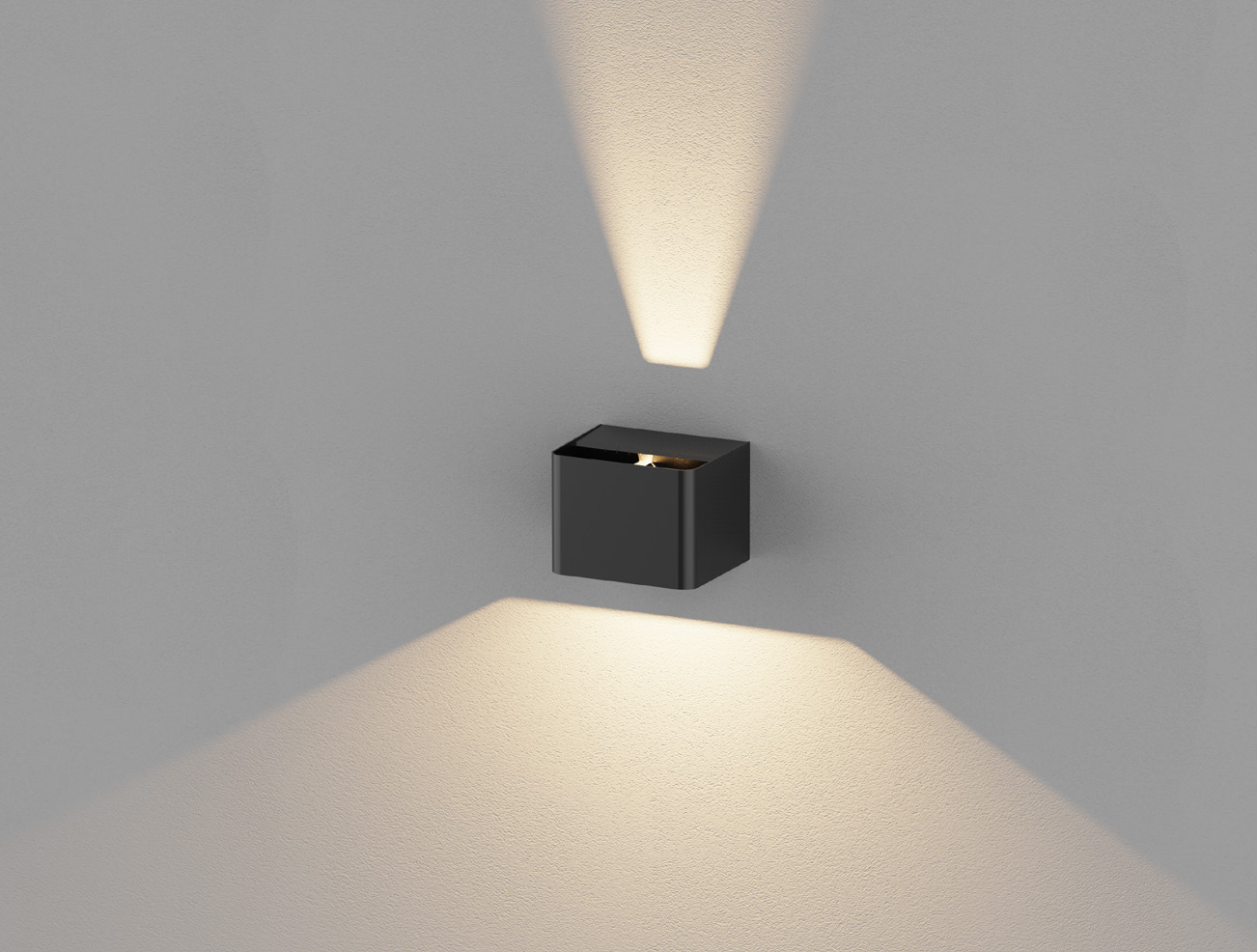

Few forms could offer more simplicity than the cube, and the OptaCube G2 luminaire combines that classic appearance with highly customisable lighting effects. Adjustable reflector plates in both the up and down directions mean that distributions from a narrow 15o right through to a wide 120° can be configured (and reconfigured whenever desired). Robust aluminium construction and an IP54 rating mean that OptaCube G2 can be deployed in a wide range of applications.
APPLICATIONS
Office
Commercial
Retail
Residential
Exterior
SPECIFICATIONS
Power Factor:
>0.90
Electrical Input:
200-240V / 50 - 60 Hz
FEATURES
Warranty:
5 years
Construction:
Aluminium (extruded), Polycarbonate (PC)
Metal Finish:
Powdercoated

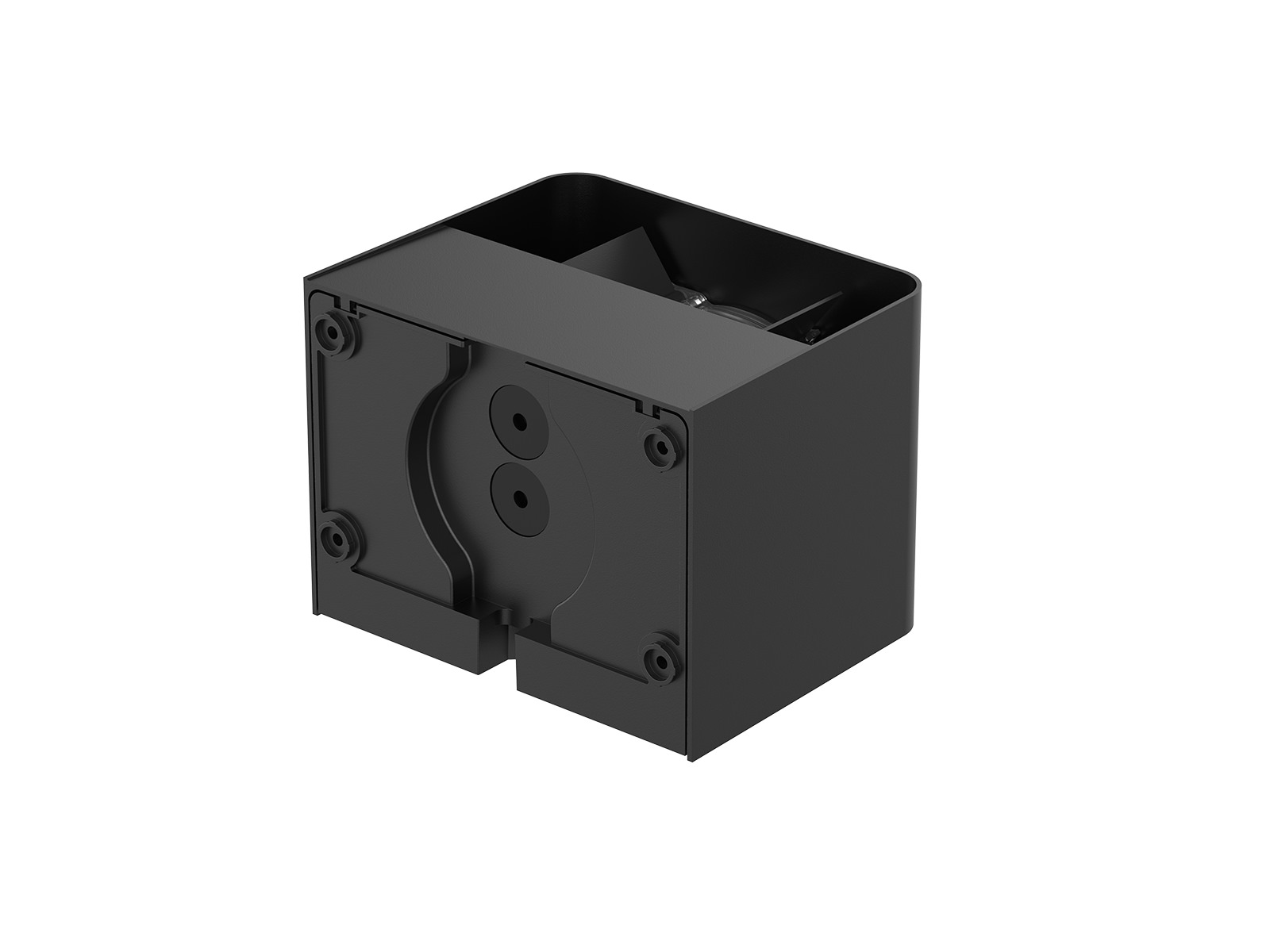

Standard Mounting:
Surface-mounted
Life Prediction (hrs):
L80@ 69,000 hrs
Ingress Protection:
IP54
| PRODUCT CODE | DIMENSION (mm) | POWER | Luminous Flux | Optic/Beam | Colour Temperature | Colour Rending Index |
|---|---|---|---|---|---|---|
| ECU165B8W9030-G3 | 165 x 130 x 123 mm | 2 x 4W | up to 560 lm | 15°~120° adjustable | 2700K, 3000K, 4000K, 5000K | CRI90 |
| ECU165B15W9030-G3 | 165 x 130 x 123 mm | 2 x 7.5W | up to 950 lm | 15°~120° adjustable | 2700K, 3000K, 4000K, 5000K | CRI90 |
