Ecopoint's surface-mount and suspended LED luminaires are ideal solutions in retail, supermarkets, offices and commercial buildings.
OptaCube

OptaCube

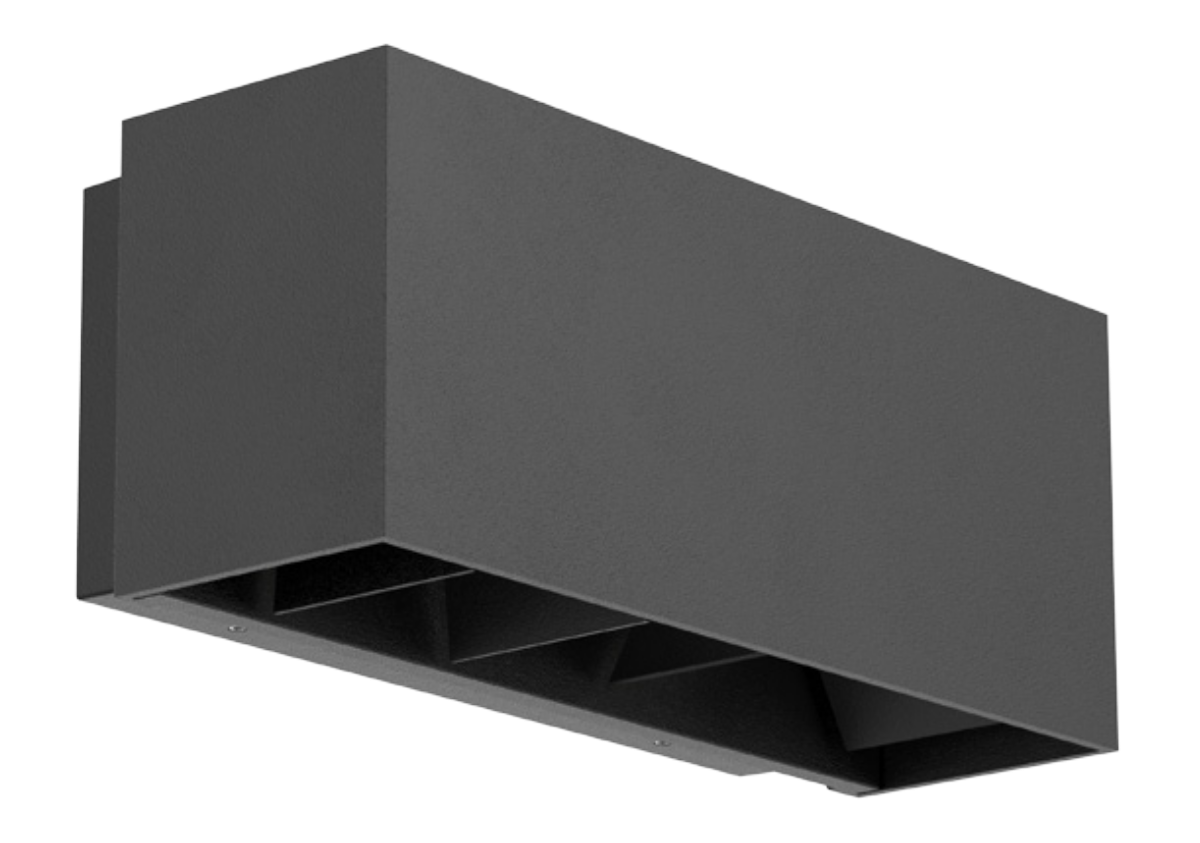

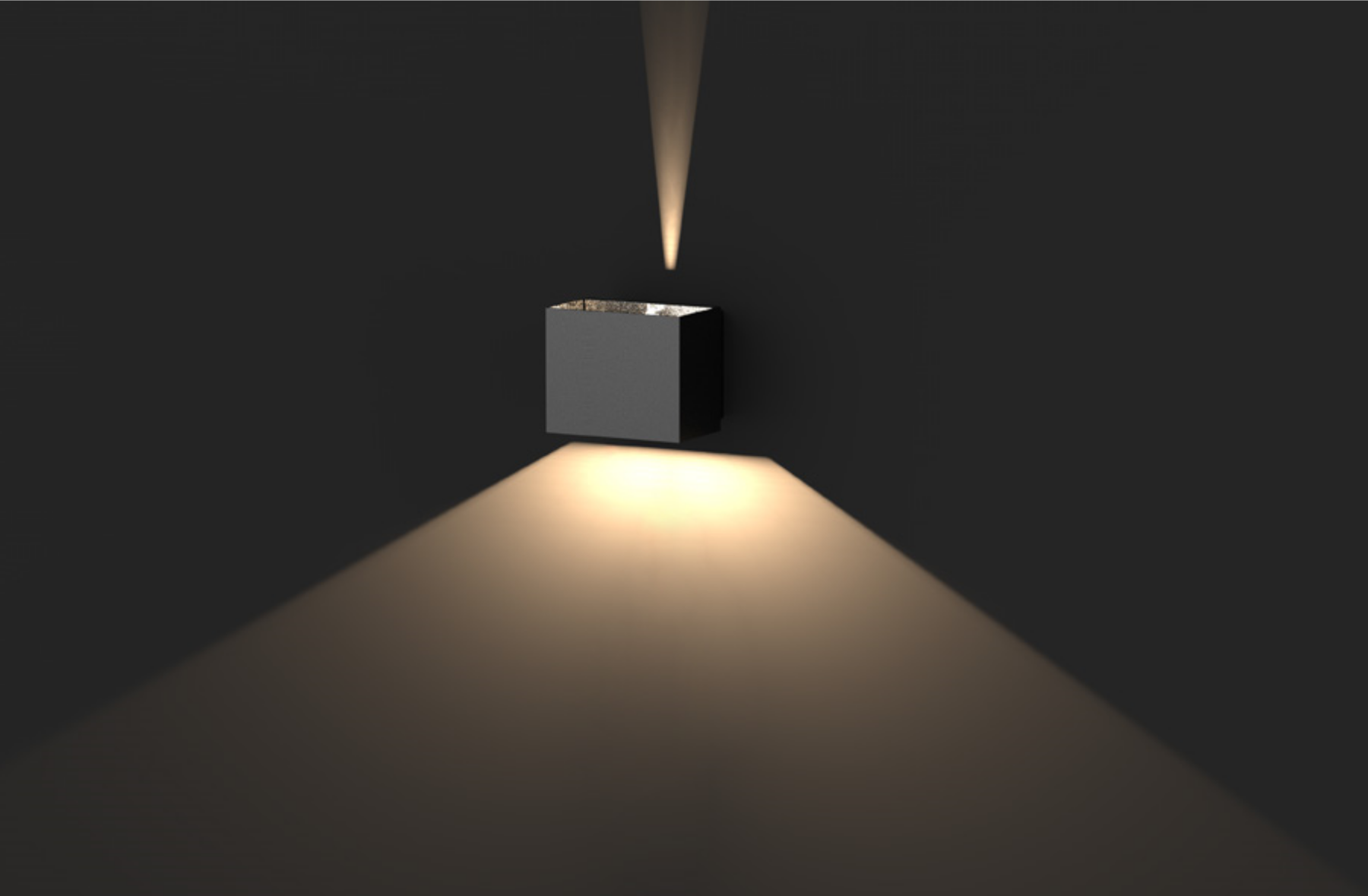

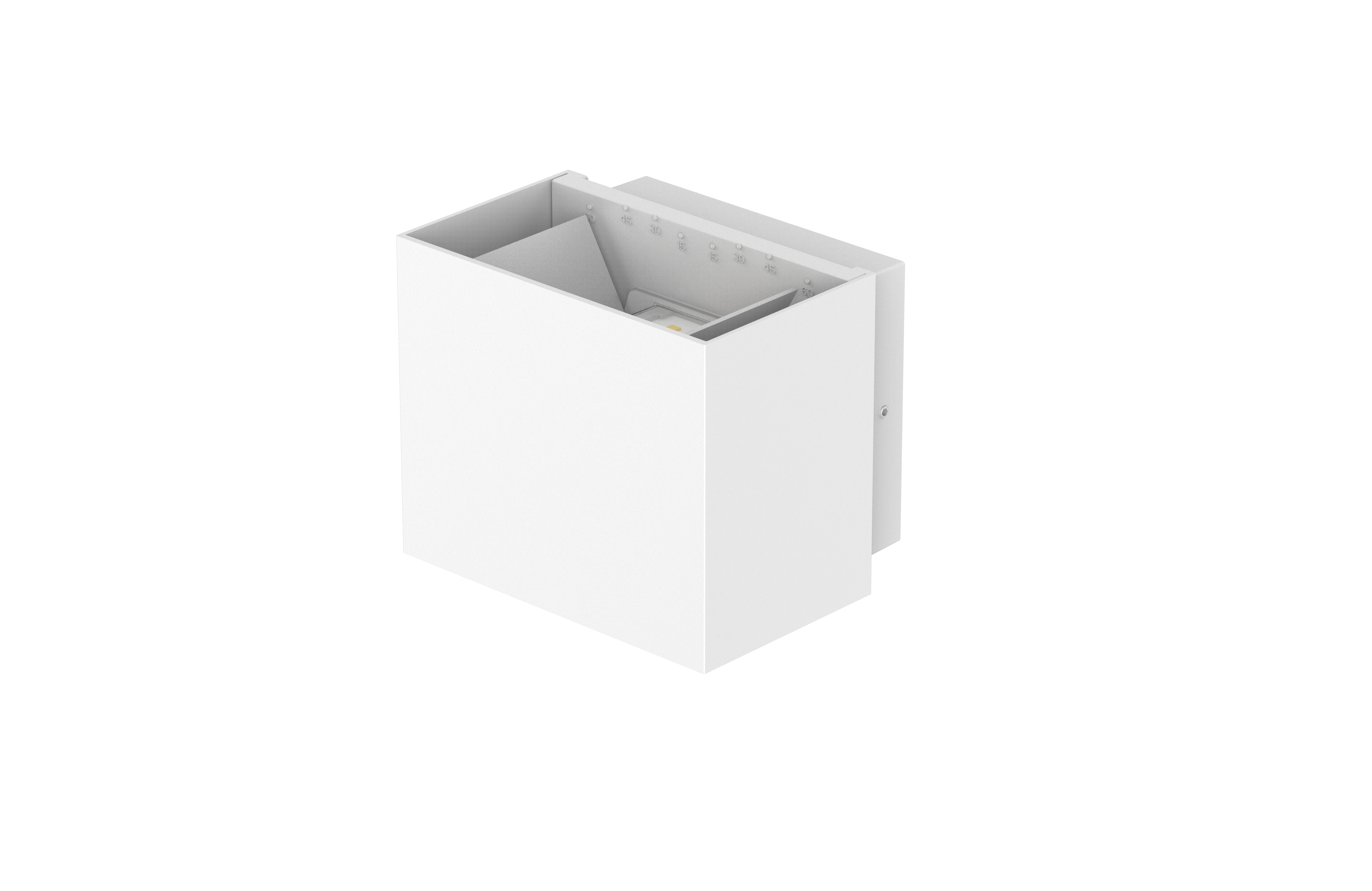

Few forms could offer more simplicity than the cube, and the OptaCube luminaire combines that classic appearance with highly customisable lighting effects. Adjustable reflector plates in both the up and down directions mean that distributions from a narrow 15° right through to a wide 120° can be configured (and re-configured whenever
desired). Robust aluminium construction and an IP65 rating mean that OptaCube can be deployed in a wide range of applications.

APPLICATIONS

Office, Commercial, Retail, Residential, Exterior

SPECIFICATIONS

Power Factor:
>0.90
Electrical Input:
200-240V / 50 - 60 Hz

FEATURES

Warranty:
3 years
Construction:
Aluminium (extruded), Polycarbonate (PC)
Metal Finish:
Powdercoated
Standard Mounting:
Surface-mounted
Life Prediction (hrs):
L80 > 37,000 (B10)
Ingress Protection:
IP65
Impact Protection:
IK02
PRODUCT CODE DIMENSION (mm) POWER Luminous Flux Optic/Beam Colour Temperature Colour Rending Index
ECU120B10W830 120 x 100 x 97 mm 10 W 970 lm 15°~120° 3000K (4000K optional) ≥80
ECU240B18W830 240 x 100 x 98 mm 18 W 1,270 lm 15°~120° 3000K (4000K optional) ≥80
