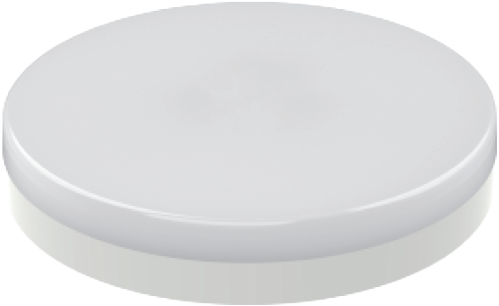

Ceiling Light G3

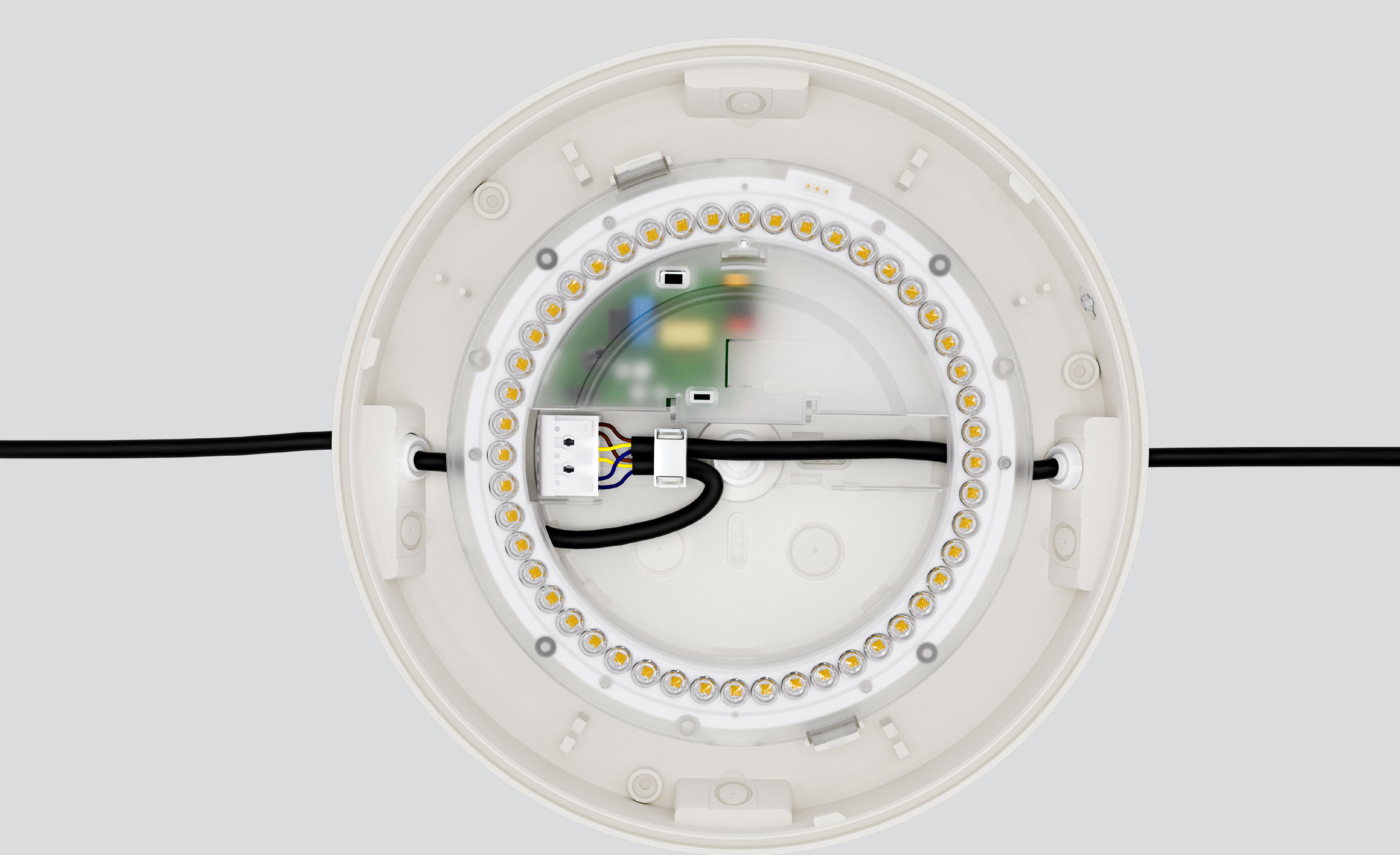

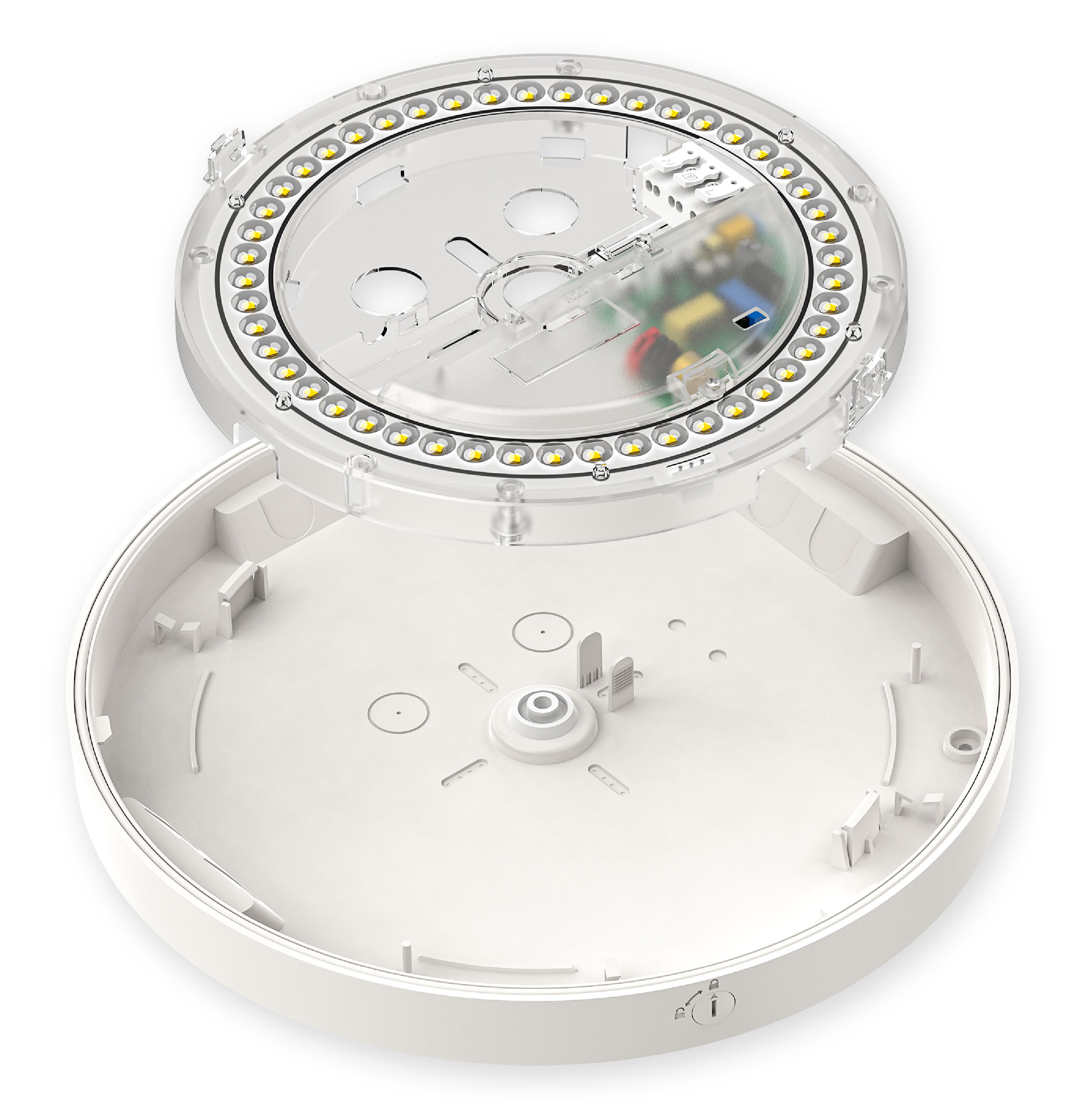

The next generation of bulkhead/ oyster fixtures features an innovative modularity, allowing both light engine/driver replacement and retro-fitting into existing luminaires. Robust protection from ingress and impact, a useful amount of uplight to reduce glare, adjustable-power and adjustable CCT, plus a simple aesthetic which blends in to any space. Long-life components and improved luminous efficacy lend the Tio to situations where energy efficiency is a priority, and this can be further enhanced by integrating an optional Zhaga Book 20 microwave sensor for standalone automated control.
APPLICATIONS
Exterior
Commercial
Amenities
SPECIFICATIONS
Power Factor:
>0.95
Electrical Input:
220 - 240V AC / 50-60 Hz
FEATURES
Warranty:
5 years
Construction:
Polycarbonate (PC)
Standard Mounting:
Surface-mounted
Standard Mounting:
Surface-mounted
Life Prediction (hrs):
L90 @ 48,000 hrs /
L80 > 99,000 hrs
L80 > 99,000 hrs
Ingress Protection:
IP54
Impact Protection:
IK10
| PRODUCT CODE | DIMENSION (mm) | POWER | Luminous Flux | Optic/Beam | Colour Temperature | Colour Rending Index |
|---|---|---|---|---|---|---|
| ECLD300W8DC-G3 | Ø300 x 68 mm | Switchable 10, 12, 15W | 1,200 - 1,800 lm | 120 degree | 3000K - 4000K (switchable) | >80 |
| ECLD400W8DC-G3 | Ø400 x 70 mm | Switchable 15, 20, 25 W | 1,800 - 3,200 lm | 120 degree | 3000K - 4000K (switchable) | >80 |
