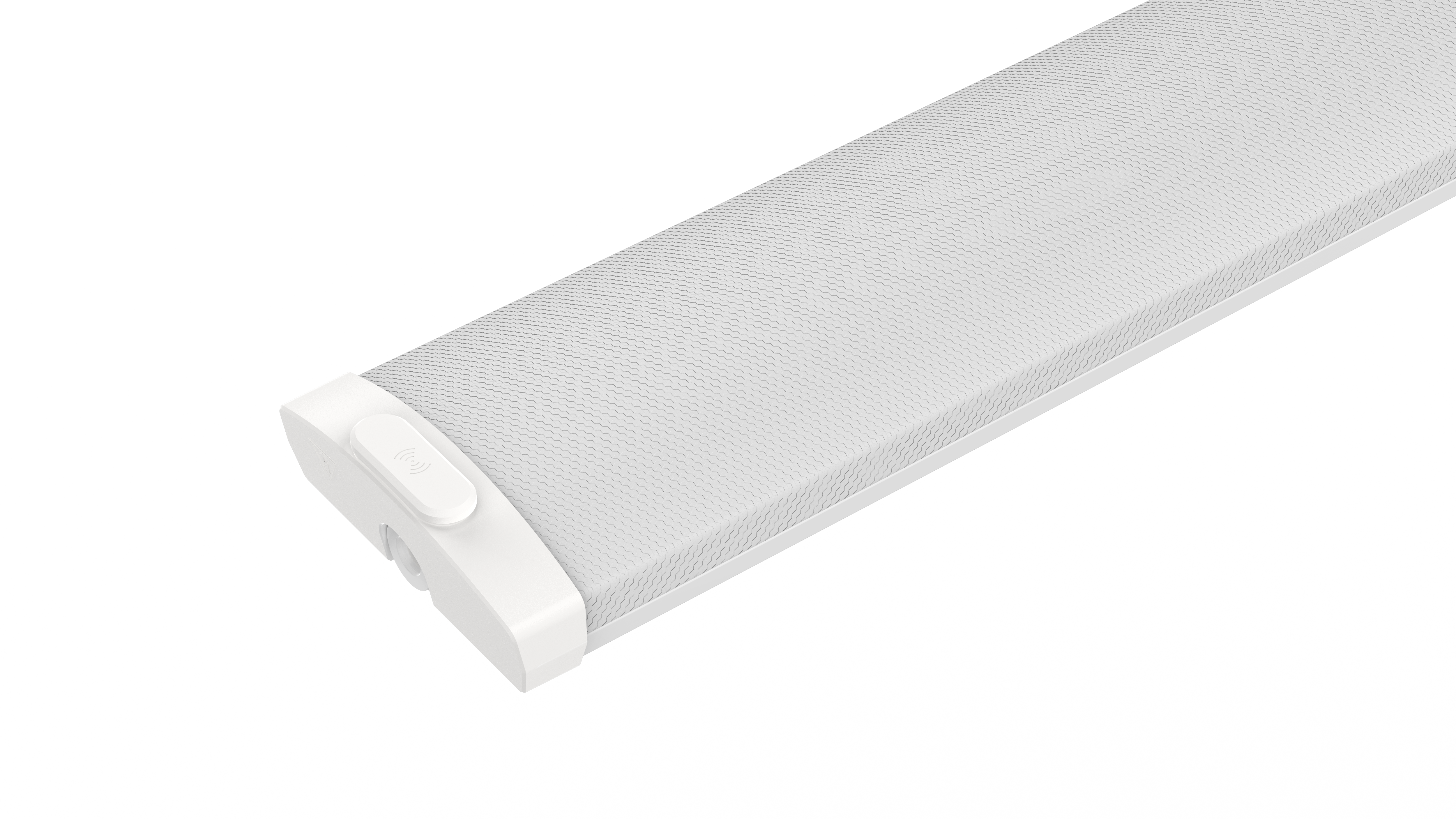

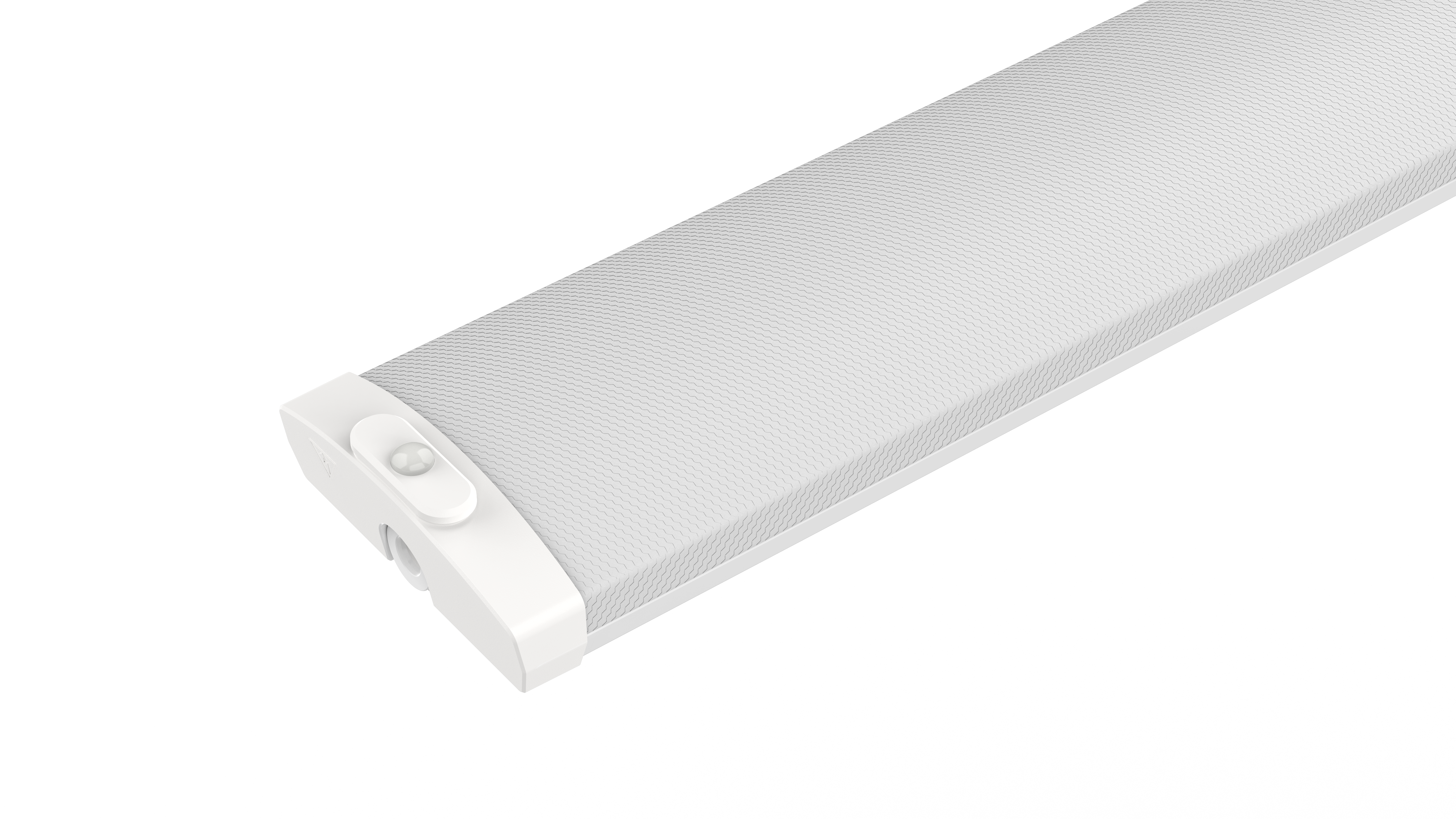

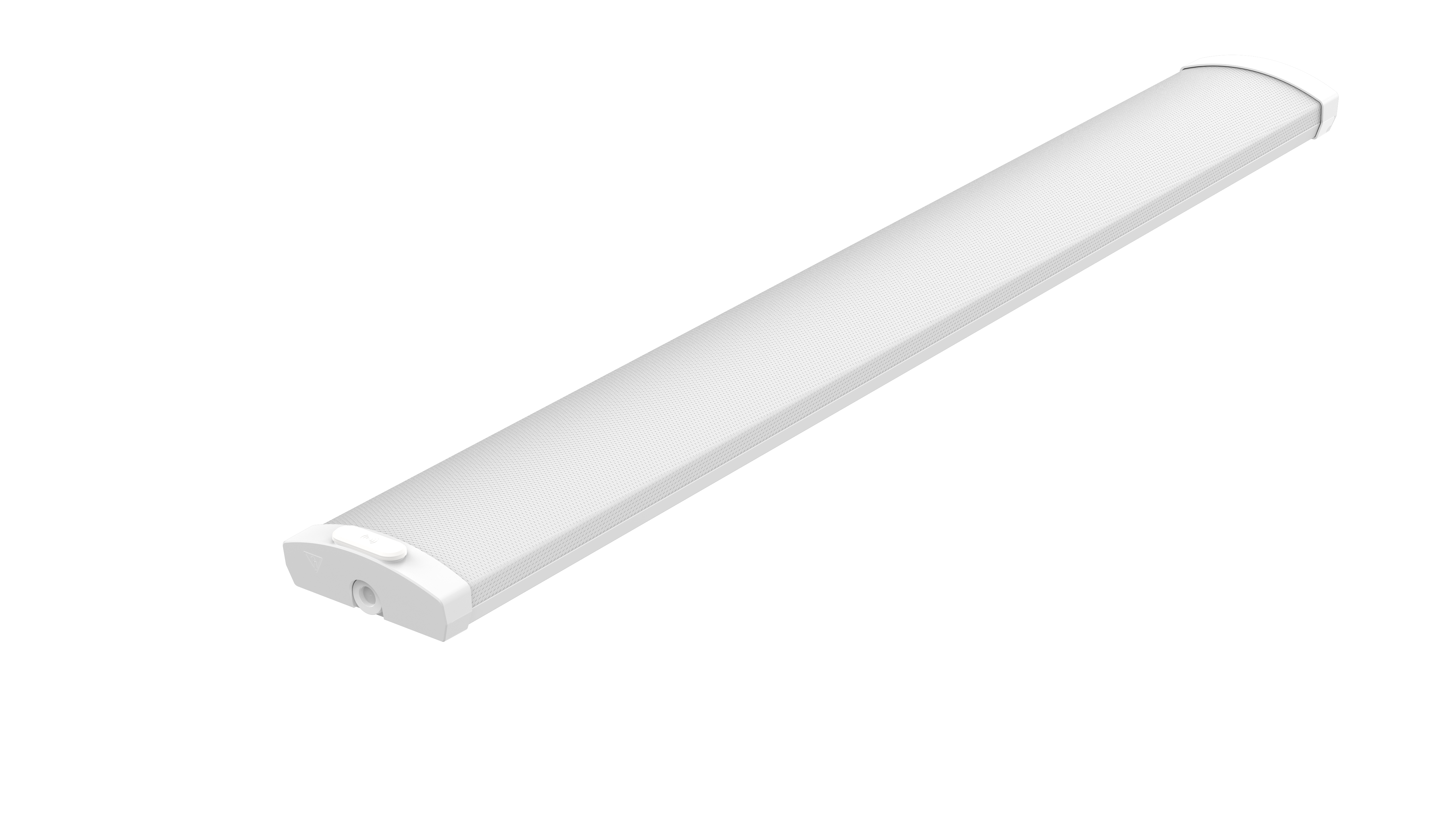

Batten G4
This Ra95+ update to the Ecopoint batten retains the salient construction and mechanical characteristics of its predecessor, while improving colour rendering. This latest generation Batten from Ecopoint also facilitates the integration of options like occupancy sensors, with a Zhaga Book 20 interface, which are able to be supplied with external PIR or Microwave sensors.
The G4 batten is considered low-glare when used in standard office configurations and at lower wattages within the selectable power range.
APPLICATIONS
Office
Commercial
SPECIFICATIONS
Power Factor:
>0.93
Electrical Input:
220-240V AC / 47-63 Hz
FEATURES
Warranty:
5 years
Construction:
Sheet metal, Arcylic (PMMA)
Metal Finish:
Powdercoated
Standard Mounting:
Surface-mounted
Life Prediction (hrs):
L90 @ 60,000 hrs /
L80 > 100,000 hrs
L80 > 100,000 hrs
Ingress Protection:
IP44
Impact Protection:
IK07
| PRODUCT CODE | DIMENSION (mm) | POWER | Luminous Flux | Optic/Beam | Colour Temperature | Colour Rending Index |
|---|---|---|---|---|---|---|
| EBT1200WS40G4 | 1200 mm | 23 - 40W | 2,993 - 5,070 lm | Opalised micro-prismatic | ≥ 95 | |
| EBT1500WS40G4 | 1500 mm | 26 - 47W | 3,256 - 5,862 lm | Opalised micro-prismatic | ≥ 95 | |
| EBT600WS40G4 | 600 mm |
