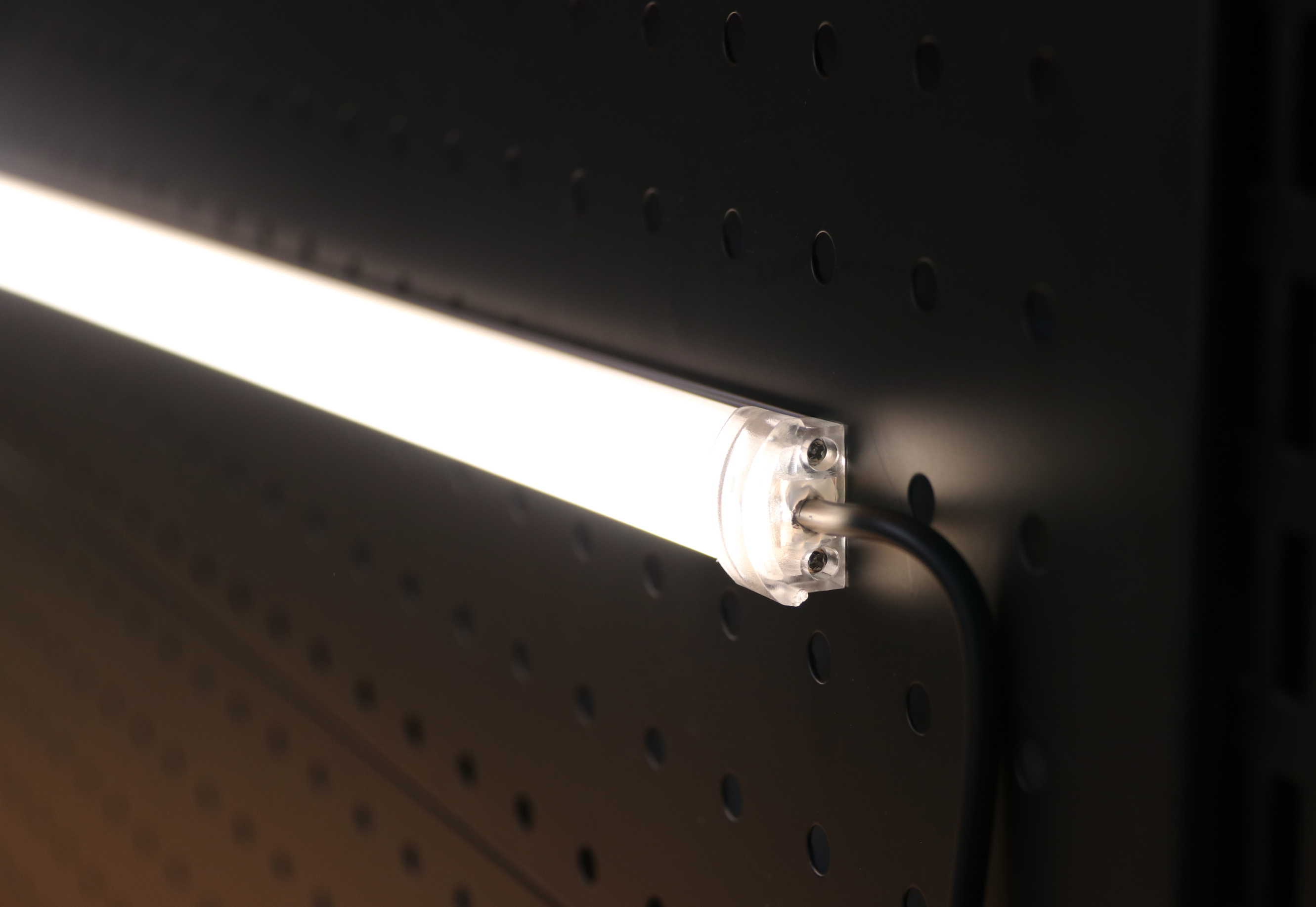

Rigid Strip Light

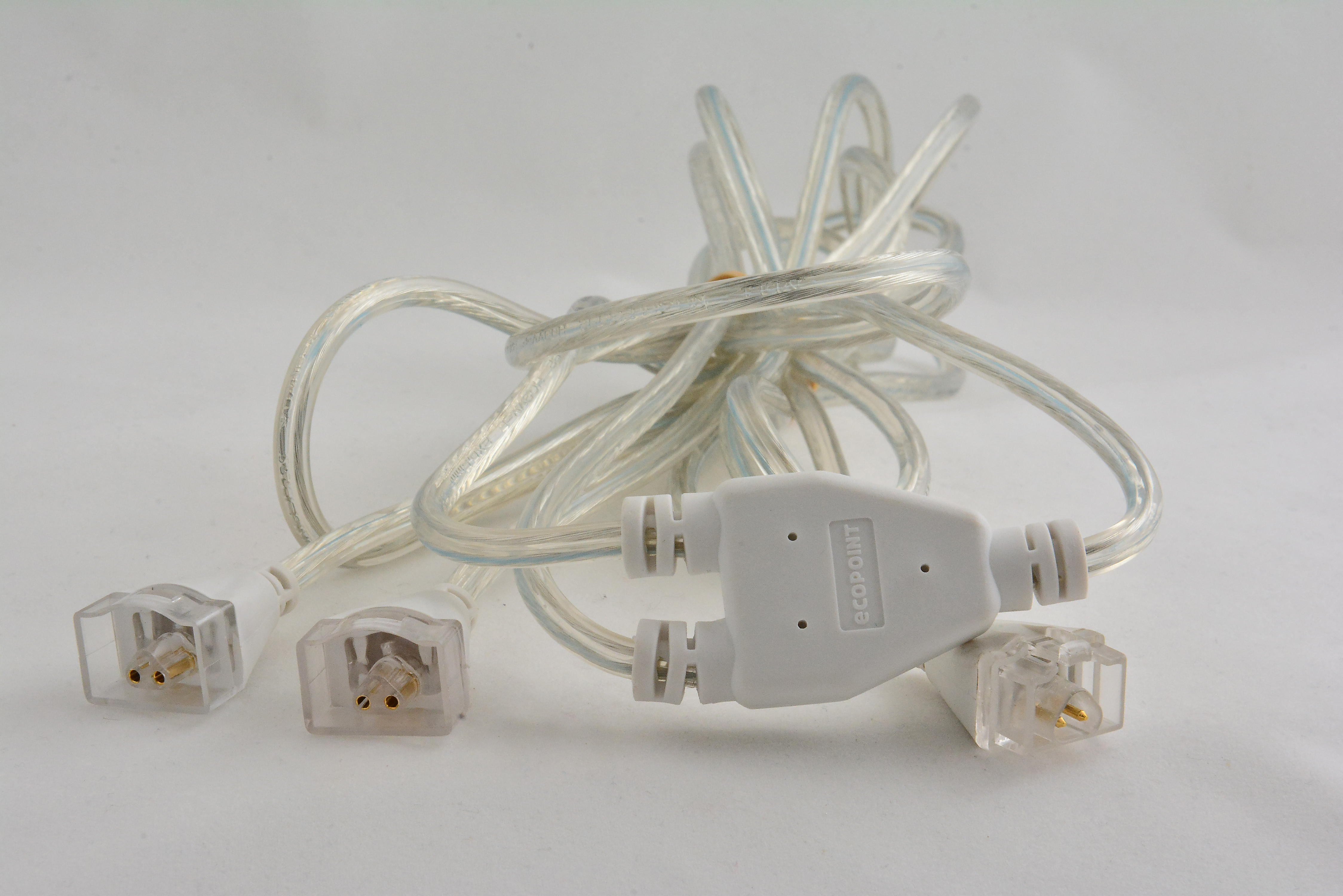

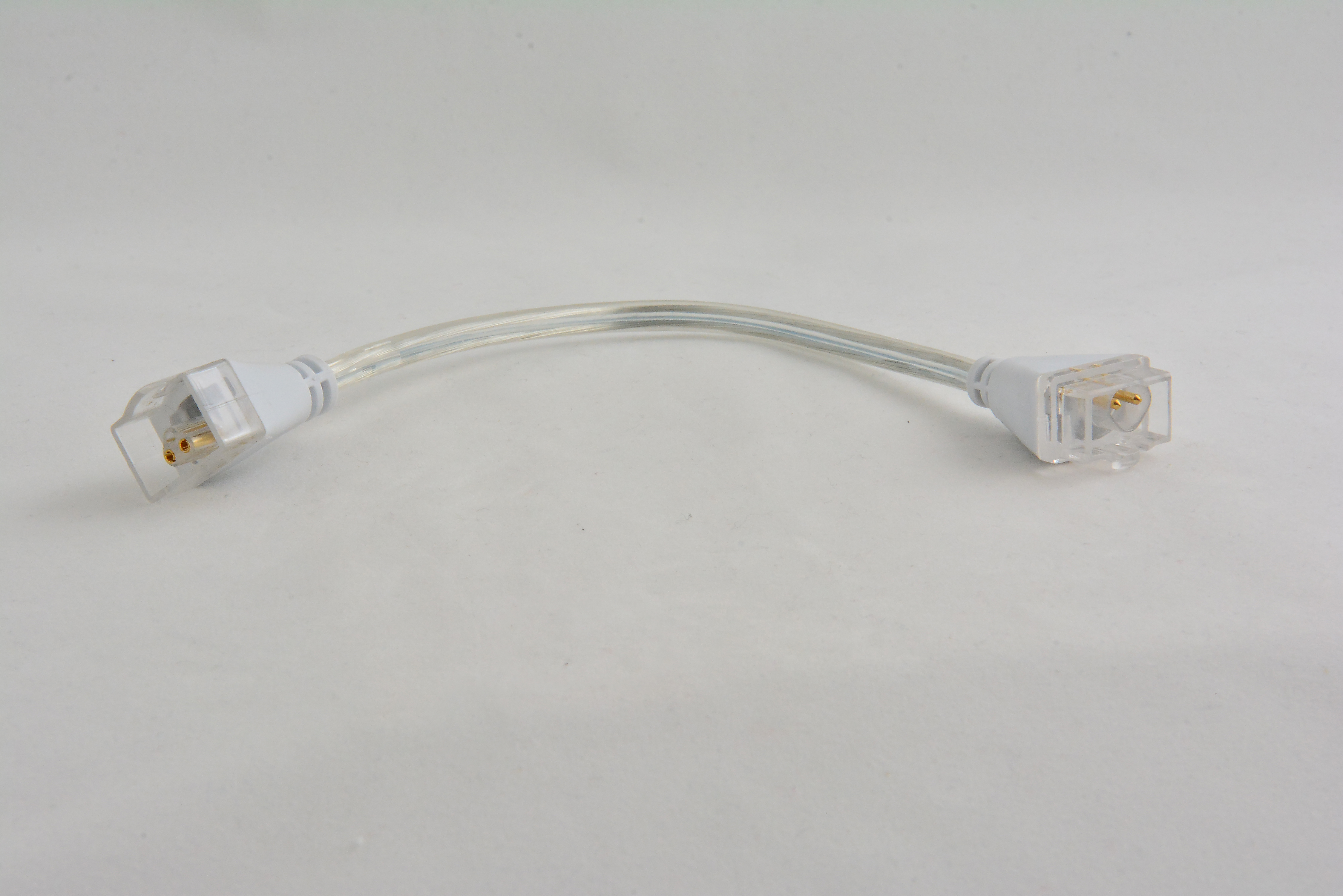

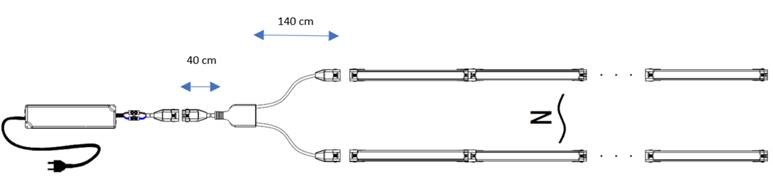

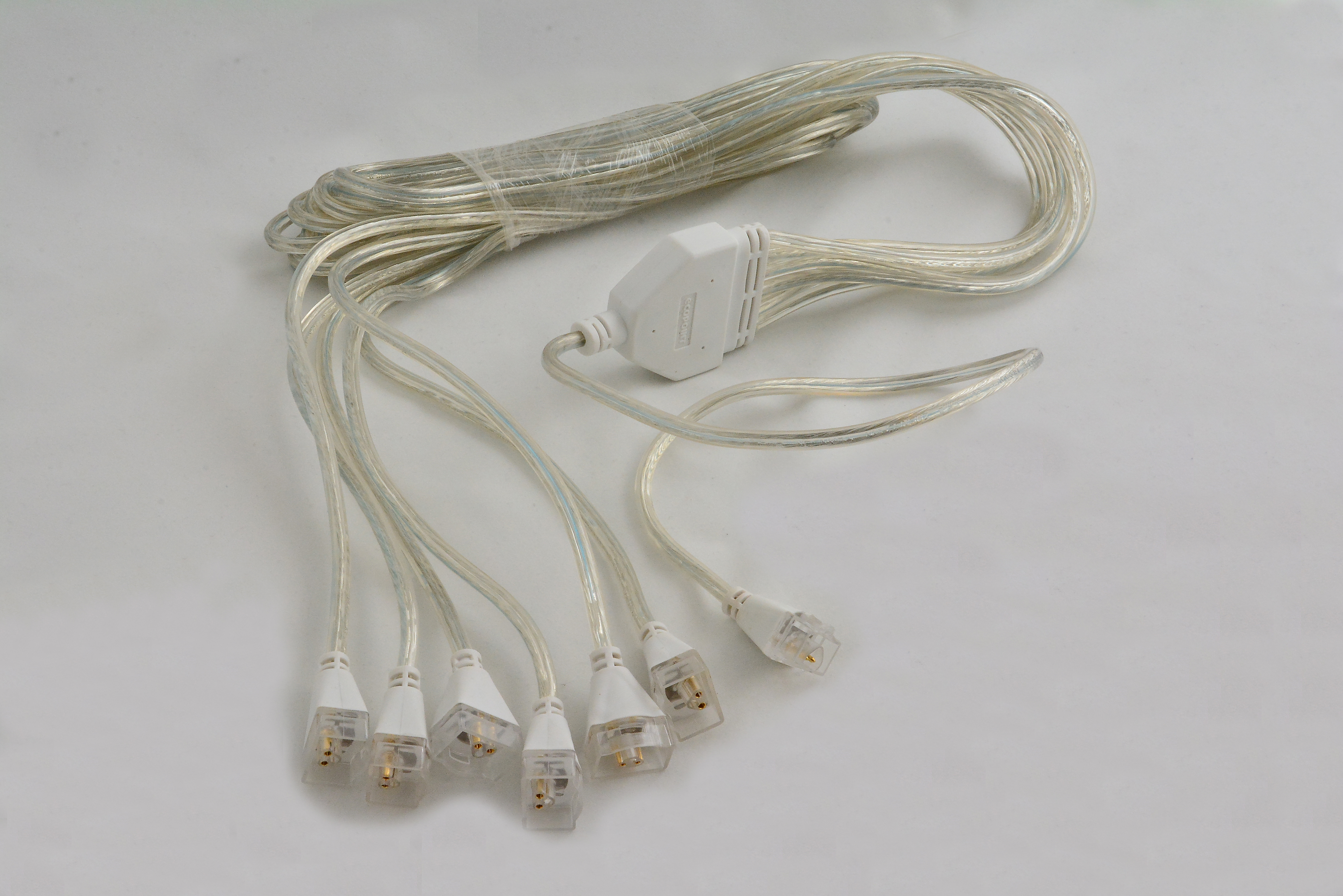

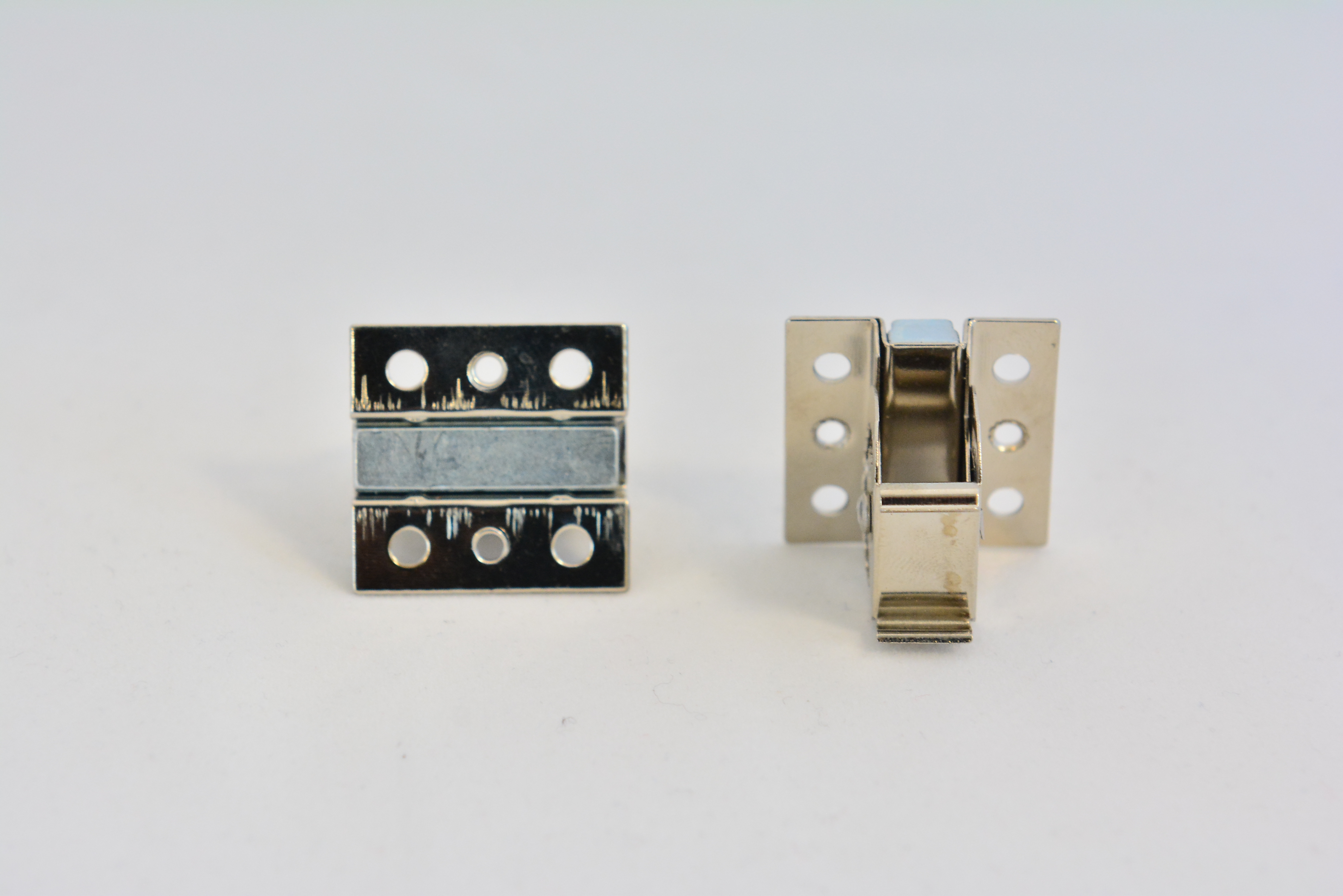

The slim and low-profile proportions and push-fit ‘end-to-end’ connectivity of Ecopoint’s Rigid Strip Light make it a versatile choice for a wide range of decorative, accent and task lighting applications. Whether integrated into furniture or joinery, used in a seamless cove lighting arrangement, or mounted to retail displays, the rigid aluminium and polycarbonate construction offers a more robust and reliable solution than LED tape products. Options include multiple wiring options, a choice of colour temperatures, clear or frosted diffusers, and fixed or tiltable mounts.
APPLICATIONS
Office
Commercial
Residential

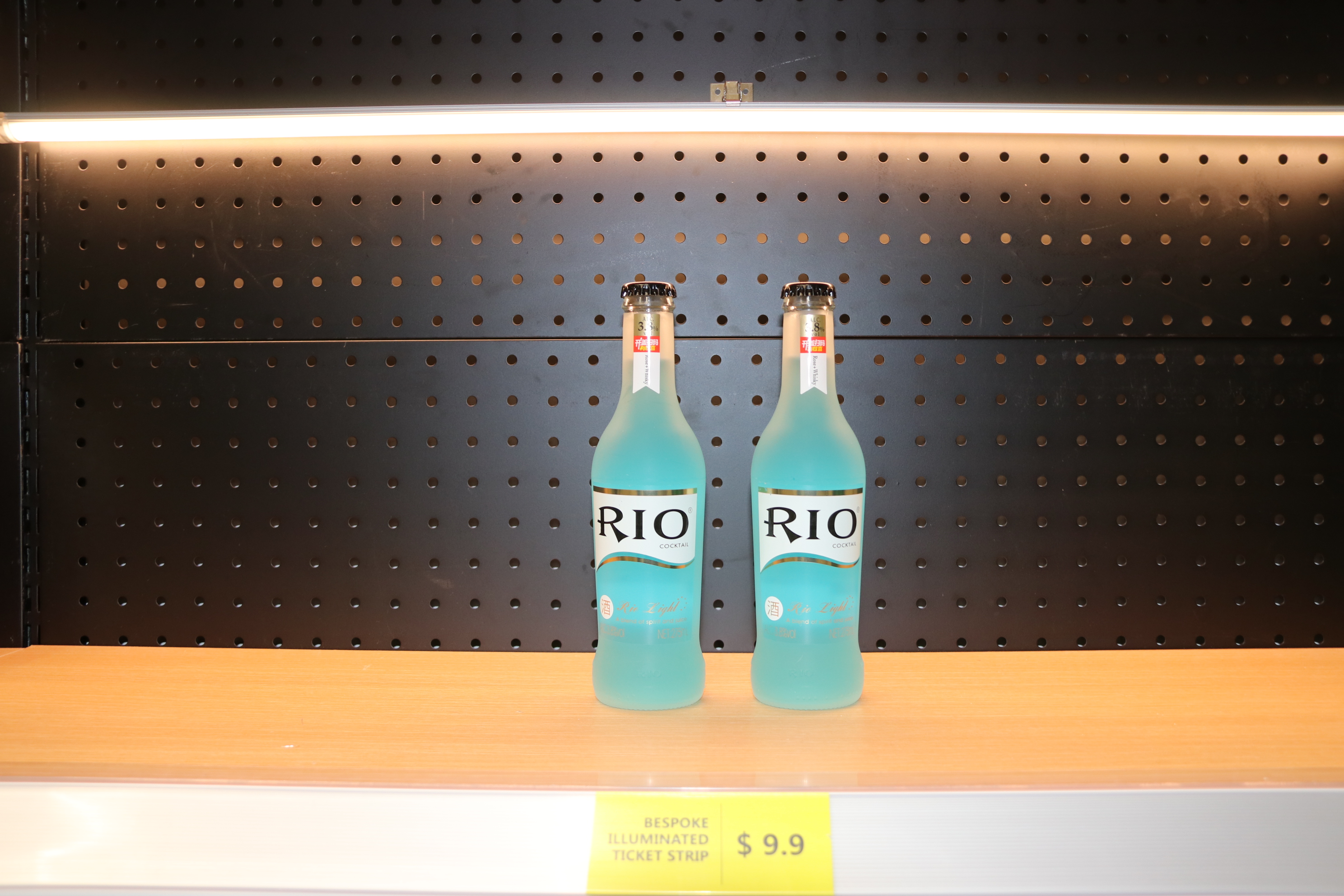

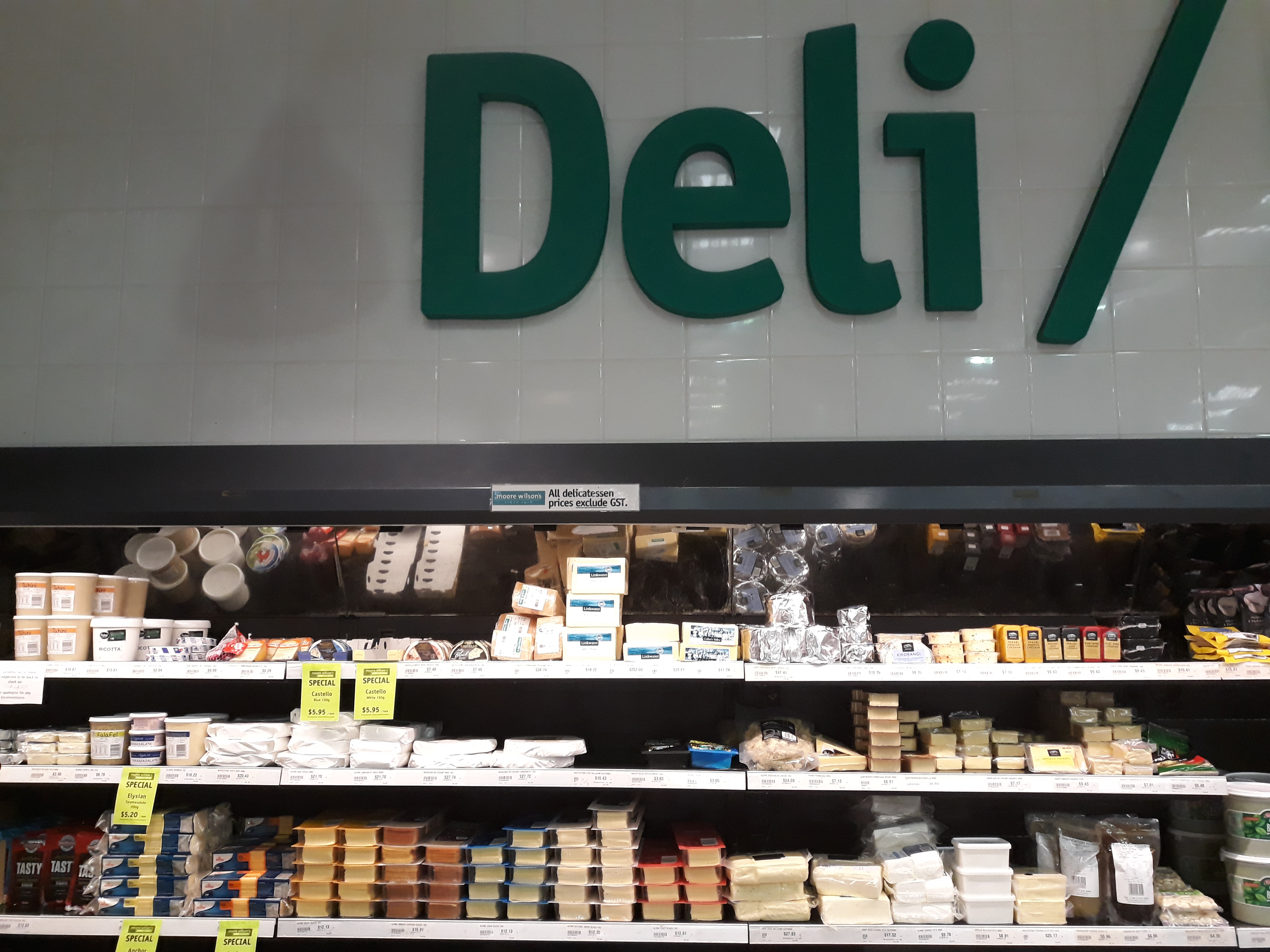

Retail
SPECIFICATIONS
Power Factor:

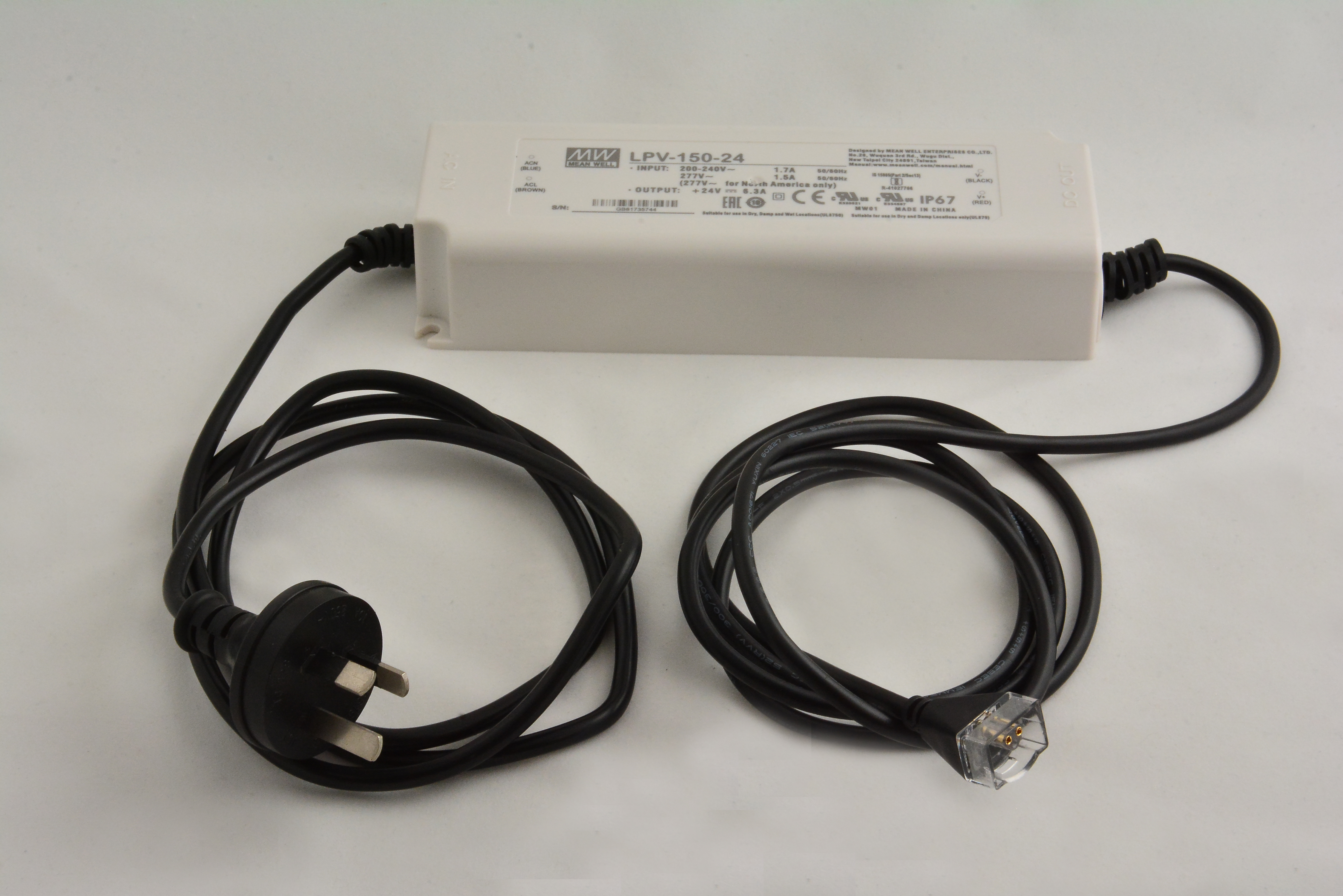

Electrical Input:
90-264V AC / 47-63 Hz
FEATURES
Warranty:
3 years
Construction:
Aluminium (extruded), Polycarbonate (PC)
Metal Finish:
Anodised

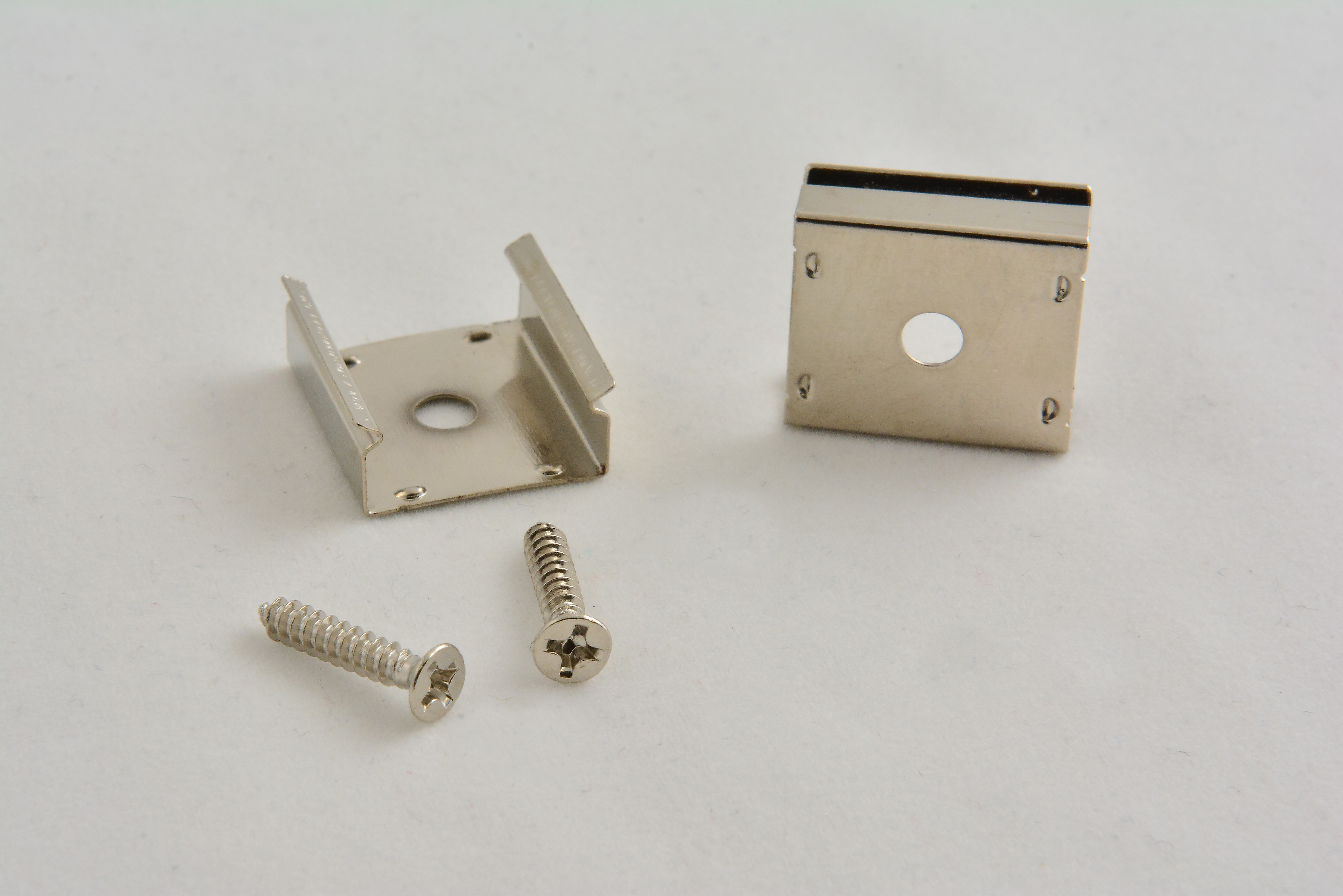

Standard Mounting:
Surface-mounted
Standard Mounting:
Wall-mounted
Life Prediction (hrs):
L70 >54,000 hrs (B10)
Ingress Protection:
IP40
| PRODUCT CODE | DIMENSION (mm) | POWER | Luminous Flux | Optic/Beam | Colour Temperature | Colour Rending Index |
|---|---|---|---|---|---|---|
| ERL260S4W840-CL | 260 x 20 x 15.5 | 4W | 340 lm | 3000K, 4000K, 5000K | >80 | |
| ERL260S4W840-FR | 260 x 20 x 15.5 | 4W | 220 lm | 120 deg | 3000K, 4000K, 5000K | >80 |
| ERL560S9W840-CL | 560 x 20 x 15.5 | 9W | 730 lm | 3000K, 4000K, 5000K | >80 | |
| ERL560S9W840-FR | 560 x 20 x 15.5 | 9W | 510 lm | 120 deg | 3000K, 4000K, 5000K | >80 |
| ERL860S13W840-CL | 860 x 20 x 15.5 | 13W | 1,120 lm | 3000K, 4000K, 5000K | >80 | |
| ERL860S13W840-FR | 860 x 20 x 15.5 | 13W | 800 lm | 120 deg | 3000K, 4000K, 5000K | >80 |
| ERL1160S18W840-CL | 1160 x 20 x 15.5 | 18W | 1,520 lm | 3000K, 4000K, 5000K | >80 | |
| ERL1160S18W840-FR | 1160 x 20 x 15.5 | 18W | 1,090 lm | 120 deg | 3000K, 4000K, 5000K | >80 |
| ERL1460S22W840-CL | 1460 x 20 x 15.5 | 22W | 1,920 lm | 3000K, 4000K, 5000K | >80 | |
| ERL1460S22W840-FR | 1460 x 20 x 15.5 | 22W | 1,380 lm | 120 deg | 3000K, 4000K, 5000K | >80 |
