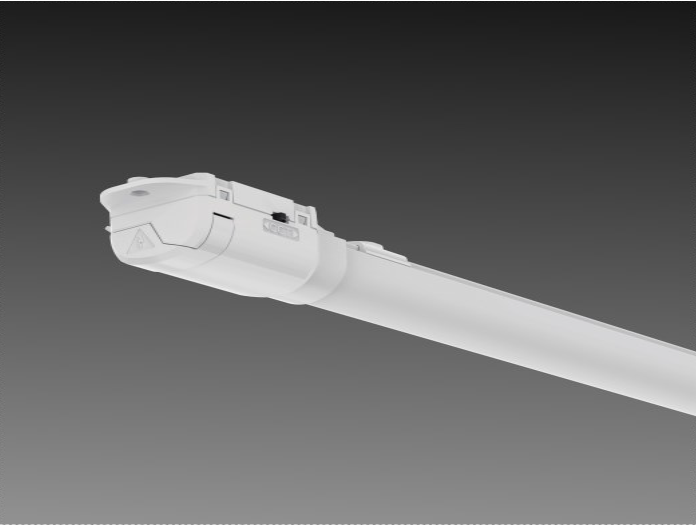

M-Series Linear module
The M-Series product has particular strengths as an upgrade solution for linear fluorescent fixtures. A fully self-contained module with a direct mains-power connection, two selectable colour temperatures, and two selectable power settings, M-Series unlocks a simple lighting upgrade pathway which minimises waste and extends the useful life of legacy fixtures. Length variants align with T8 and T5 lamp sizes.
APPLICATIONS
Retrofit
SPECIFICATIONS
Power Factor:
Electrical Input:
220-240V AC / 50-60 Hz
FEATURES
Warranty:
5 years
Construction:
Polycarbonate (PC), diffuser and end-caps
Metal Finish:
White
Standard Mounting:
Retrofit
Standard Mounting:
Surface-mounted
Life Prediction (hrs):
L90 > 54,000 hrs/L80 >110,000 hrs
Ingress Protection:
IP20
Impact Protection:
IK06
| PRODUCT CODE | DIMENSION (mm) | POWER | Luminous Flux | Optic/Beam | Colour Temperature | Colour Rending Index |
|---|---|---|---|---|---|---|
| EMF6008DCT8 | 570 x 33 x 27.5mm | 9W & 12W | 1,600 lm - 2,100 lm | 120 deg | 3000K & 4000K | 80 |
| EMF6008DCT5 | T5 529mm | 9W-12W | 1600 lm & 2100 lm | 120 degree | 3000K & 4000K | ≥80 |
| EMF9008DCT8 | T8 874mm | 12W-18W | 2100 lm & 3200 lm | 120 degree | 3000K & 4000K | ≥80 |
| EMF9008DCT5 | T5 829mm | 12W-18W | 2100 lm & 3200 lm | 120 degree | 3000K & 4000K | ≥80 |
| EMF12008DCT8 | T8 1180mm | 18W-24W | 3,200 lm - 4,200 lm | 120 degree | 3000K & 4000K | ≥80 |
| EMF12008DCT5 | T5 1129mm | 18W-24W | 3,200 lm - 4,200 lm | 120 degree | 3000K & 4000K | ≥80 |
| EMF15008DCT8 | T8 1480mm | 24W-30W | 4,300 lm - 5,100 lm | 120 degree | 3000K & 4000K | ≥80 |
| EMF15008DCT5 | T5 1429mm | 24W-30W | 4,300 lm - 5,100 lm | 120 degree | 3000K & 4000K | ≥80 |
