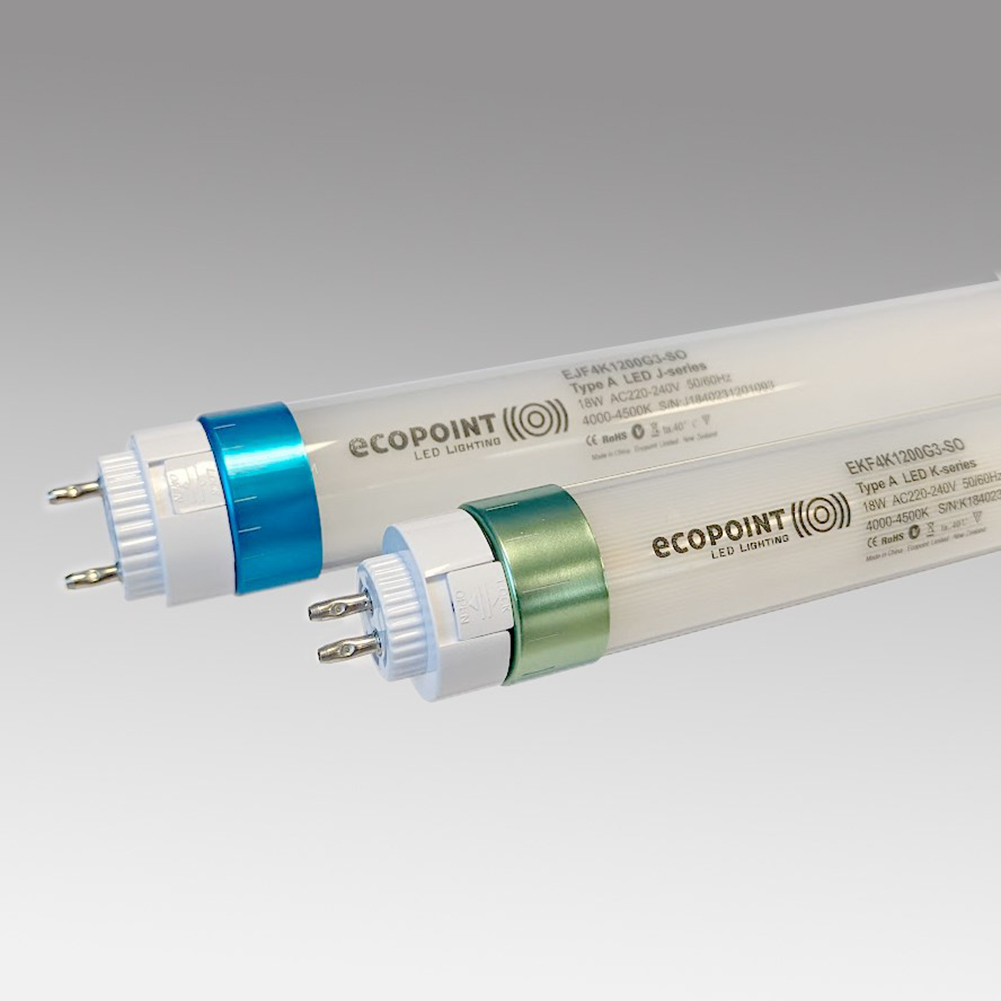

J-Series & K-Series G3 Tubes

Ecopoint's retrofit LED tubes provide an economical way to quickly upgrade existing fittings to gain immediate savings on energy costs and maintenance.
J-Series & K-Series G3 Tubes

J-Series & K-Series G3 Tubes

Ecopoint retrofit LED tubes have been distributed in their thousands across New Zealand, Australia and Worldwide since the first models were introduced to the market in the late 2000’s. This upgrade embeds further developments in electrical and thermal design to produce a more efficient, higher performing, and more reliable third-generation product. Tighter tolerances on colour appearance and reduced flicker are the key improvements which anchor these new models. Variants are available which are compatible with either T8 or T5 fluorescent hardware, two flux packages (Standard Output and High Output), and with a range of colour specifications.

APPLICATIONS

Retrofit

SPECIFICATIONS

Power Factor:
>0.93
Electrical Input:
200-240V AC / 50-60 Hz

FEATURES

Warranty:
5 years
Construction:
Aluminium (extruded), Polycarbonate (PC)
Metal Finish:
Raw
Standard Mounting:
Retrofit
Life Prediction (hrs):
L80 > 100,000 hrs /
L90 > 52,000 hrs
Ingress Protection:
IP20
PRODUCT CODE DIMENSION (mm) POWER Luminous Flux Optic/Beam Colour Temperature Colour Rending Index
EJF4K600G3-SO ø26 x 588 mm 9 W 1500 lm 120 degree 4000K ≥80
EJF4K600G3-HO ø26 x 588 mm 9 W 1650 lm 120 degree 4000K ≥80
EJF4K1200G3-SO ø26 x 1198 mm 18 W 3050 lm 120 degree 4000K ≥80
EJF4K1200G3-HO ø26 x 1198 mm 18 W 3300 lm 120 degree 4000K ≥80
EJF4K1500G3-SO ø26 x 1498 mm 24 W 4150 lm 120 degree 4000K ≥80
EJF4K1500G3-HO ø26 x 1498 mm 24 W 4500 lm 120 degree 4000K ≥80
EKF4K600G3-SO ø22 x 549 mm 9 W 1700 lm 120 degree 4000K ≥80
EKF4K600G3-HO ø22 x 549 mm 9 W 1850 lm 120 degree 4000K ≥80
EKF4K1200G3-SO ø22 x 1149 mm 18 W 3200 lm 120 degree 4000K ≥80
EKF4K1200G3-HO ø22 x 1149 mm 18 W 3450 lm 120 degree 4000K ≥80
EKF4K1500G3-SO ø22 x 1449 mm 24 W 4050 lm 120 degree 4000K ≥80
EKF4K1500G3-HO ø22 x 1449 mm 24 W 4400 lm 120 degree 4000K ≥80
