Step/Night Light

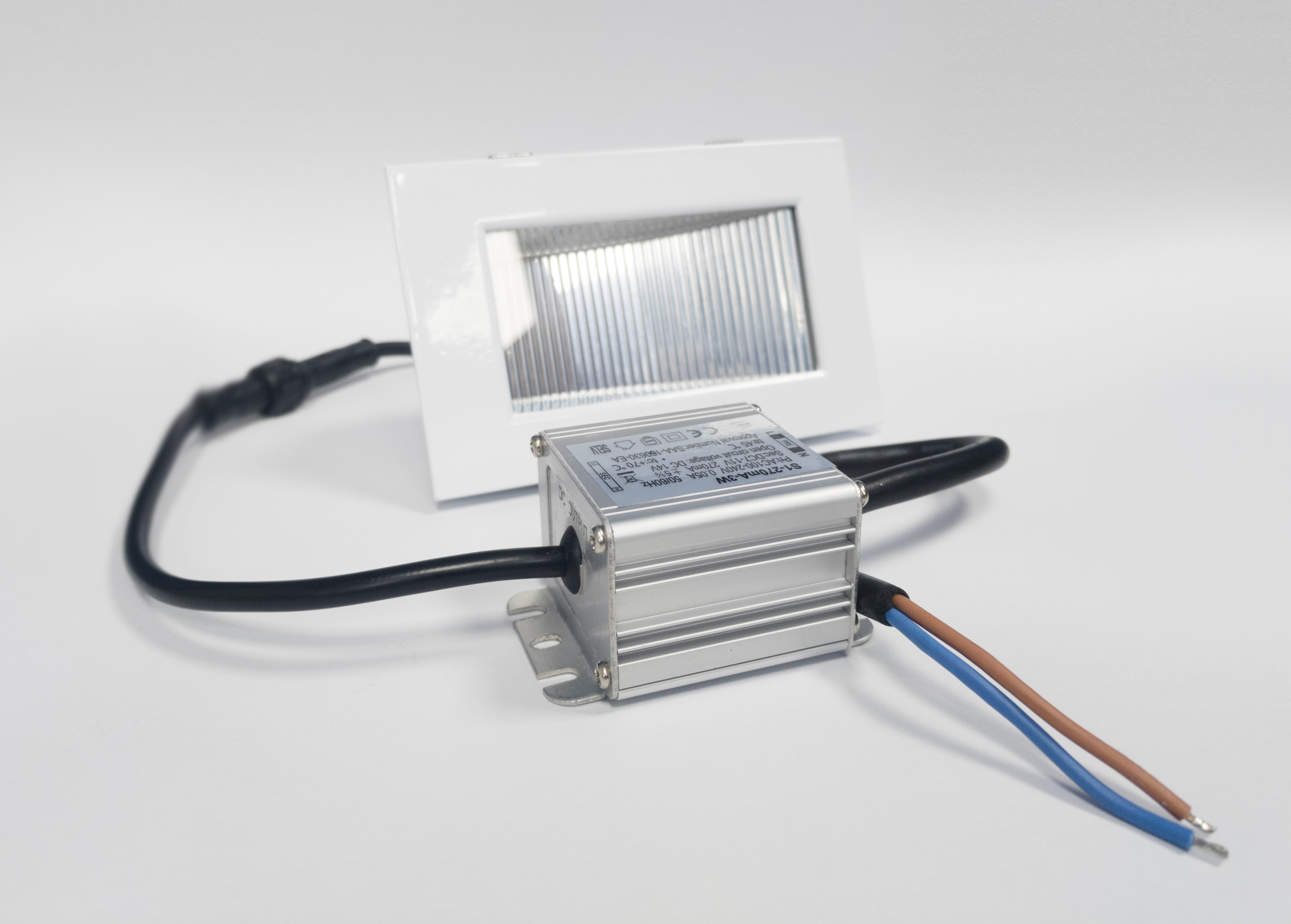

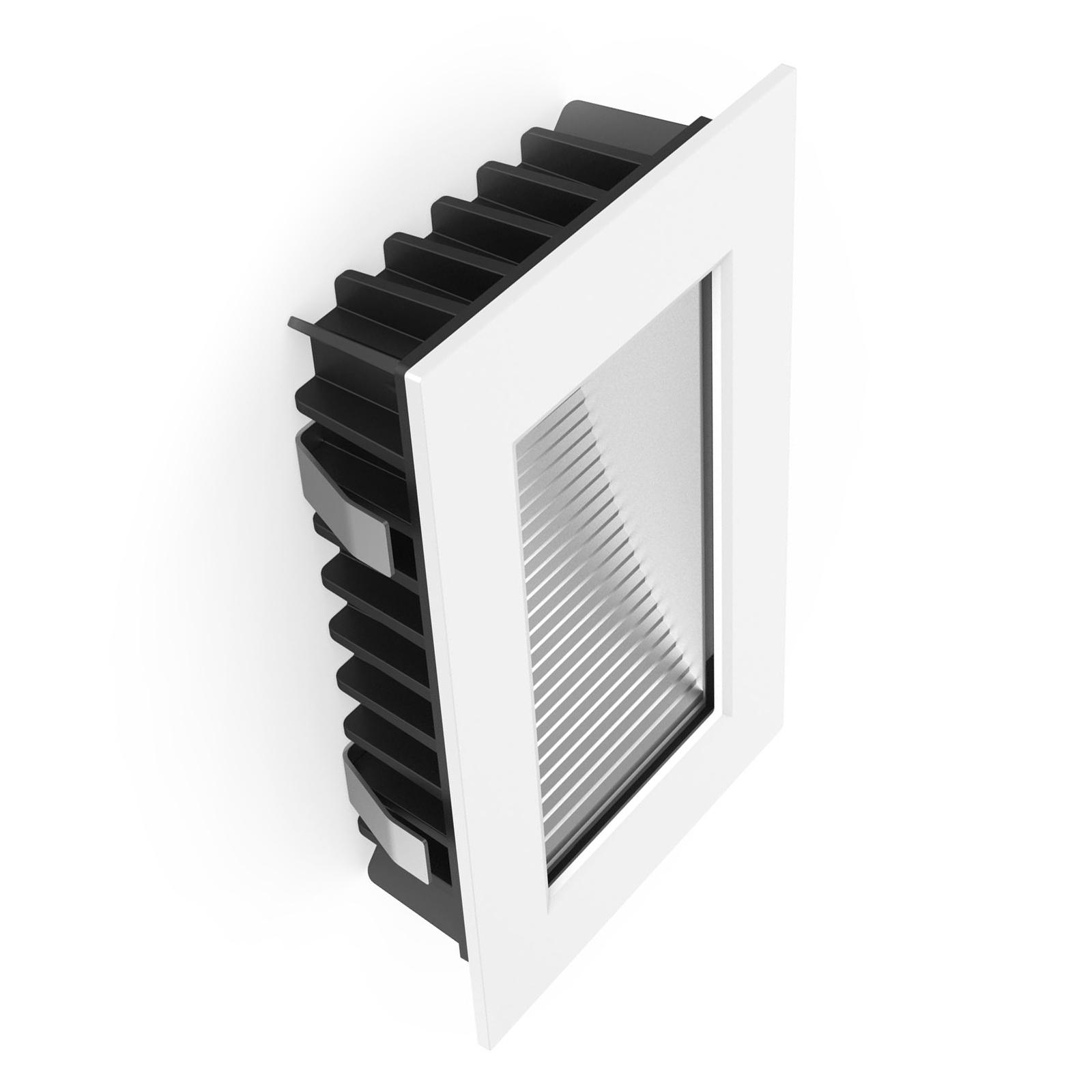

Creating a safe level of orientation light in public facilities, the Step/Night Light is low-profile, discrete and robust. The cast aluminium body houses a low-power LED array, while a faceted specular reflector ensures the light is distributed accurately and efficiently. The range of sizes available makes it easy to implement in a variety of situations and it only requires minimal cavity space for installation (the driver is
external). An IP54 rating completes the package, allowing installation in damp areas.
APPLICATIONS
Parking
Roadways
Campuses
Industrial
SPECIFICATIONS
Power Factor:
Electrical Input:
85-265 V AC / 50-60 Hz
FEATURES
Warranty:
3 years
Construction:
Aluminium (cast), Glass
Metal Finish:
Powdercoated
Standard Mounting:
Recessed, Wall-mounted
Life Prediction (hrs):
L70 > 63,000 hrs
Ingress Protection:
IP54
| PRODUCT CODE | DIMENSION (mm) | POWER | Luminous Flux | Optic/Beam | Colour Temperature | Colour Rending Index |
|---|---|---|---|---|---|---|

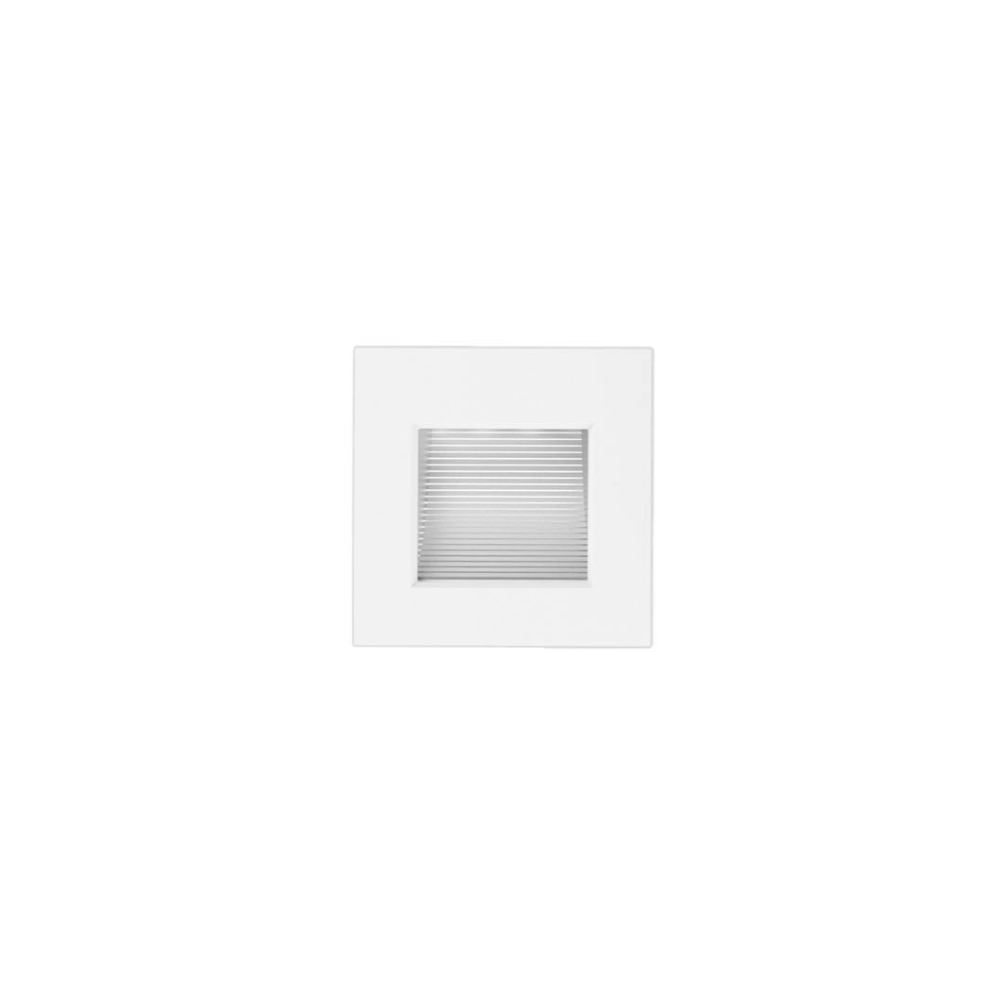

| EST077W3W830 | 70 x 70 x 24 mm | 3 W | 180 lm | Assymetric | 3000K, 4000K (5000K, 5700K opt.) | >80 |
| EST117W3W830 | 110 x 70 x 27 mm | 3 W | 180 lm | Assymetric | 3000K, 4000K (5000K, 5700K opt.) | >80 |

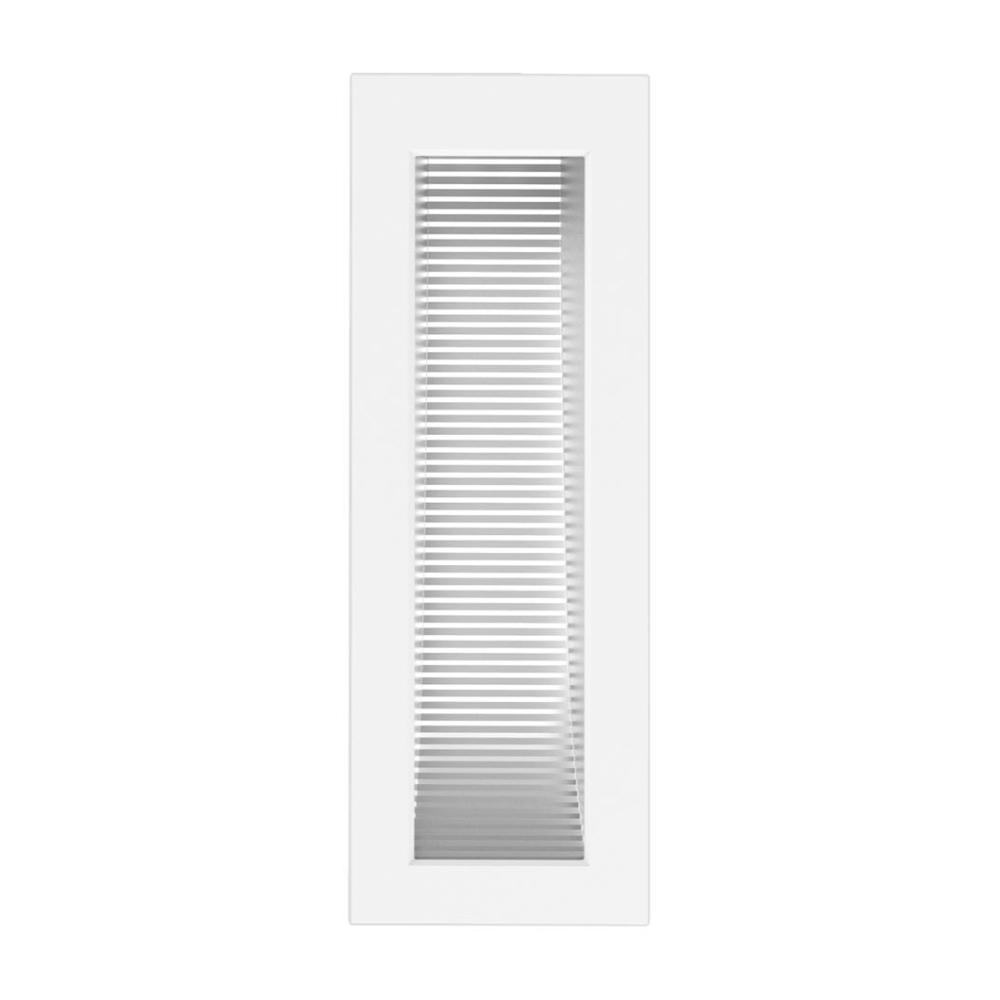

| EST207W3W830 | 200 x 70 x 32 mm | 3 W | 180 lm | Assymetric | 3000K, 4000K (5000K, 5700K opt.) | >80 |
| EST213W8W830 | 200 x 135 x 32 mm | 8 W | 550 lm | Assymetric | 3000K, 4000K (5000K, 5700K opt.) | >80 |
