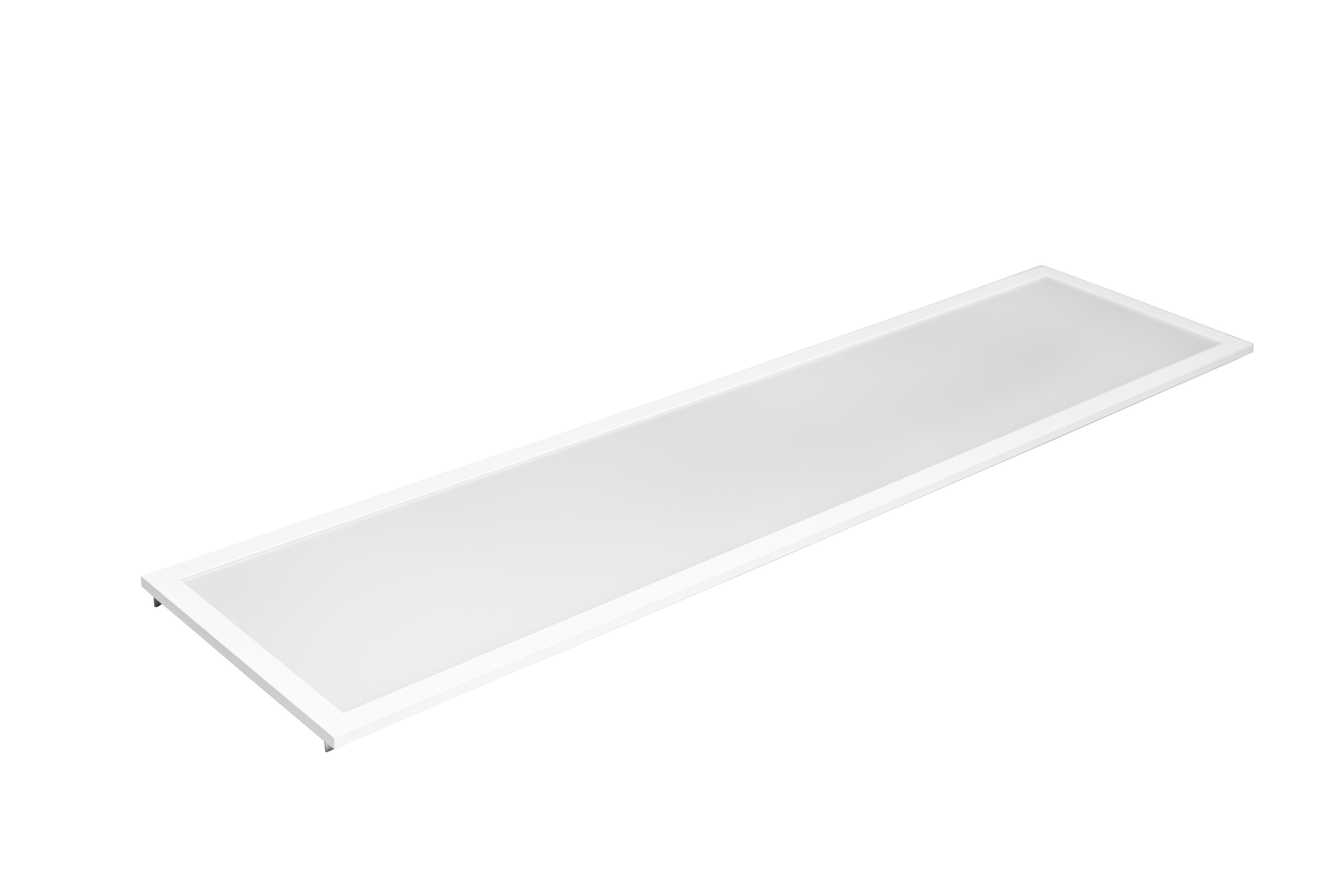

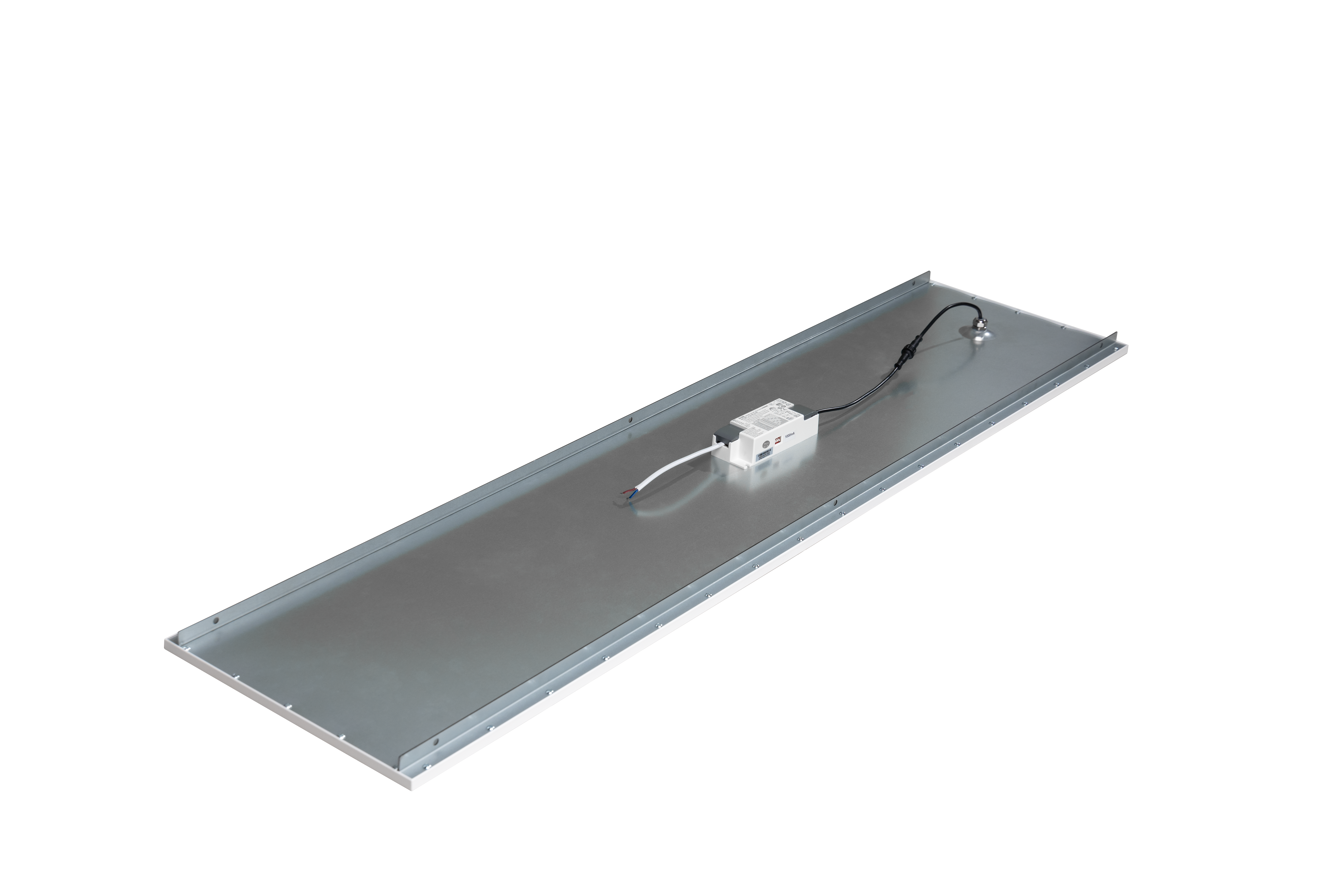

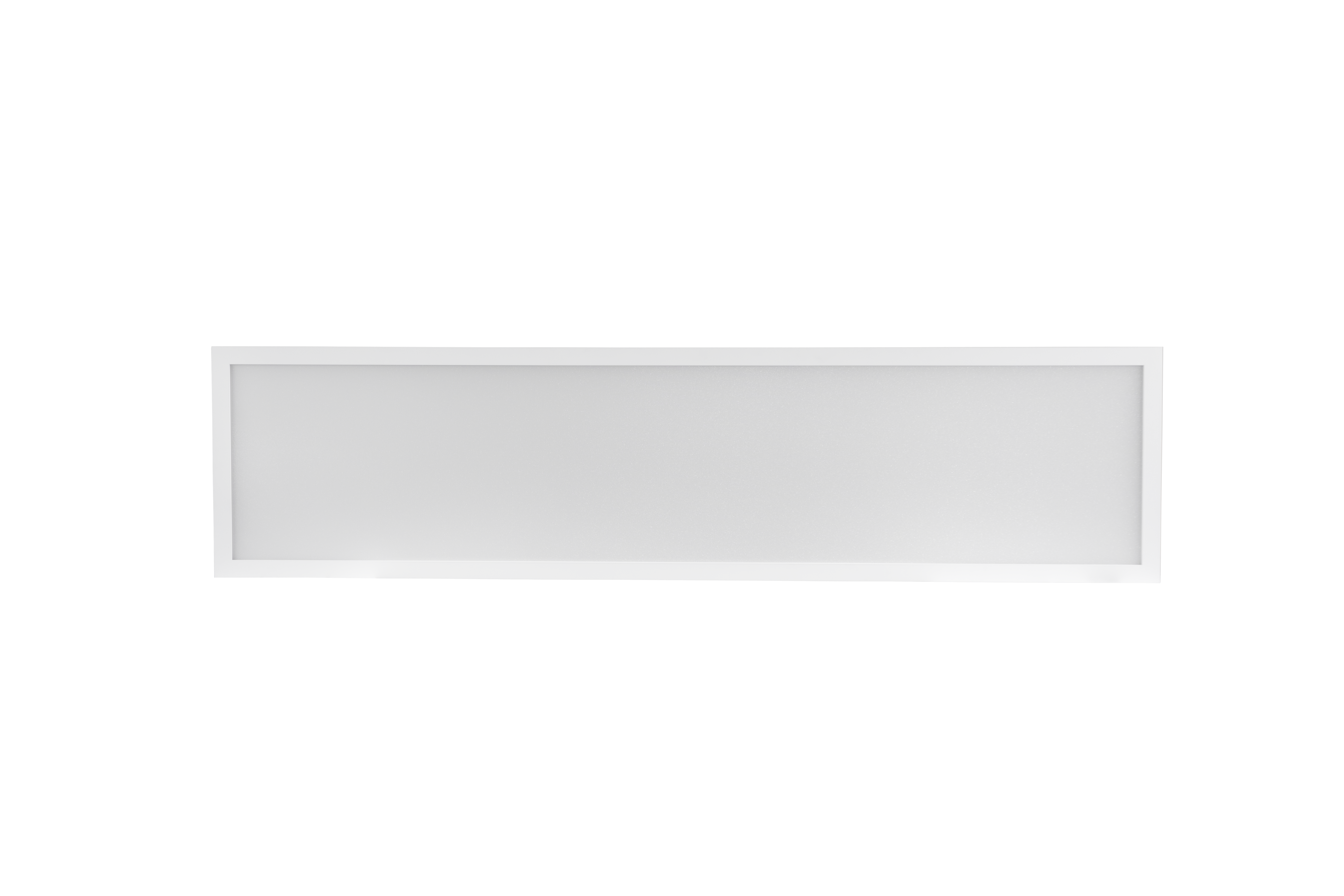

Full Spectrum Panel G5
Ecopoint’s fifth generation Edge-Lit Panel introduces a wider frame to eliminate chip hot-spots and deliver a highly capable and flexible product family which meets a wide range of end-user requirements.
With an improved colour rendering that allows lighting designers to leverage its strong performance and high maintenance factors, this upgrade will also impress asset managers with reduced energy costs plus low maintenance requirements.
APPLICATIONS
Office
Commercial
Retail
SPECIFICATIONS
Power Factor:
Electrical Input:
AC 200-240V / 50 - 60 Hz
FEATURES
Warranty:
5 years
Construction:
Aluminium (extruded), PMMA micro prism optics
Metal Finish:
Painted
Standard Mounting:
Recessed
Standard Mounting:
Surface-mounted, Suspension kit'
Life Prediction (hrs):
L90 @ 30,000 hrs/
L80 > 70,000 hrs
L80 > 70,000 hrs
Ingress Protection:
IP5x (room-side) + IP20 (cavity-side); IP65 optional
Impact Protection:
IK06
| PRODUCT CODE | DIMENSION (mm) | POWER | Luminous Flux | Optic/Beam | Colour Temperature | Colour Rending Index |
|---|---|---|---|---|---|---|
| EEP12X3S40G5 | 1195 x 295 x 11 mm | 21 - 39 W | 2050 - 3800 lm | UGR<19 | 4000K | ≥95 |
| EEP6X6WS40G5 | 595 x 595 x 11 mm | 21 - 39 W | 2100 - 3940 lm | UGR<19 | 4000K | ≥95 |
| EEP6X6WS40-G5 300mA (13W) | 595 x 595 x 11 mm | 21 - 39 W | 2100 - 3940 lm | UGR<19 | 4000K | ≥95 |
| EEP6X6WS40-G5 400mA (18W) | 595 x 595 x 11 mm | 21 - 39 W | 2100 - 3940 lm | UGR<19 | 4000K | ≥95 |
| EEP6X6WS40-G5 500mA (21W) | 595 x 595 x 11 mm | 21 - 39 W | 2100 - 3940 lm | UGR<19 | 4000K | ≥95 |
| EEP6X6WS40-G5 600mA (23W) | 595 x 595 x 11 mm | 21 - 39 W | 2100 - 3940 lm | UGR<19 | 4000K | ≥95 |
| EEP6X6WS40-G5 700mA (27W) | 595 x 595 x 11 mm | 21 - 39 W | 2100 - 3940 lm | UGR<19 | 4000K | ≥95 |
| EEP6X6WS40-G5 800mA (31W) | 595 x 595 x 11 mm | 21 - 39 W | 2100 - 3940 lm | UGR<19 | 4000K | ≥95 |
| EEP6X6WS40-G5 900mA (35W) | 595 x 595 x 11 mm | 21 - 39 W | 2100 - 3940 lm | UGR<19 | 4000K | ≥95 |
| EEP6X6WS40-G5 1050mA (40W) | 595 x 595 x 11 mm | 21 - 39 W | 2100 - 3940 lm | UGR<19 | 4000K | ≥95 |
| EEP12X3WS40-G5 300mA (13W) | 1195 x 295 x 11 mm | 21 - 39 W | 2050 - 3800 lm | UGR<19 | 4000K | ≥95 |
| EEP12X3WS40-G5 400mA (18W) | 1195 x 295 x 11 mm | 21 - 39 W | 2050 - 3800 lm | UGR<19 | 4000K | ≥95 |
| EEP12X3WS40-G5 500mA (21W) | 1195 x 295 x 11 mm | 21 - 39 W | 2050 - 3800 lm | UGR<19 | 4000K | ≥95 |
| EEP12X3WS40-G5 600mA (23W) | 1195 x 295 x 11 mm | 21 - 39 W | 2050 - 3800 lm | UGR<19 | 4000K | ≥95 |
| EEP12X3WS40-G5 700mA (27W) | 1195 x 295 x 11 mm | 21 - 39 W | 2050 - 3800 lm | UGR<19 | 4000K | ≥95 |
| EEP12X3WS40-G5 800mA (31W) | 1195 x 295 x 11 mm | 21 - 39 W | 2050 - 3800 lm | UGR<19 | 4000K | ≥95 |
| EEP12X3WS40-G5 900mA (35W) | 1195 x 295 x 11 mm | 21 - 39 W | 2050 - 3800 lm | UGR<19 | 4000K | ≥95 |
| EEP12X3WS40-G5 1050mA (40W) | 1195 x 295 x 11 mm | 21 - 39 W | 2050 - 3800 lm | UGR<19 | 4000K | ≥95 |
| EEP12X3WS40G5 |
