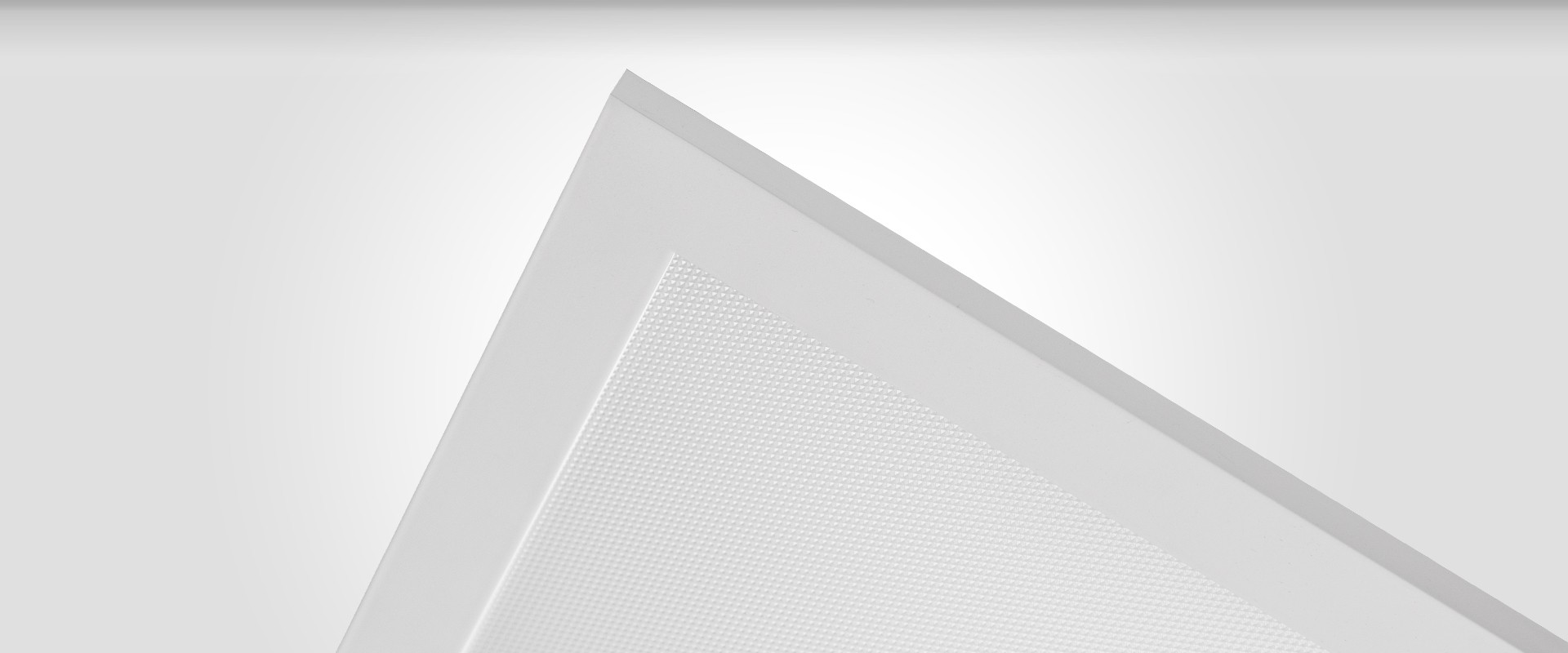

Full-Spectrum Panel G4 IP65
Ecopoint’s fourth generation Edge-Lit Panel adopts the latest LED and driver developments to deliver a highly capable and flexible product family which meets a wide range of end-user requirements. Minimising total-cost-of-ownership was the key development focus; maximising luminaire efficacy, extending component lifetimes, and simplifying both installation and maintenance. Lighting designers can leverage the strong performance and high maintenance factors, while asset managers will appreciate the reduced energy costs, low maintenance demand, and simple logistics.
APPLICATIONS
Office
Commercial
Retail
SPECIFICATIONS
Power Factor:
>0.94
Electrical Input:
220-240V AC / 47-63 Hz
FEATURES
Warranty:
5 years
Construction:
Aluminium (extruded), Arcylic (PMMA)
Metal Finish:
Painted
Standard Mounting:

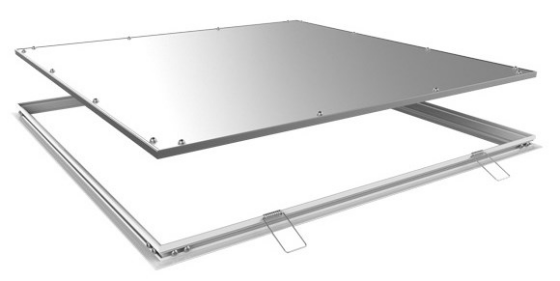

Recessed
Standard Mounting:

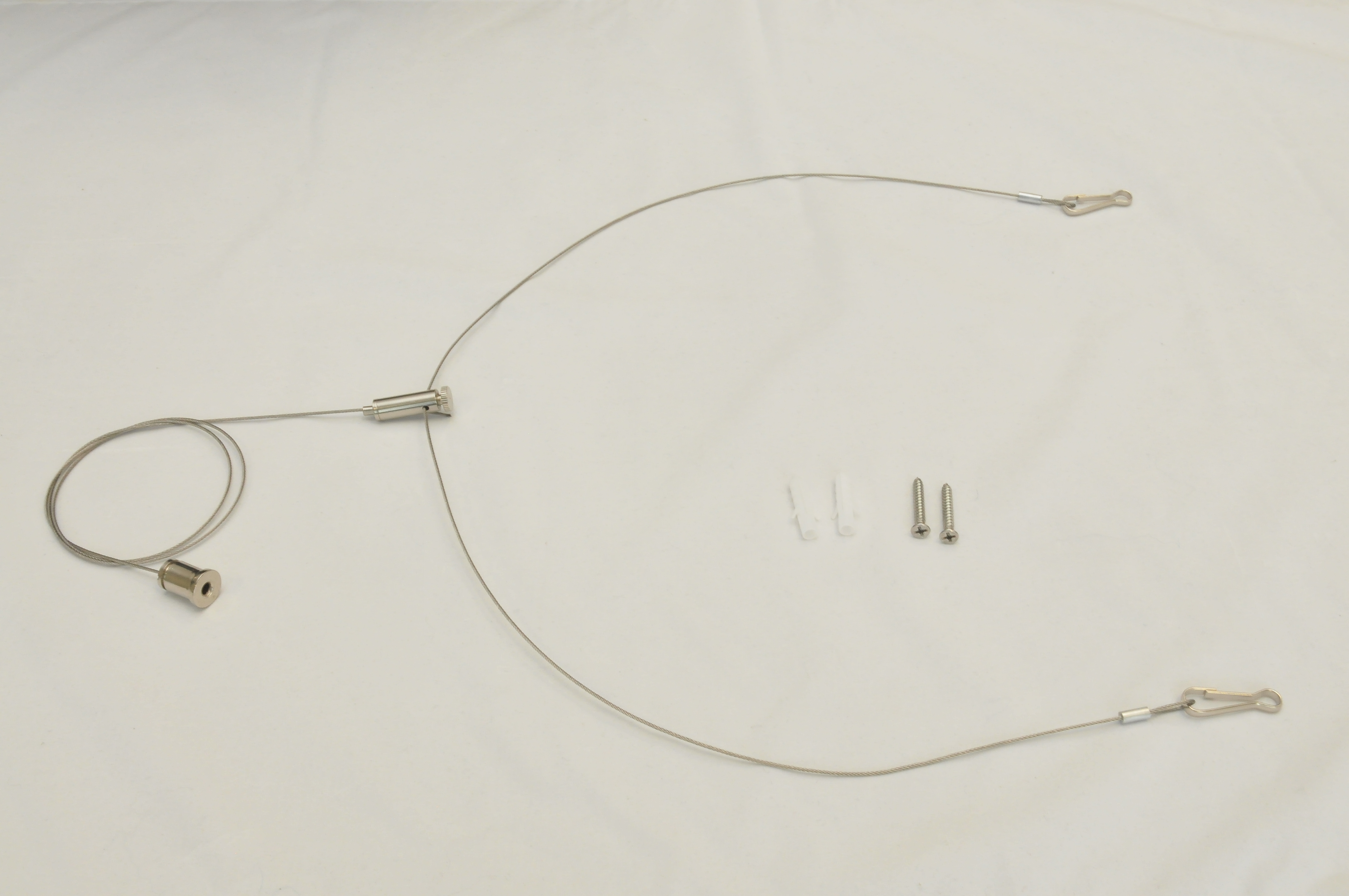

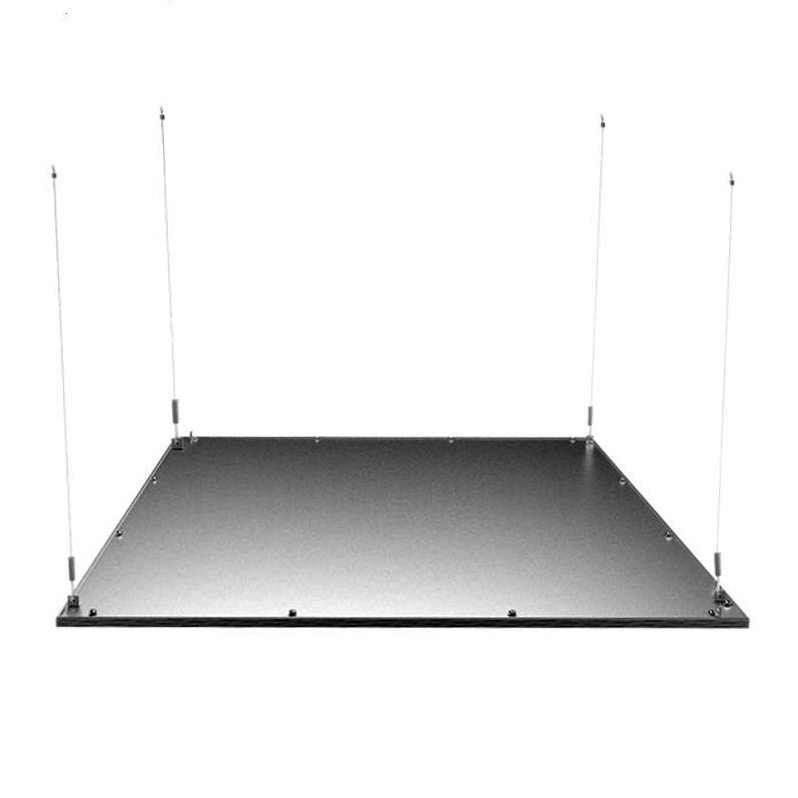

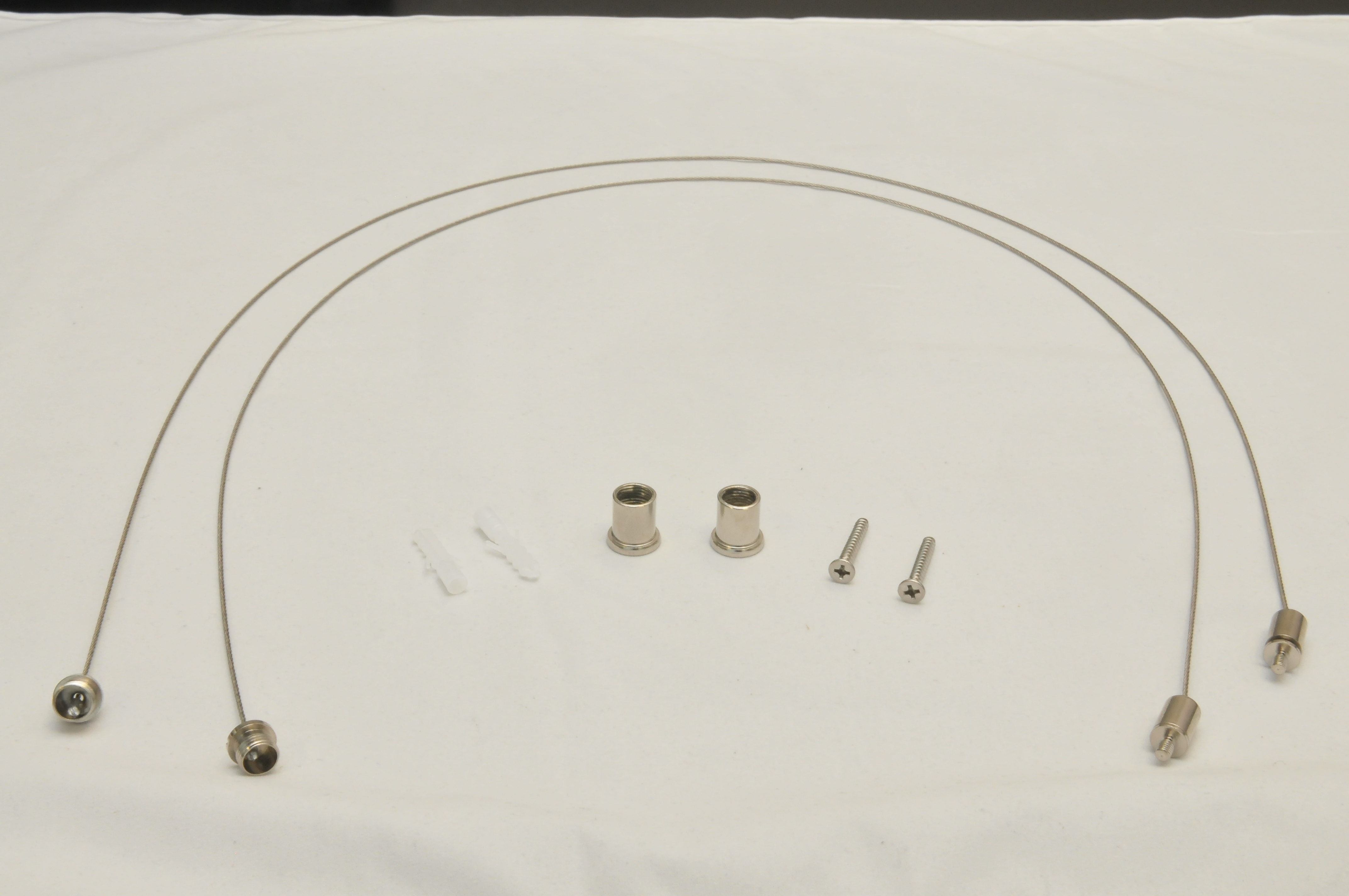

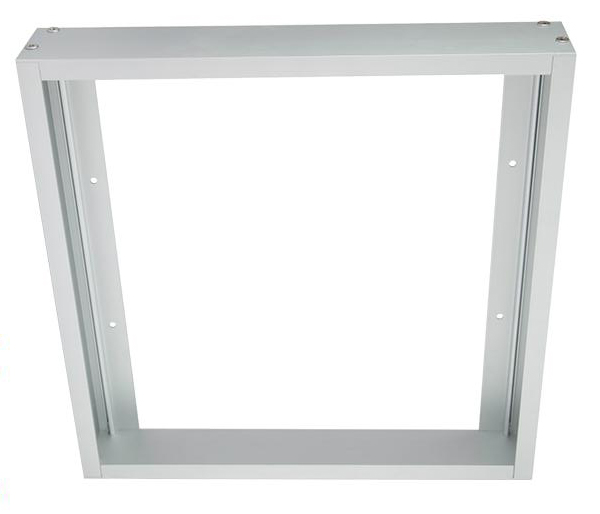

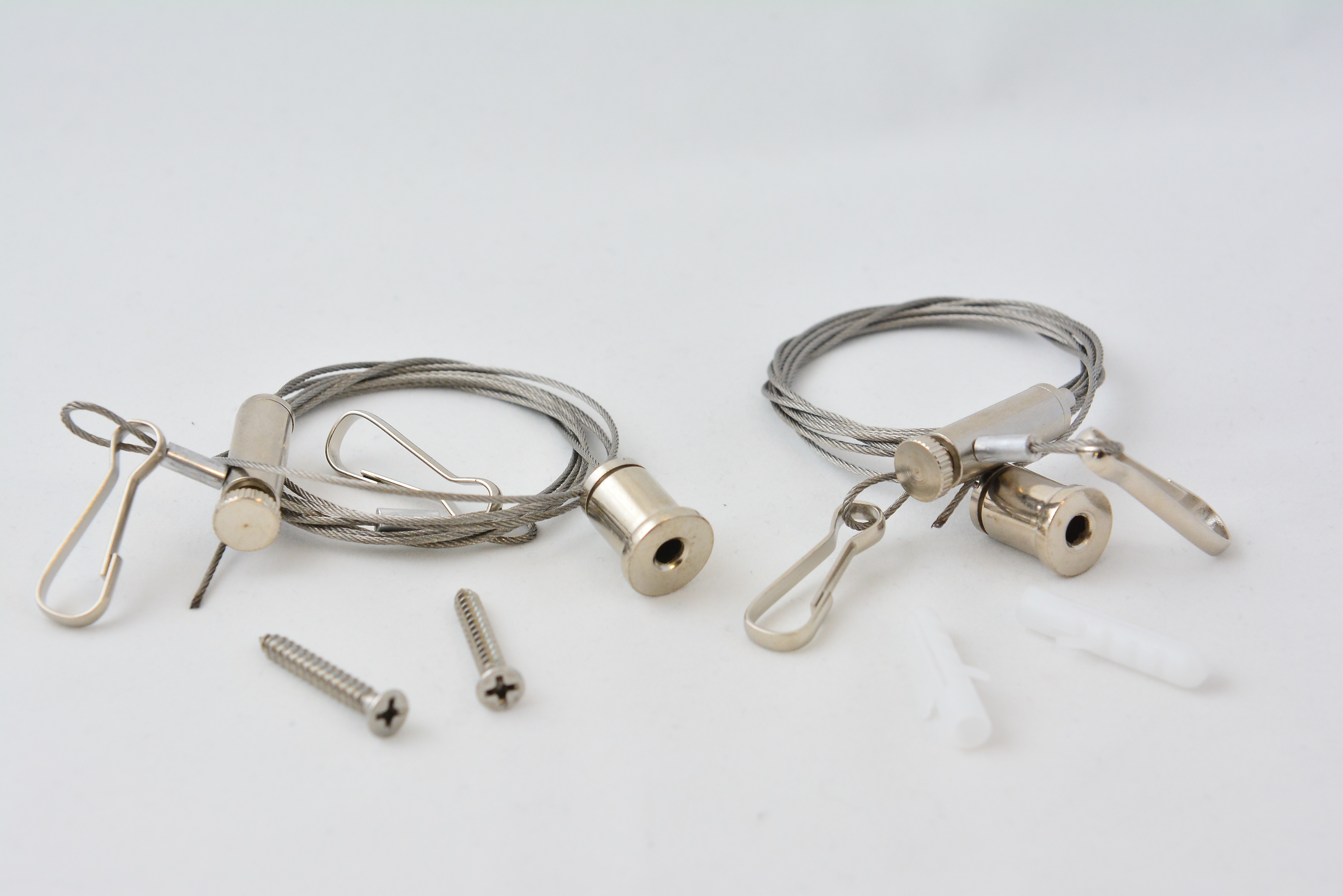

Surface-mounted, Suspended
Life Prediction (hrs):
L80 > 100,000 hrs /
L90 > 50,000 hrs
L90 > 50,000 hrs
Ingress Protection:
IP65
Impact Protection:
IK06
| PRODUCT CODE | DIMENSION (mm) | POWER | Luminous Flux | Optic/Beam | Colour Temperature | Colour Rending Index |
|---|---|---|---|---|---|---|
| EEP6X6WS40G4 | 595 x 595 x 11 mm | 22-39 W | 2,200-3,900 lm | UGR<19 | 4000K | ≥ 95 |
| EEP12X3WS40G4 | 1195 x 295 x 11 mm | 22-39 W | 2,200-3900 lm | UGR<19 | 4000K | ≥ 95 |
| EEP12X1WS40G4 | 1195 x 145 x 11 mm | 22-30 W | 1,900-2580 lm | UGR<19 | 4000K | ≥ 95 |
| EEP12X3WS40G4-IP65 | 1195 x 295 x 38.5 mm | 22-39 W | 2,200-3900 lm | 4000K | ≥ 95 | |
| EEP6X6WS40G4-IP65 | 595 x 595 x 38.5 mm | 22-39 W | 2,200-3,900 lm | 4000K | ≥ 95 |
