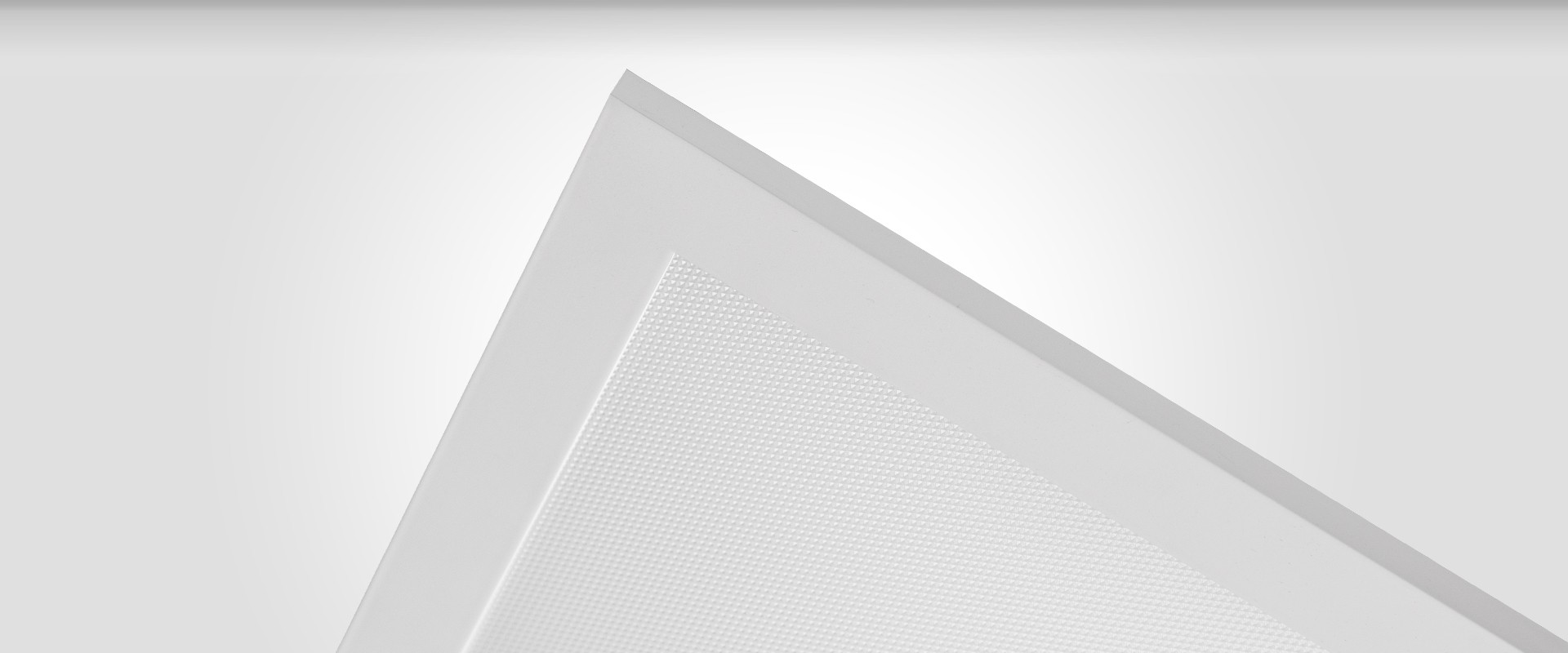

Full-Spectrum Panel G4

Ecopoint's range of recessed luminaires provide a variety of options for recessed and panel lighting across commercial applications.
Full-Spectrum Panel G4

Full-Spectrum Panel G4

Ecopoint’s fourth generation Edge-Lit Panel adopts the latest LED and driver developments to deliver a highly capable and flexible product family which meets a wide range of end-user requirements. Minimising total-cost-of-ownership was the key development focus; maximising luminaire efficacy, extending component lifetimes, and simplifying both installation and maintenance. Lighting designers can leverage the strong performance and high maintenance factors, while asset managers will appreciate the reduced energy costs, low maintenance demand, and simple logistics.

APPLICATIONS

Office
Commercial
Retail

SPECIFICATIONS

Power Factor:
>0.94

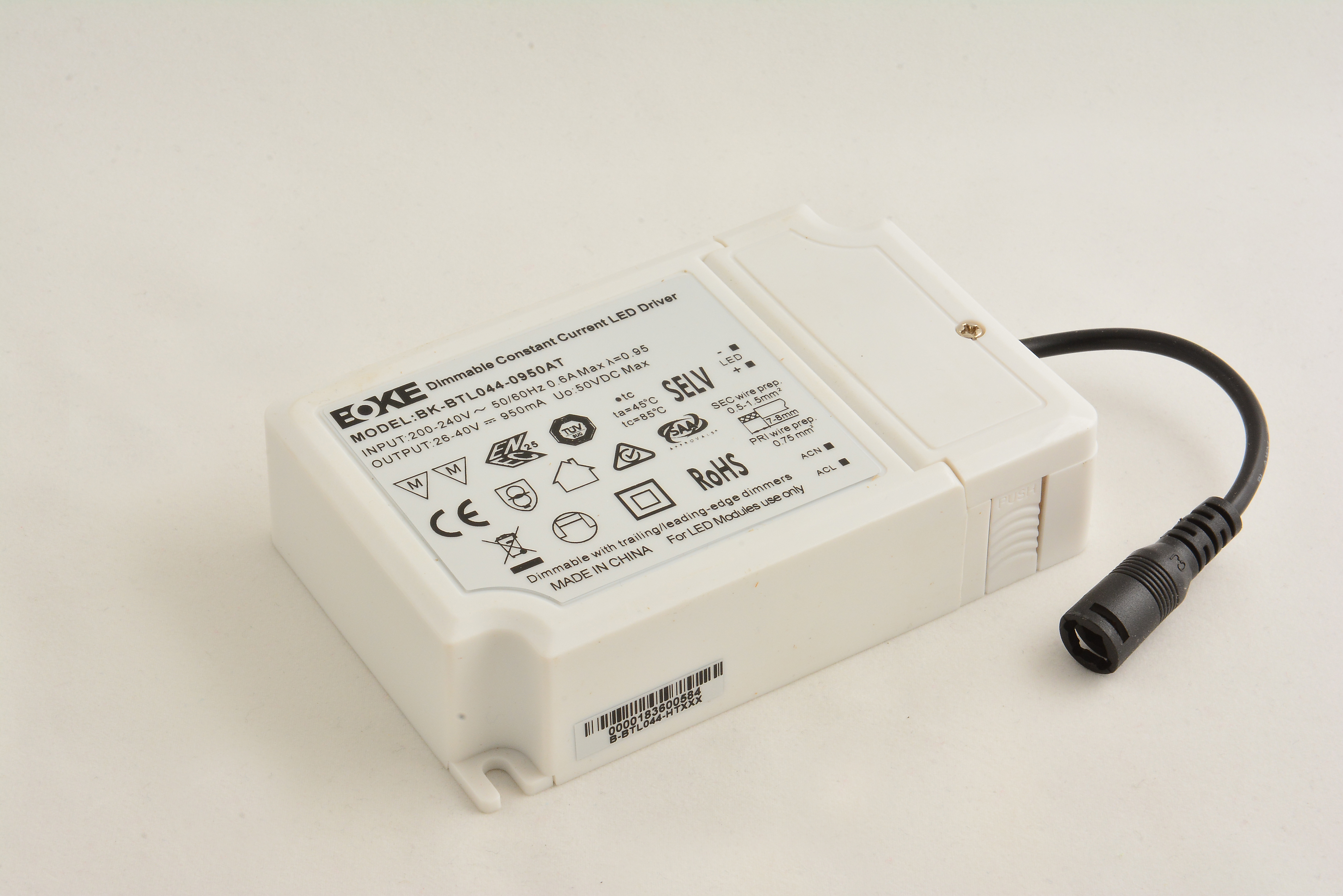

Electrical Input:
220-240V AC / 47-63 Hz

FEATURES

Warranty:
5 years
Construction:
Aluminium (extruded), Arcylic (PMMA)
Metal Finish:
Painted
Standard Mounting:
Recessed

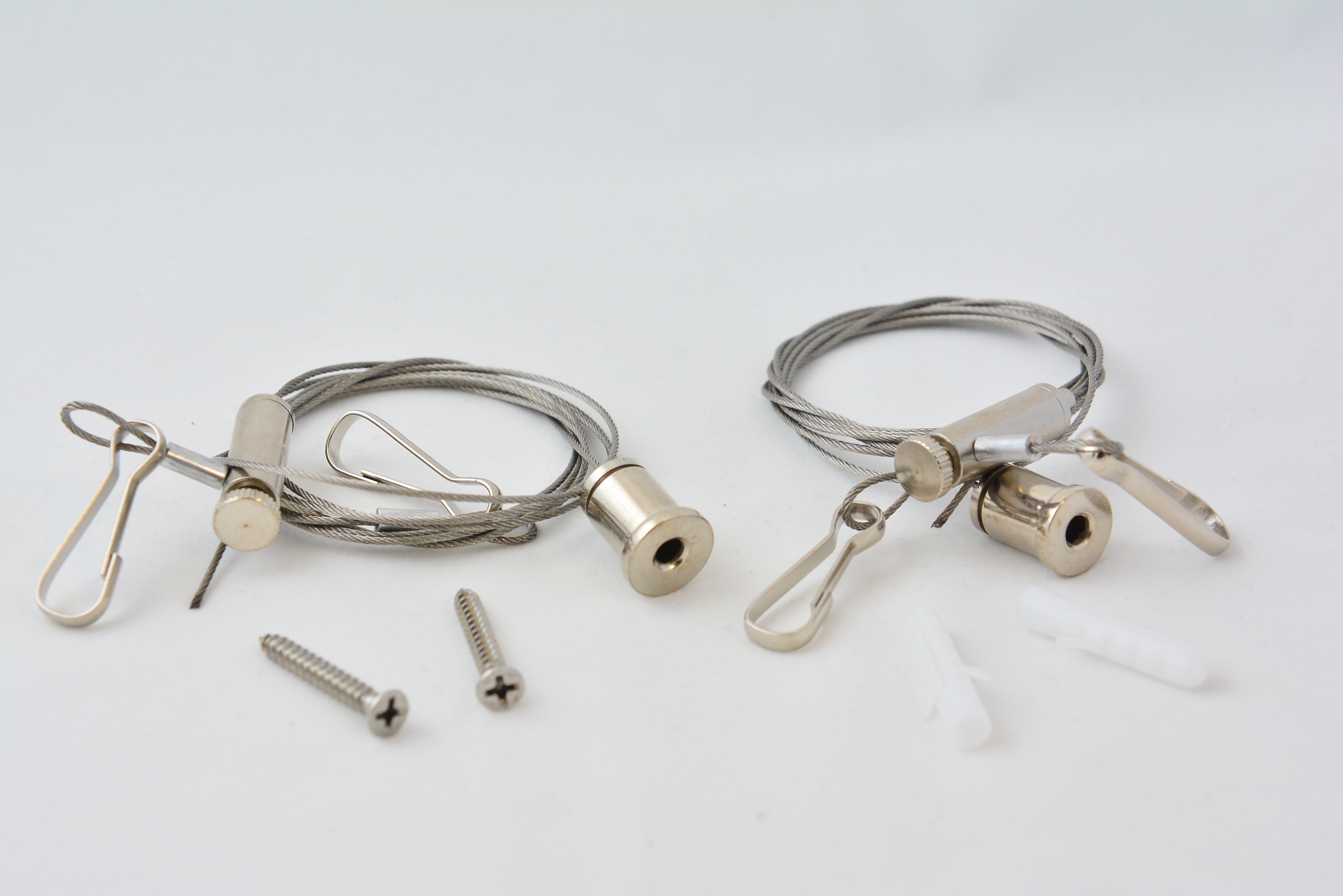

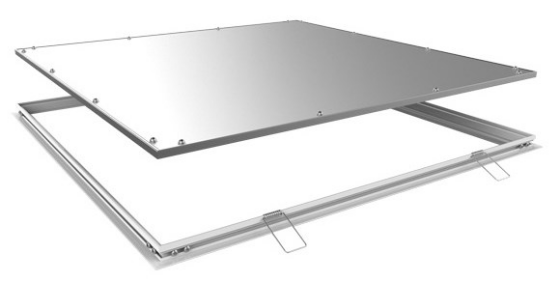

Standard Mounting:

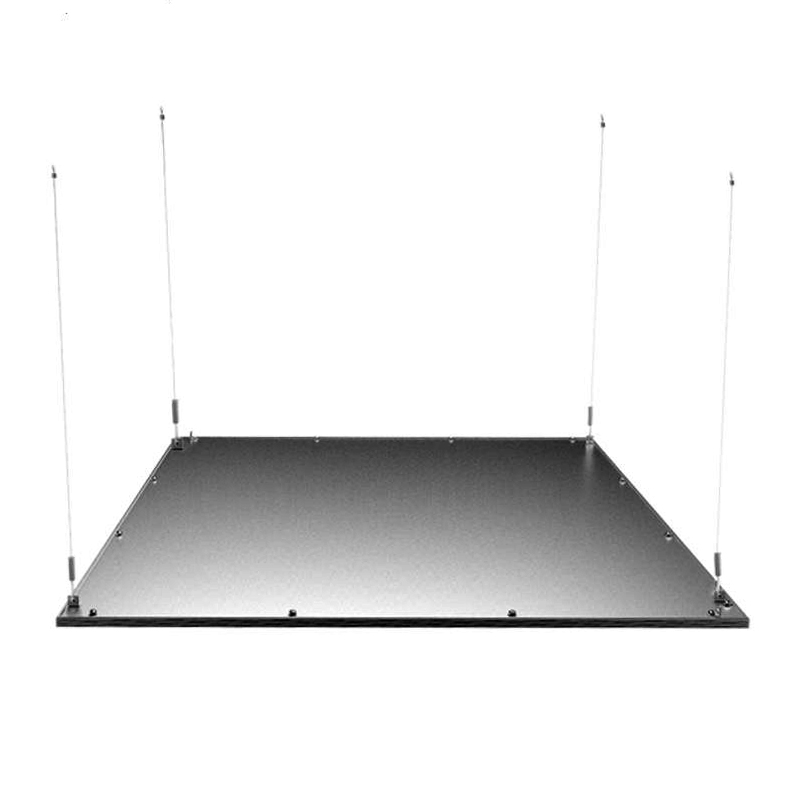

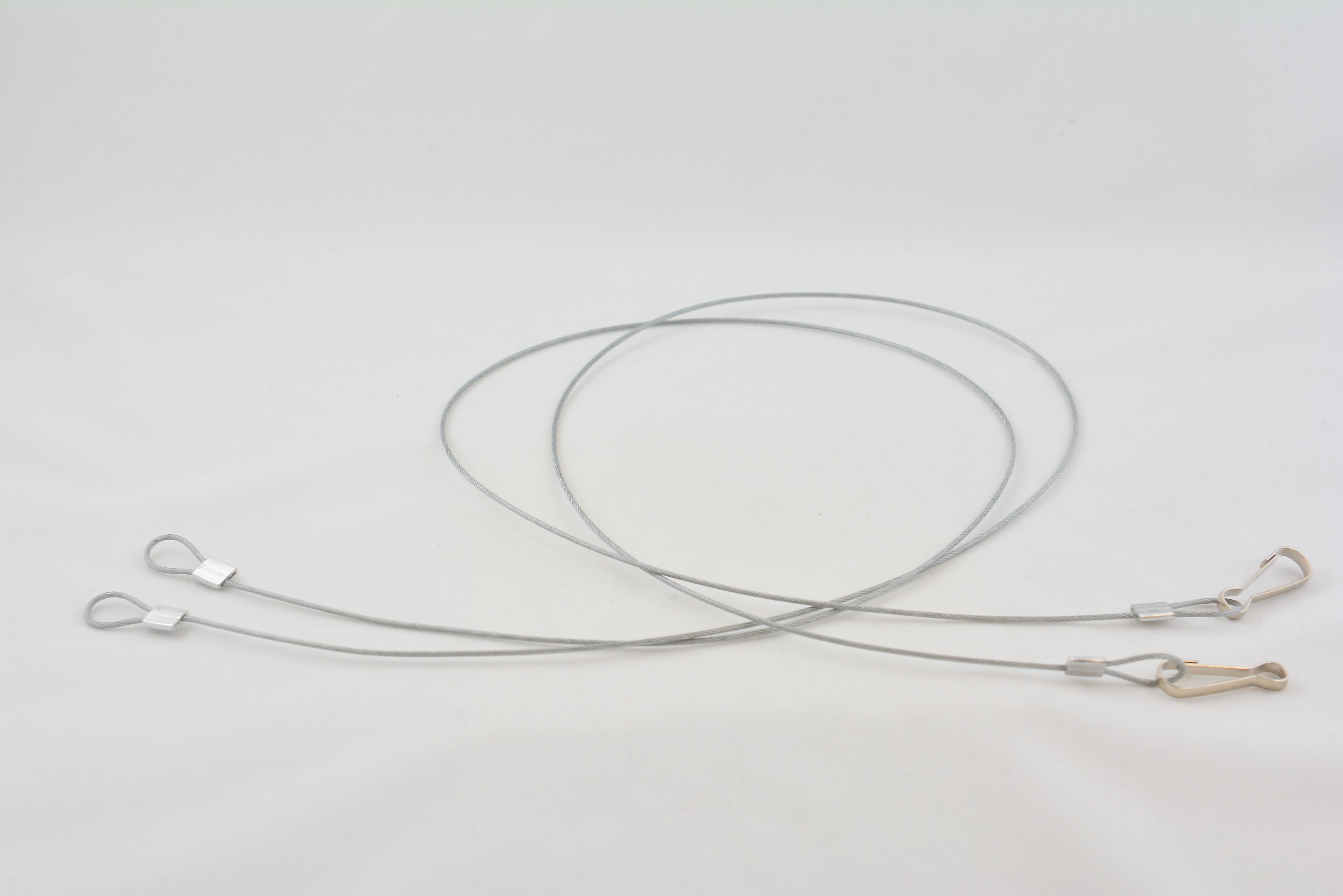

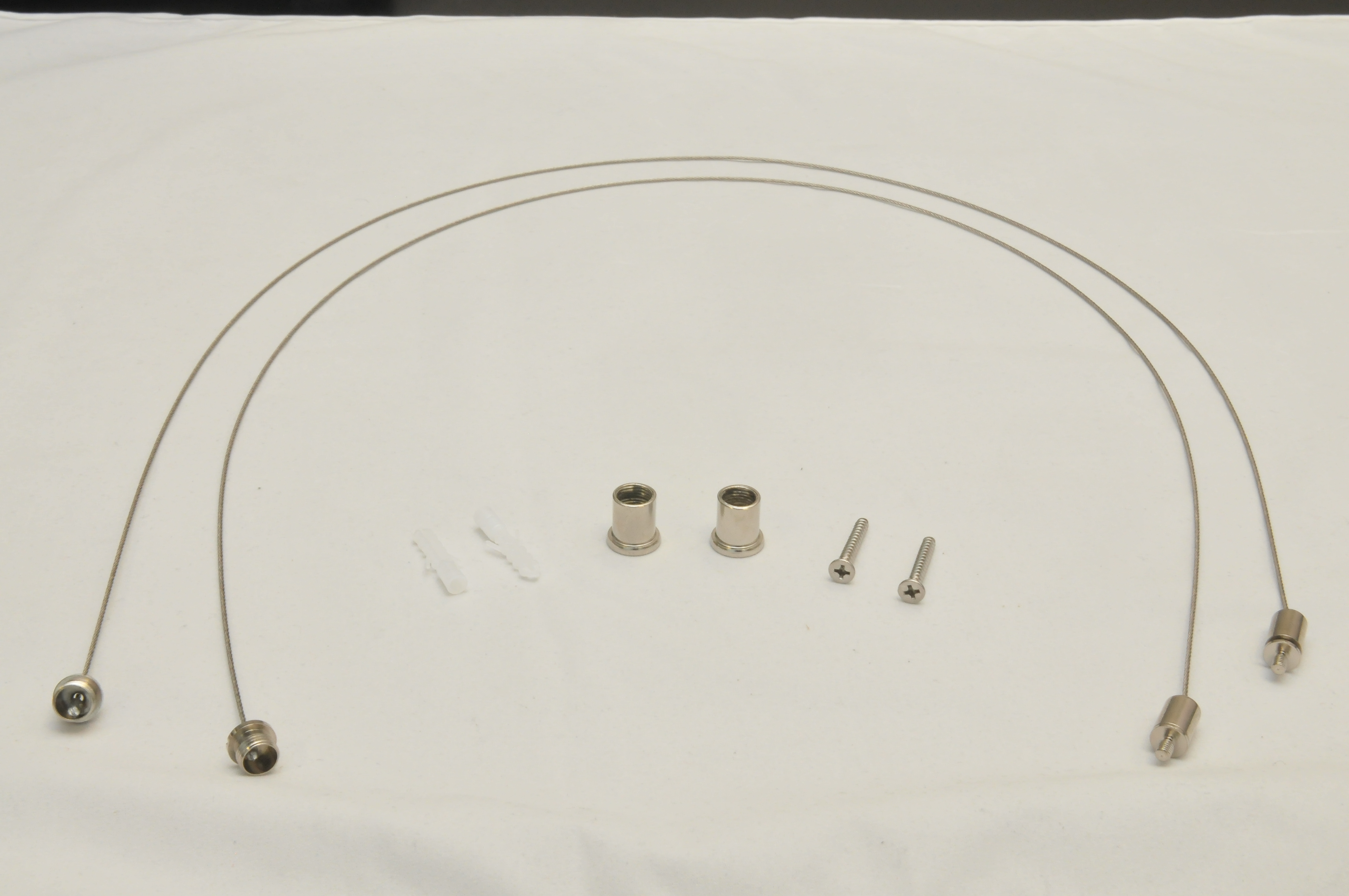

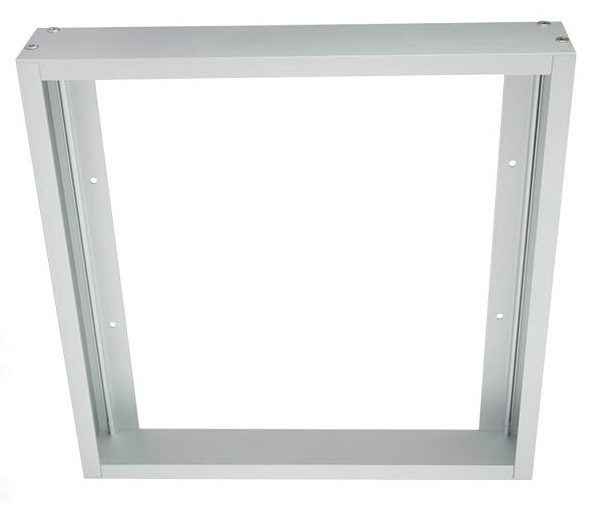

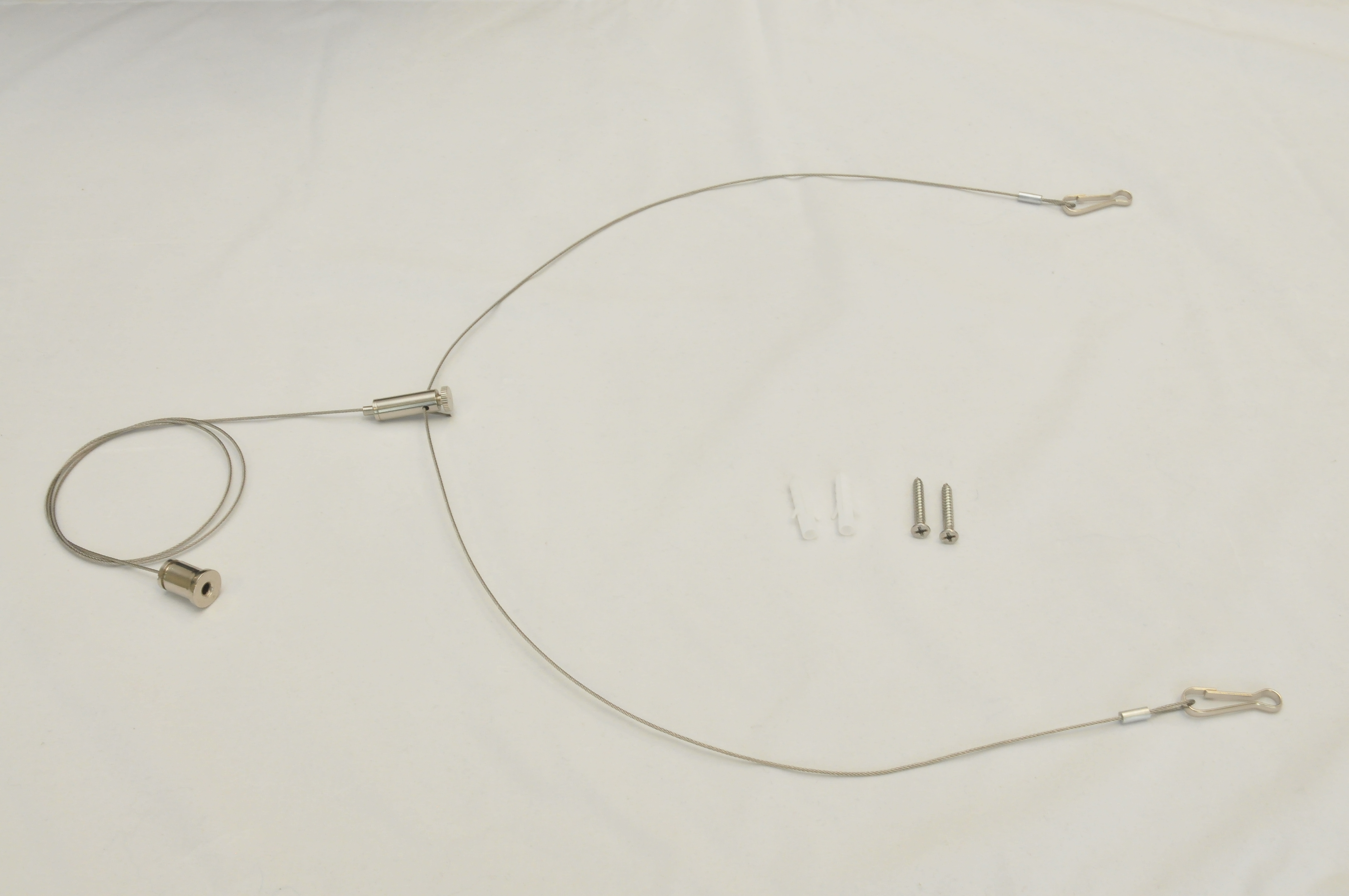

Surface-mounted, Suspended
Life Prediction (hrs):
L80 > 100,000 hrs /
L90 > 50,000 hrs
Ingress Protection:
IP40
Impact Protection:
IK02
PRODUCT CODE DIMENSION (mm) POWER Luminous Flux Optic/Beam Colour Temperature Colour Rending Index
EEP6X6WS40G4 595 x 595 x 11 mm 22-39 W 2,200-3,900 lm UGR<19 4000K ≥ 95
EEP12X3WS40G4 1195 x 295 x 11 mm 22-39 W 2,200-3900 lm UGR<19 4000K ≥ 95
EEP12X1WS40G4 1195 x 145 x 11 mm 22-30 W 1,900-2580 lm UGR<19 4000K ≥ 95
