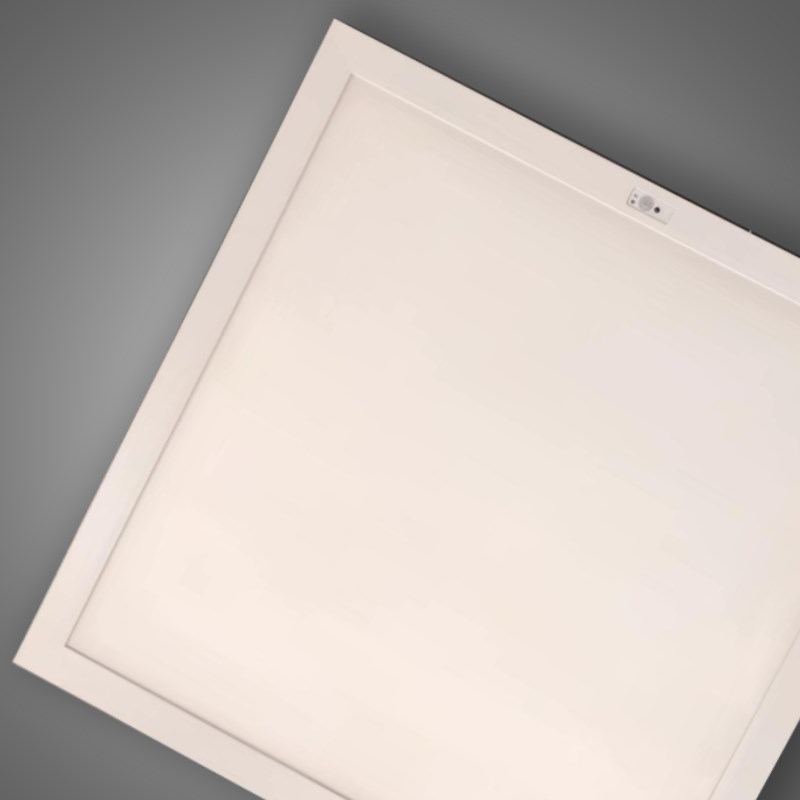

Edge-Lit Panel G4-Optional Integrated Controls
Ecopoint’s fourth generation Edge-Lit Panel has proven to be a capable, flexible and reliable product across a wide range of end-user requirements, and minimising total-cost-of-ownership has been a key development focus throughout the whole product lifecycle process.

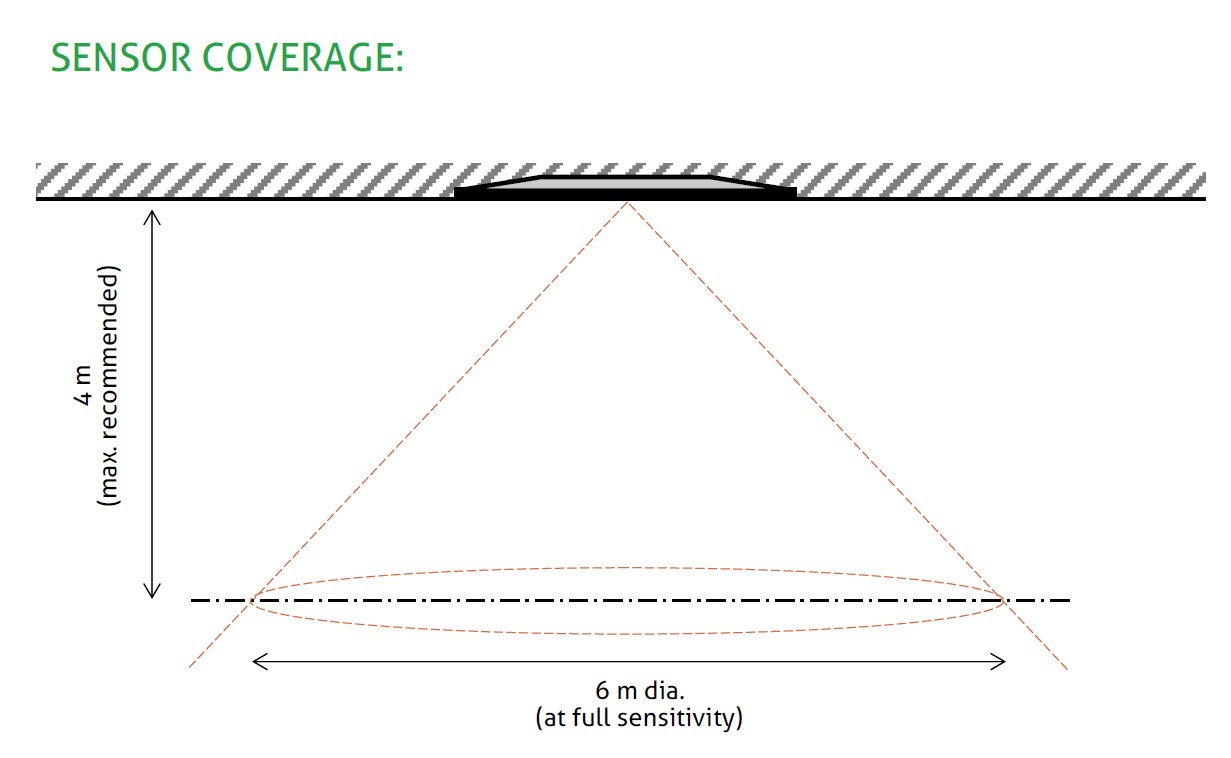

This new option embeds simplified but flexible lighting control and automation into this advanced product. A PIR sensor/controller unit, paired with a dimmable driver, provides point-by -point control based on manual inputs (dim-up, dim-down), detected occupancy (with optional stand-by mode), and/or detected ambient light conditions.
Available as an option for all standard Edge-Lit G4 Panel products, including SOLUS versions, in the 600x600 and 1200x300 sizes.
APPLICATIONS
Office
Commercial
Retail
SPECIFICATIONS
FEATURES
L90 > 50,000 hrs
| PRODUCT CODE | DIMENSION (mm) | POWER | Luminous Flux | Optic/Beam | Colour Temperature | Colour Rending Index |
|---|---|---|---|---|---|---|
| EEP6X6WS40G4 | 595 x 595 x 11 mm | 22-39 W | 2,200-3,900 lm | UGR<19 | 4000K | ≥ 95 |
| EEP12X1WS40G4 | 1195 x 145 x 11 mm | 22-30 W | 1,900-2580 lm | UGR<19 | 4000K | ≥ 95 |
| EEP12X3WS40G4 | 1195 x 295 x 11 mm | 22-39 W | 2,200-3900 lm | UGR<19 | 4000K | ≥ 95 |
| EEP6X6W840G4 | 595 x 595 x 11 mm | 22-39 W | 2,900-5100 lm | UGR<19 | 4000K | ≥ 80 |
| EEP12X1W840G4 | 1195 x 145 x 11 mm | 22-30 W | 2,200-2,900 lm | UGR<19 | 4000K | ≥ 80 |
| EEP12X3W840G4 | 1195 x 295 x 11 mm | 22-39 W | 2,700-4,750 lm | UGR<19 | 4000K | ≥ 80 |
