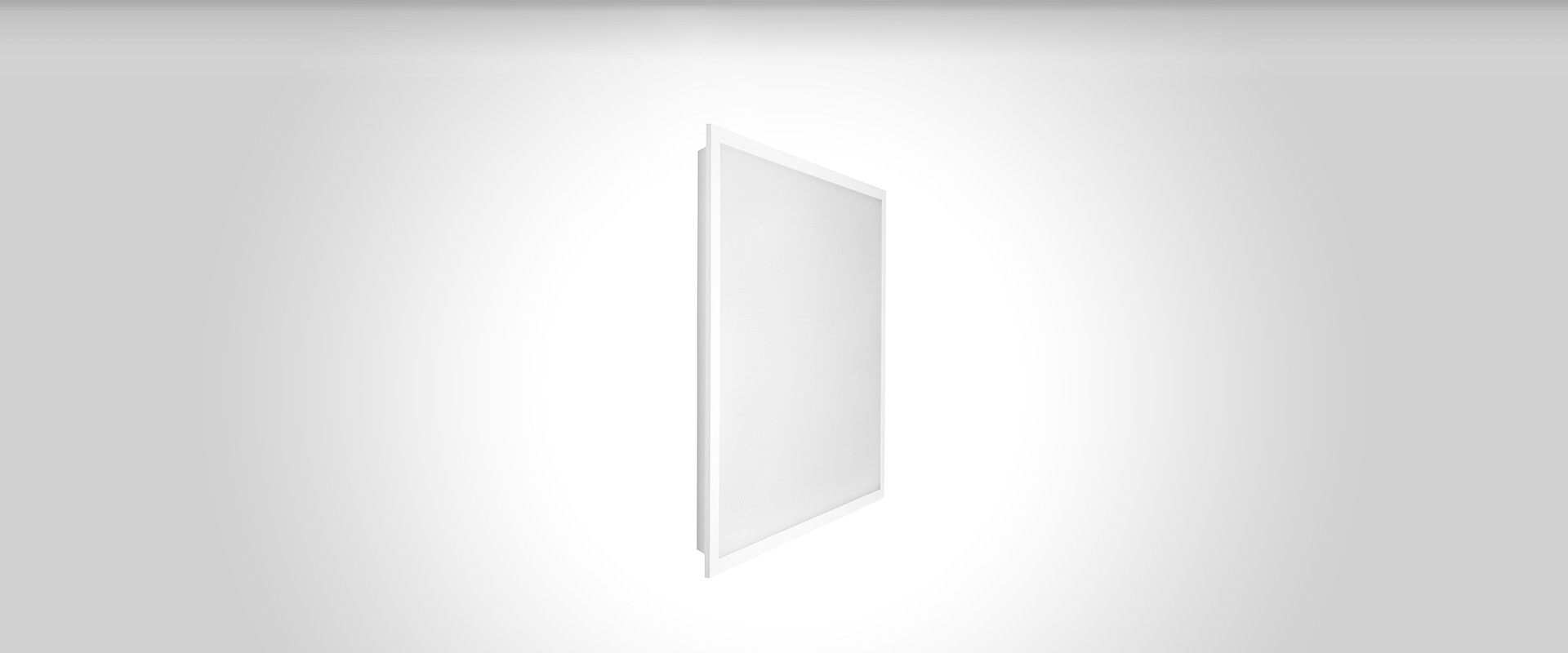

Back-Lit Panel G3

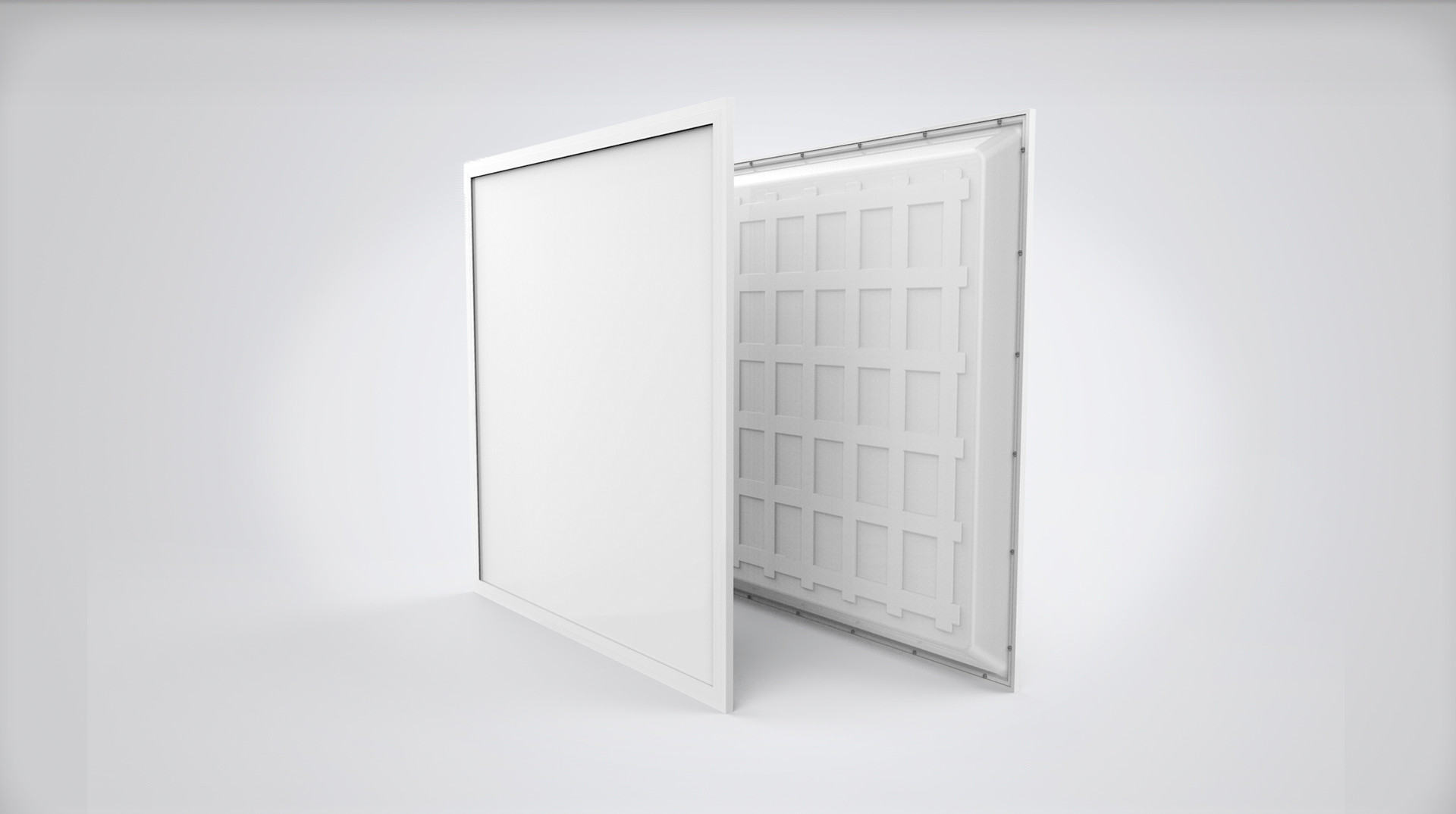

This third-generation development delivers key performance upgrades to Ecopoint’s proven family of Back-Lit Panel luminaires. Adopting higher colour-rendering specifications as standard and a boost in efficacy, the upgrades focus on improving long-term value from this reliable product range. The

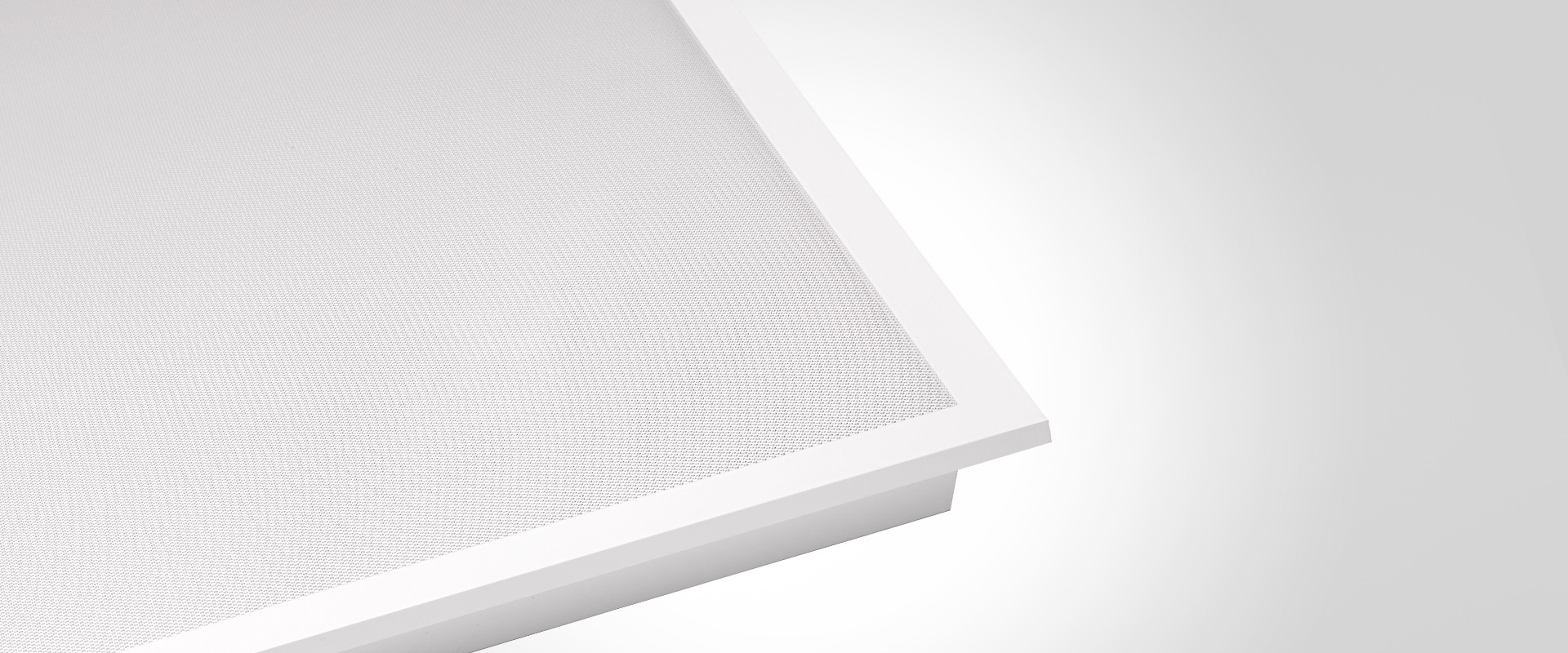

polycarbonate diffuser offers stable colour across a long lifespan, while the electronics and thermal design also support long service life while maintaining high levels of efficacy across that period. Selectable power settings with a wider range, extend the flexibility of this workhorse luminaire.
APPLICATIONS
1-10V
DALI (Optional)
Casambi (Optional)
FEATURES
Warranty:
5 years
Construction:

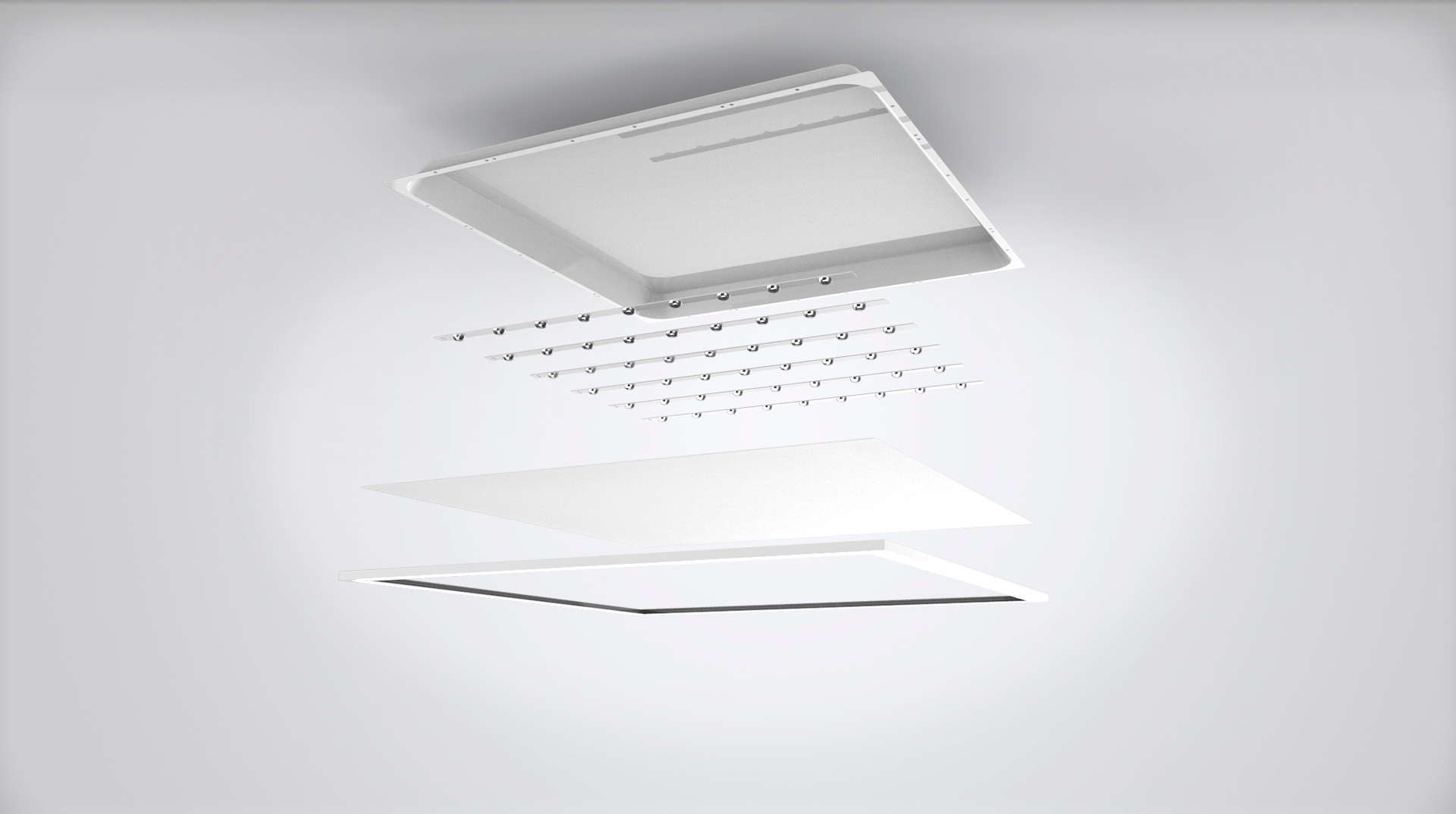

Aluminium (sheet), Moulded plastic (ABS), Polycarbonate (PC), Steel body
Metal Finish:
Powdercoated
Standard Mounting:
Recessed
Standard Mounting:

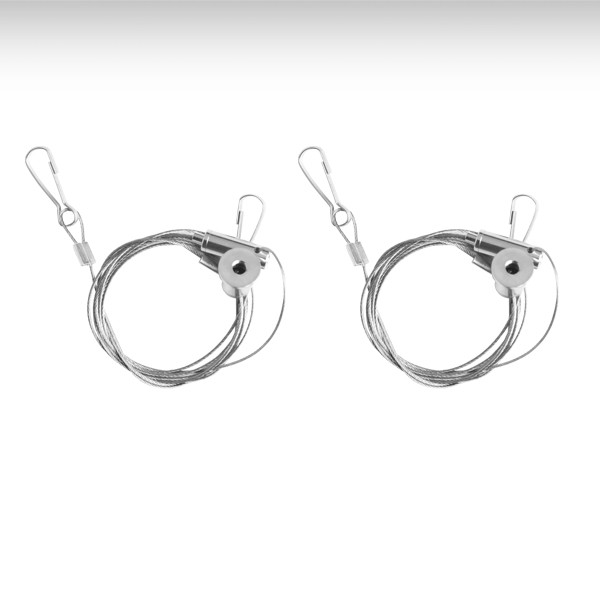

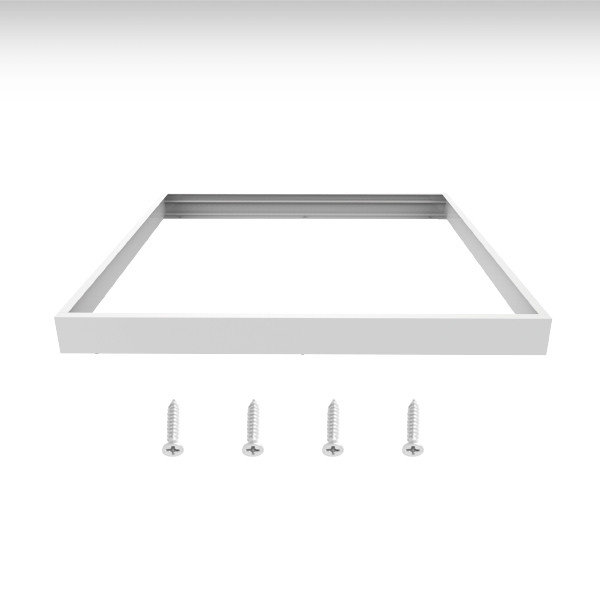

Surface-mount kit, Plaster recess kit, Suspension kit'
Life Prediction (hrs):
L80 > 100,000 hrs
Ingress Protection:
IP20, IP20 + IP65 versions, both room-side
Impact Protection:
IP20 + IP65 versions
| PRODUCT CODE | DIMENSION (mm) | POWER | Luminous Flux | Optic/Beam | Colour Temperature | Colour Rending Index |
|---|---|---|---|---|---|---|
| EBP6X3W9040-G3 | 595 x 295 x 35 mm | 13 - 22 W | 1,510 to 2,405 lm | 4000K | Ra | |
| EBP6X3W9040-G3-IP65 | 595 x 295x 35 mm | 13 - 22 W | Micro-prismatic, UGR<19 | 4000K | ≥ 90 | |
| EBP6X3WS40-G3 | 595 x 295x 35 mm | 13 - 22 W | 1,250 to 1,960 lm | Micro-prismatic, UGR<19 | 4000K | ≥ 90 |
| EBP6X3WS40-G3-IP65 | 595 x 295x 35 mm | 13 - 22 W | Micro-prismatic, UGR<19 | 4000K | ≥ 90 | |
| EBP6X6W9040-G3 | 595 x 595x 35 mm | 13 - 40 W | 1,650 to 5,170 lm | Micro-prismatic, UGR<19 | 4000K | ≥ 90 |
| EBP6X6W9040-G3-IP65 | 595 x 595x 35 mm | 13 - 40 W | Micro-prismatic, UGR<19 | 4000K | ≥ 90 | |
| EBP6X6WS40-G3 | 595 x 595x 35 mm | 13 - 40 W | 1,250 to 3,860 lm | Micro-prismatic, UGR<19 | 4000K | ≥ 90 |
| EBP6X6WS40-G3-IP65 | 595 x 595x 35 mm | 13 - 40 W | Micro-prismatic, UGR<19 | 4000K | ≥ 90 | |
| EBP12X3W9040-G3 | 1195 x 295 x 35 mm | 13 - 40 W | 1,580 to 4,950 lm | Micro-prismatic, UGR<19 | 4000K | ≥ 90 |
| EBP12X3W9040-G3-IP65 | 1195 x 295 x 35 mm | 13 - 40 W | Micro-prismatic, UGR<19 | 4000K | ≥ 90 | |
| EBP12X3WS40-G3 | 1195 x 295 x 35 mm | 13 - 40 W | 1,210 to 3,810 lm | Micro-prismatic, UGR<19 | 4000K | ≥ 90 |
| EBP12X3WS40-G3-IP65 | 1195 x 295 x 35 mm | 13 - 40 W | Micro-prismatic, UGR<19 | 4000K | ≥ 90 | |
| EBP12X6W9040-G3 | 1195 x 595 x 35 mm | 13 - 40 W | 1,650 to 5,510 lm | Micro-prismatic, UGR<19 | 4000K | ≥ 90 |
| EBP12X6W9040-G3-IP65 | 1195 x 595 x 35 mm | 13 - 40 W | Micro-prismatic, UGR<19 | 4000K | ≥ 90 |
