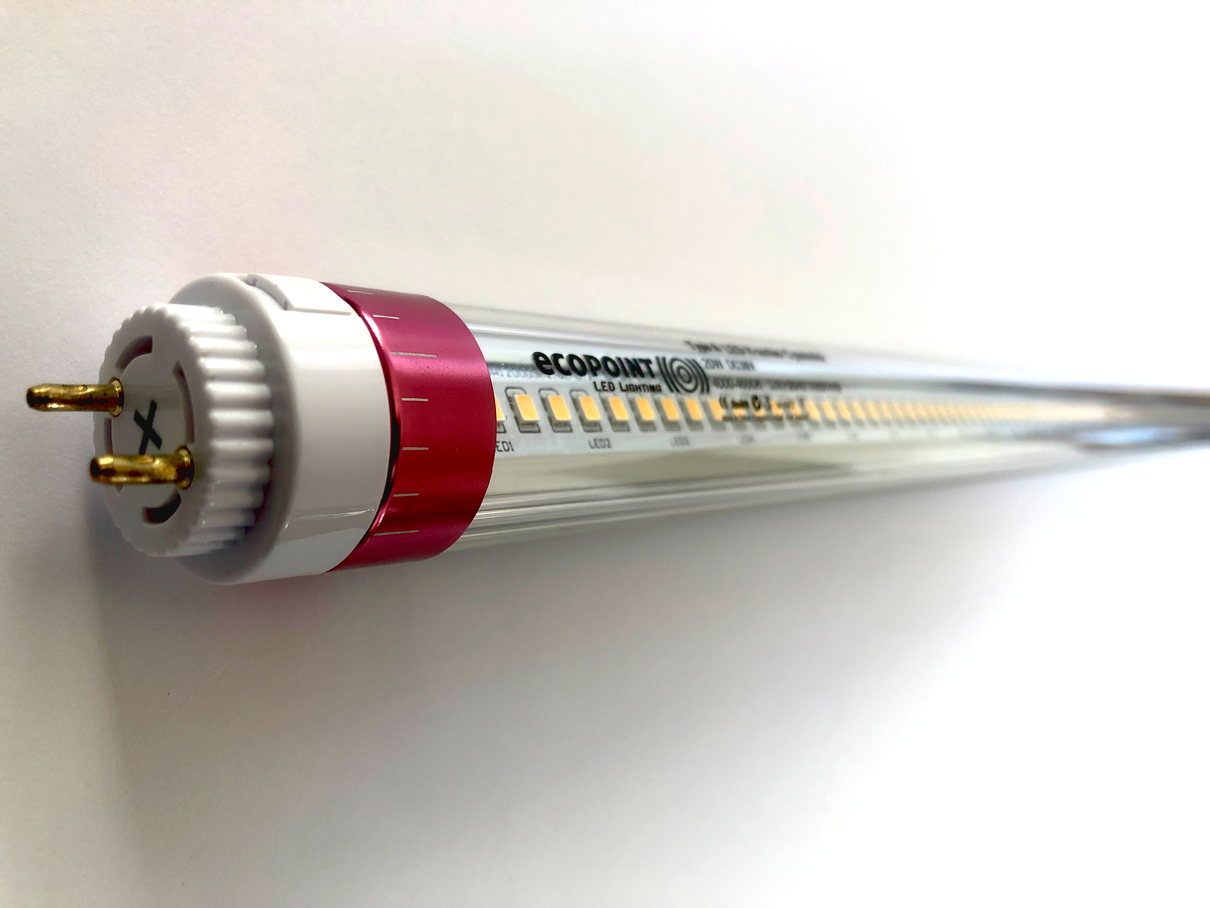

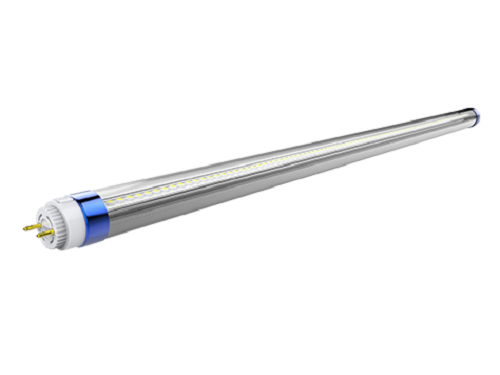

Full-Spectrum T8 Tube
The ease and speed of a retrofit LED upgrade is now an option for even the most demanding healthcare application with Ecopoint's high-specification Cyanosis Tubes. Boasting exceptional colour rendering performance and a Cyanosis Observation Indec (COI) comfortably within the requirements of AS/NZS 1680.2.5, this product allows you to merge the efficiency and lifespan of LED technology with your existing luminaire assets with minimal disruption and great economics.
APPLICATIONS
Retrofit
Healthcare
SPECIFICATIONS
Power Factor:
>0.95
Electrical Input:
200 - 277 V / 50-60 Hz
FEATURES
Warranty:
5 years
Construction:
Aluminium (extruded), Polycarbonate (PC)
Metal Finish:
Raw
Standard Mounting:
Retrofit
Life Prediction (hrs):
L80 > 70,000 hrs (B10)
Ingress Protection:
IP20
| PRODUCT CODE | DIMENSION (mm) | POWER | Luminous Flux | Optic/Beam | Colour Temperature | Colour Rending Index |
|---|---|---|---|---|---|---|
| EJC900C17W940 | 26 (dia) x 898 mm | 17 W | 1,800 lm | 120 deg | 4000K | ≥95 |
| EJC1500C24W940 | 26 (dia) x 1498 mm | 24 W | 3,000 lm | 120 deg | 4000K | >95 |
| EJC600C11W940 | 26 (dia) x 598 mm | 11 W | 1,100 lm | 120 deg | 4000K | ≥95 |
| EJC1200C20W940 | 26 (dia) x 1198 mm | 20 W | 2,400 lm | 120 deg | 4000K | >95 |
| EJC1200C18W940G2 | 26 (dia) x 1198 mm | 18 W | 2,400 lm | 120 deg | 4000K | ≥95 |
| EJC1500C22W940G2 | 26 (dia) x 1498 mm | 22 W | 3,100 lm | 120 deg | 4000K | ≥95 |
