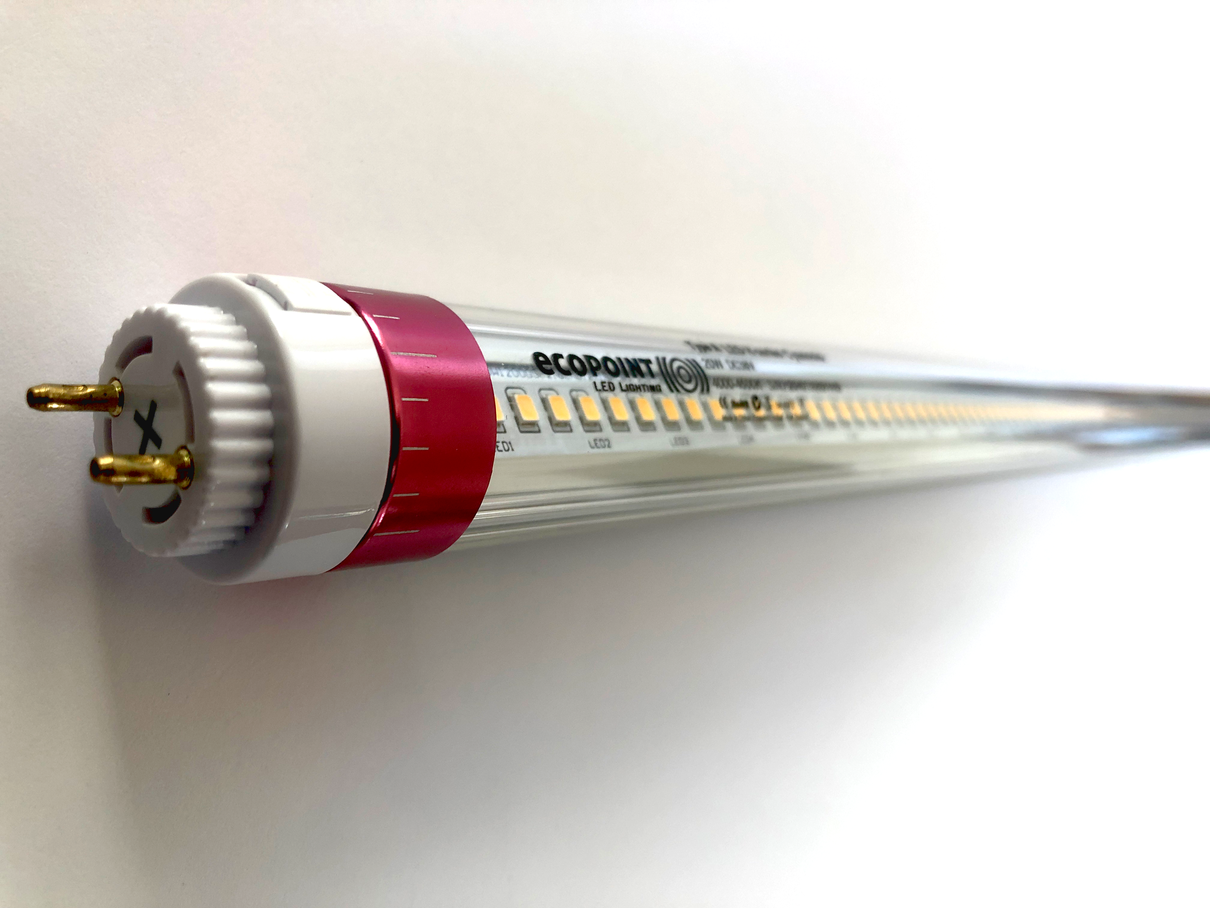

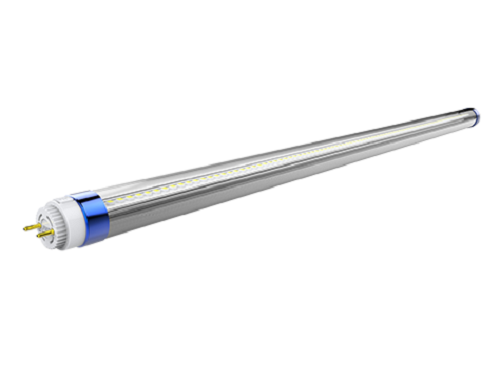

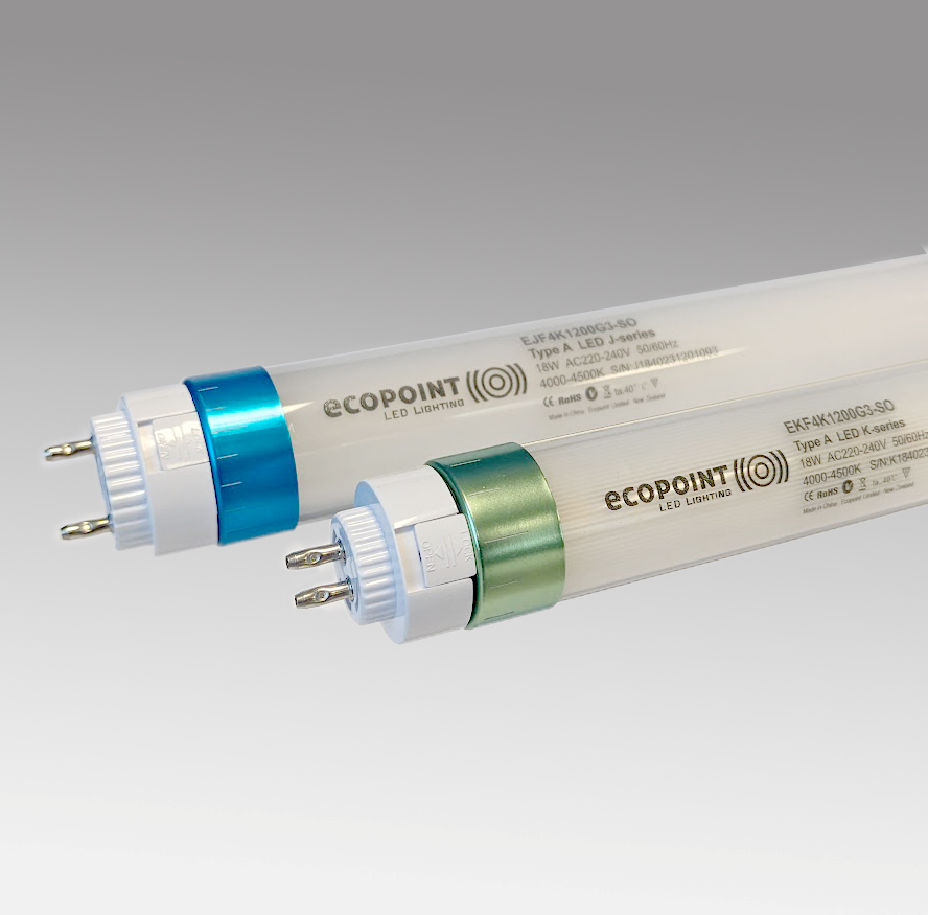

Full Spectrum T8 and T5 Tubes

Full Spectrum T8 and T5 Tubes

Full Spectrum T8 and T5 Tubes

The ease and speed of a retrofit LED upgrade is now an option for even the most demanding healthcare application with Ecopoint's high-specification Full-Spectrum Tubes. Boasting exceptional colour rendering performance and a Cyanosis Observation Indec (COI) comfortably within the requirements of AS/NZS 1680.2.5, this product allows you to merge the efficiency and lifespan of LED technology with your existing luminaire assets with minimal disruption and great economics.

APPLICATIONS

Retrofit
Healthcare

SPECIFICATIONS

Power Factor:
>0.95
Electrical Input:
200 - 277 V / 50-60 Hz

FEATURES

Warranty:
5 years
Construction:
Aluminium (extruded), Polycarbonate (PC)
Metal Finish:
Raw
Standard Mounting:
Retrofit
Life Prediction (hrs):
L80 > 70,000 hrs (B10)
Ingress Protection:
IP20
PRODUCT CODE DIMENSION (mm) POWER Luminous Flux Optic/Beam Colour Temperature Colour Rending Index
EJC1200C18W940G2 26 (dia) x 1198 mm 18 W 2,400 lm 120 deg 4000K ≥95
EJC1500C22W940G2 26 (dia) x 1498 mm 22 W 3,100 lm 120 deg 4000K ≥95
EKC1200C20W940G2 26 (dia) x 1198 mm 20 W 2,400 lm 120 deg 4000K ≥95
EKC1500C22W940G2 26 (dia) x 1498 mm 22 W 3,100 lm 120 deg 4000K ≥95
