Linear High Bay G2

Ecopoint's range of industrial lighting for a variety of applications.
Linear High Bay G2

Linear High Bay G2

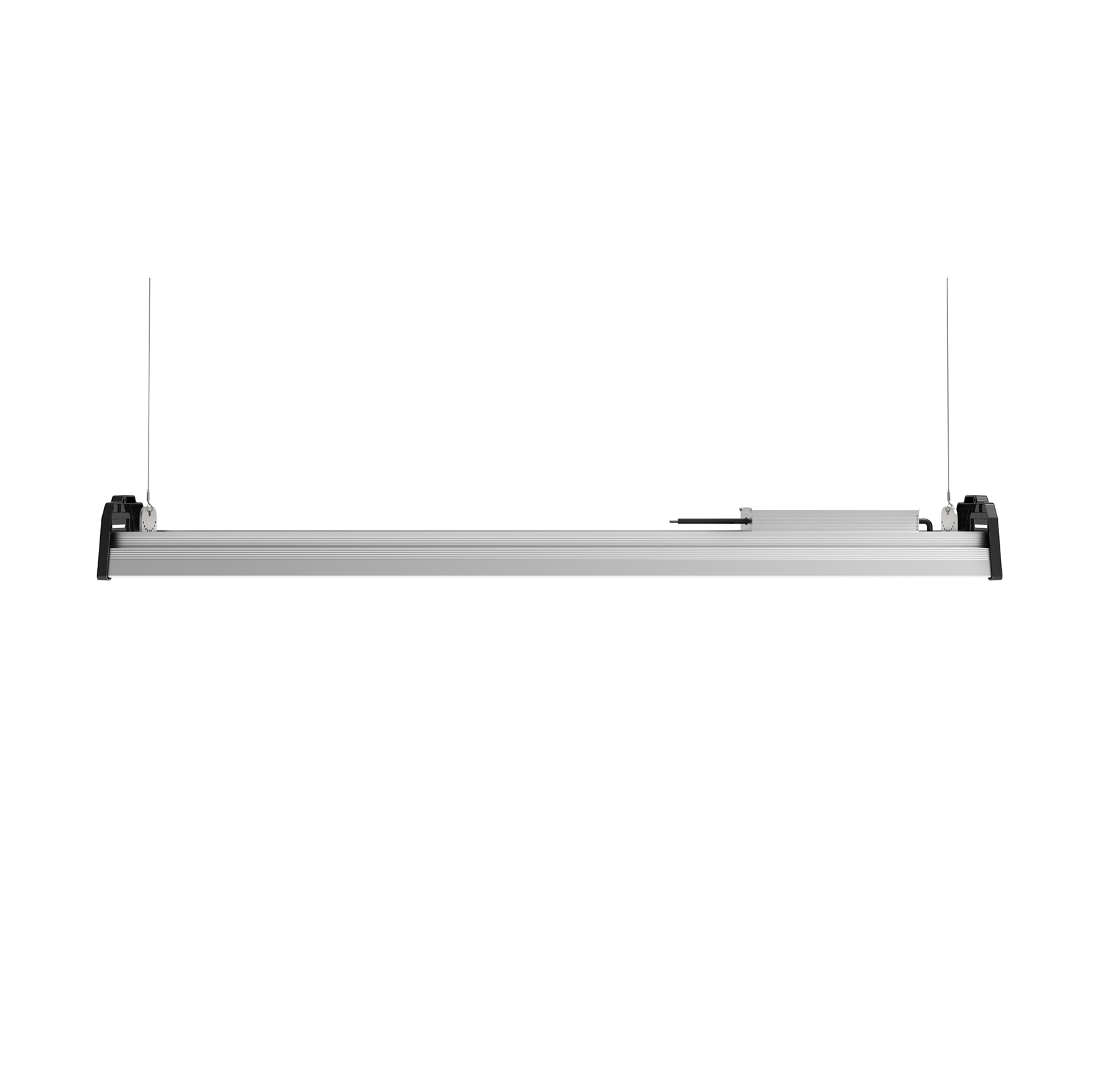

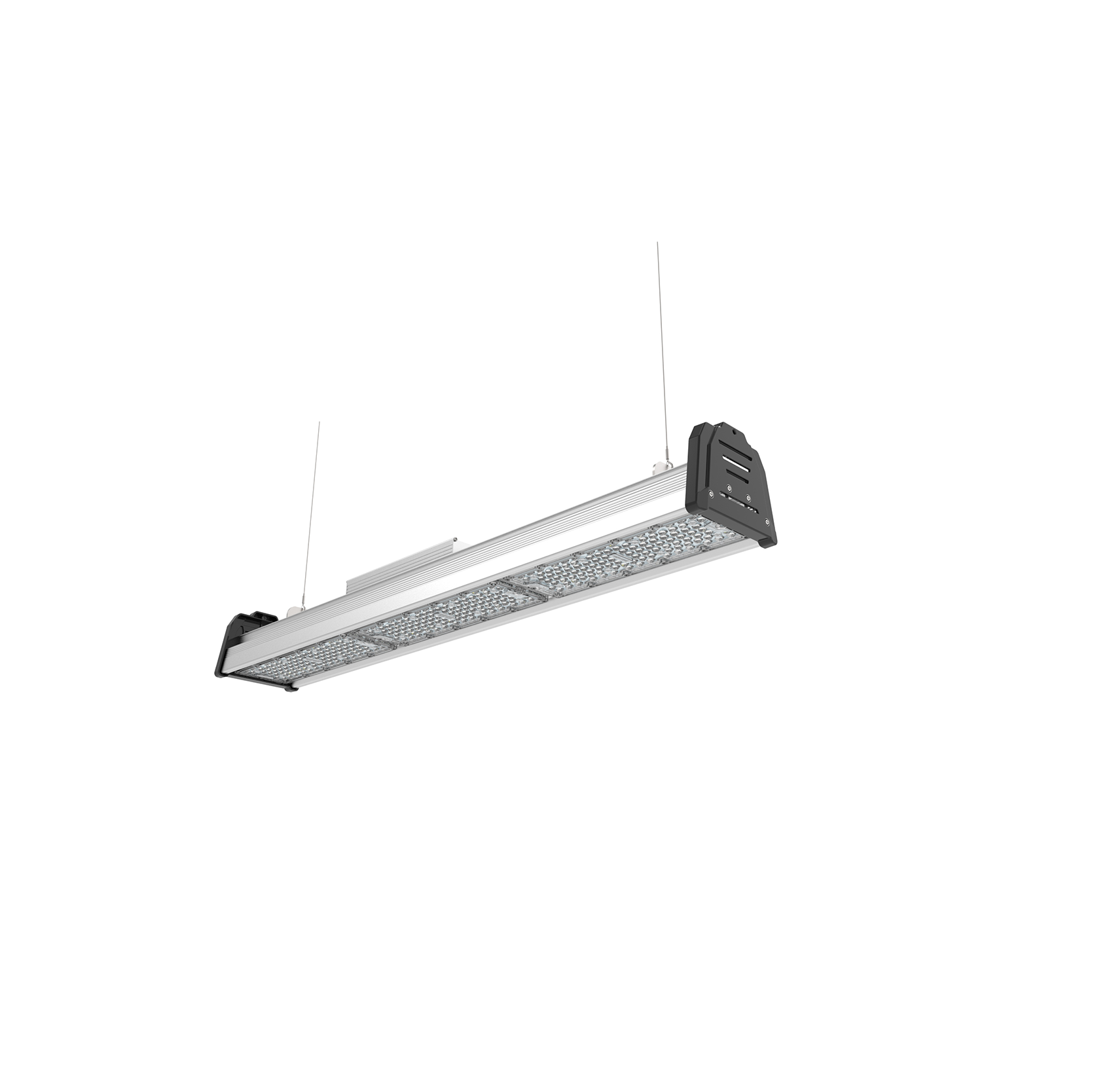

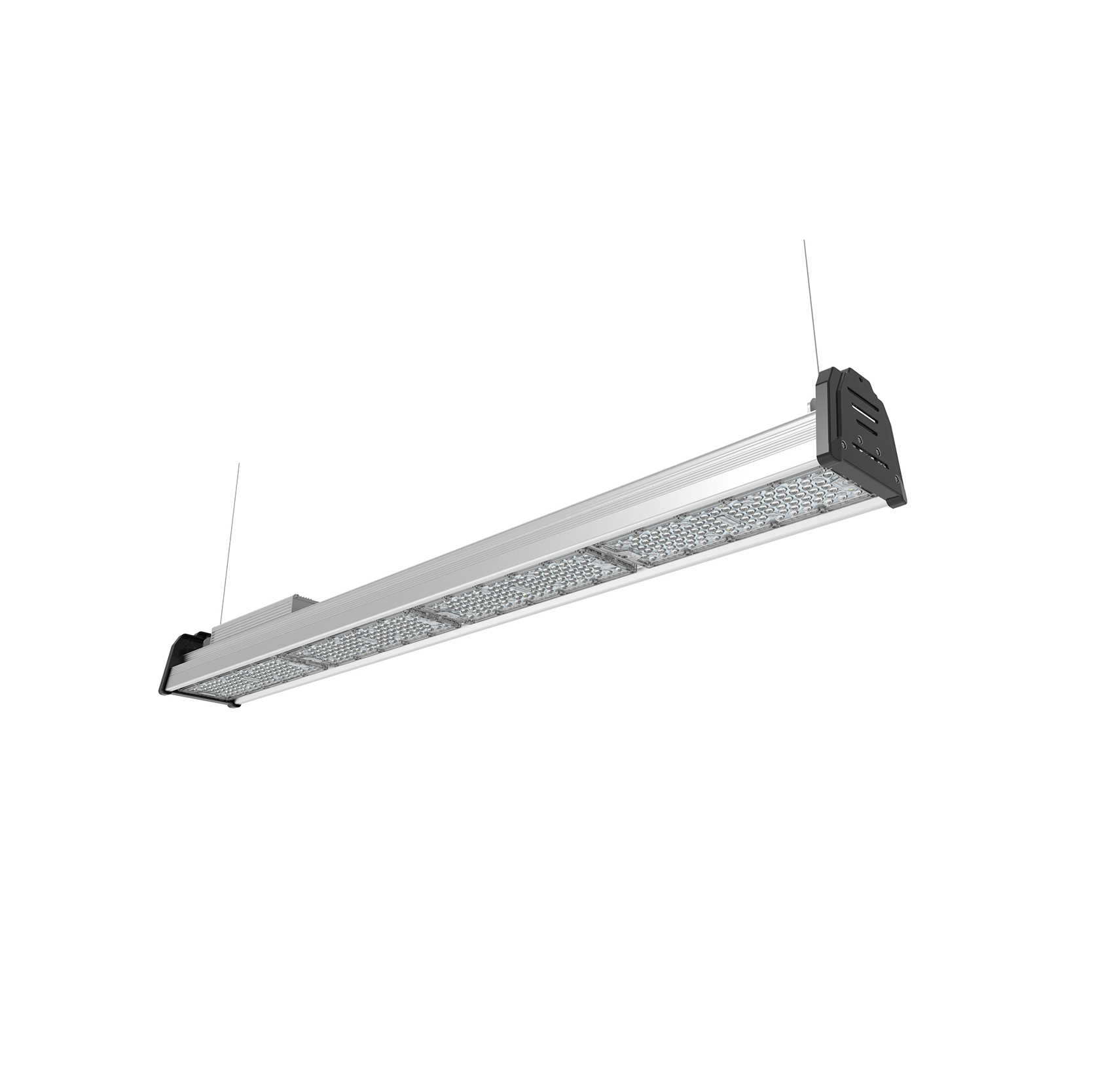

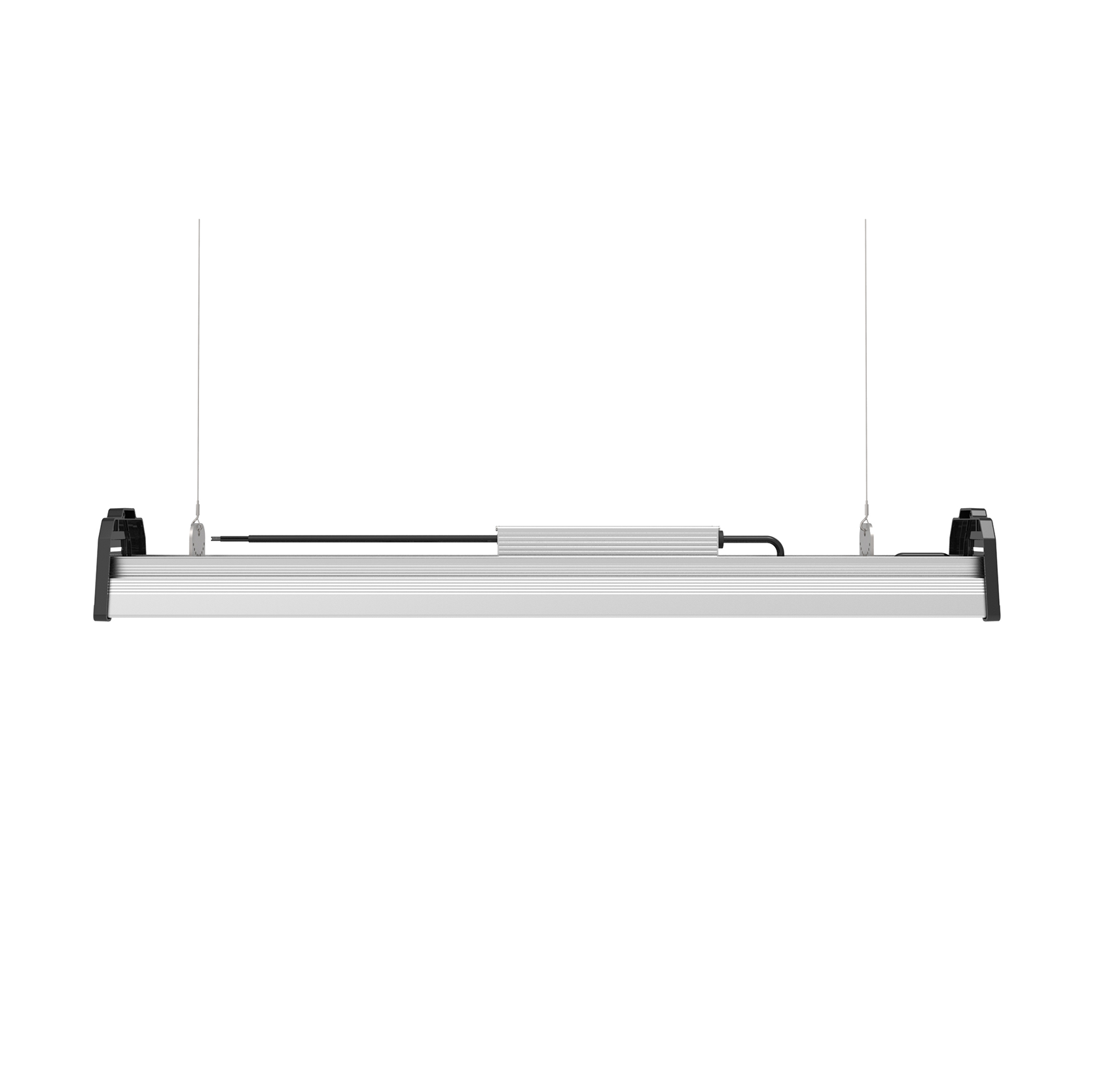

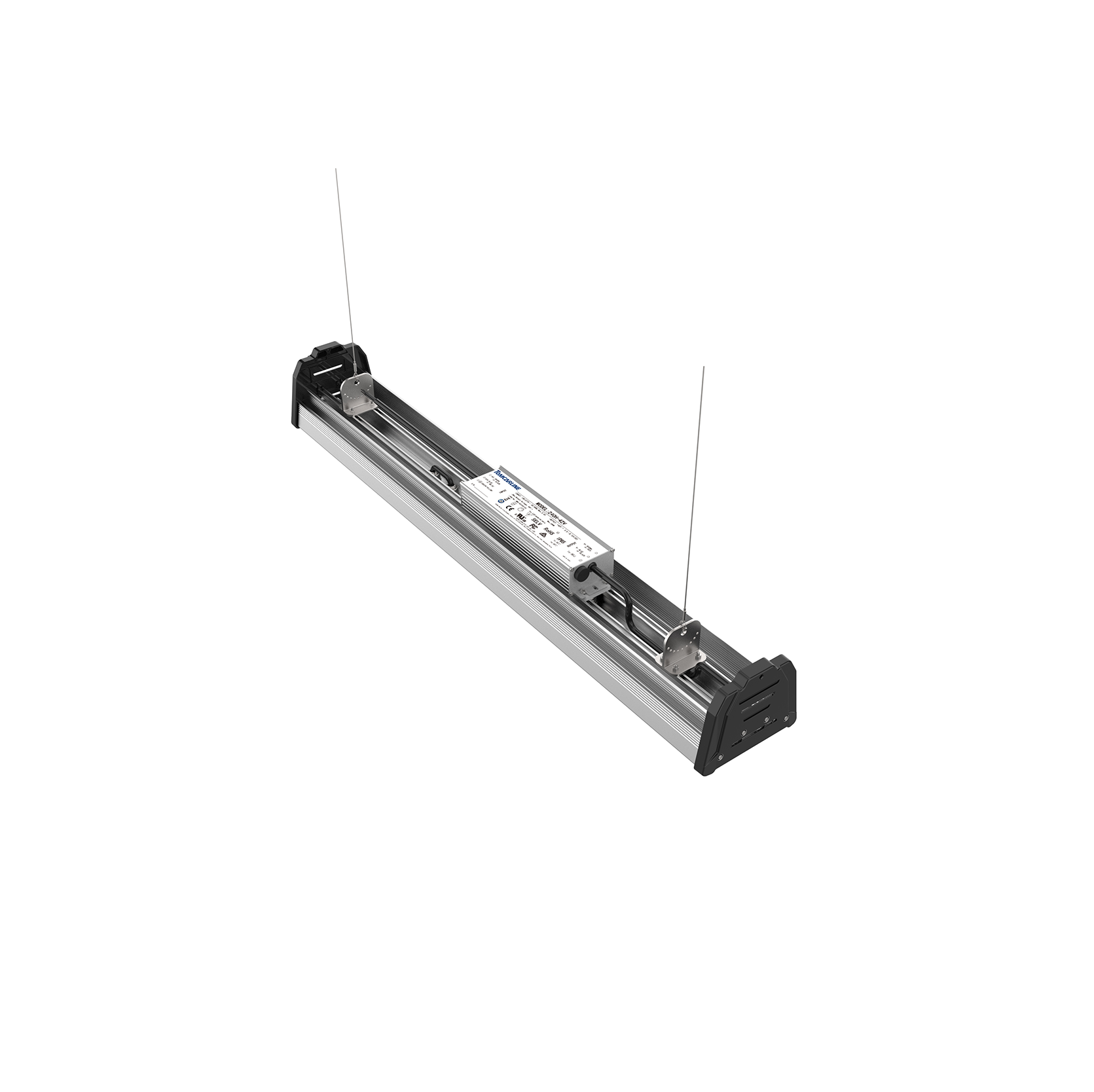

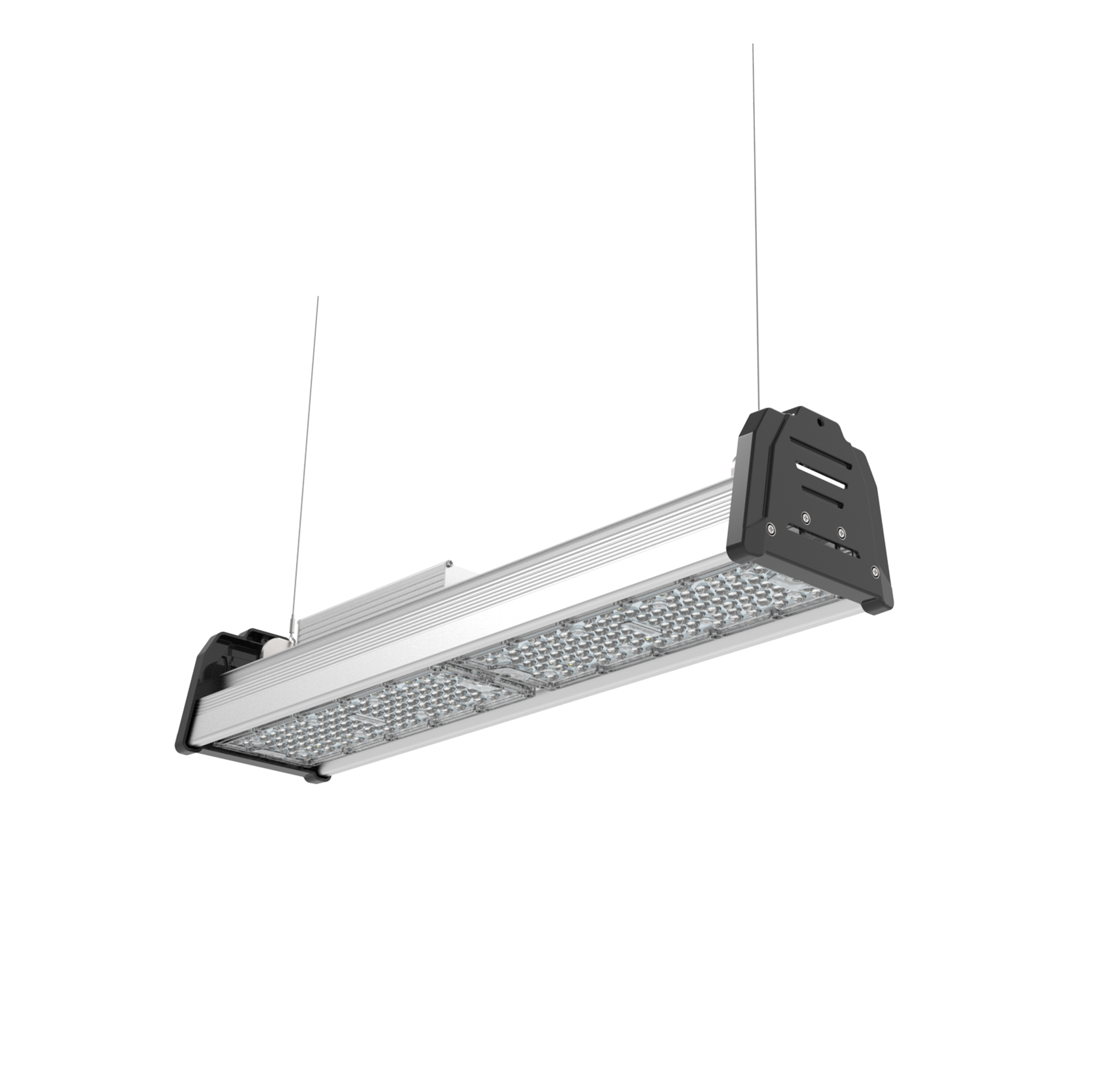

A high output LED linear alternative to standard metal halide or T5 high bays. High quality construction using a lightweight aluminium chassis with an advanced proprietary driver and Lumileds LED packages, the design offers very effective thermal management and performance characteristics. Available from 80W to 300W and with a range of circular and elliptical beam angles, they can cover a large spectrum of lighting requirements.

APPLICATIONS

Industrial, Warehousing, Retail, Cold Storage

SPECIFICATIONS

Power Factor:
Electrical Input:
100 - 277 V / 50 - 60 Hz

FEATURES

Warranty:
5 years

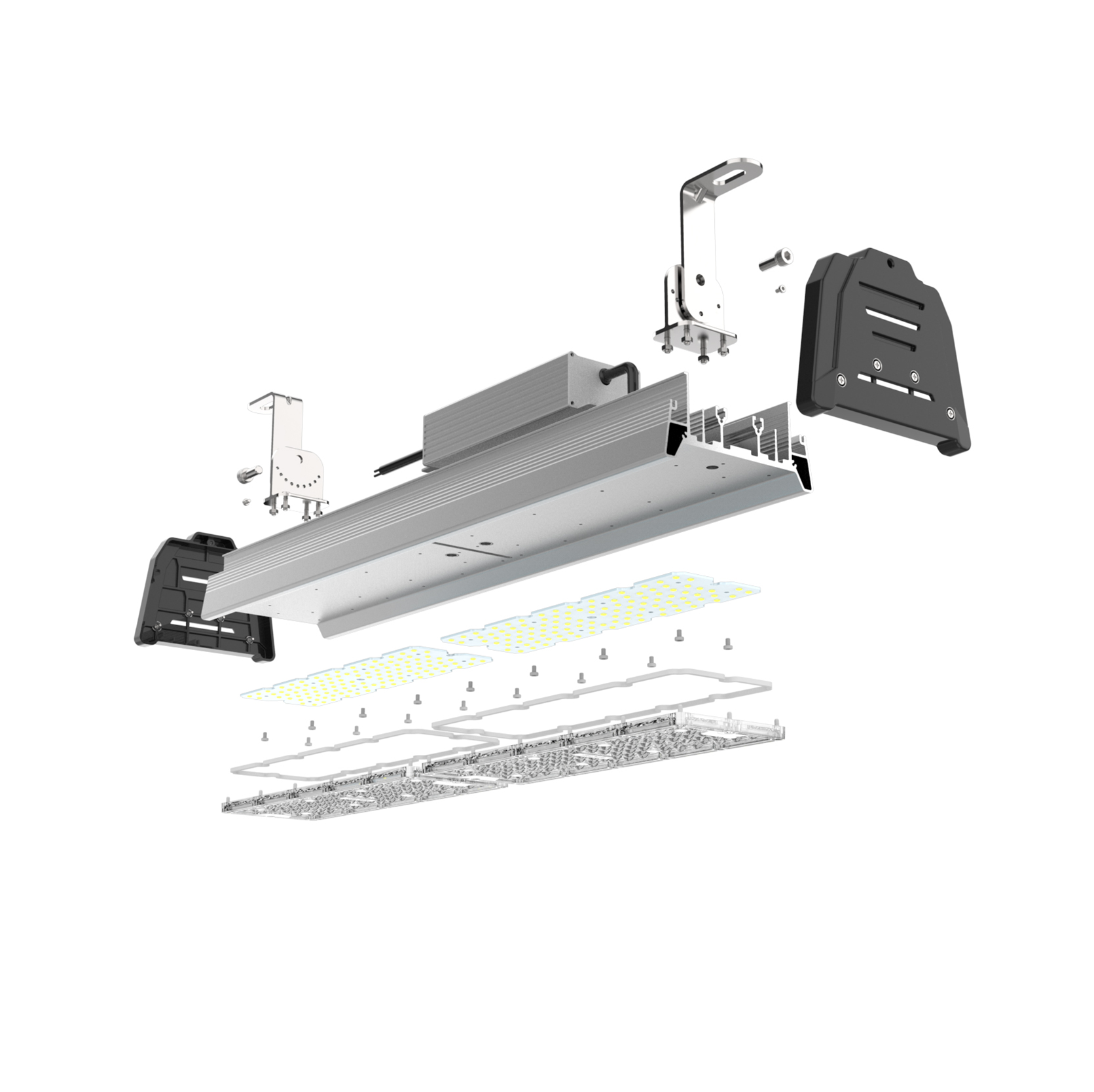

Construction:
Aluminium (cast), Polycarbonate (PC)
Metal Finish:
Powdercoated

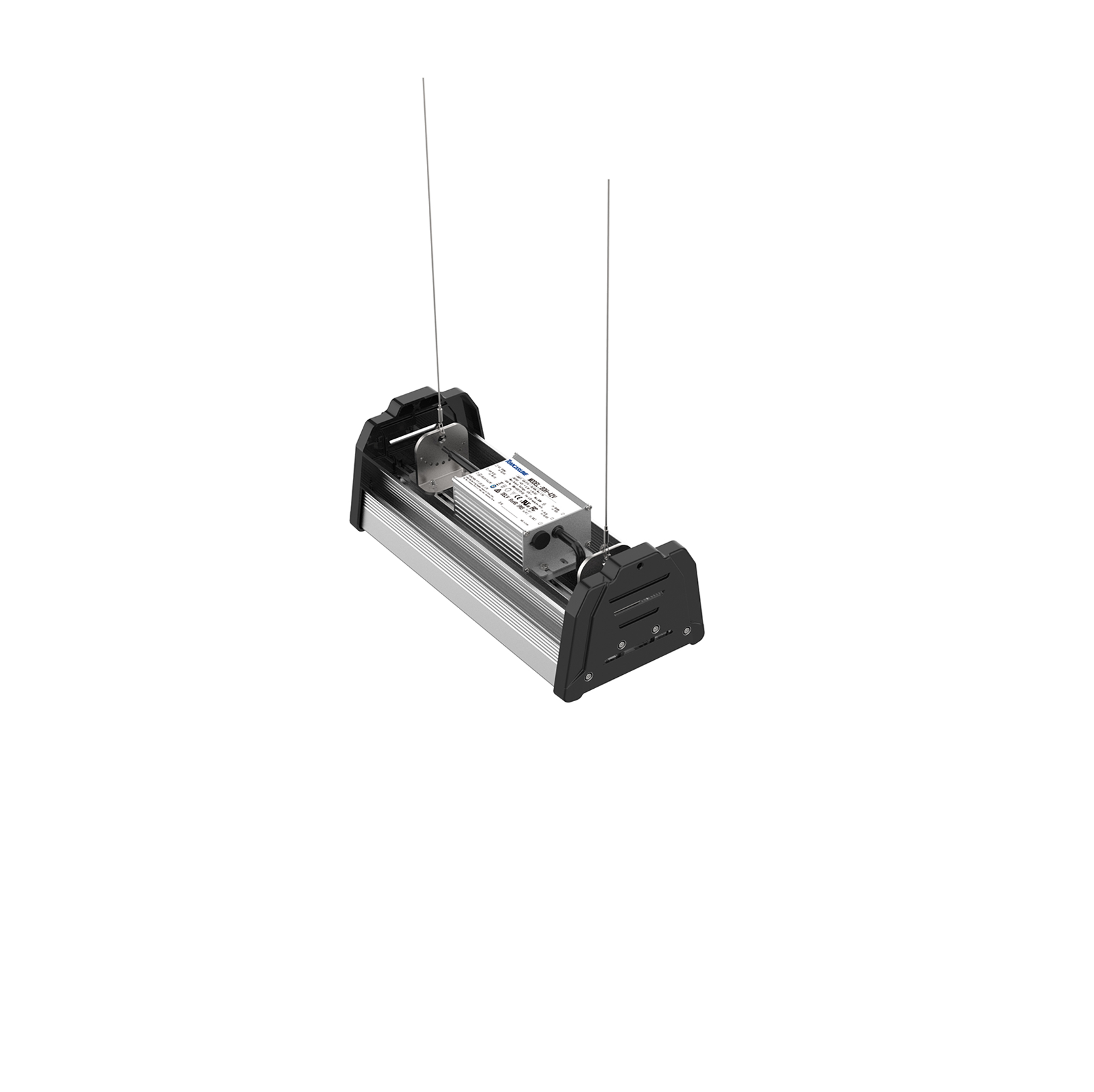

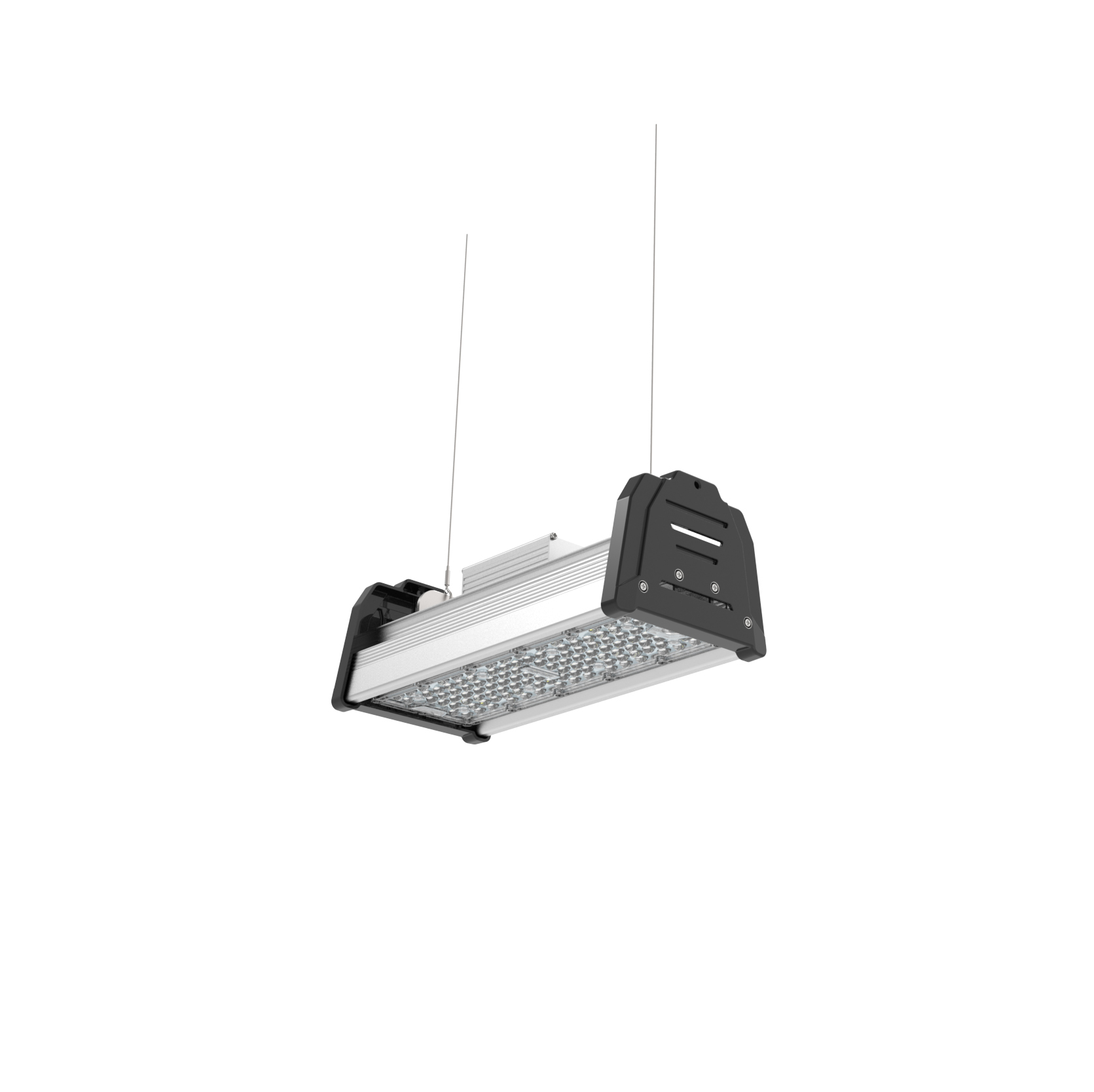

Standard Mounting:

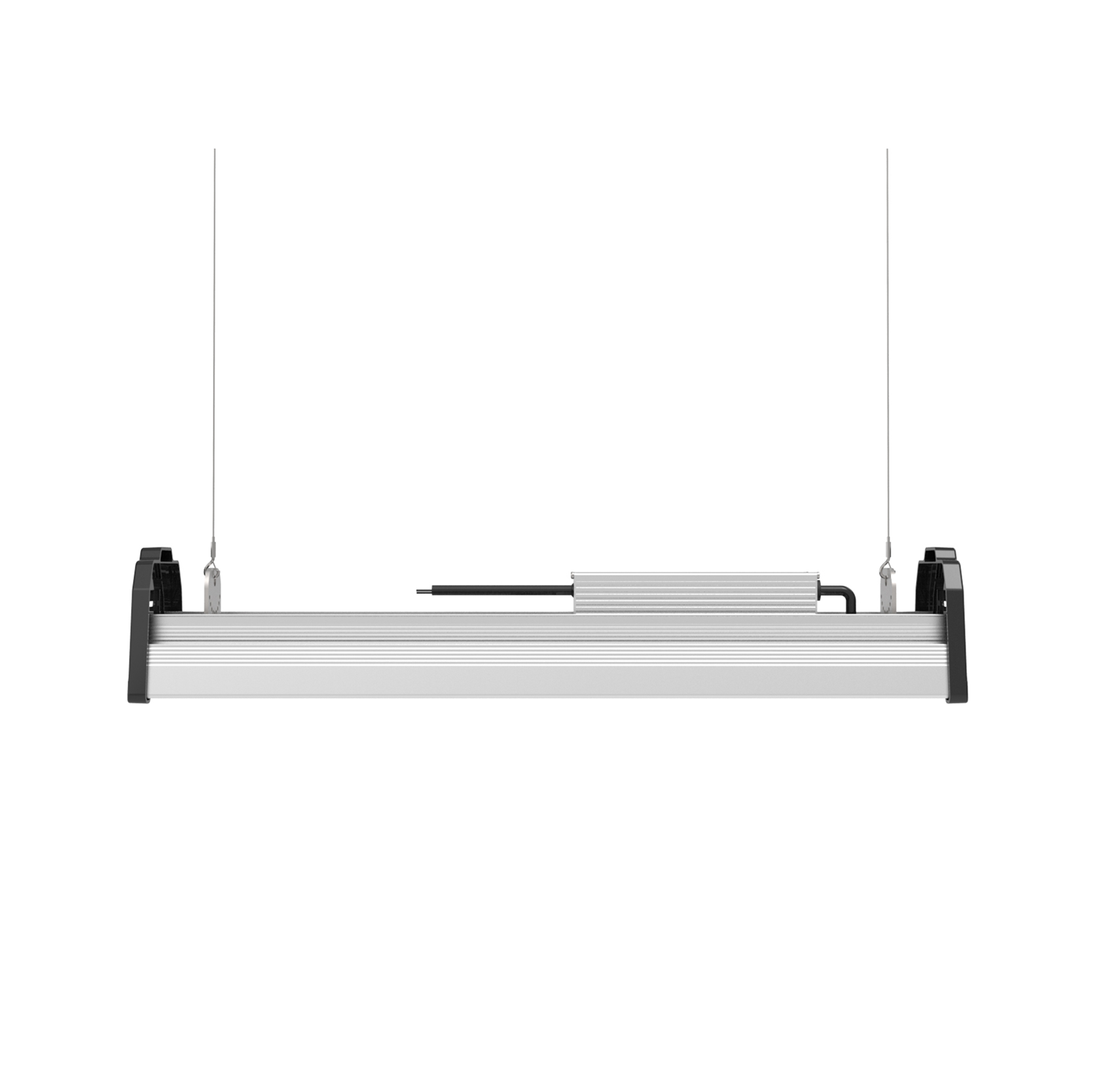

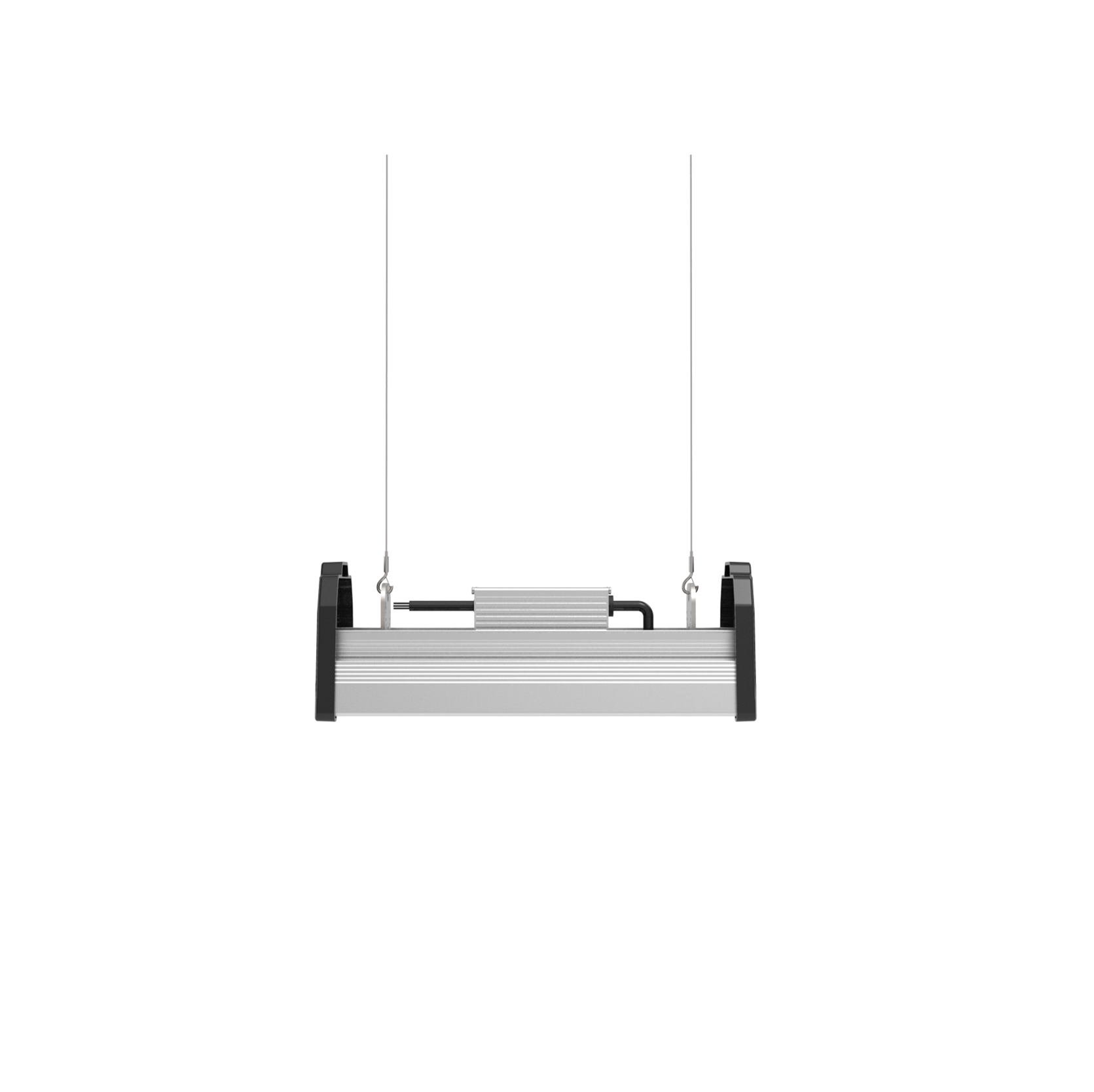

Suspended

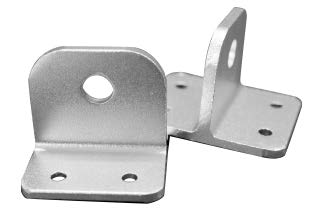

Standard Mounting:

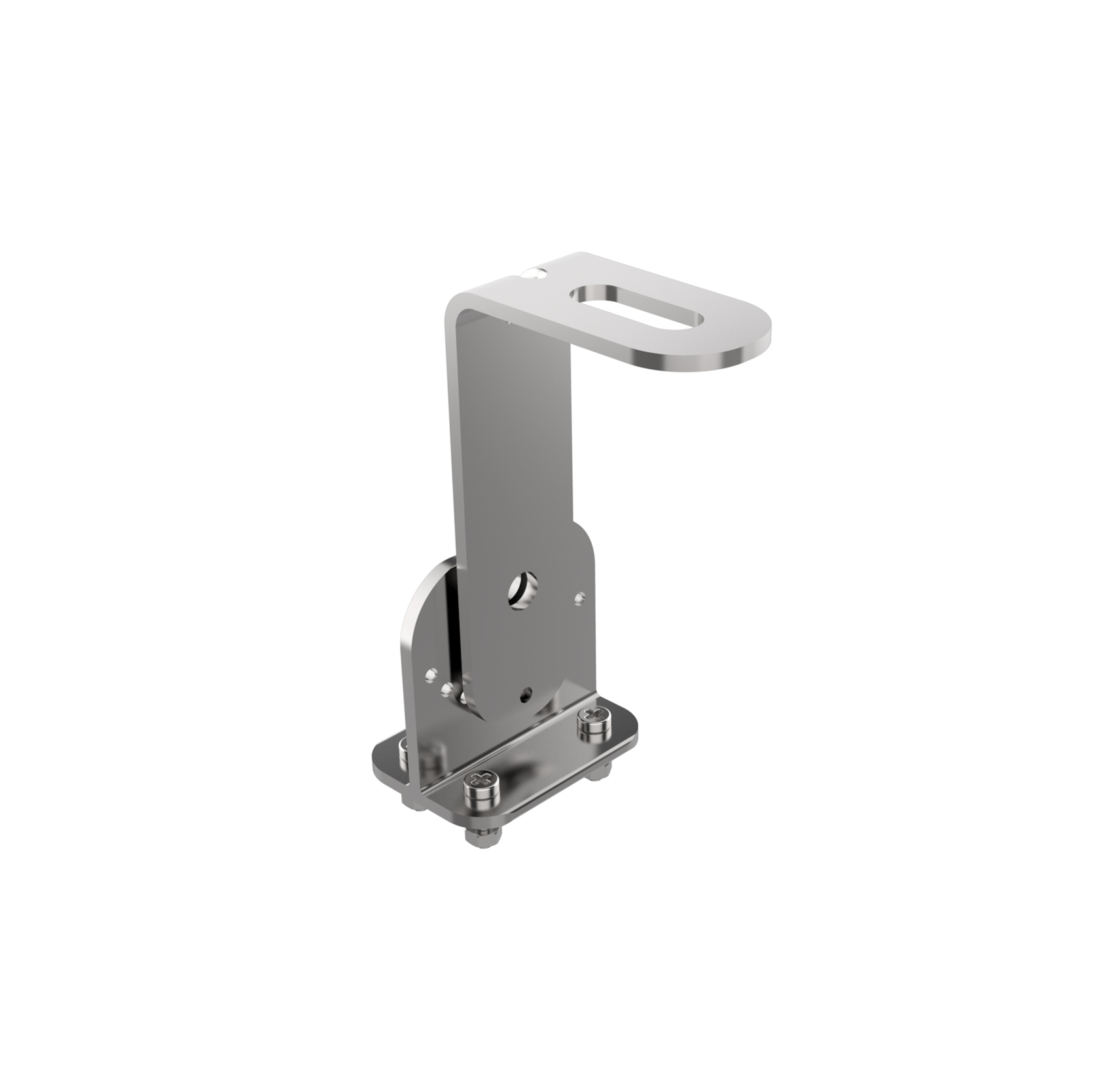

Surface-mounted
Life Prediction (hrs):
L80 >125,000 hrs (B10)
Ingress Protection:
IP65
Impact Protection:
IK10
PRODUCT CODE DIMENSION (mm) POWER Luminous Flux Optic/Beam Colour Temperature Colour Rending Index
ELB600S100W840 600 x 130 x 130 mm 102 W 11,800 lm 30x70 deg / 30 deg / 60 deg / 90 deg 4000K >80
ELB600S120W840 600 x 130 x 130 mm 121 W 13,500 lm 30x70 deg / 30 deg / 60 deg / 90 deg 4000K >80
ELB900S150W840 890 x 130 x 130 mm 151 W 17,800 lm 30x70 deg / 30 deg / 60 deg / 90 deg 4000K >80
ELB900S180W840 890 x 130 x 130 mm 179 W 19,800 lm 30x70 deg / 30 deg / 60 deg / 90 deg 4000K >80
ELB1200S200W840 1180 x 130 x 130 mm 202 W 23,900 lm 30x70 deg / 30 deg / 60 deg / 90 deg 4000K >80
ELB1200S240W840 1180 x 130 x 130 mm 243 W 27,800 lm 30x70 deg / 30 deg / 60 deg / 90 deg 4000K >80
ELB900S300W840 890 x 270 x 135 mm 301 W 34,100 lm 30x70 deg / 30 deg / 60 deg / 90 deg 4000K >80
ELB1200S400W840 1180 x 270 x 135 mm 401 W 45,700 lm 30x70 deg / 30 deg / 60 deg / 90 deg 4000K >80
ELB1200S600W840 1180 x 405 x 135 mm 602 W 69,750 lm 30x70 deg / 30 deg / 60 deg / 90 deg 4000K >80

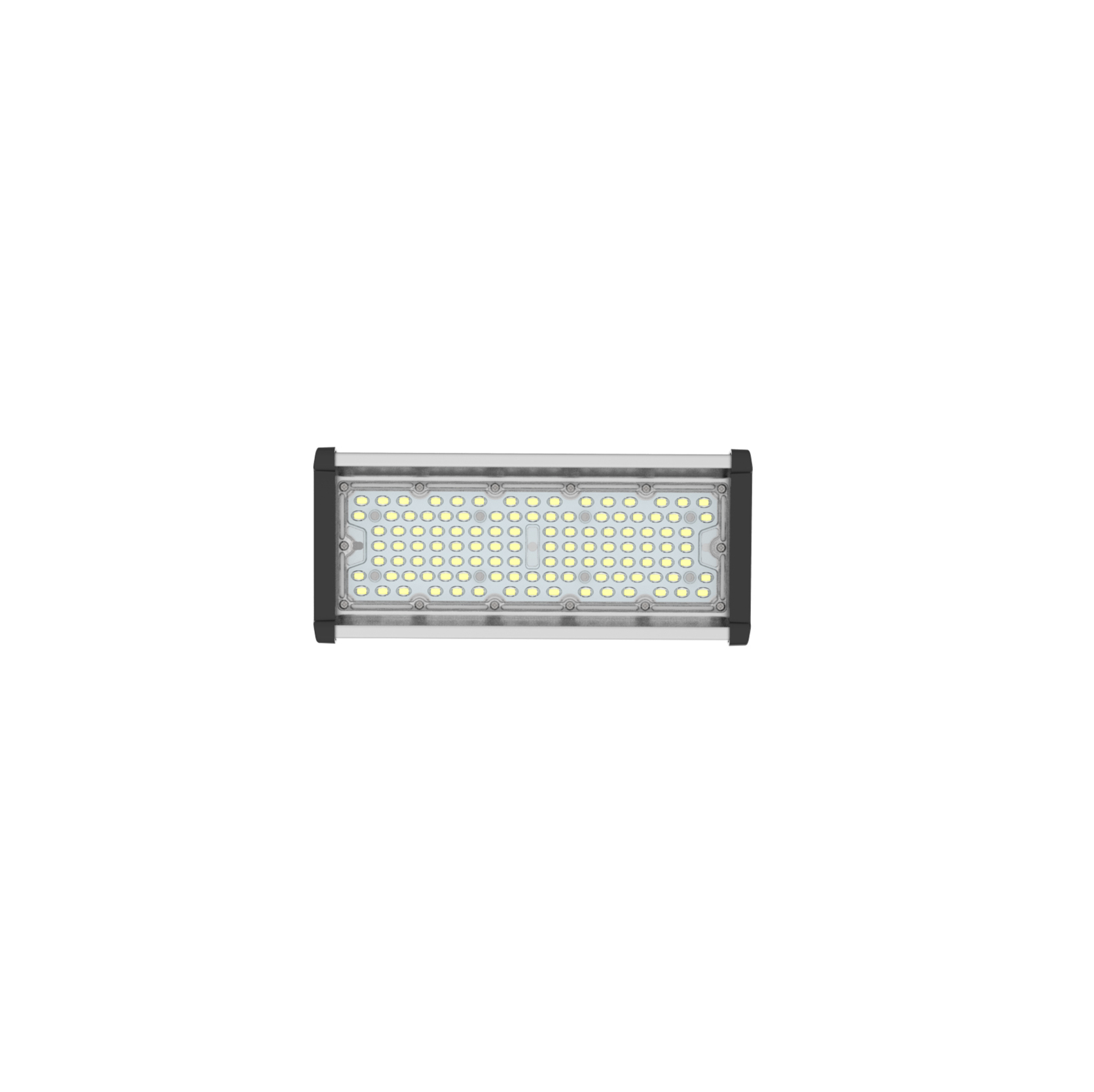

ELB1S80W840G2 320 x 145 x 116 mm 80 W 10,100 lm Circular 30 deg / 60 deg / 90 deg, Elliptical 30x70 deg / 40x130 deg 4000K >80

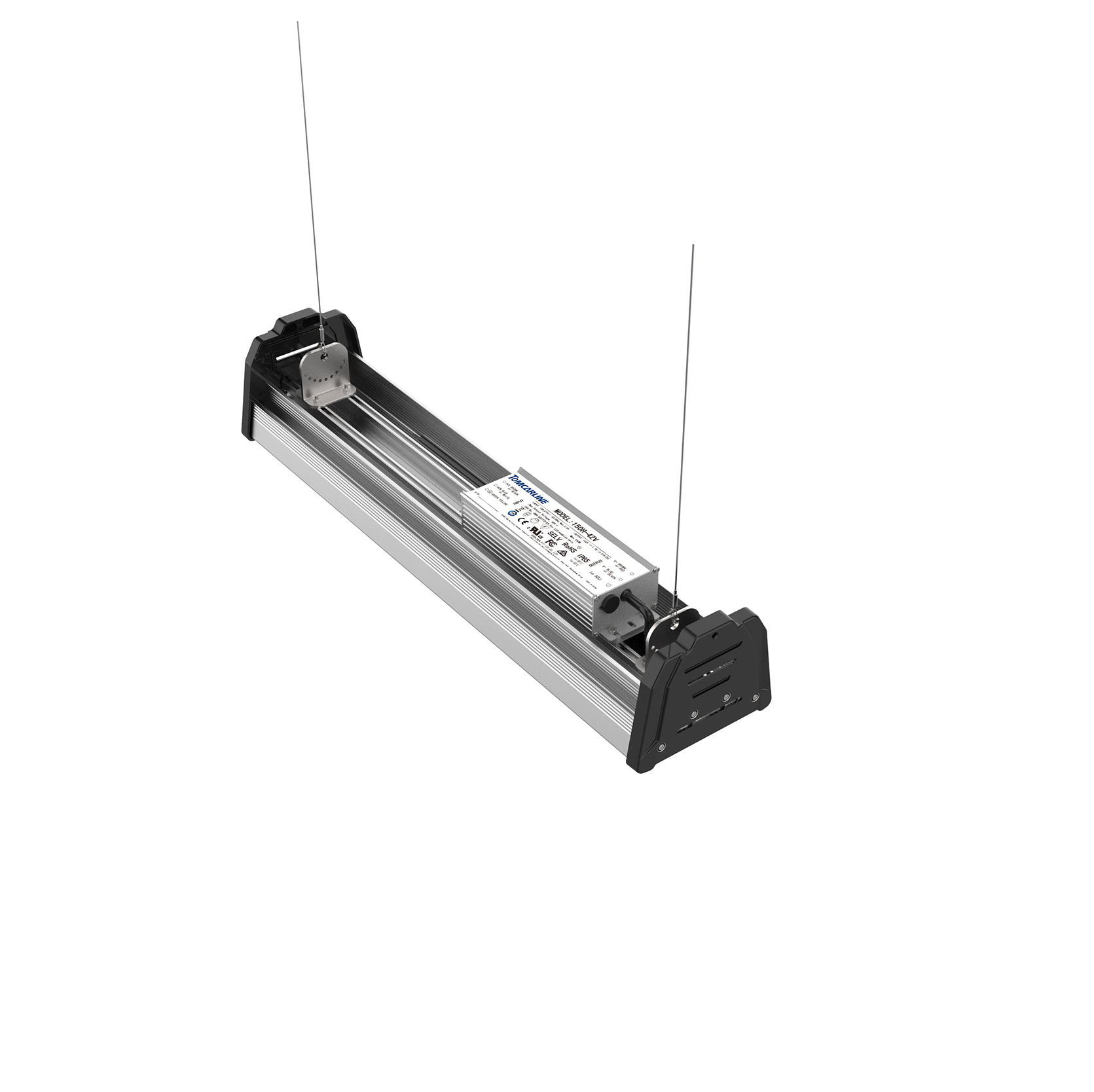

ELB2S100W840G2 620 x 145 x 116 mm 100 W 14,200 lm Circular 30 deg / 60 deg / 90 deg, Elliptical 30x70 deg / 40x130 deg 4000K >80
ELB2S120W840G2 620 x 145 x 116 mm 119 W 16,300 lm Circular 30 deg / 60 deg / 90 deg, Elliptical 30x70 deg / 40x130 deg 4000K >80
ELB3S150W840G2 920 x 145 x 116 mm 149 W 21,000 lm Circular 30 deg / 60 deg / 90 deg, Elliptical 30x70 deg / 40x130 deg 4000K >80
ELB3S200W840G2 920 x 145 x 116 mm 199 W 26,100 lm Circular 30 deg / 60 deg / 90 deg, Elliptical 30x70 deg / 40x130 deg 4000K >80

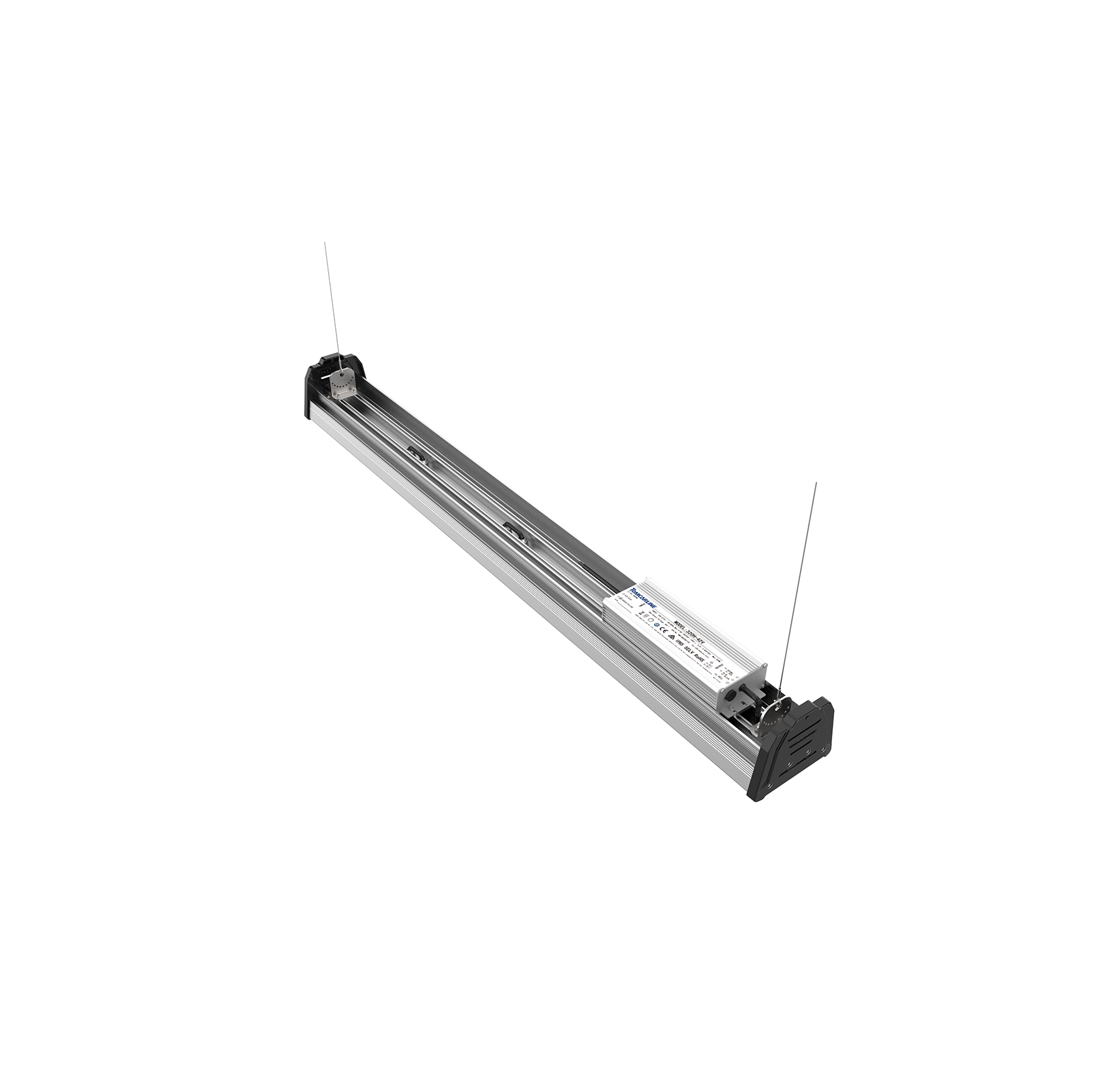

ELB4S240W840G2 1220 x 145 x 116 mm 238 W 32,000 lm Circular 30 deg / 60 deg / 90 deg, Elliptical 30x70 deg / 40x130 deg 4000K >80
ELB4S300W840G2 1220 x 145 x 116 mm 299 W 38,500 lm Circular 30 deg / 60 deg / 90 deg, Elliptical 30x70 deg / 40x130 deg 4000K >80
