Compact Downlight G3

A variety of LED downlight options for a range of applications, from office to retail to healthcare.
Compact Downlight G3

Compact Downlight G3

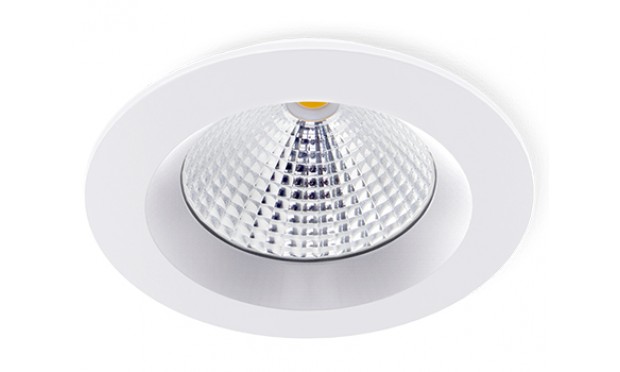

Ecopoint’s Compact LED downlight is a versatile lighting product with a
wide range of cutout sizes and light output levels. An IP54 ingress rating
allows it to be installed in a diversity of areas, enabling an organisation
to standardise on one downlight family. It can be installed in wet areas,
external under-veranda environments and has enough glare cutoff to be
used internally in general office spaces and hallways. It has been
designed for high efficiency and longevity through good thermal
management. The Citizen COB and faceted specular reflector are
protected by a clear intermediate lens. Models 25W and under are rated
for under insulation installation (with the driver above the insulation).

APPLICATIONS

Office
Commercial
Retail
Residential

SPECIFICATIONS

Power Factor:
Electrical Input:
220-240 V AC / 50-60 Hz

FEATURES

Warranty:
5 years
Construction:
Aluminium (cast)
Metal Finish:
Painted
Standard Mounting:
Recessed
Life Prediction (hrs):
L80@101,000 hrs
Ingress Protection:
IP54
PRODUCT CODE DIMENSION (mm) POWER Luminous Flux Optic/Beam Colour Temperature Colour Rending Index
EDLR110W13W9040G3 Ø110 x 53 mm 13W up to 1140 lm 60 degree 4000K CRI90
EDLR190W18W9040G3-SD Ø190 x 75 mm 13-25 W up to 2450 lm 60 degrees 4000K CRI90
EDLR225W25W9040G3-SD Ø225 x 75 mm 13-25W up to 2300 lm 60 degrees 4000K CRI90
EDLR225W35W9040G3 Ø225 x 75 mm 8-35W up to 3300 lm 60 degrees 4000K CRI90

Additional Images
