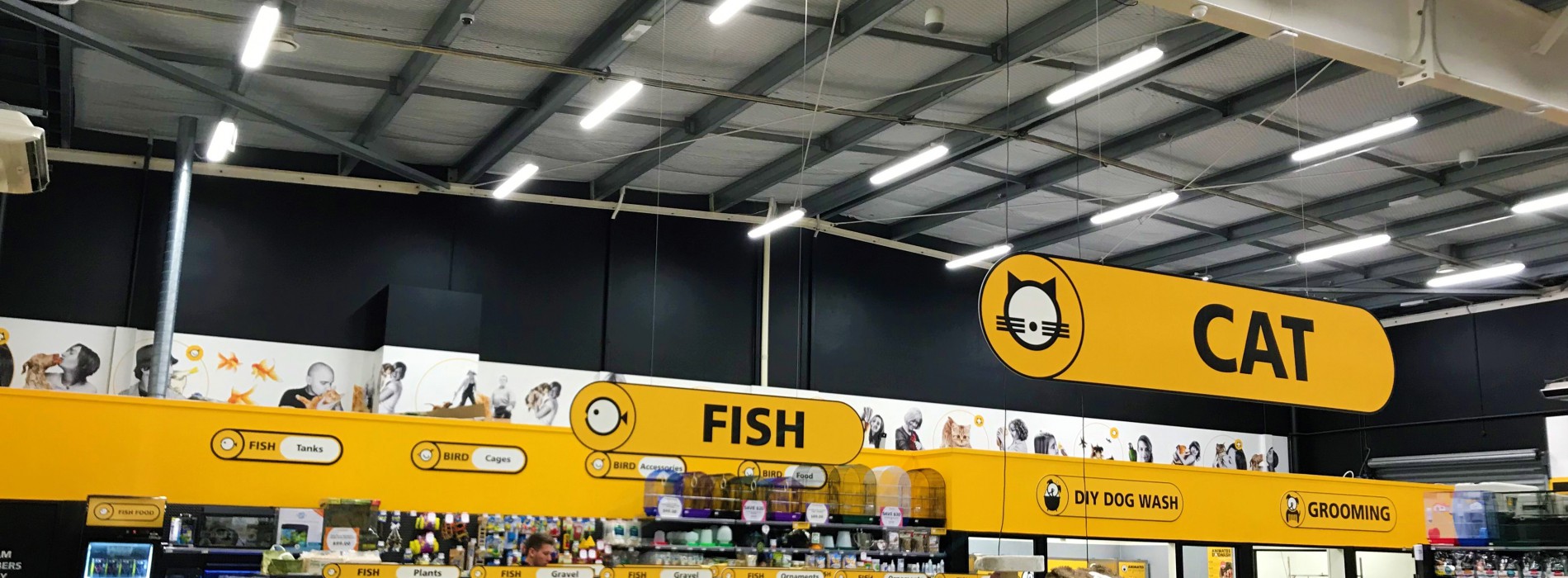

Animates Header

ANIMATES

LED LIGHTS UP RETAIL

A new retail fitout at Animates Palmerston North benefits from LED lighting products to create an inviting retail environment.
Animates 7
location image
Location

Animates Palmerston North

location image
Year

2018

location image
Area Of Project

828m

THE CLIENT

Animates is passionate about providing the best pet supplies, pet care and services for all pets. Foremost to this is providing an excellent retail experience for customers, and the highest standard of care for pets requiring vet services.

Ecopoint has worked with Animates since 2014 providing lighting plans and LED lighting product for retrofits and new fitouts in more than 30 stores around New Zealand.

THE OBJECTIVE

Animates Palmerston North opened in an existing building and required a full lighting fitout to meet the Animates brand standard. This included a site-specific lighting plan, plus fulfilment of all LED lighting products. The lighting plan was based on Animates’ design standard for the lighting outputs in each area of the retail, clinic and back of house zones – 24 separate zones in total.

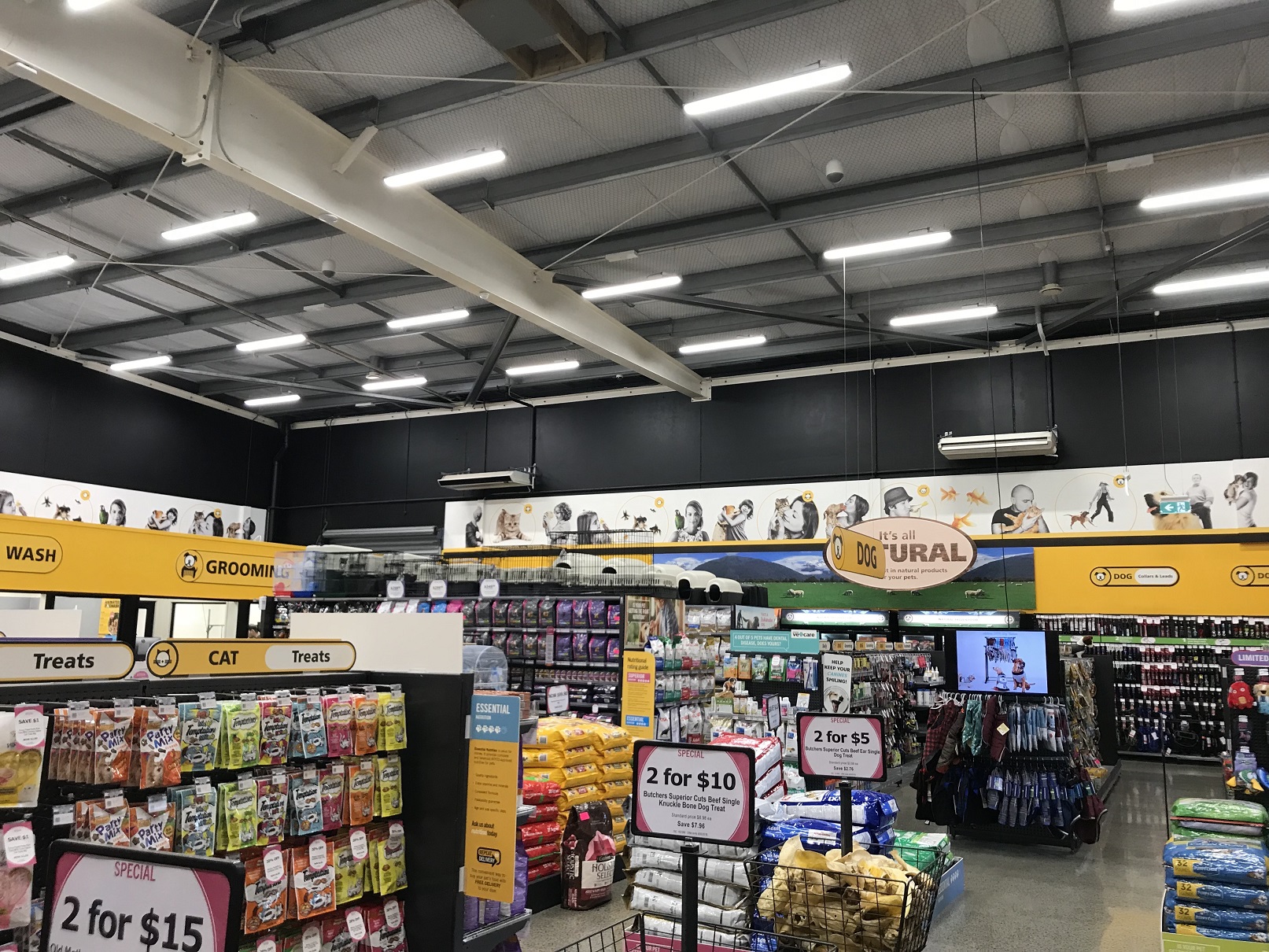

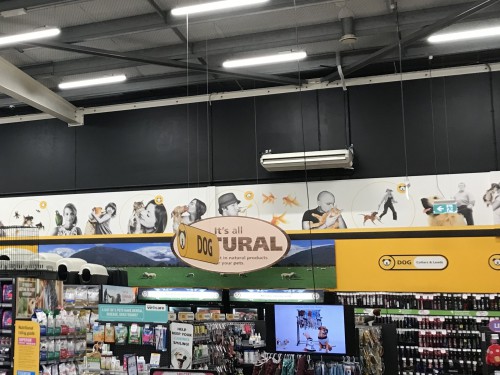

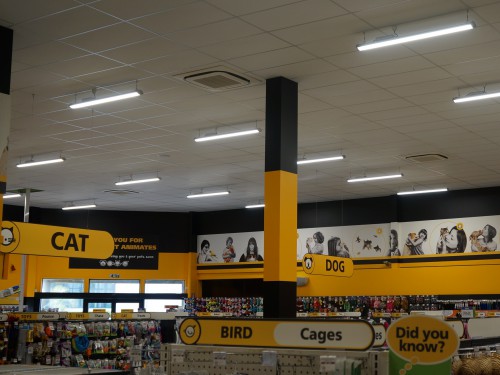

Case Study Image 4 Case Study Image 5 Case Study Image 6 Case Study Image 3
Animates logo

"We've worked with Ecopoint for a while now and we know we can rely on their product range and quality"

HILDA PARAHA: PROJECT MANAGER, ANIMATES

THE SOLUTION

With a wide variety of task-based and retail lighting requirements in the Animates environment, Ecopoint was able to supply LED lighting products to suit specific requirements in each room. Including low glare options.

Ecopoint worked in close consultation with the Animates project manager to determine the best lighting solution for the site, taking into account the Animates guidelines. For example, the following requirements were in place for the various spaces around the premises:



ZONE

HORIZONTAL ILLUMINANCE

Stockroom

550 Lux (1m above floor level)

Office/Staffroom

450 Lux (1m above floor level)

Toilet

350 Lux (1m above floor level)

Fish Room

350 Lux (1m above floor level)

Bird Room

150 Lux (1m above floor level)

Dog Wash

1,000 Lux (1m above floor level)

THE PRODUCTS

The following Ecopoint products were used at Animates Palmerston North:

600x600 Backlit Panel (UGR<19)

Used in Dog Wash, Cat Kitchen, Isolation Room, Cat/Dog Ward, Reception, Consult Rooms, Prep Area, Corridors, Office, Staffroom

600x1200 Backlit Panel (UGR<19)

Groomer Entrance, Grooming Room/BOH, Reception, Prep Area, X-Ray, Operating Theatre, Retail

Surface-Mounted Ceiling Light

Cattery, Bird Room, Fish Room, Toilet

LED Long Bay 1500

Stockroom
