Compact Tri-Proof

Ecopoint's weatherproof and exterior products are specifically designed for New Zealand's tough environment.

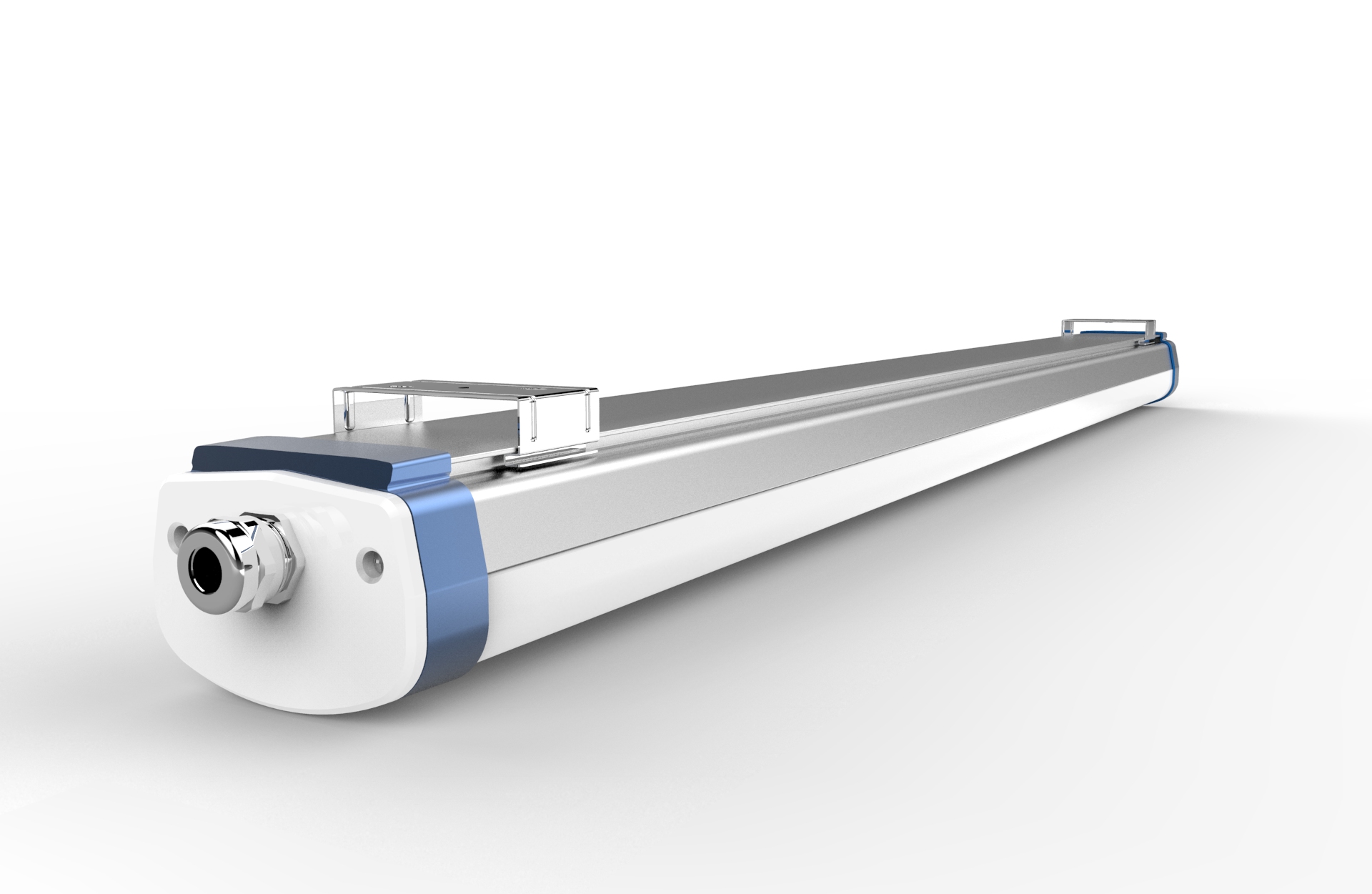

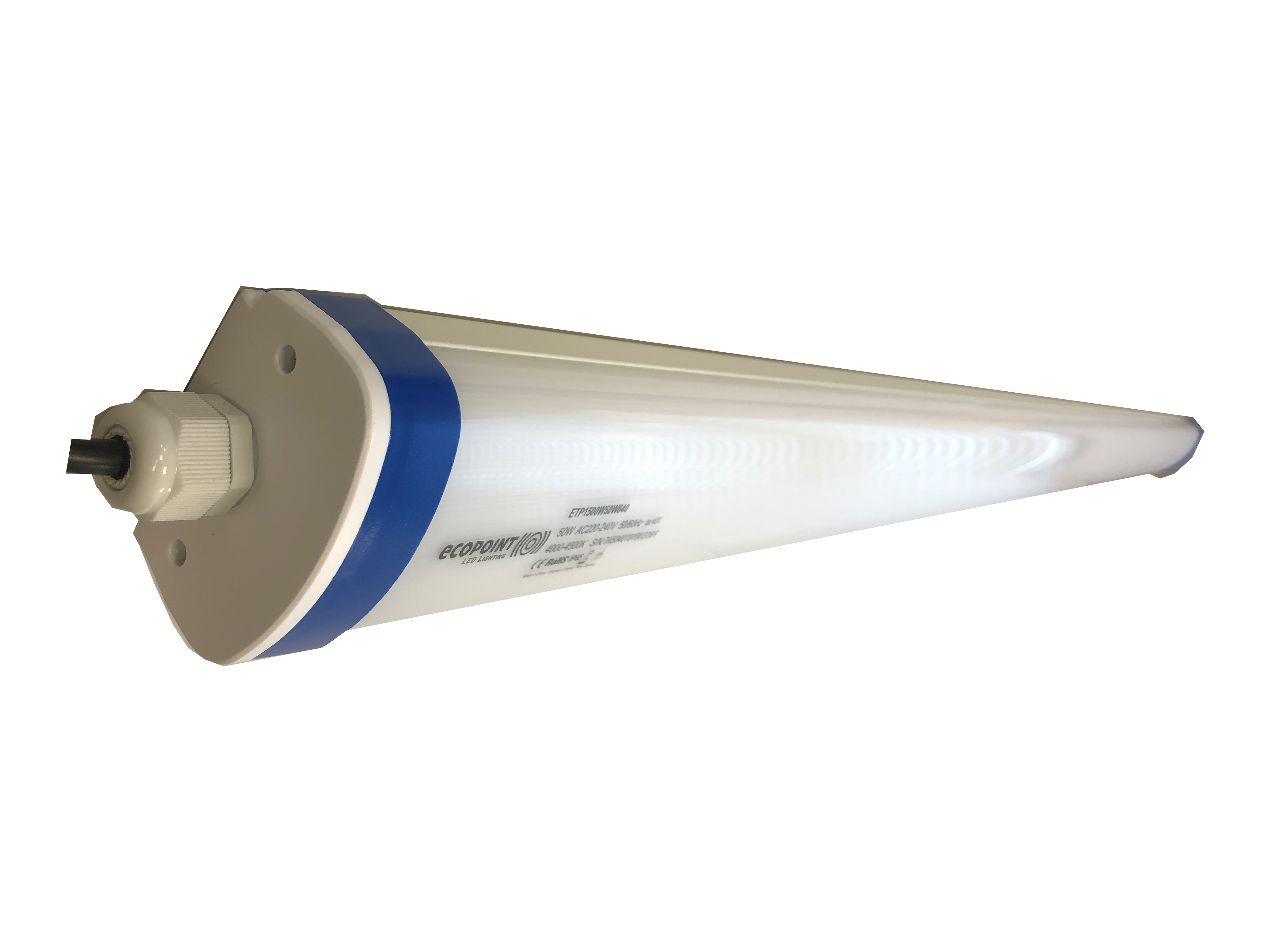

Compact Tri-Proof

Compact Tri-Proof

As an extension of Ecopoint’s standard Tri-Proof range, these compact versions are designed especially to resist damage when operating in high-demand environments where space may be at a premium. These high-efficiency luminaires can be surface-mounted or suspended, and in combination with the compact dimensions, offer a high level of flexibility.

APPLICATIONS

Exterior, Industrial, Warehousing, Commercial

SPECIFICATIONS

Power Factor:
>0.93
Electrical Input:
220-240V AC / 50-60 Hz

FEATURES

Warranty:
5 years
Construction:
Aluminium (extruded), Polycarbonate (PC)
Metal Finish:
Painted

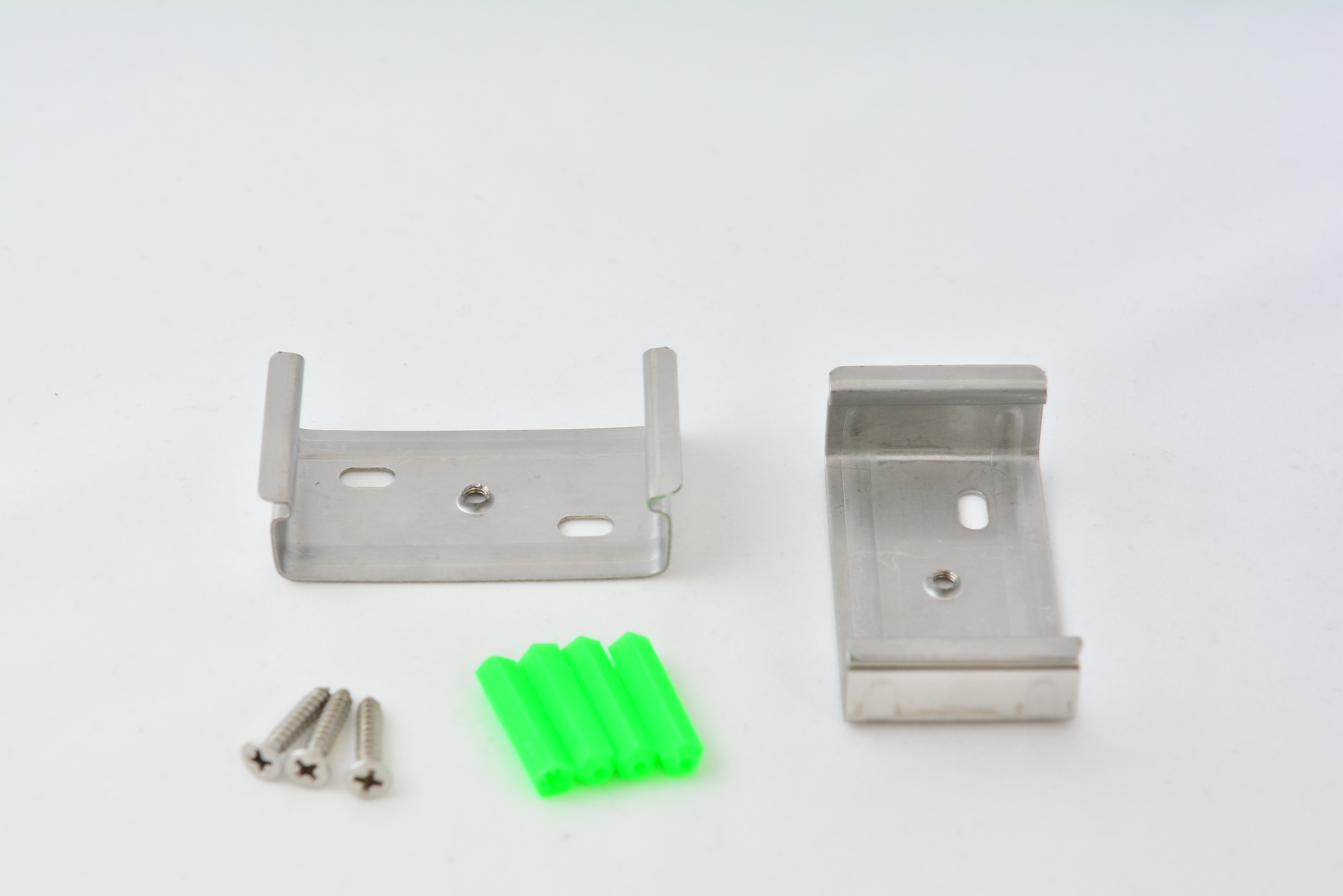

Standard Mounting:
Surface-mounted

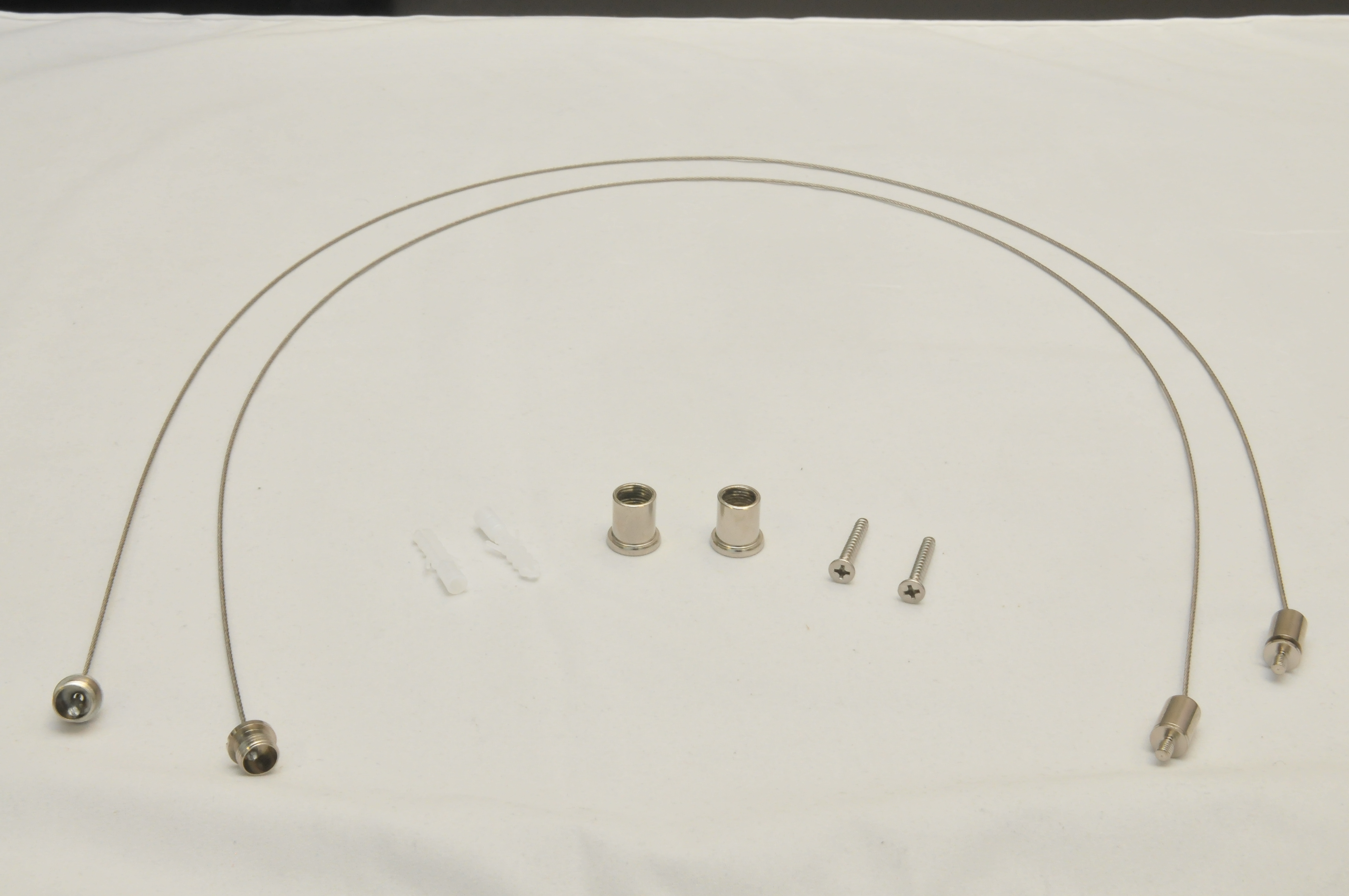

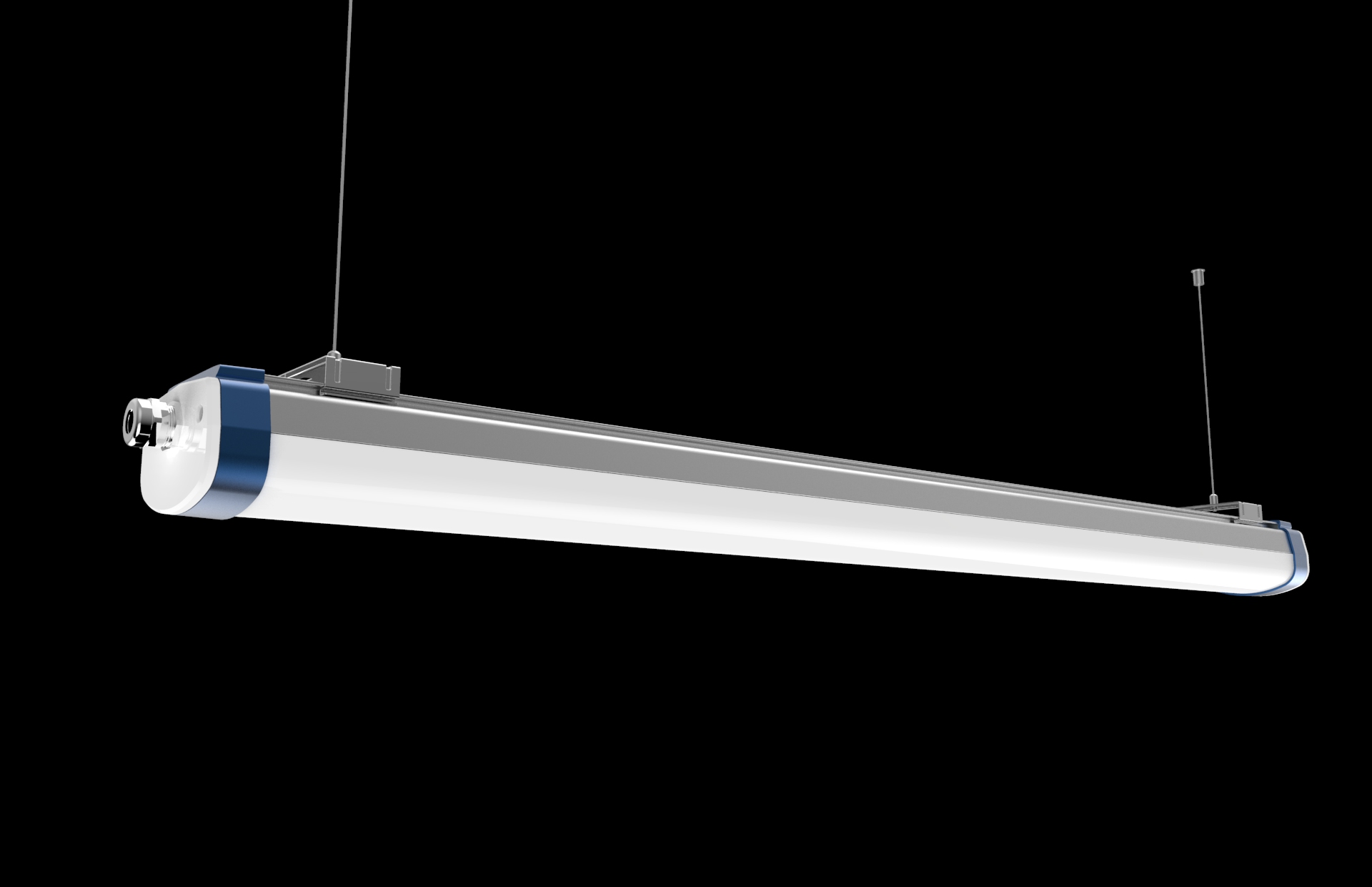

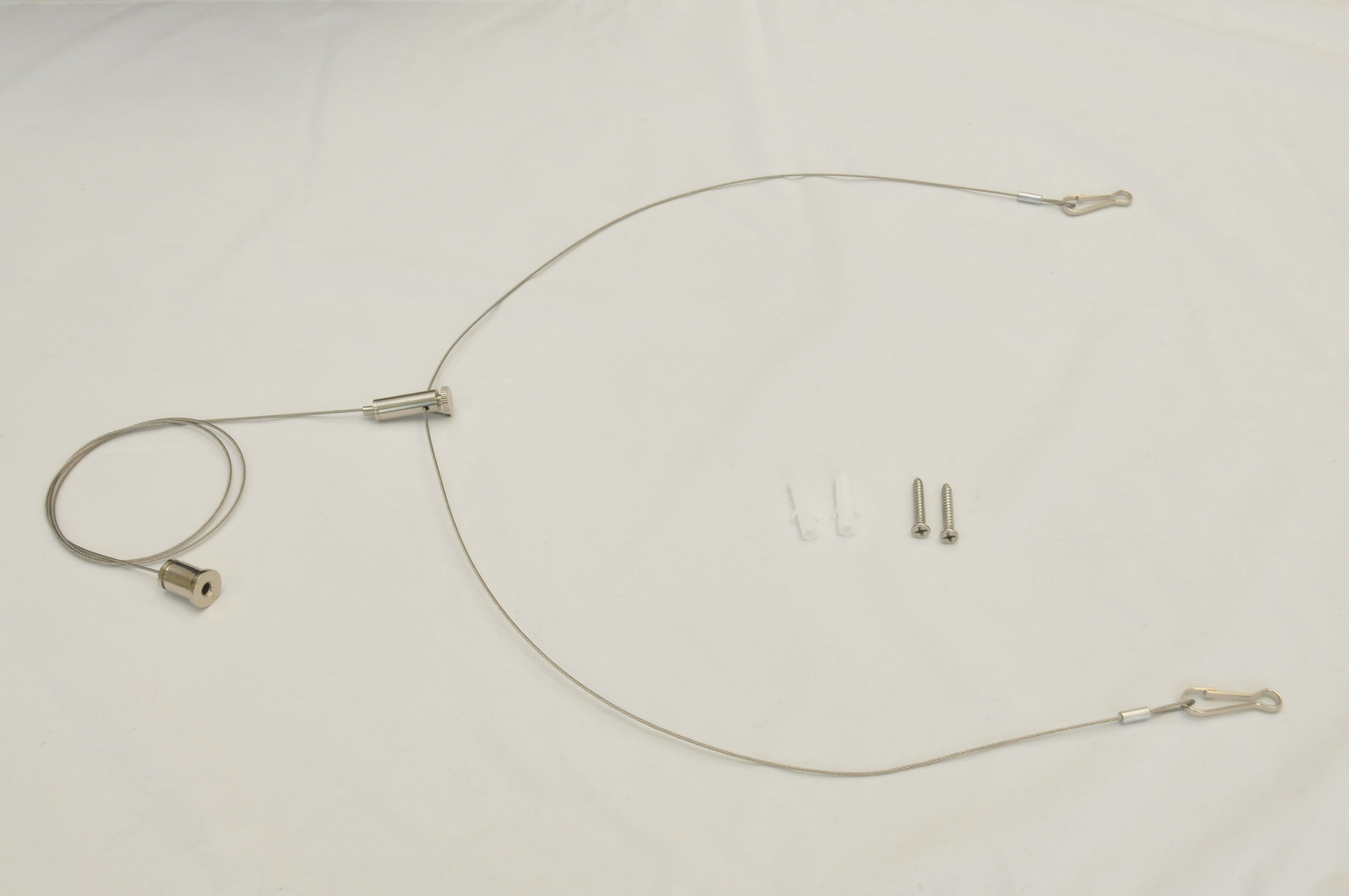

Standard Mounting:

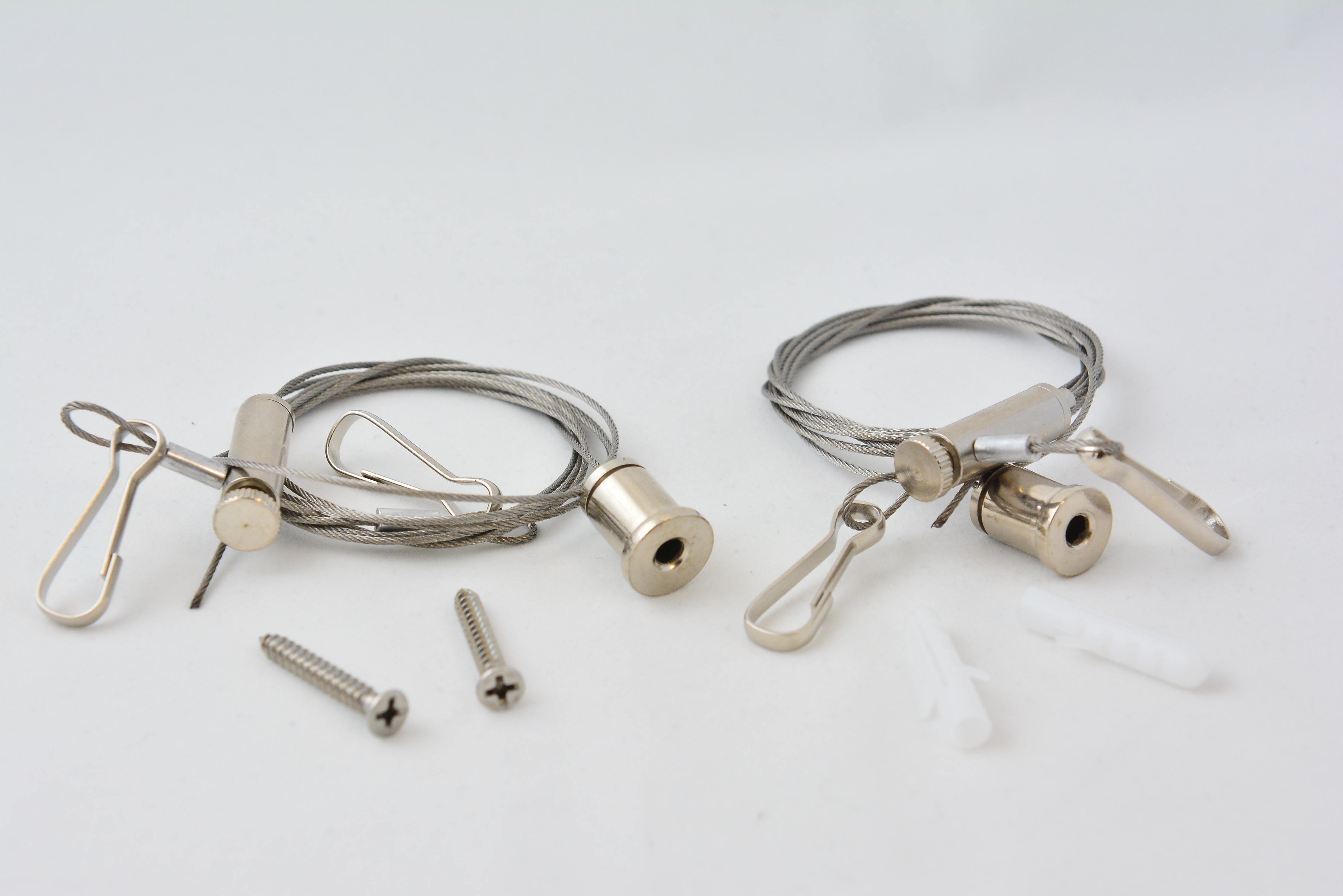

Suspended
Life Prediction (hrs):
L70 > 65,000 hrs (B50)
Ingress Protection:
IP65
Impact Protection:
IK08
PRODUCT CODE DIMENSION (mm) POWER Luminous Flux Optic/Beam Colour Temperature Colour Rending Index
ETPE4K20W 600 x 83 x 55 mm 20W 2,300 lm 120 deg 4000K >80
ETPE4K40W 1200 x 83 55 mm 40W 4,700 lm 120 deg 4000K >80
ETPE4K50W 1500 x 83 x 55 mm 50W 5,800 lm 120 deg 4000K >80
ETPE4K65W 1500 x 83 x 55 mm 65W 7,700 lm 120 deg 4000K >80

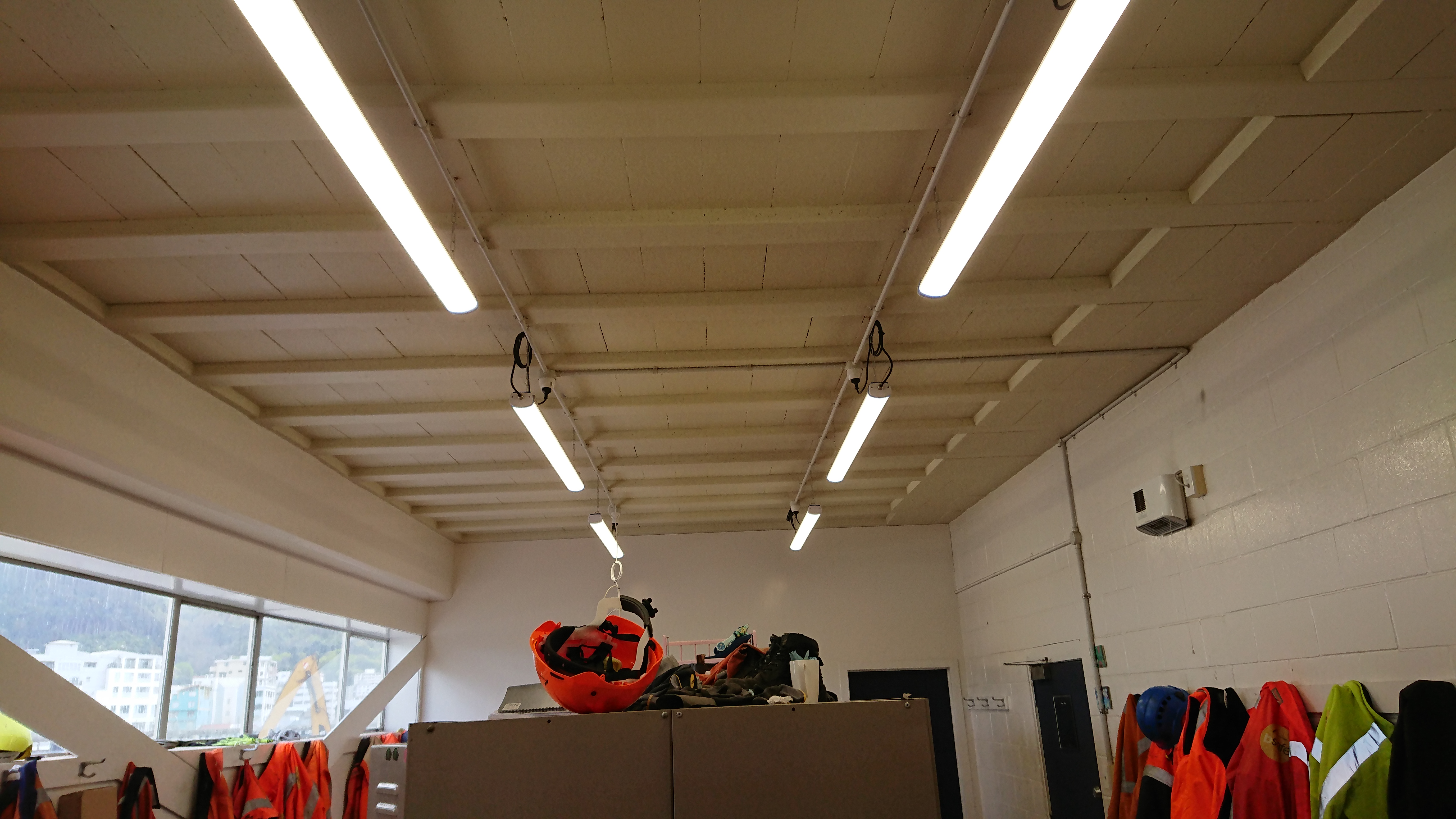

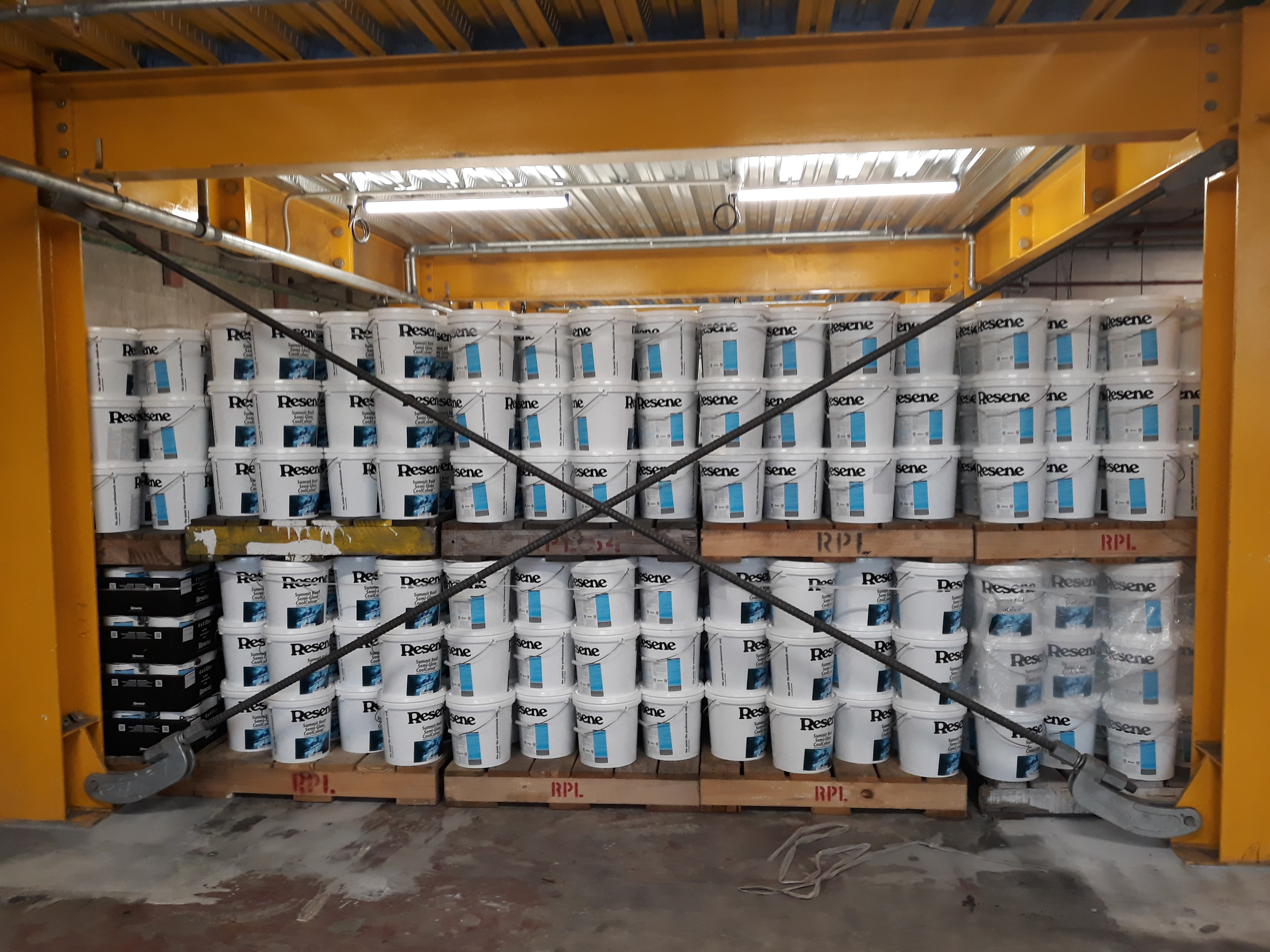

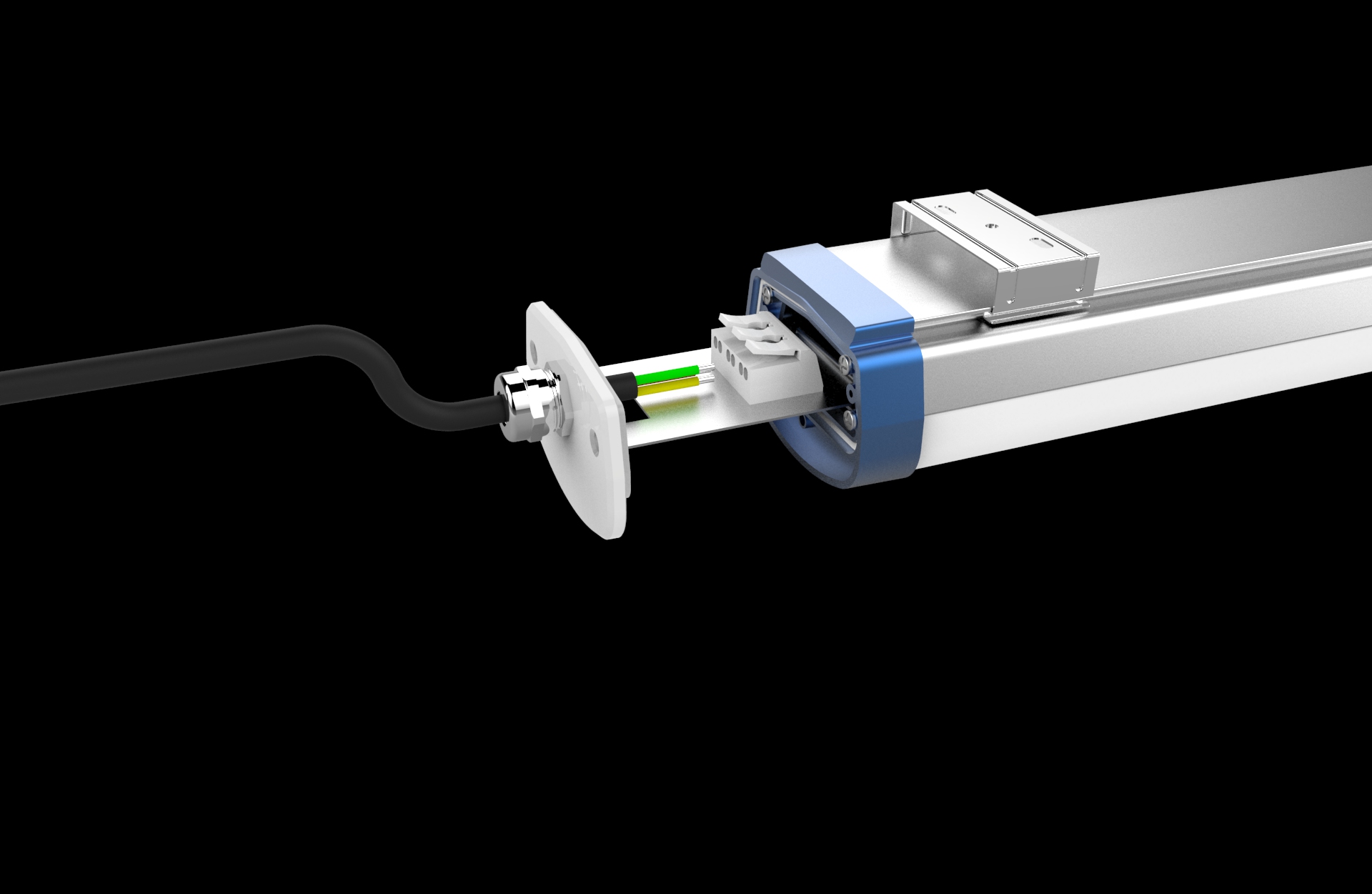

Additional Images
