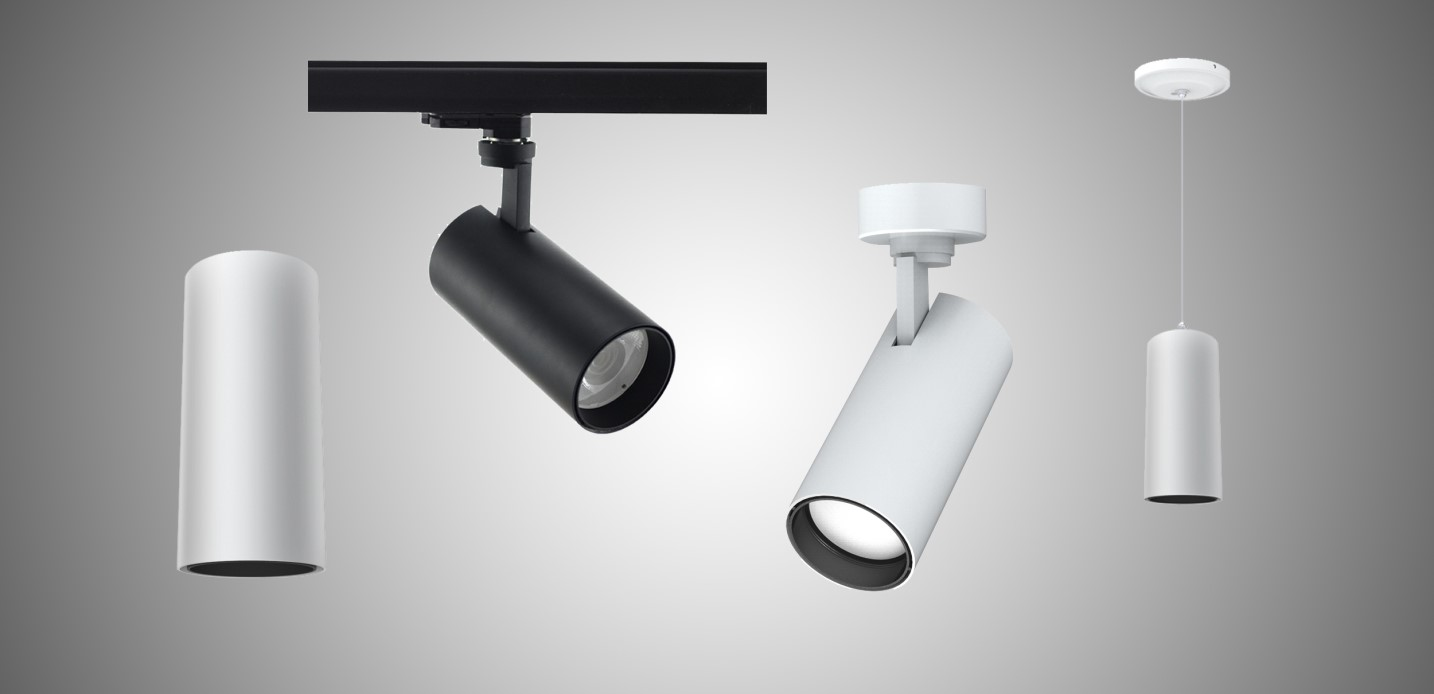

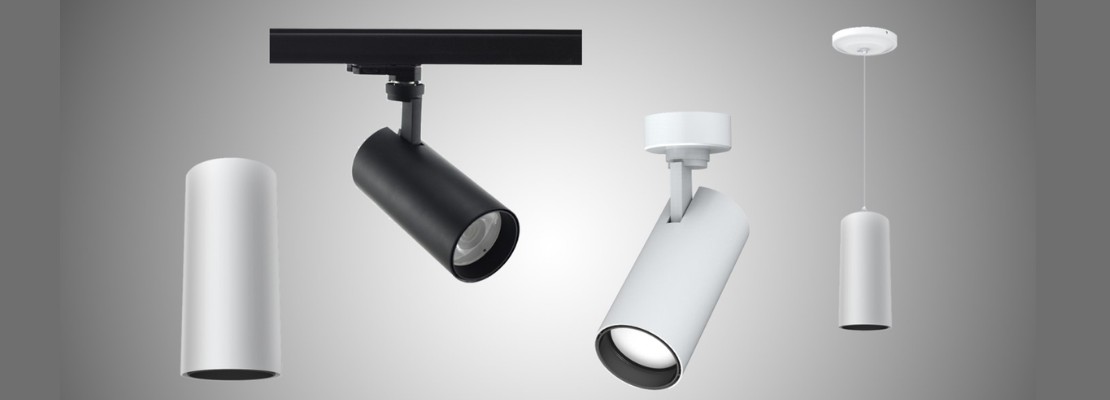

OptaTube 80

Ecopoint's surface-mount and suspended LED luminaires are ideal solutions in retail, supermarkets, offices and commercial buildings.
OptaTube 80

OptaTube 80

OptaTube 80 is simple and versatile, with performance to match its compact dimensions. A variety of mounting options means that you can deliver a range of lighting effects and implementations while maintaining a common aesthetic. High colour performance is standard,
with an option for even higher specifications for colour-critical applications. Choose either the black or white option to suit your interior colour scheme.

APPLICATIONS

Office, Commercial, Hospitality, Retail

SPECIFICATIONS

Power Factor:
>0.90
Electrical Input:
200-240V / 50 - 60 Hz

FEATURES

Warranty:
5 years
Construction:
Aluminium (extruded), Polycarbonate (PC)
Metal Finish:
Powdercoated
Standard Mounting:
Suspended, Surface-mounted
Life Prediction (hrs):
L80 > 76,000 (B10)
Ingress Protection:
IP20
Impact Protection:
IK02
PRODUCT CODE DIMENSION (mm) POWER Luminous Flux Optic/Beam Colour Temperature Colour Rending Index

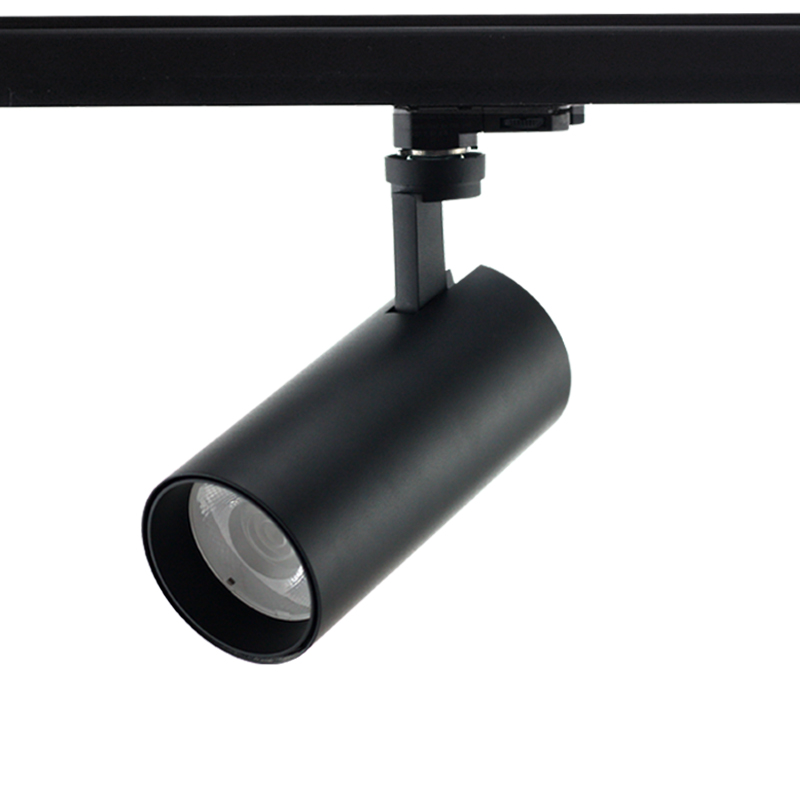

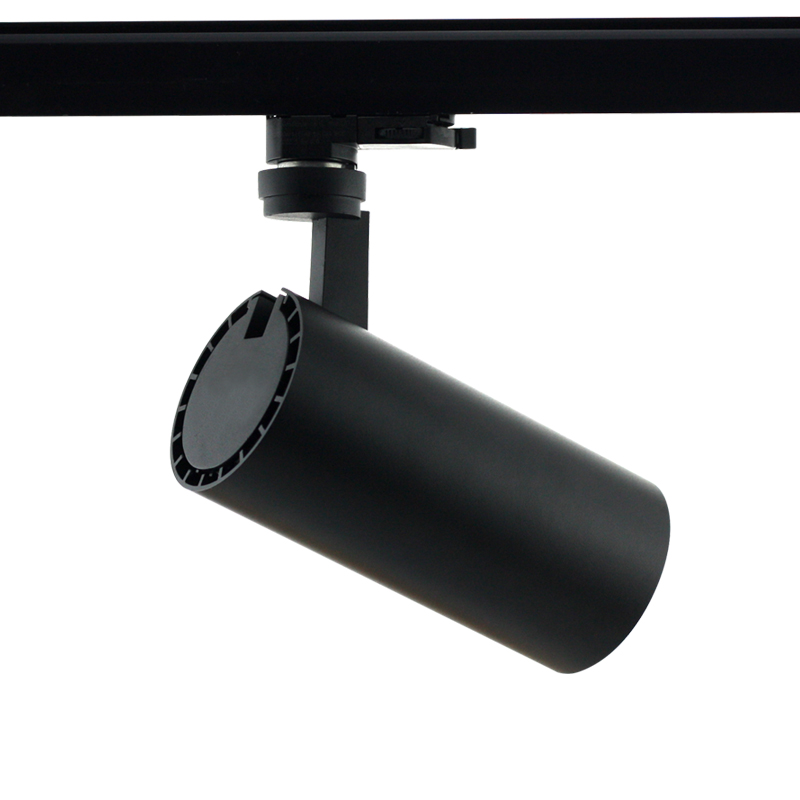

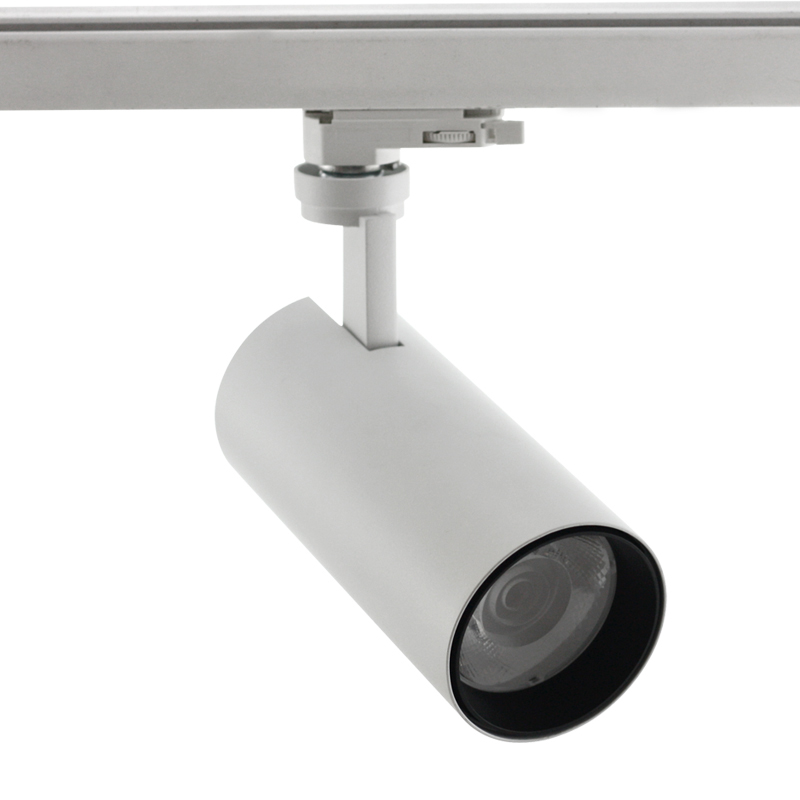

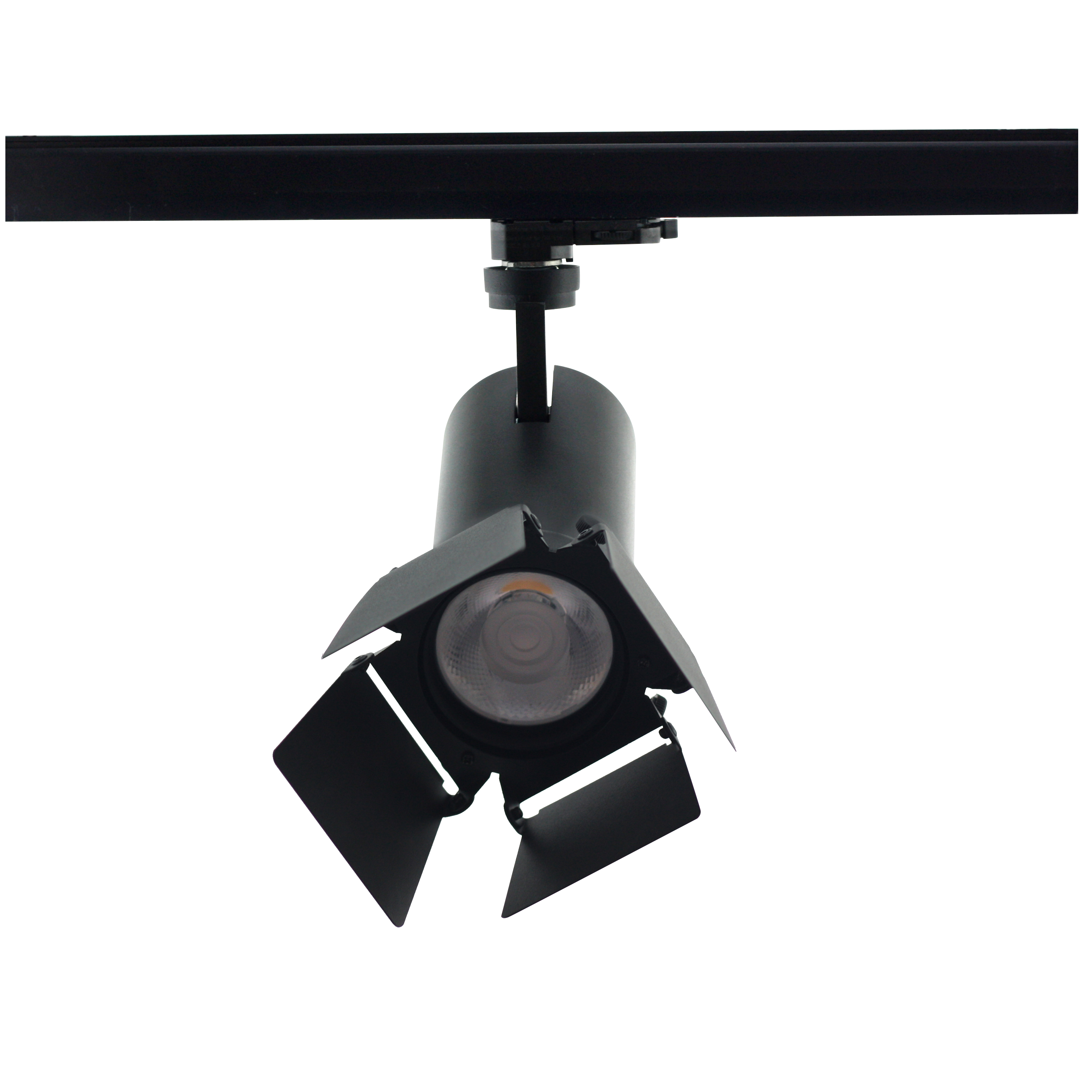

ETU80B20W940-45D-TR ø82 x 174 mm 20 W 1,970 lm 12° / 24° / 45° 4000K (3000K optional) ≥90

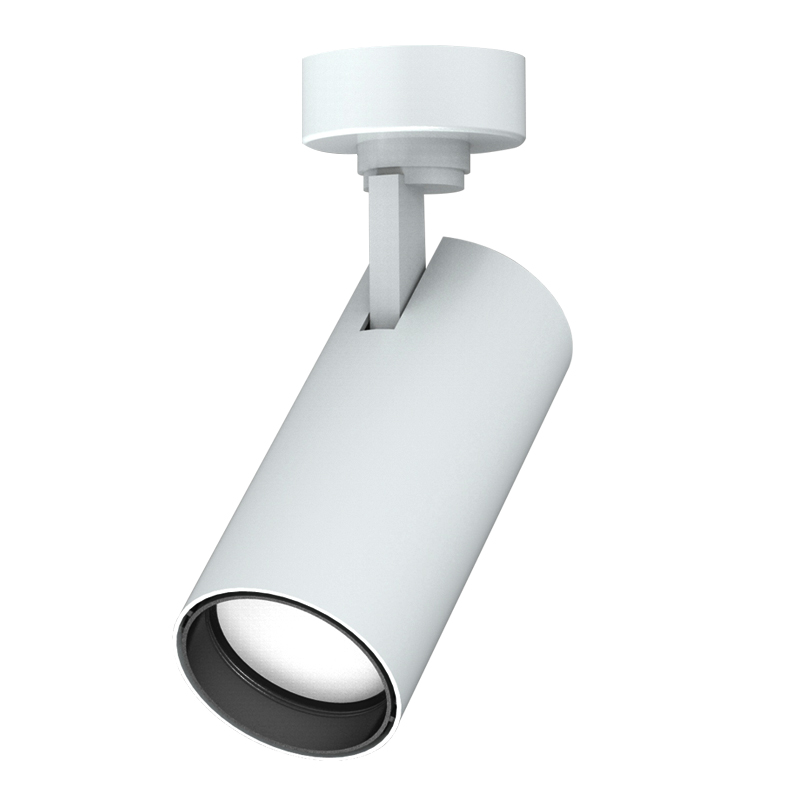

ETU80B20W940-45D-SP ø82 x 180 mm 20 W 1970 lm 12° / 24° / 45° 4000K (3000K optional) ≥90

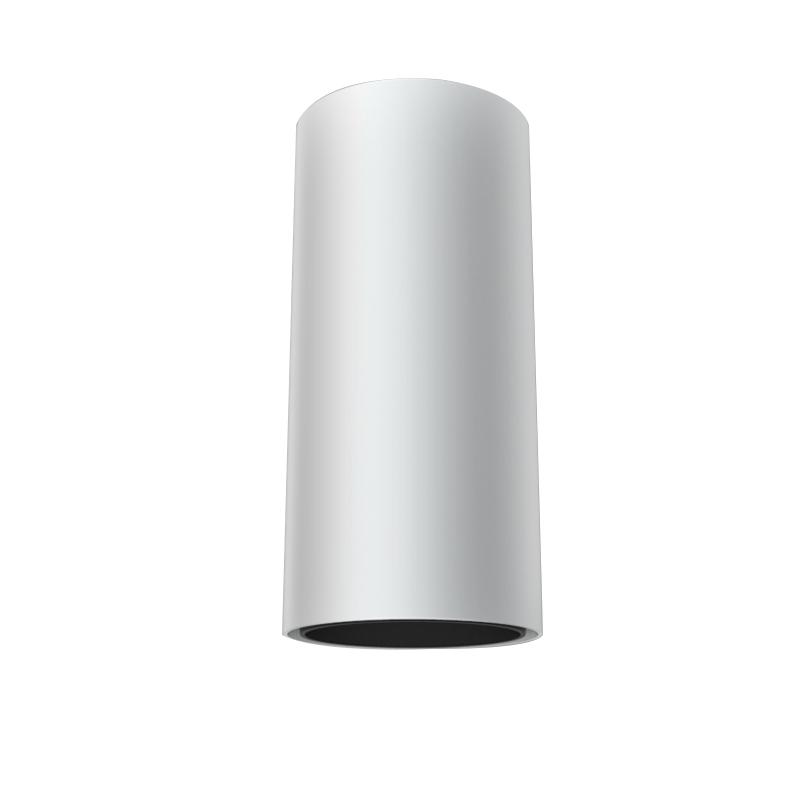

ETU80B20W940-45D-SD ø82 x 174 mm 20 W 1,970 lm 12° / 24° / 45° 4000K (3000K optional) ≥90
ETU80B20W940-45D-SD copy ø82 x 174 mm 20 W 1970 lm 12° / 24° / 45° 4000K (3000K optional) ≥90
ETU80B20W940-45D-SS ø82 x 180 mm 20 W 1,970 lm 12° / 24° / 45° 4000K (3000K optional) ≥90

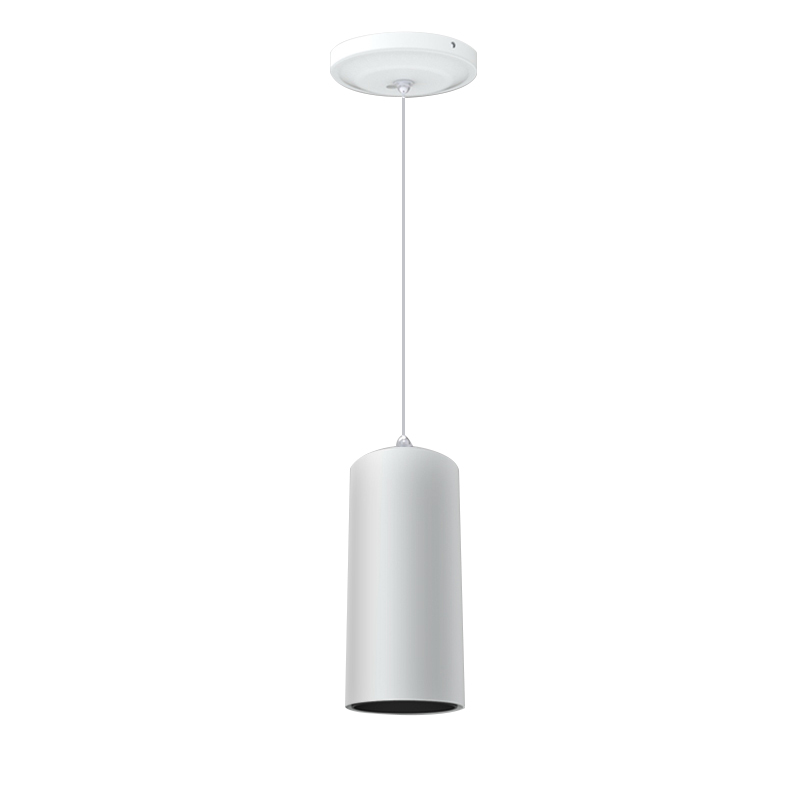

ETU80B20W940-45D-PD ø82 x 174 mm (1.0 m suspension) 20 W 1,970 lm 12° / 24° / 45° 4000K (3000K optional) ≥90
