OptaTube 130

Ecopoint's surface-mount and suspended LED luminaires are ideal solutions in retail, supermarkets, offices and commercial buildings.

OptaTube 130

OptaTube 130

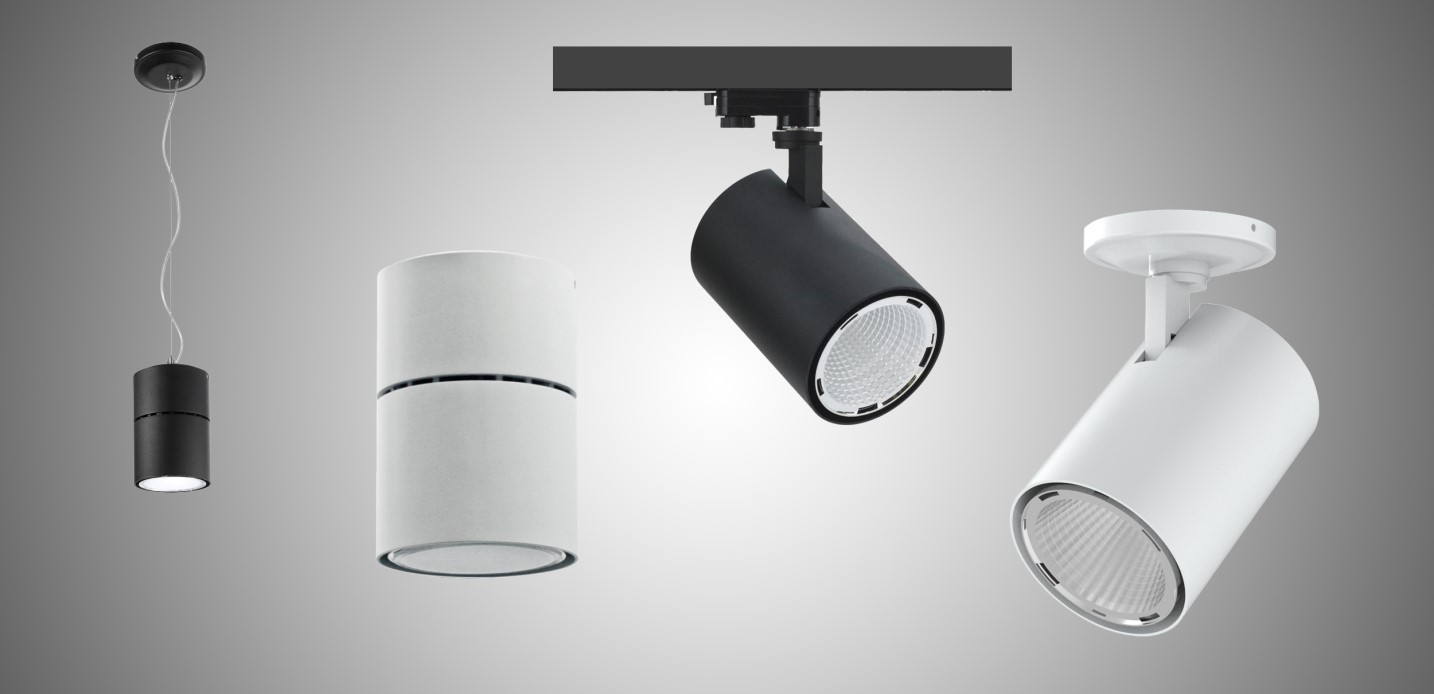

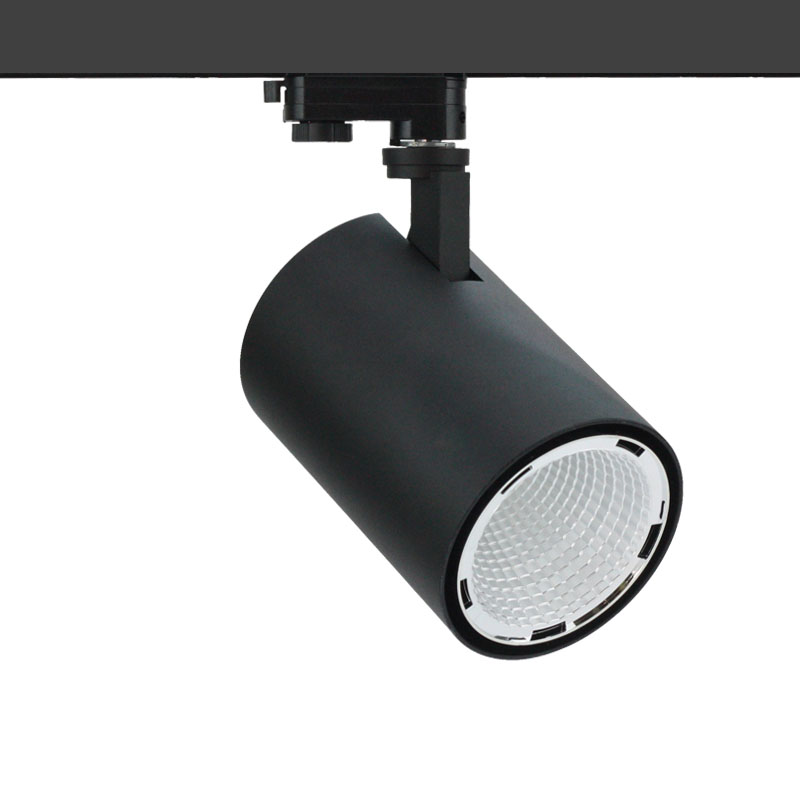

OptaTube 130 delivers focused accent lighting for applications where high power is required, especially in retail environments. A variety of

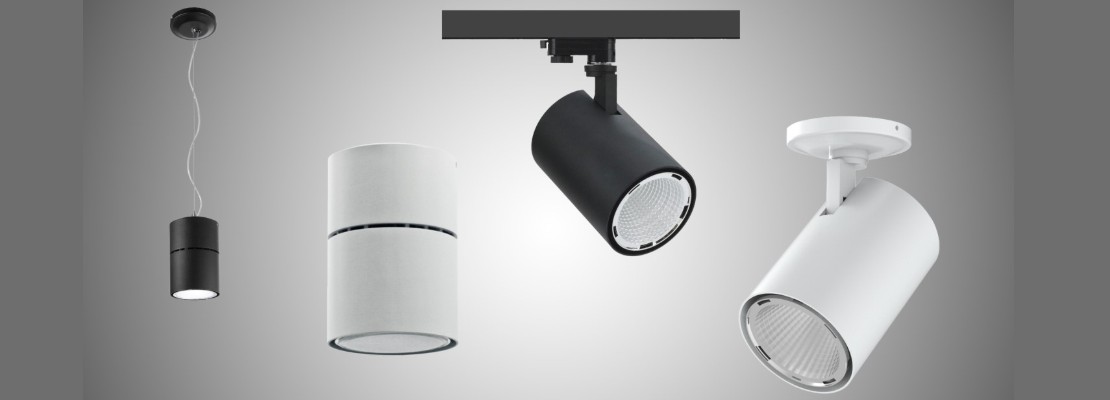

mounting options means that you can deliver a range of lighting effects and implementations while maintaining a common aesthetic. High colour performance is standard, with an option for even higher specifications for colour-critical applications. Choose either the black or white option to suit your interior colour scheme

APPLICATIONS

Office, Commercial, Hospitality, Retail

SPECIFICATIONS

Power Factor:
>0.90
Electrical Input:
200-240V / 50 - 60 Hz

FEATURES

Warranty:
5 years
Construction:
Aluminium (extruded), Polycarbonate (PC)
Metal Finish:
Powdercoated
Standard Mounting:
Suspended, Surface-mounted
Life Prediction (hrs):
L80 > 76,000 (B10)
Ingress Protection:
IP20
Impact Protection:
IK02
PRODUCT CODE DIMENSION (mm) POWER Luminous Flux Optic/Beam Colour Temperature Colour Rending Index

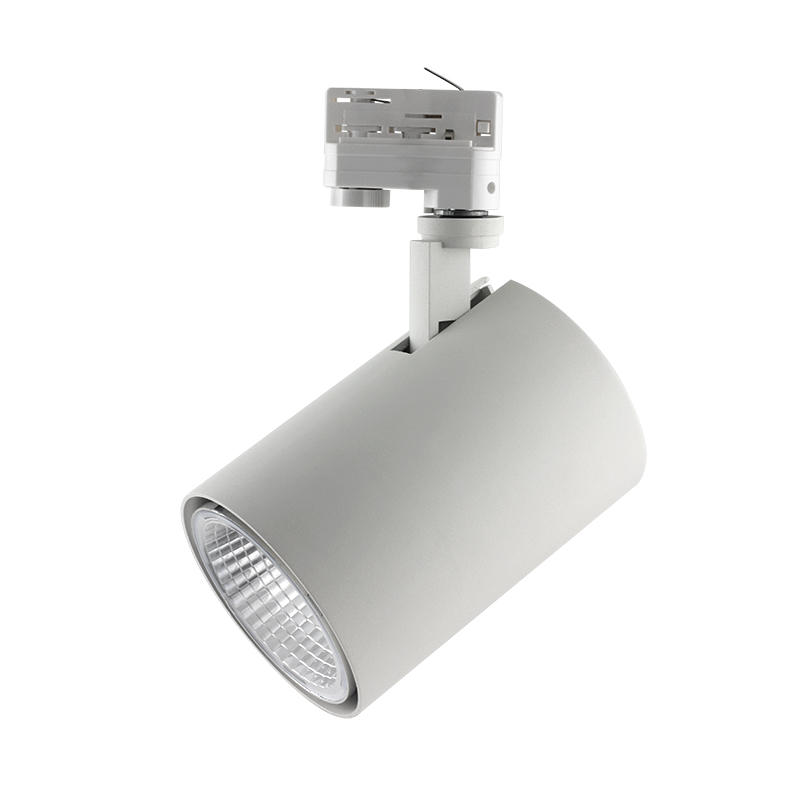

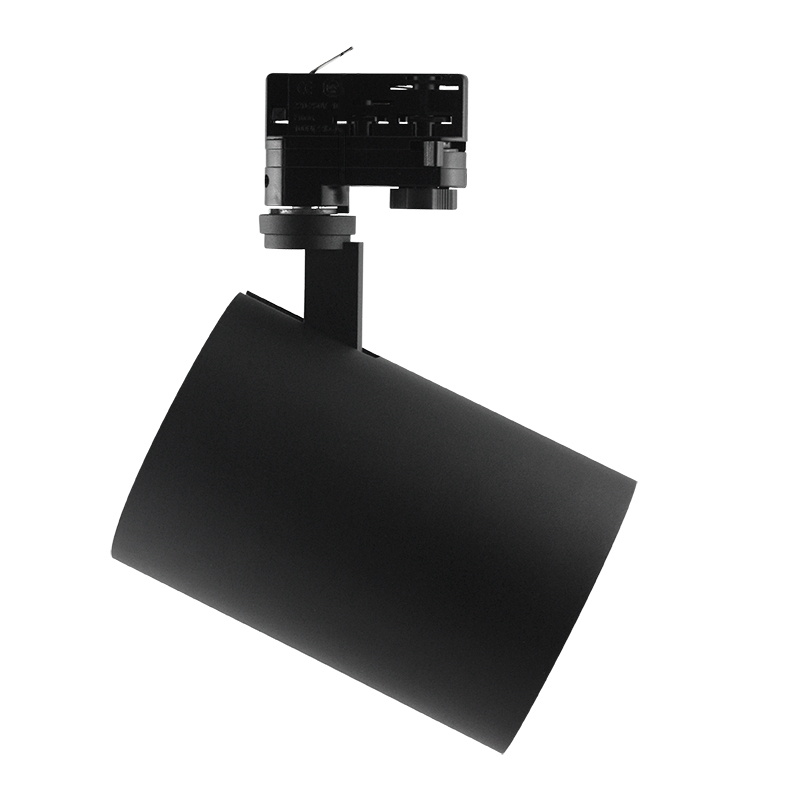

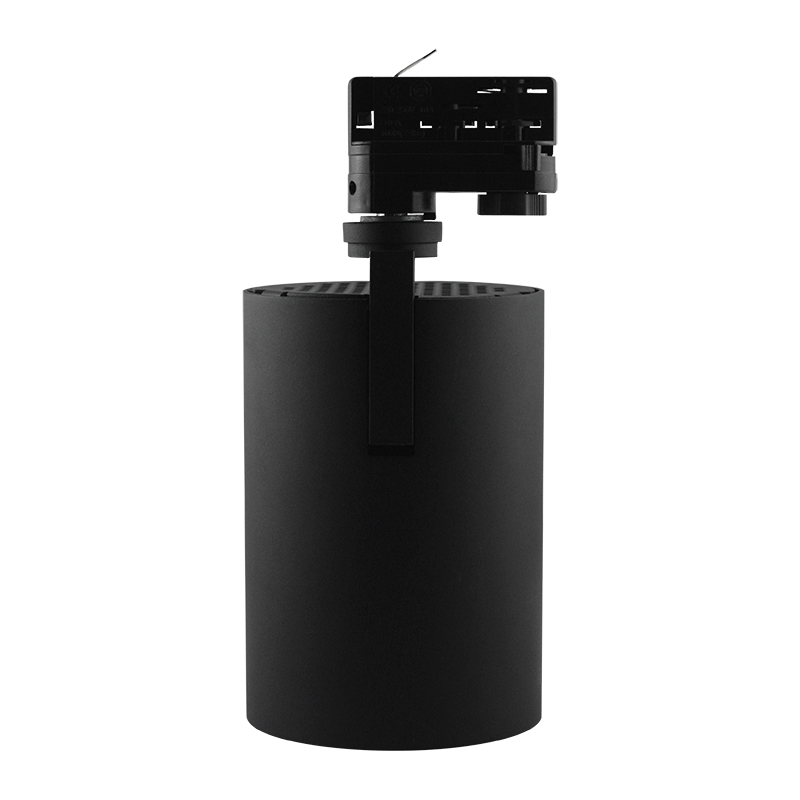

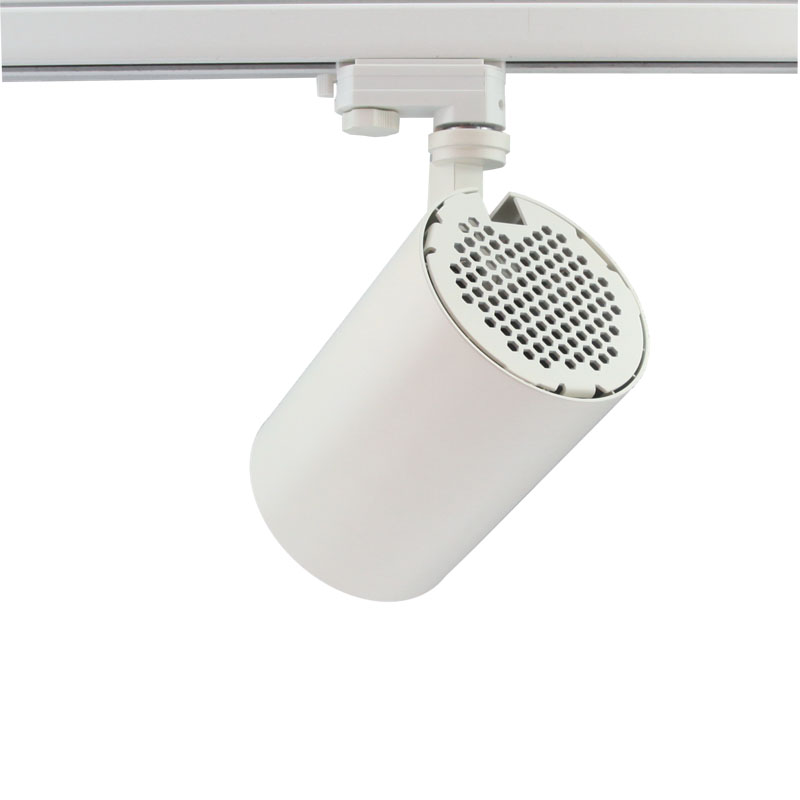

ETU130B40W940-45D-TR ø126 x 180 mm 40 W 3,640 lm 12° / 20° / 45° 4000K (3000K optional) ≥90
ETU130B50W940-45D-TR ø126 x 180 mm 50 W 3,980 lm 12° / 20° / 45° 4000K (3000K optional) ≥90

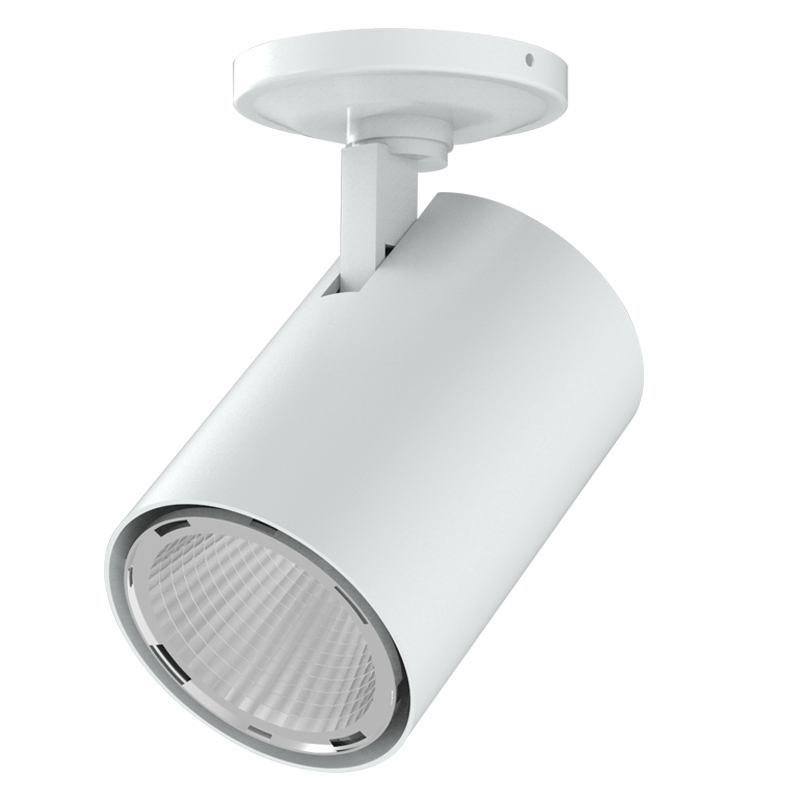

ETU130B40W940-45D-SS ø126 x 182 mm 40 W 3,640 lm 12° / 20° / 45° 4000K (3000K optional) ≥90
ETU130B50W940-45D-SS ø126 x 182 mm 50 W 3,980 lm 12° / 20° / 45° 4000K (3000K optional) ≥90
ETU130B40W940-45D-SS copy ø126 x 182 mm 40 W 3,640 lm 12° / 20° / 45° 4000K (3000K optional) ≥90

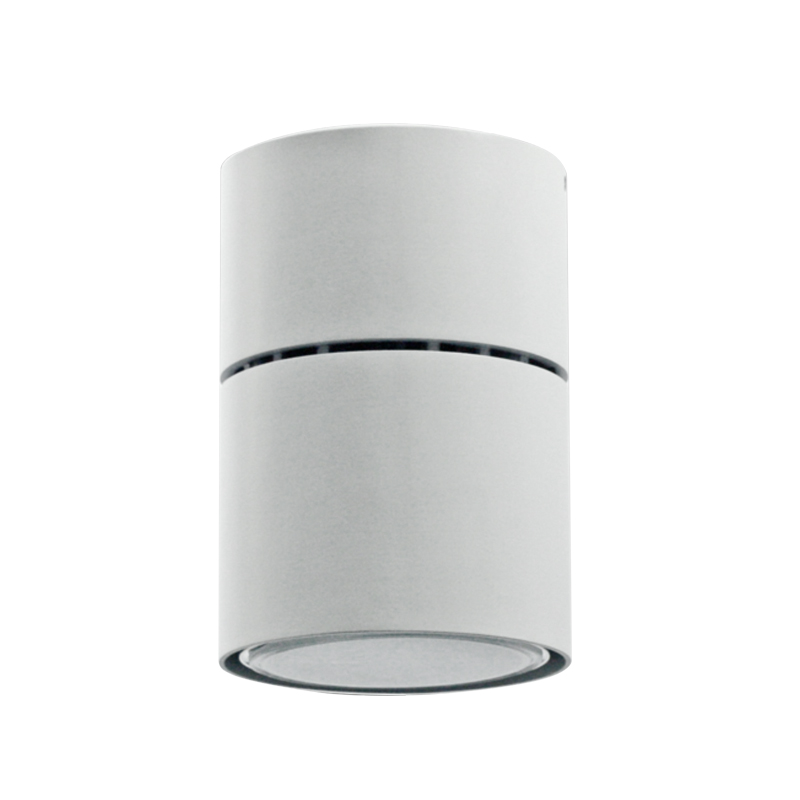

ETU130B40W940-45D-SD ø126 x 180 mm 40 W 3,640 lm 12° / 20° / 45° 4000K (3000K optional) ≥90
ETU130B50W940-45D-SD ø126 x 180 mm 50 W 3,980 lm 12° / 20° / 45° 4000K (3000K optional) ≥90

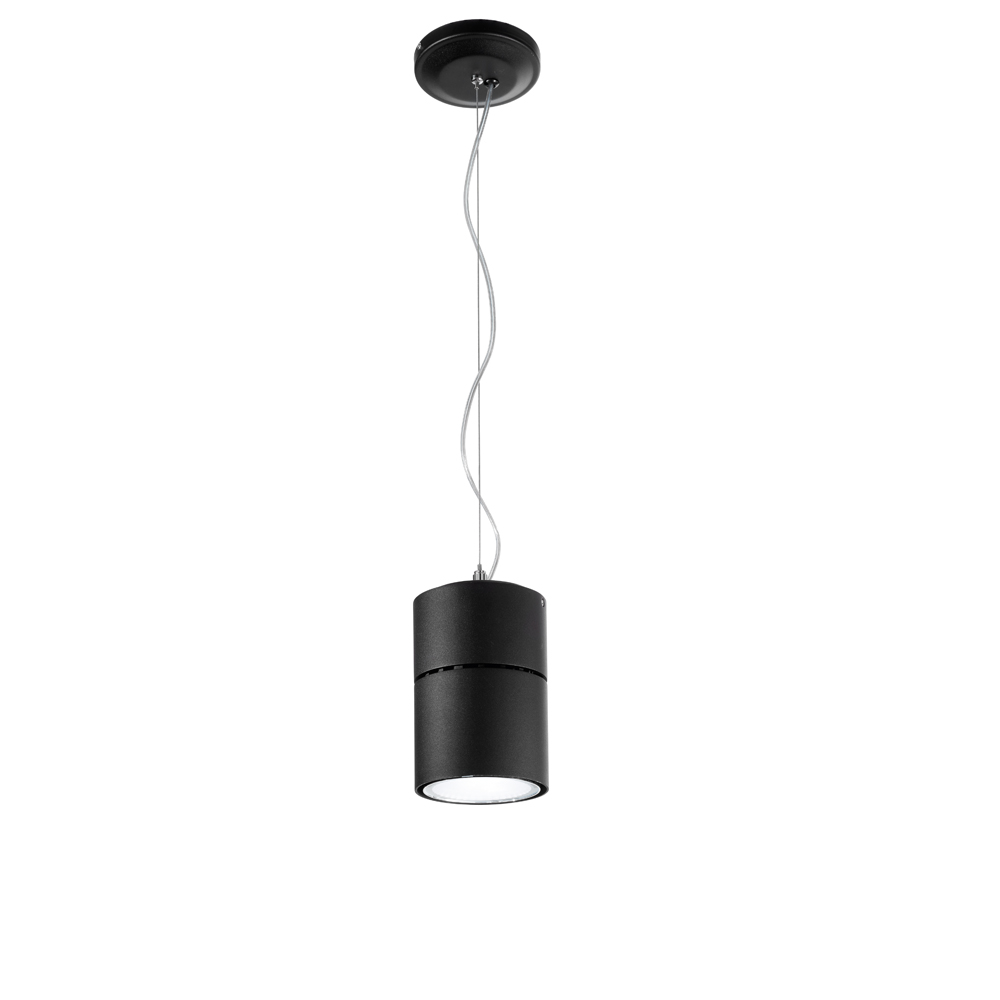

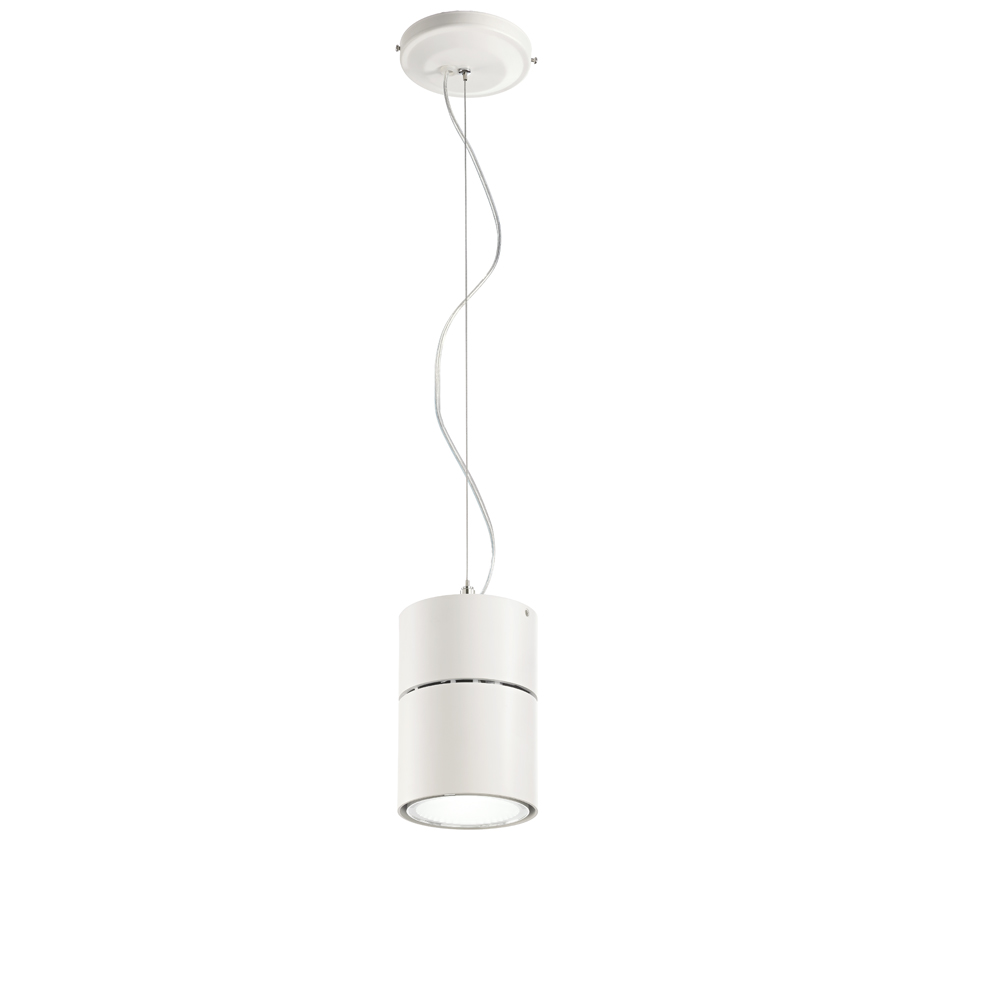

ETU130B40W940-45D-PD ø126 x 180 mm (1.0 m suspension) 40 W 3,640 lm 12° / 20° / 45° 4000K (3000K optional) ≥90
ETU130B50W940-45D-PD ø126 x 180 mm 50 W 3,980 lm 12° / 20° / 45° 4000K (3000K optional) ≥90
