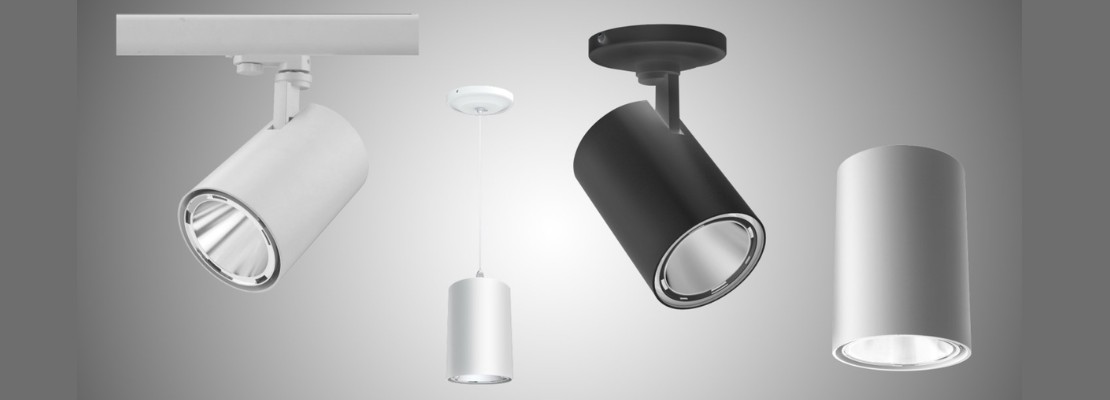

OptaTube 110

Ecopoint's surface-mount and suspended LED luminaires are ideal solutions in retail, supermarkets, offices and commercial buildings.
OptaTube 110

OptaTube 110

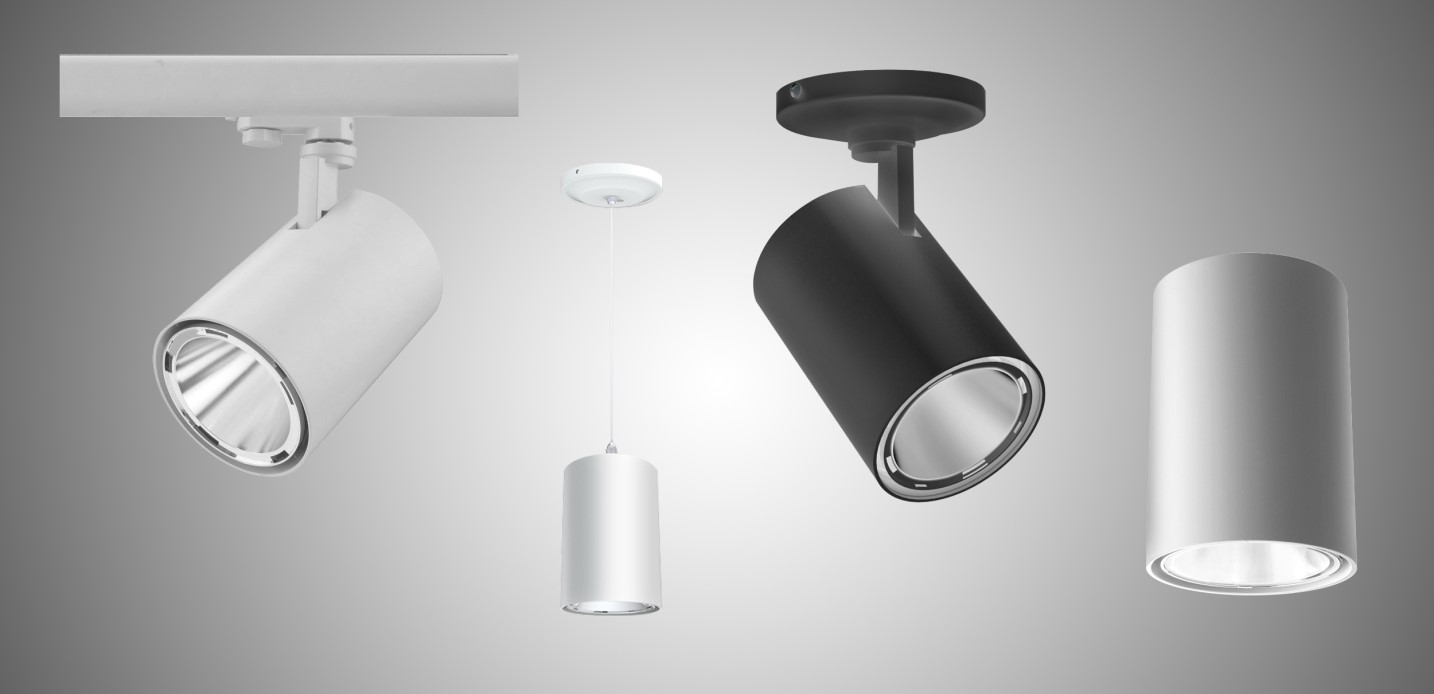

OptaTube 110 is a powerful package with modest dimensions and a simple form. A variety of mounting options means that you can deliver a range of lighting effects and implementations while maintaining a common aesthetic. High colour performance is standard, with an option for even higher specifications for colour-critical applications.
Choose either the black or white option to suit your interior colour scheme.

APPLICATIONS

Office, Commercial, Hospitality, Retail

SPECIFICATIONS

Power Factor:
>0.90
Electrical Input:
200-240V / 50 - 60 Hz

FEATURES

Warranty:
5 years
Construction:
Aluminium (extruded), Polycarbonate (PC)
Metal Finish:
Powdercoated
Standard Mounting:
Suspended, Surface-mounted
Life Prediction (hrs):
L80 > 76,000 (B10)
Ingress Protection:
IP20
Impact Protection:
IK02
PRODUCT CODE DIMENSION (mm) POWER Luminous Flux Optic/Beam Colour Temperature Colour Rending Index

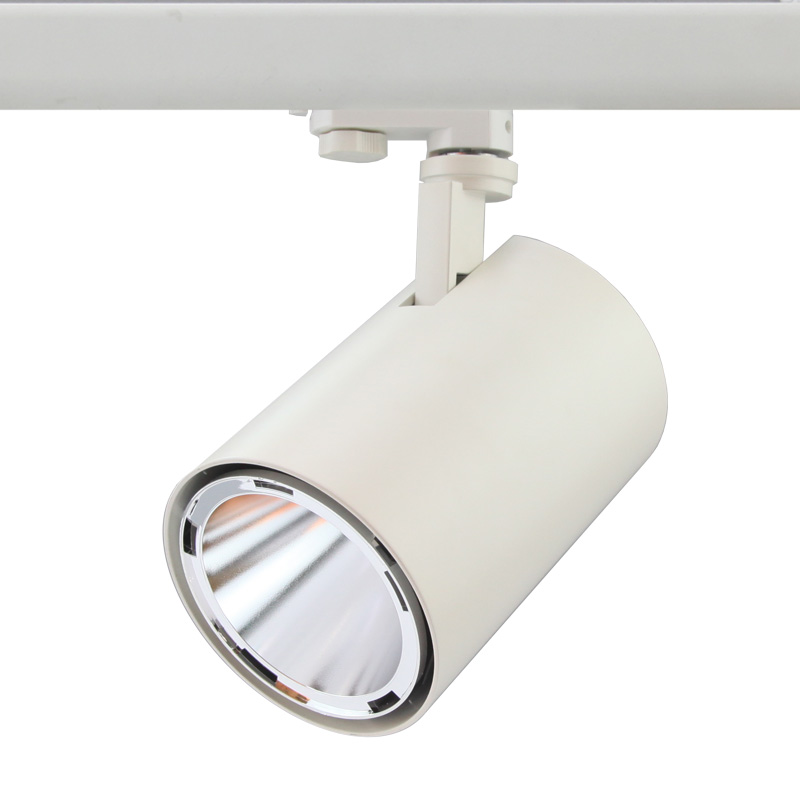

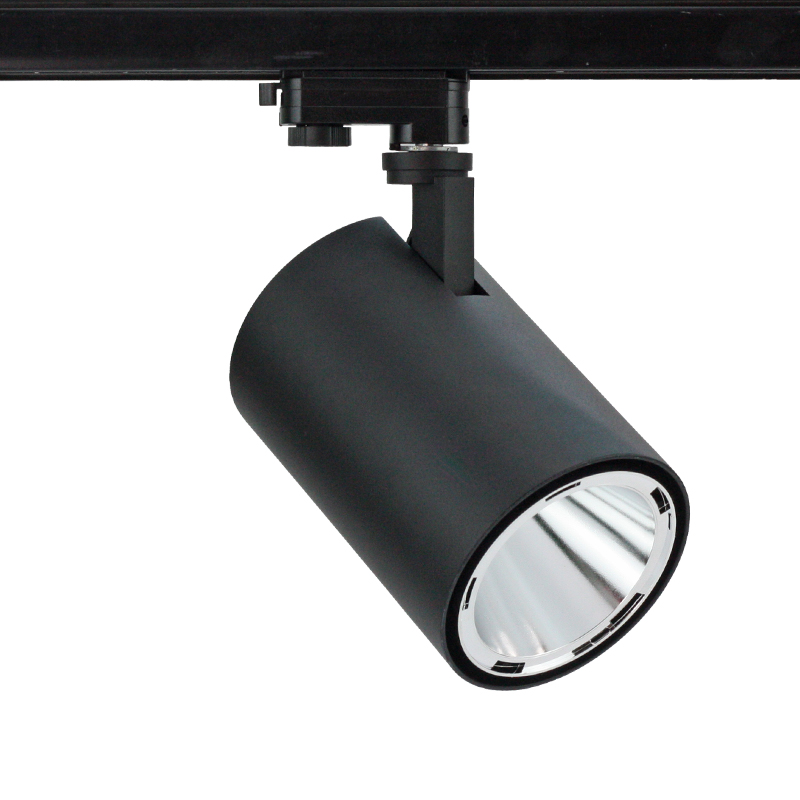

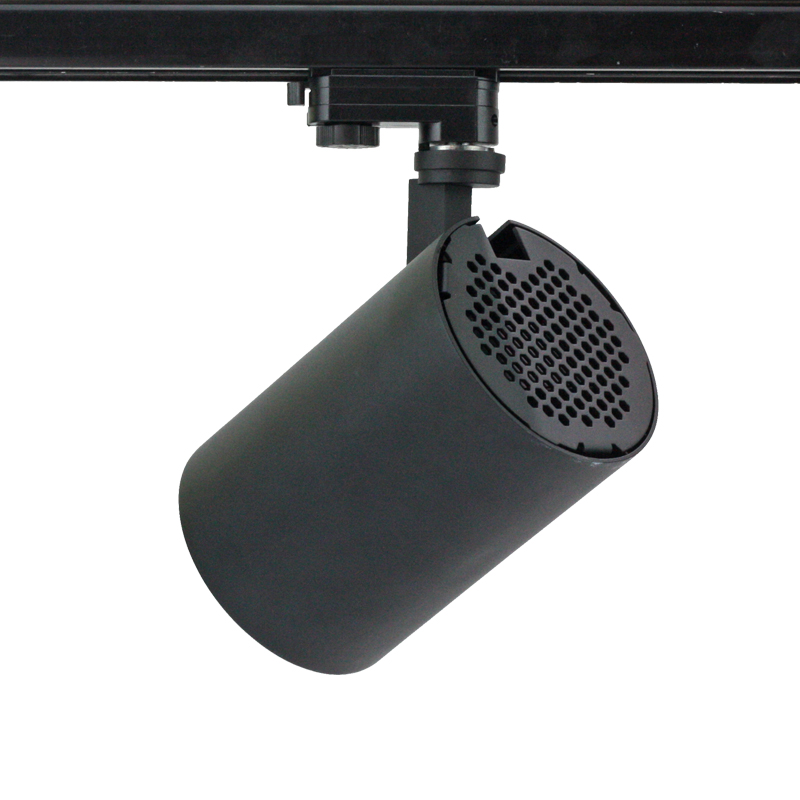

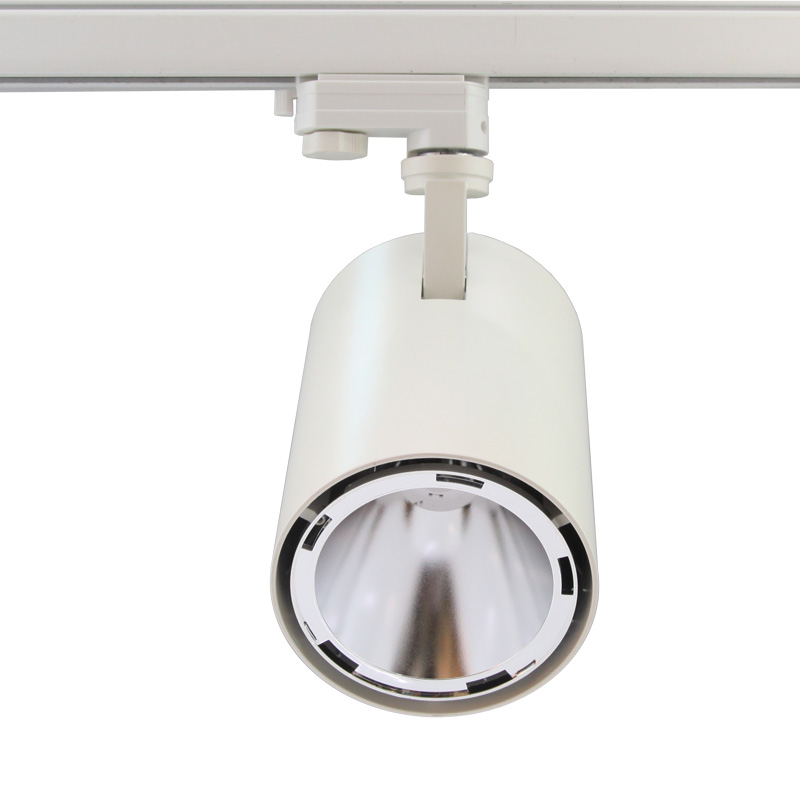

ETU110B20W940-45D-TR ø110 x 158 mm 20 W 1,880 lm 15° / 20° / 45° / Wall-wash reflector 4000K (3000K optional) ≥90
ETU110B30W940-45D-TR ø110 x 158 mm 30 W 2,800 lm 15° / 20° / 45° / Wall-wash reflector 4000K (3000K optional) ≥90

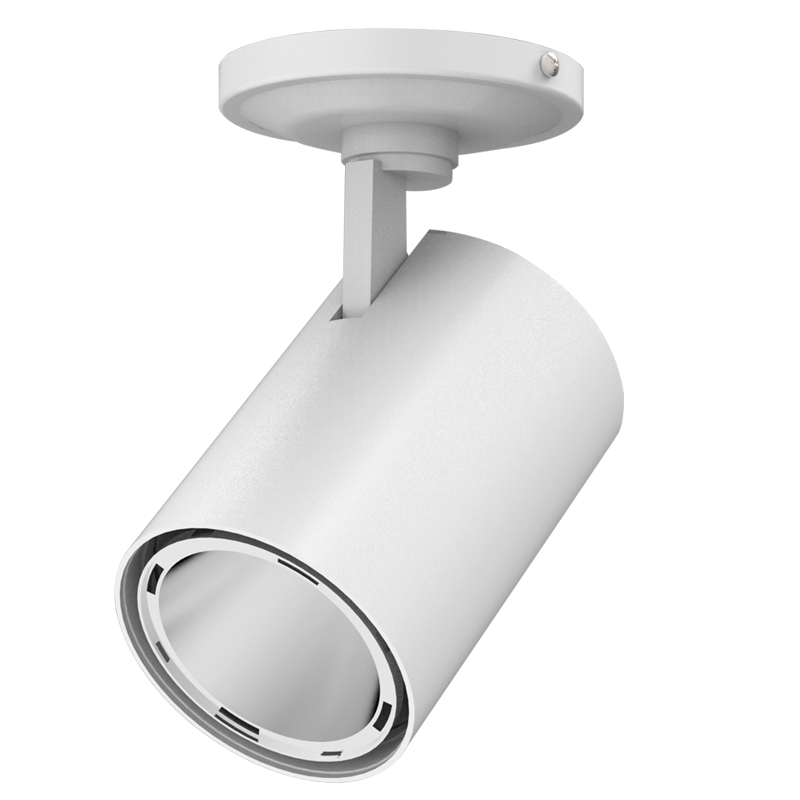

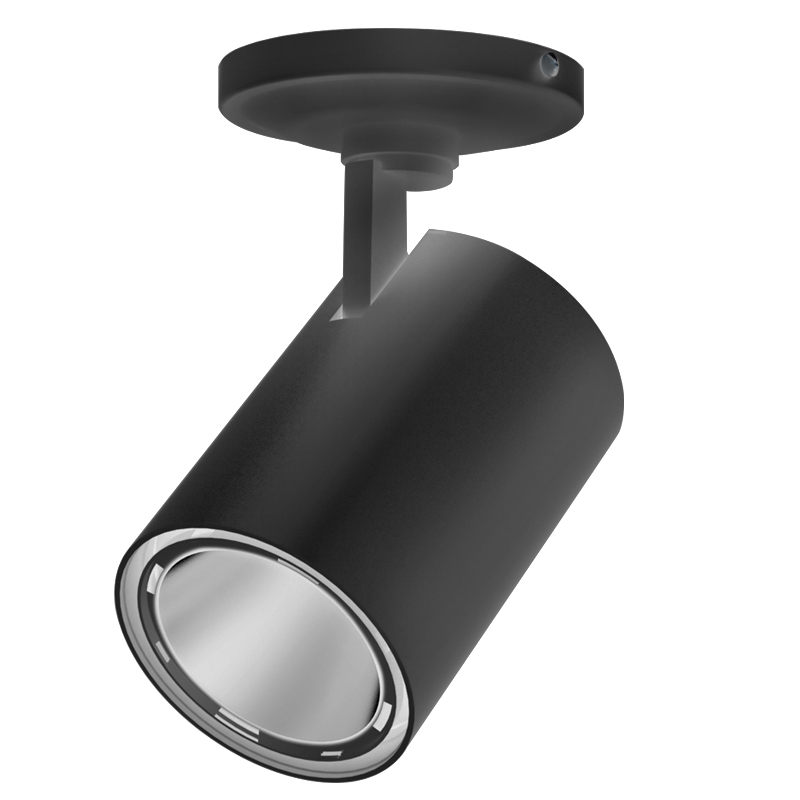

ETU110B20W940-45D-SS ø110 x 158 mm 20 W 1,880 lm 15° / 20° / 45° / Wall-wash reflector 4000K (3000K optional) ≥90
ETU110B30W940-45D-SS ø110 x 158 mm 30 W 2,800 lm 15° / 20° / 45° / Wall-wash reflector 4000K (3000K optional) ≥90

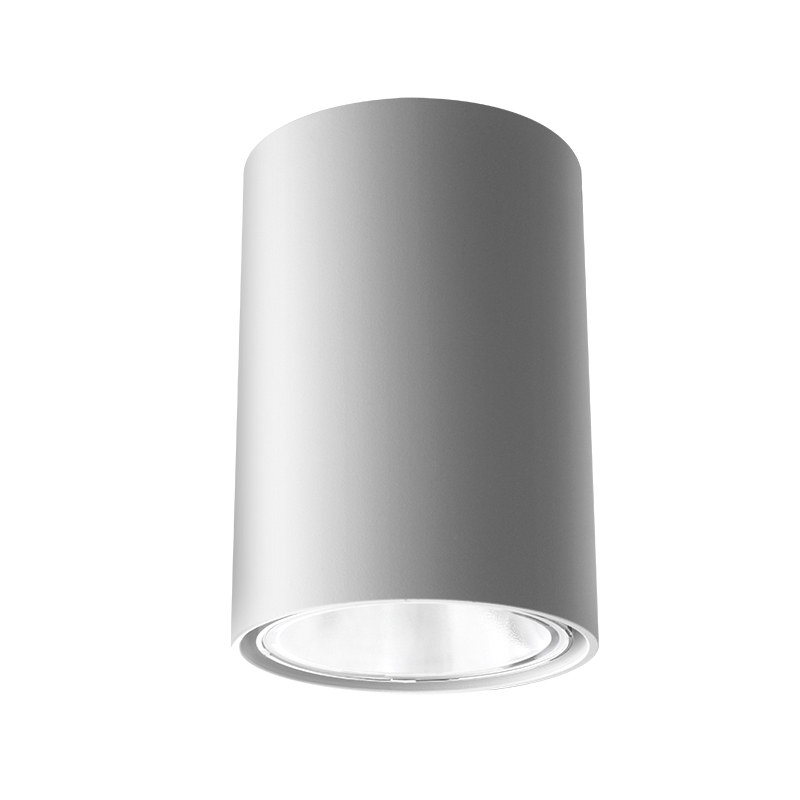

ETU110B20W940-45D-SD ø110 x 158 mm 20 W 1,880 lm 15° / 20° / 45° / Wall-wash reflector 4000K (3000K optional) ≥90
ETU110B30W940-45D-SD ø110 x 158 mm 30 W 2,800 lm 15° / 20° / 45° / Wall-wash reflector 4000K (3000K optional) ≥90

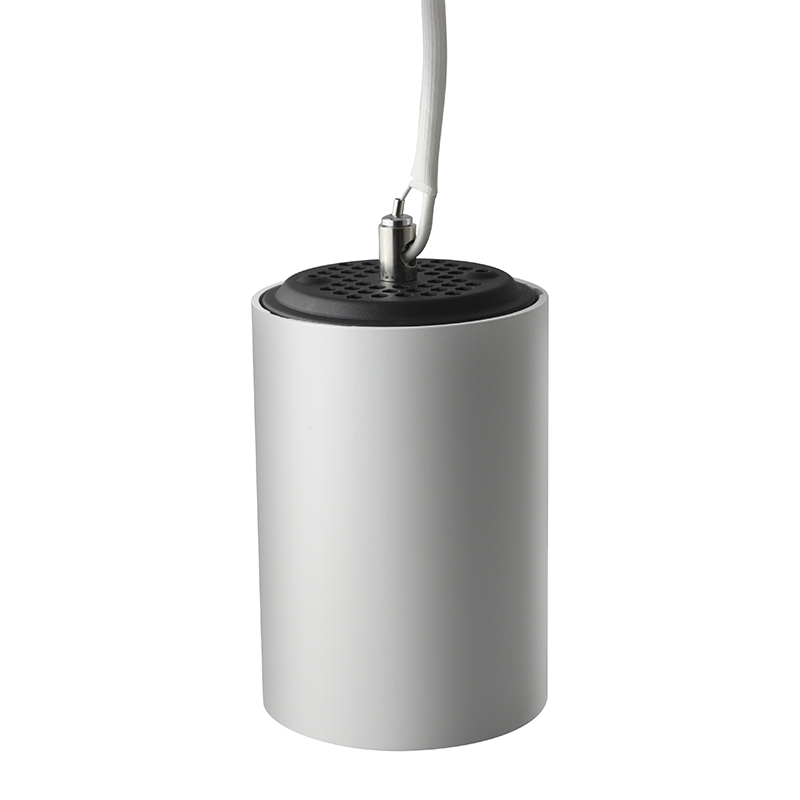

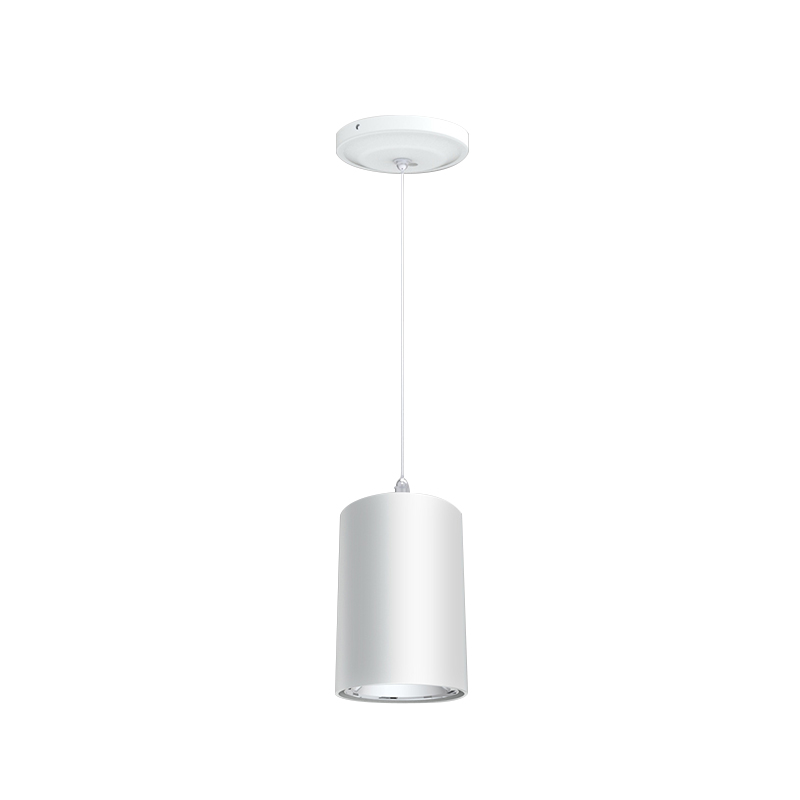

ETU110B20W940-45D-PD ø110 x 158 mm (1.0 m suspension) 20 W 1,880 lm 15° / 20° / 45° / Wall-wash reflector 4000K (3000K optional) ≥90
ETU110B30W940-45D-PD ø110 x 158 mm (1.0 m suspension) 30 W 2,800 lm 15° / 20° / 45° / Wall-wash reflector 4000K (3000K optional) ≥90
