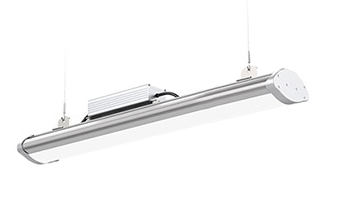

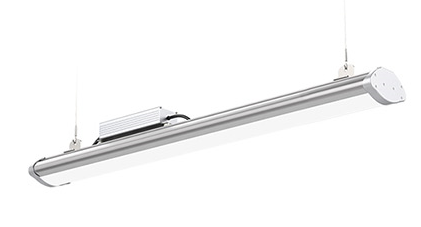

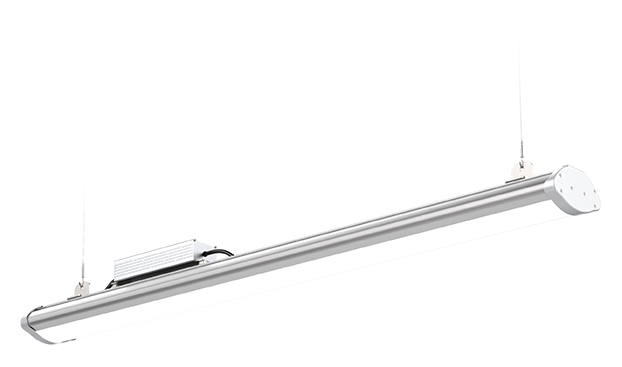

Long Bay G2

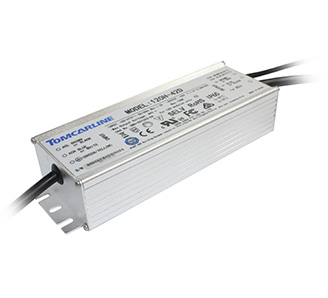

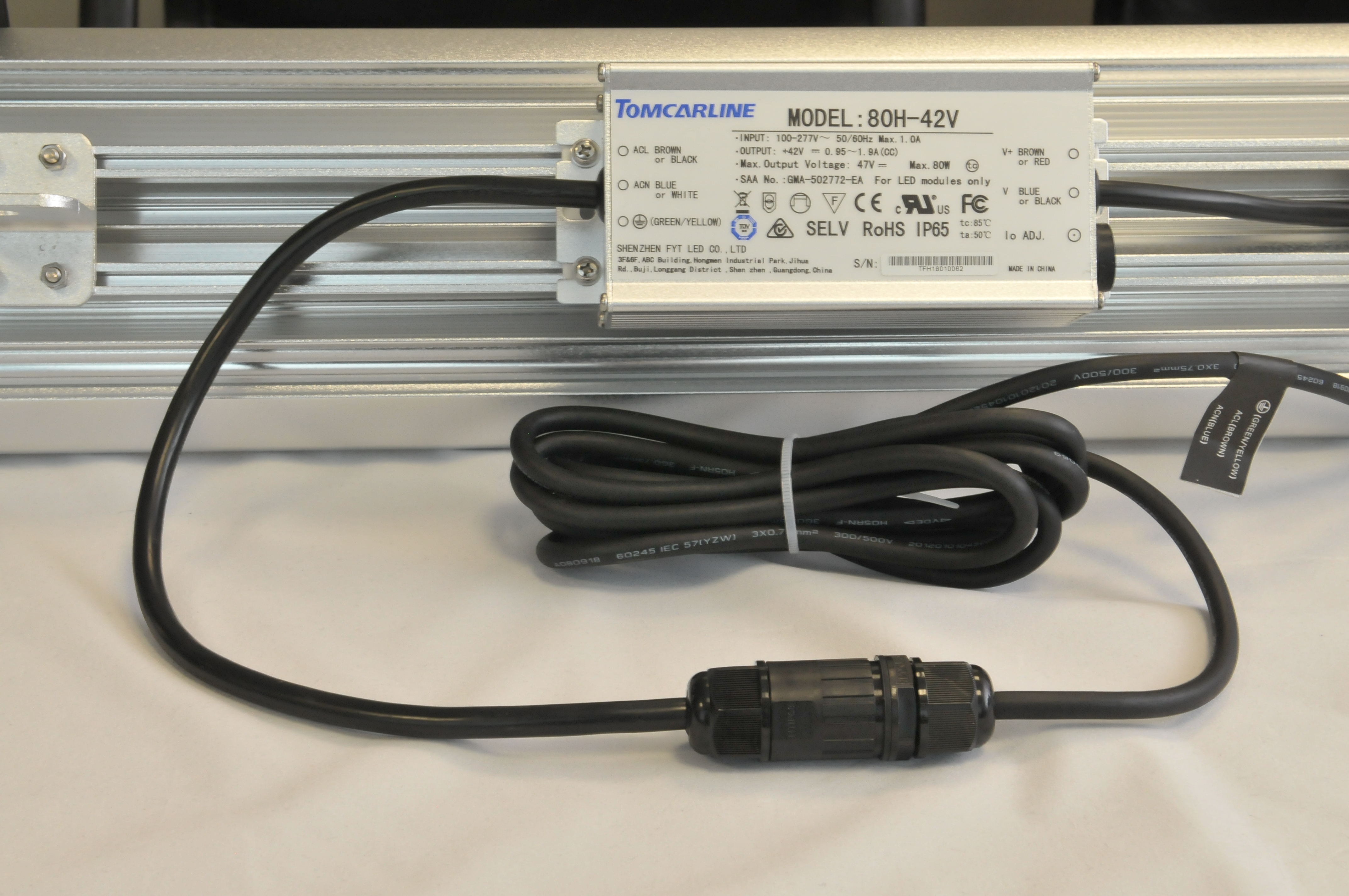

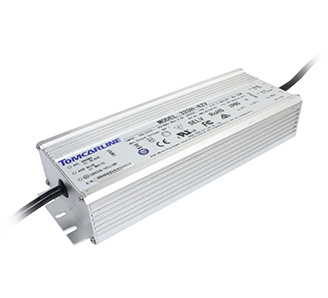

Ecopoint’s LED Long Bays are high output luminaires with a comfortable diffused appearance. It has particular appeal in applications where wide distribution is required to ensure activity areas and walls are comfortably lit while still concealing the intense brightness often present when LED arrays are directly visible. This second-generation product leverages Lumileds LED chips and long-life drivers designed specifically for this luminaire to reach new levels of efficiency and reliability.

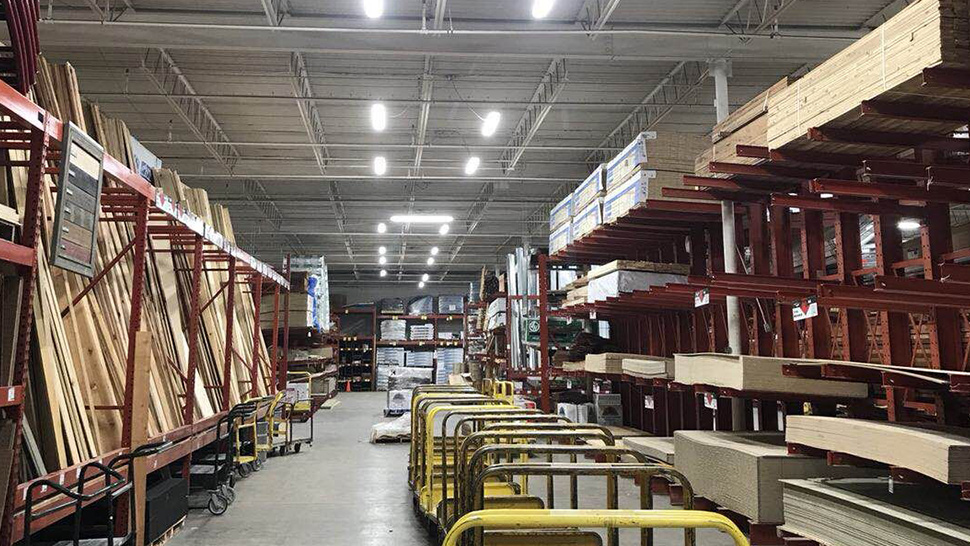

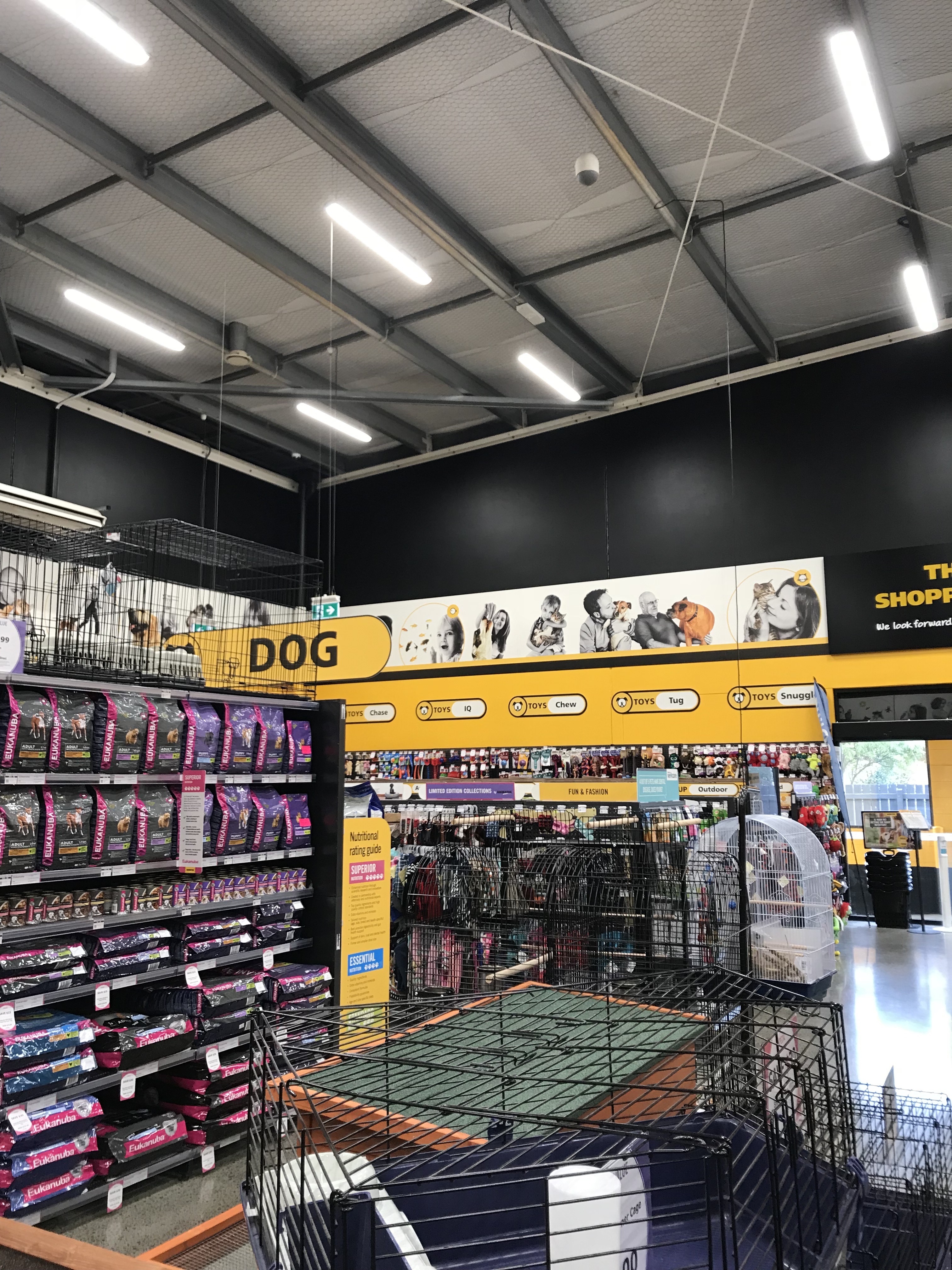

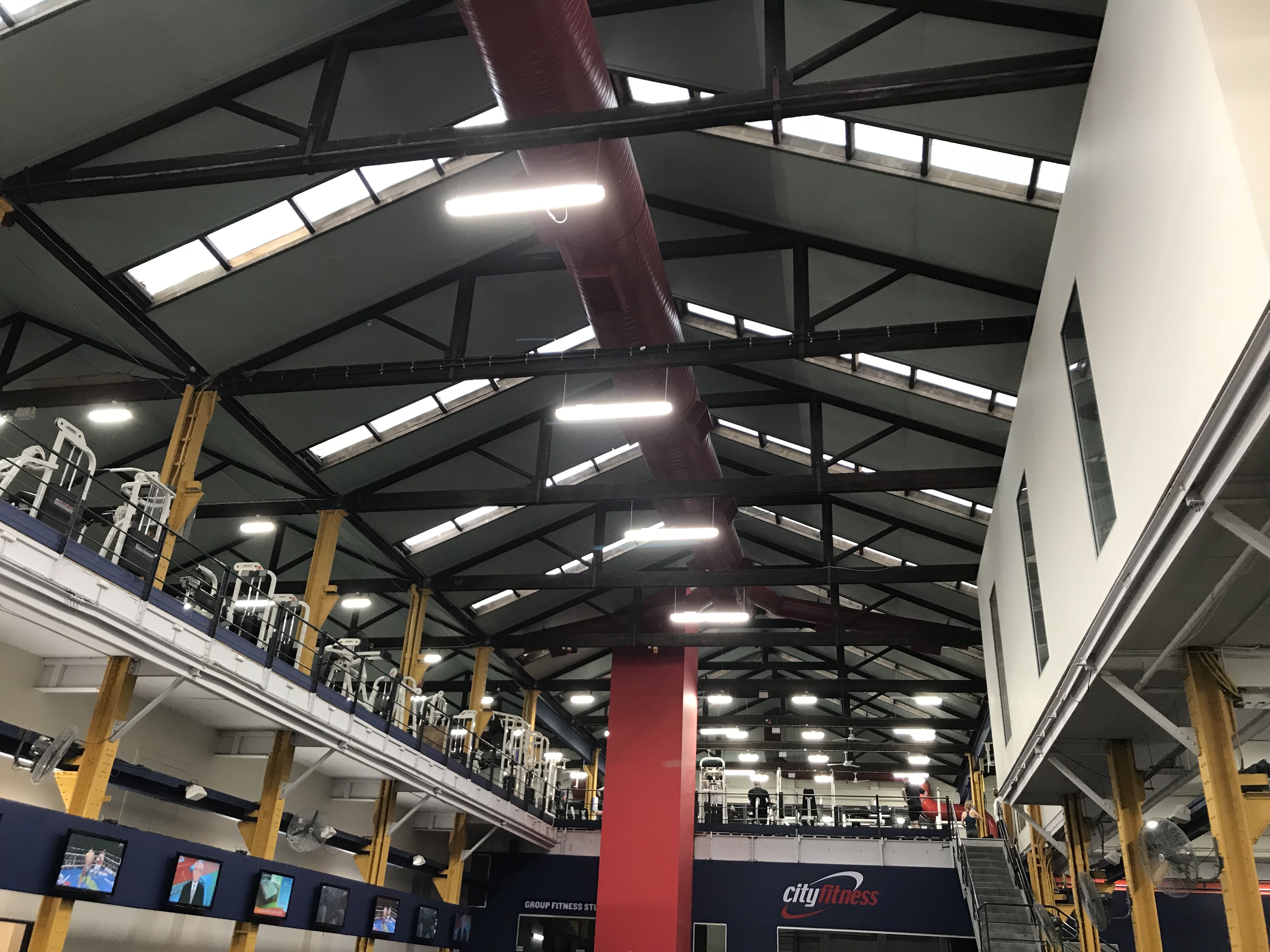

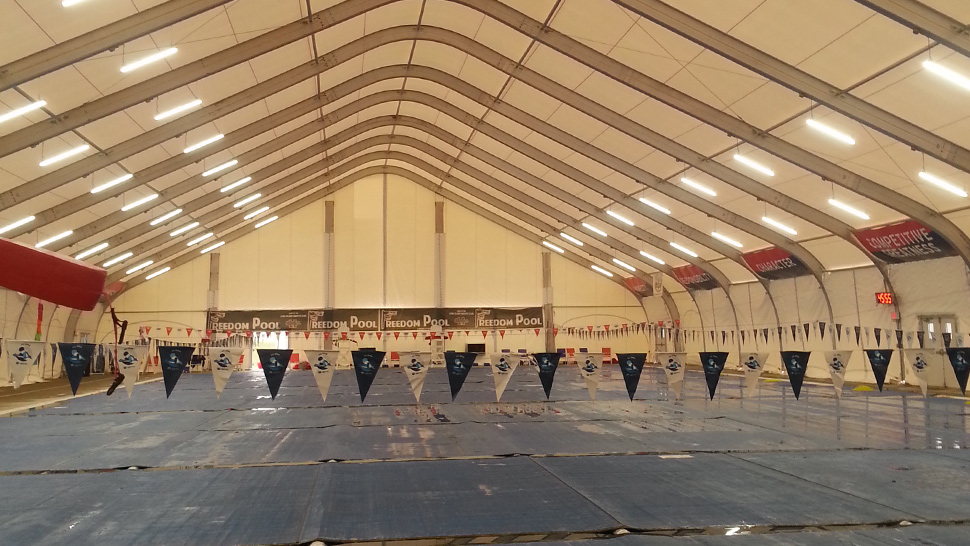

APPLICATIONS
Industrial

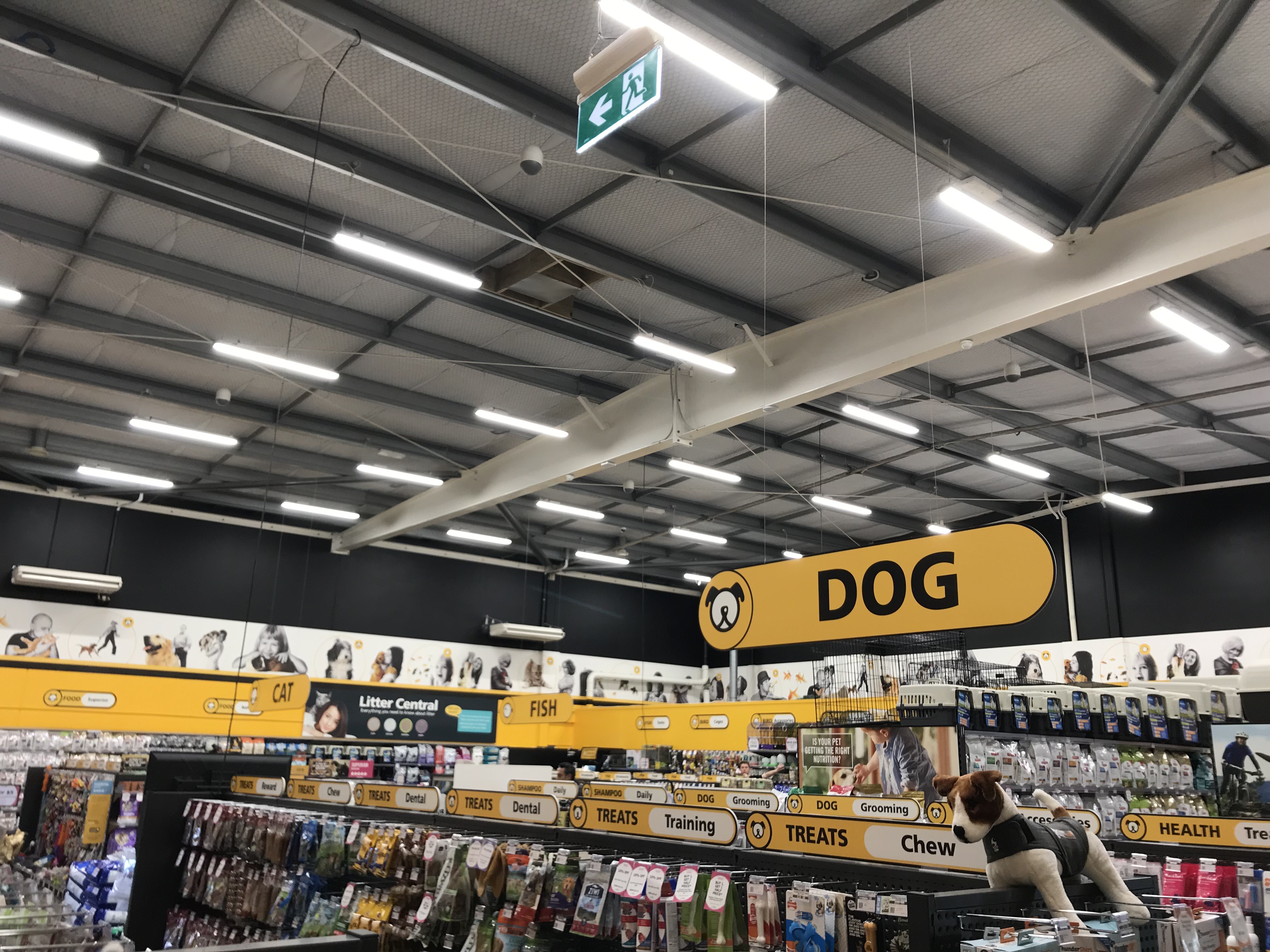

Retail
Warehousing
Commercial
SPECIFICATIONS
Power Factor:
>0.95
Electrical Input:
100-277V AC / 50-60 Hz
FEATURES
Warranty:
5 years
Construction:
Aluminium (extruded), Polycarbonate (PC)
Metal Finish:
Painted

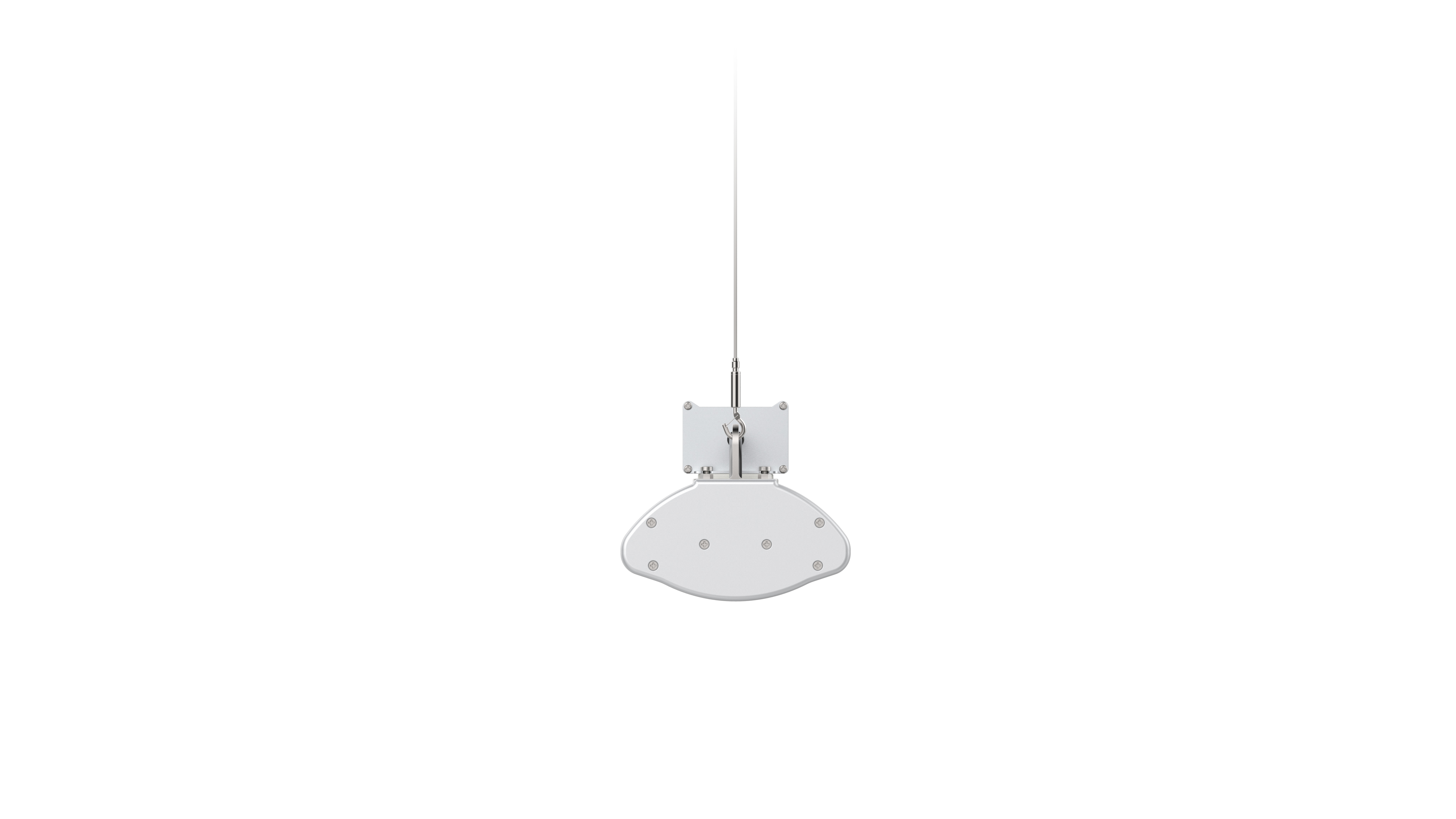

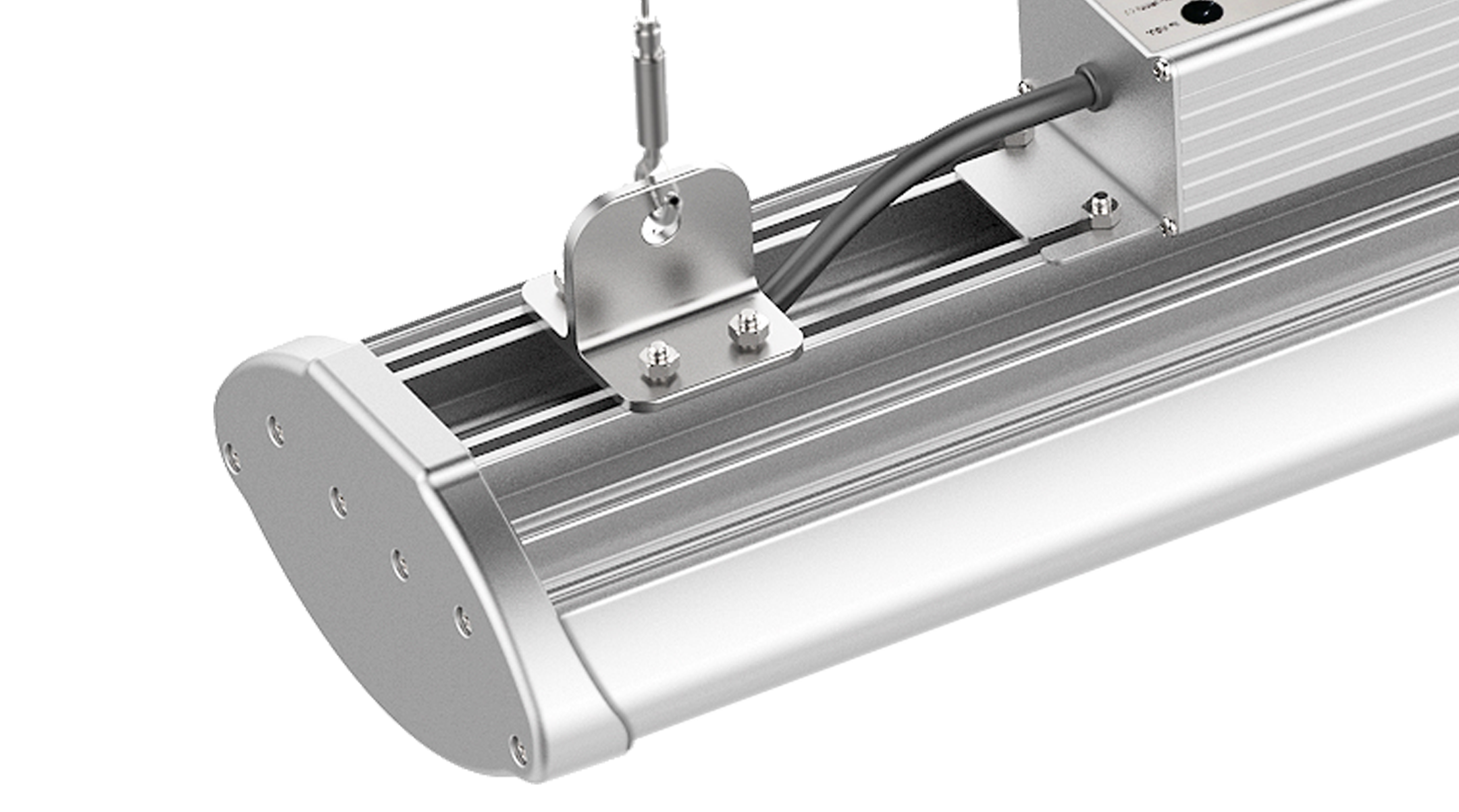

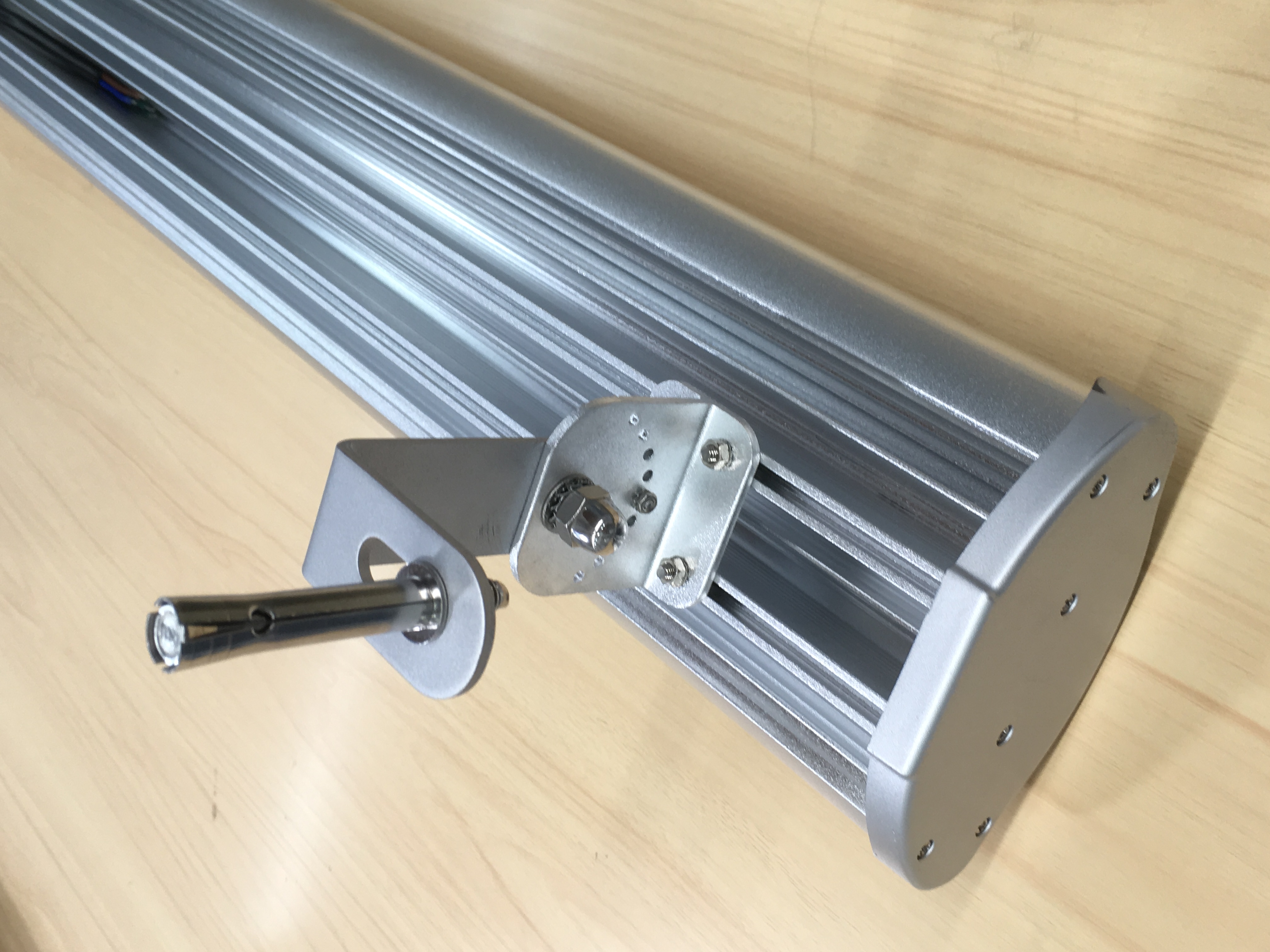

Standard Mounting:
Suspended
Life Prediction (hrs):
L80 > 125,000 hrs (B10)
Ingress Protection:
IP65
Impact Protection:
IK10
| PRODUCT CODE | DIMENSION (mm) | POWER | Luminous Flux | Optic/Beam | Colour Temperature | Colour Rending Index |
|---|---|---|---|---|---|---|
| ELO600S60W840G2 | 605 x 135 x 115 mm | 61 W | 8,100 lm | 120 deg | 4000K | ≥ 80 |
| ELO600S100W840G2 | 605 x 135 x 115 mm | 102 W | 13,400 lm | 120 deg | 4000K | ≥ 80 |
| ELO900S150W840G2 | 905 x 135 x 115 mm | 151 W | 18,400 lm | 120 deg | 4000K | ≥ 80 |
| ELO1200S180W840G2 | 1205 x 135 x 115 mm | 182 W | 22,700 lm | 120 deg | 4000K | ≥ 80 |
