Recessed Spotlight

A variety of LED downlight options for a range of applications, from office to retail to healthcare.

Recessed Spotlight

Recessed Spotlight

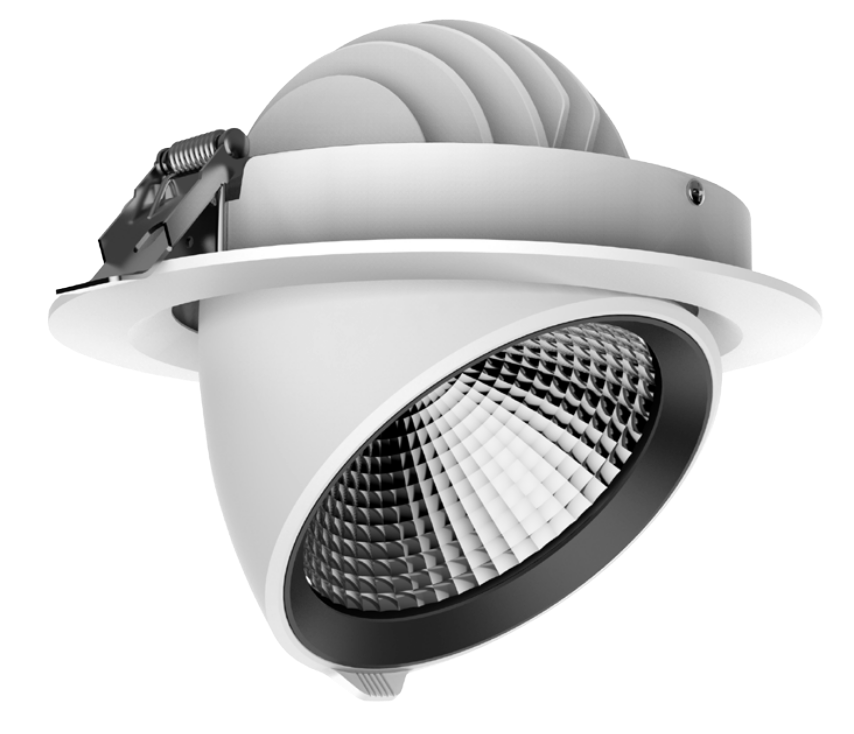

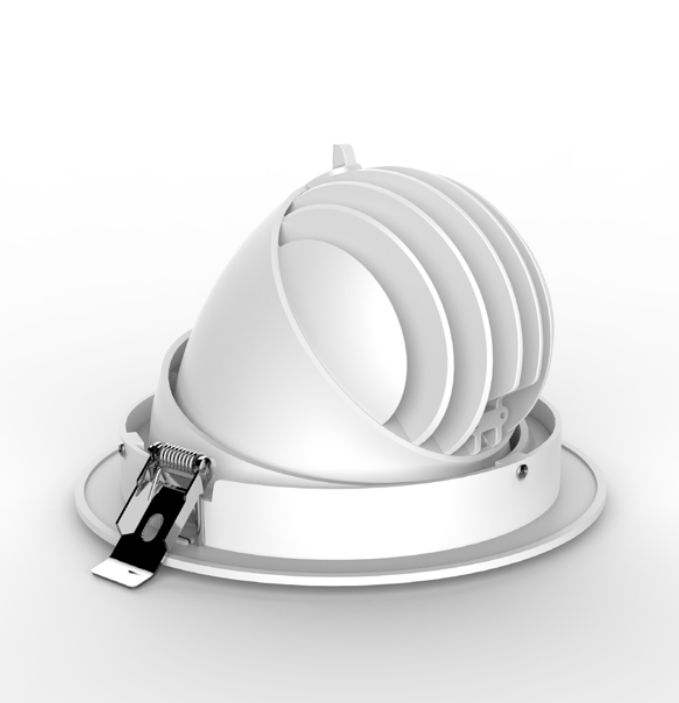

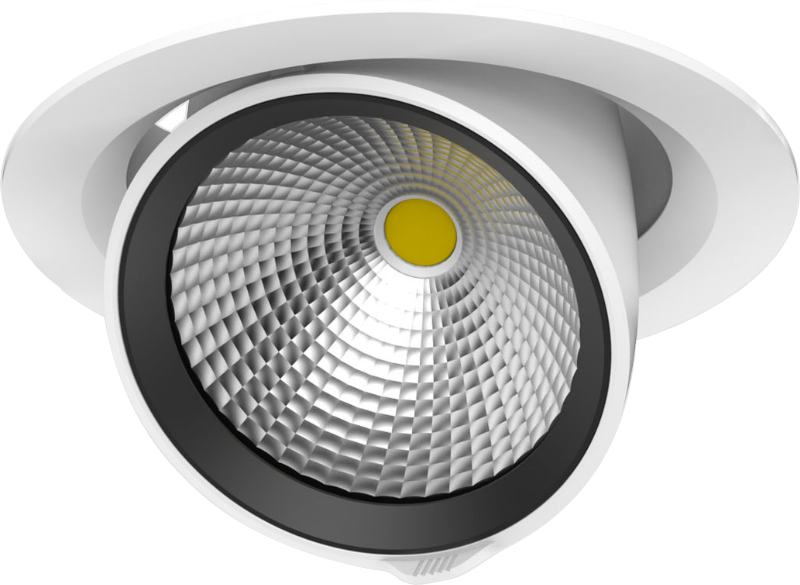

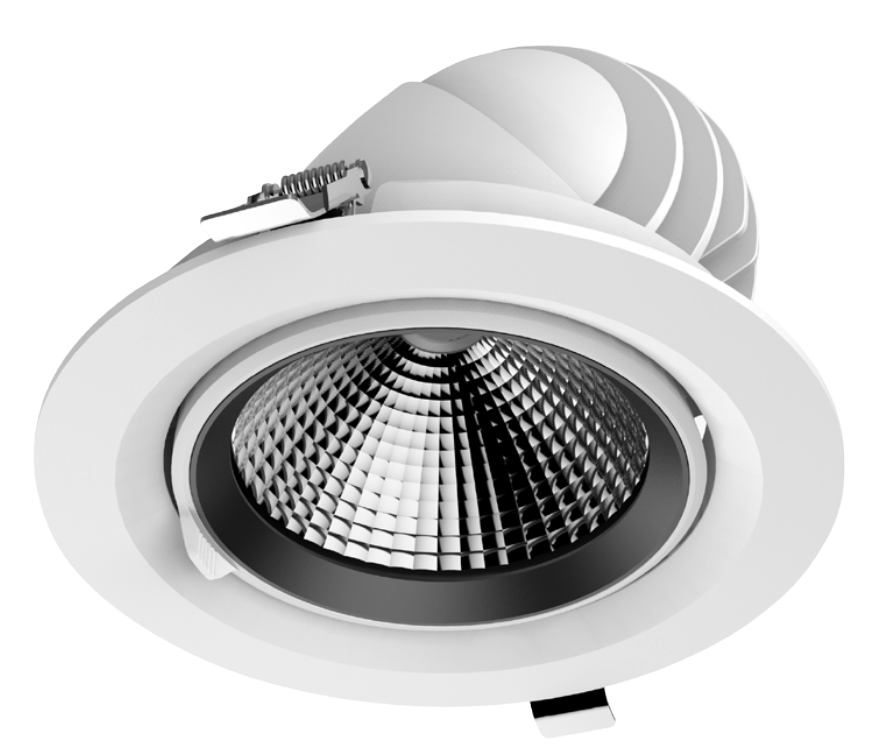

Ecopoint’s Recessed Spotlight utilises a high performance Citizen’s COB light engine in a 350° rotating and 35° tilt-able housing, ideal for highlighting products and features with easily adjustable precision. Coupled with a die-cast ADC12 Aluminium profile, which delivers excellent thermal dissipation, the result is an impressive lumen maintenance value and therefore, product life.

APPLICATIONS

Office, Commercial, Residential, Retail

SPECIFICATIONS

Power Factor:
>0.9
Electrical Input:
200-240V AC / 50-60 Hz

FEATURES

Warranty:
5 years
Construction:
Aluminium (cast)
Metal Finish:
Painted
Standard Mounting:
Recessed
Life Prediction (hrs):
L80 > 81,000 hrs (B10)
Ingress Protection:
IP20
PRODUCT CODE DIMENSION (mm) POWER Luminous Flux Optic/Beam Colour Temperature Colour Rending Index
ERSR96W10W840 Ø 96 x 68 mm 10 W 800 lm 24 deg 4000K (2700K, 3000K, 5000K opt.) >80
ERSR145W20W840 Ø 145 x 102 mm 20 W 1,980 lm 36 deg 4000K (2700K, 3000K, 5000K opt.) >80
ERSR180W45W840 Ø 180 x 128.5 mm 45 W 4,750 lm 60 deg 4000K (2700K, 3000K, 5000K opt.) >80
