Compact Downlight G2

A variety of LED downlight options for a range of applications, from office to retail to healthcare.

Compact Downlight G2

Compact Downlight G2

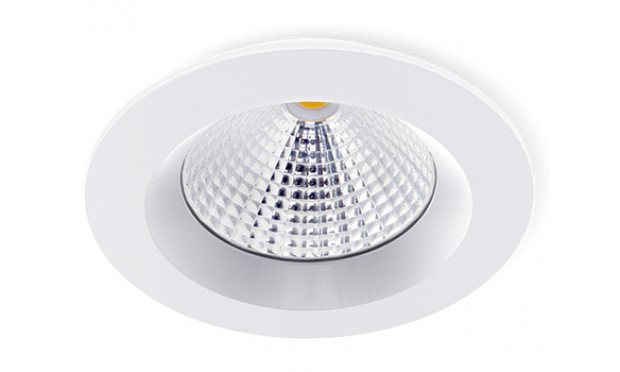

Ecopoint’s compact LED downlight range has been a staple in the range for many years, and this next generation builds on that reputation with improved lifespan, efficiency and a modernised look. A wide range of sizes and outputs are available, utilising a highly reliable Citizen COB LED module and a remote driver. The COB and faceted specular reflector are protected by a clear intermediate lens, offering IP44 protection on the room side.

APPLICATIONS

Office, Commercial, Retail, Residential

SPECIFICATIONS

Power Factor:
>0.9
Electrical Input:
200-240V AC / 50-60 Hz

FEATURES

Warranty:
5 years
Construction:
Aluminium (cast)
Metal Finish:
Painted
Standard Mounting:
Recessed
Life Prediction (hrs):
L80 > 101,000 hrs (B10)
Ingress Protection:
IP54
PRODUCT CODE DIMENSION (mm) POWER Luminous Flux Optic/Beam Colour Temperature Colour Rending Index
EDLR110W13W840G2 Ø110 x 53 mm 15W 1,310 lm 60 deg 4000K >80
EDLR190W18W840G2 Ø190 x 75 mm 19W 1,560 lm 60 deg 4000K >80
EDLR190W25W840G2 Ø190 x 75 mm 26W 2,760 lm 60 deg 4000K >80
EDLR225W35W840G2 Ø225 x 87 mm 34W 3,310 lm 60 deg 4000K >80
